SEPARATOR 15dB (30:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

SEPARATOR 15dB (30:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

Description

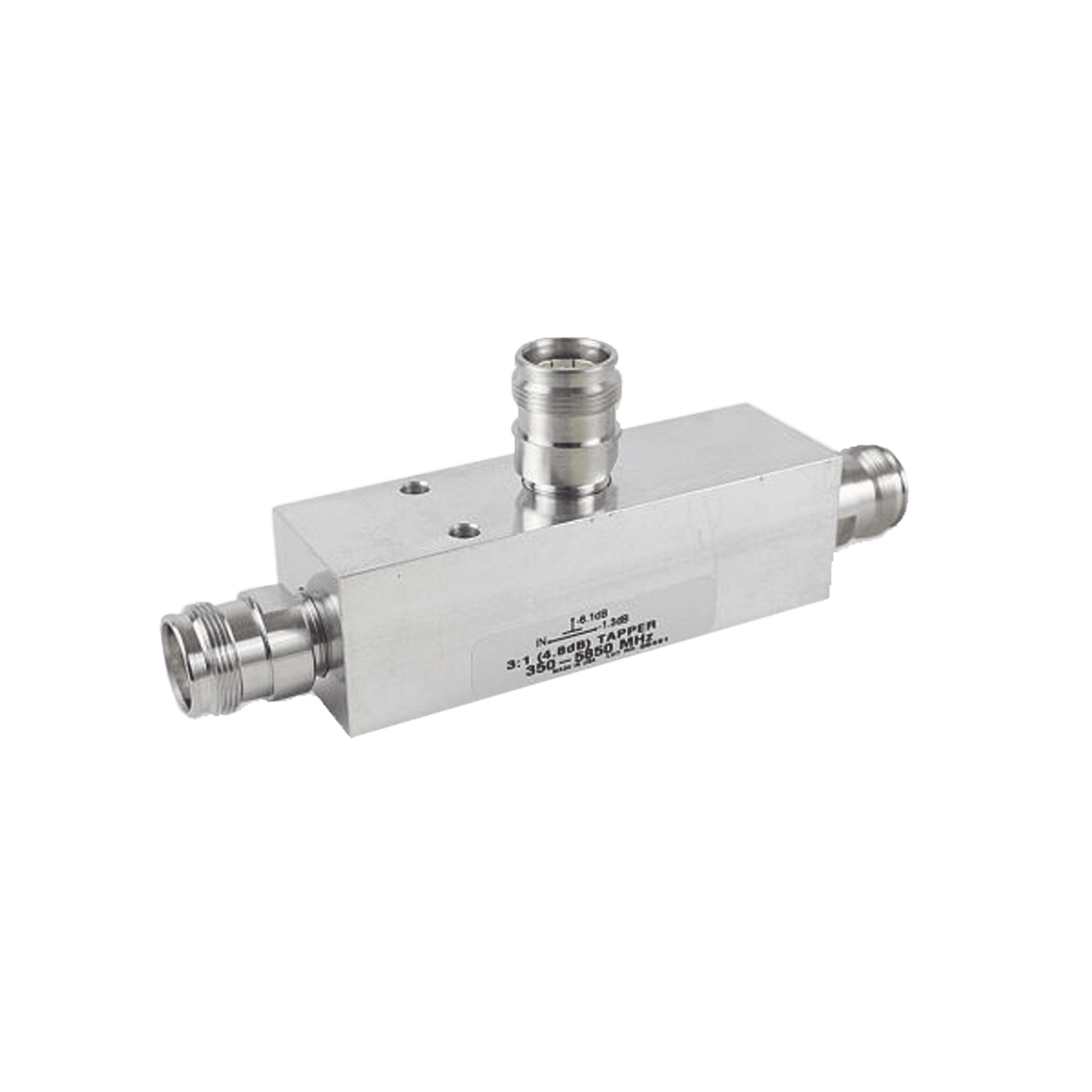

Microlab DN-x4FE series of Tappers evenly split high power cellular signals in fixed ratios from 1000:1 to 2:1 with minimal reflections or loss over the key wireless bands in the range 350 – 5, 930 MHz, (there is no coupling 1550 to 1650 MHz). The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands, even down to a 2:1 split.

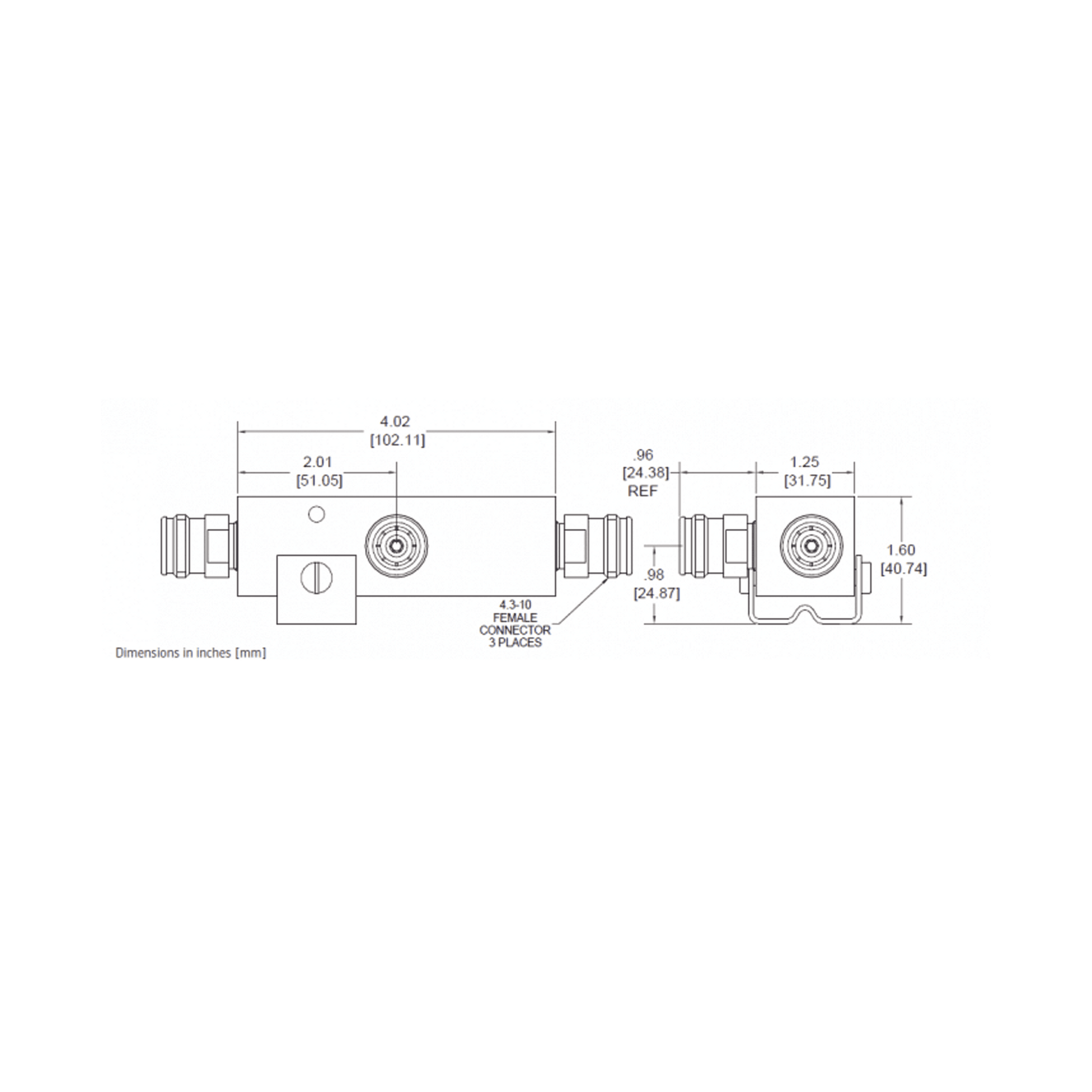

The lightweight design allows easy attachment to a wall using the supplied bracket. Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced. See DN-x4FN, and DN-x4FD series for similar Tappers with N, and 7/16 connectors.

Characteristics

• Split ratios from 1000:1 to 2:1
• Tetra, PMR, Cellular, UMTS, WiFi to 5,930
• Low Specified PIM
• 500W Avg Power Rating
• Minimal RF Insertion Loss
• RoHS compliant
• High Reliability, IP67

Specifications
