SEPARATOR 13dB (20:1) Tap 350-5930MHz 500W -161dBc N TYPE IP67.

Description

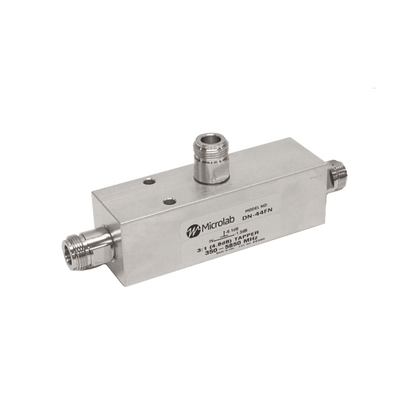

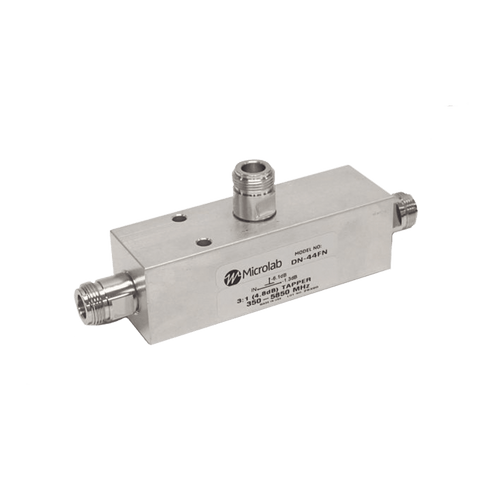

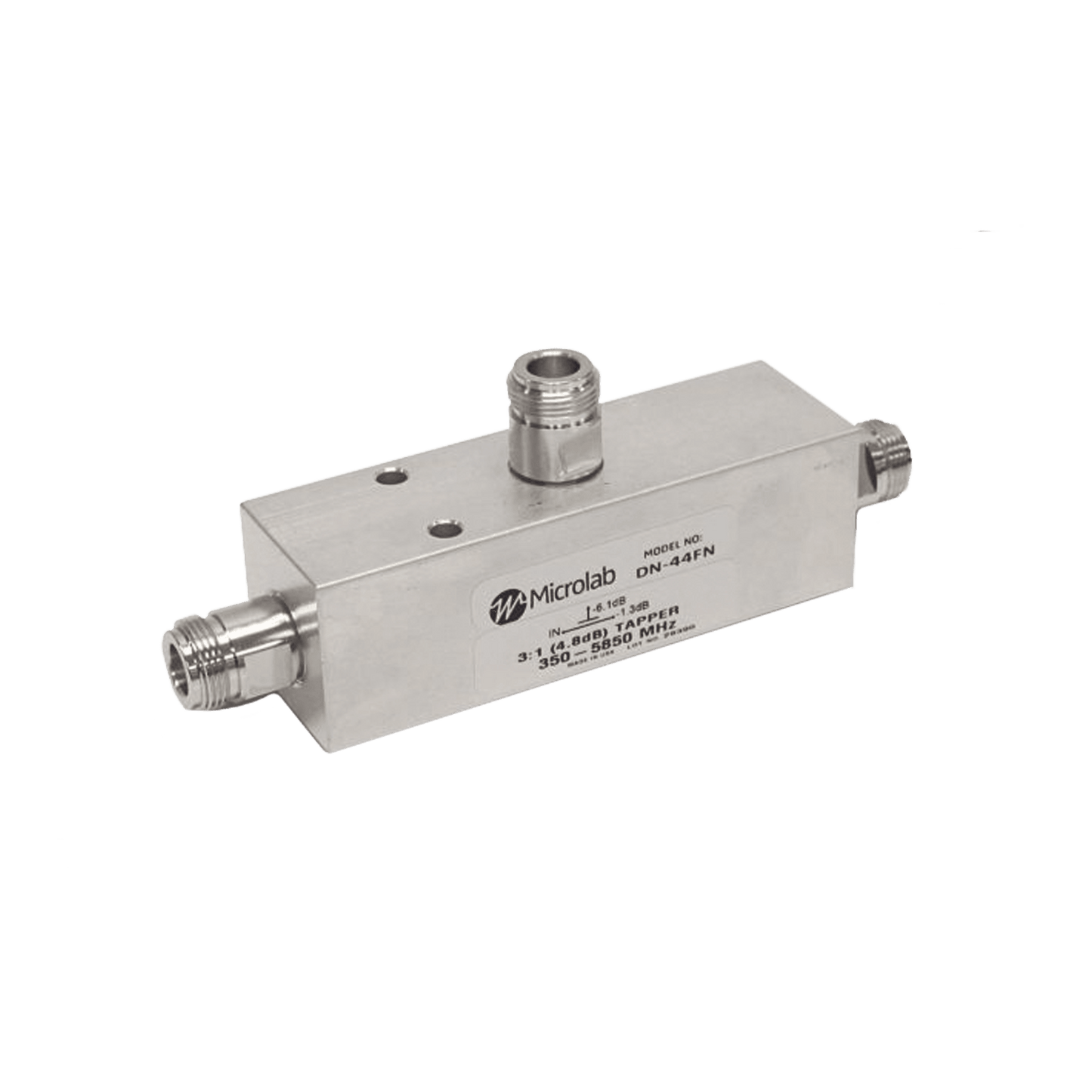

Tappers' Microlab DN-x4FN series unequally splits high-power cellular signals in fixed ratios from 1000:1 to 2:1 with minimal reflections or loss over key wireless bands in the 350 to 5930 MHz range (there is no coupling from 1550 to 1650 Megahertz). Innovative asymmetrical design ensures excellent input VSWR and coupling uniformity over specified bands, even up to a 2:1 split.

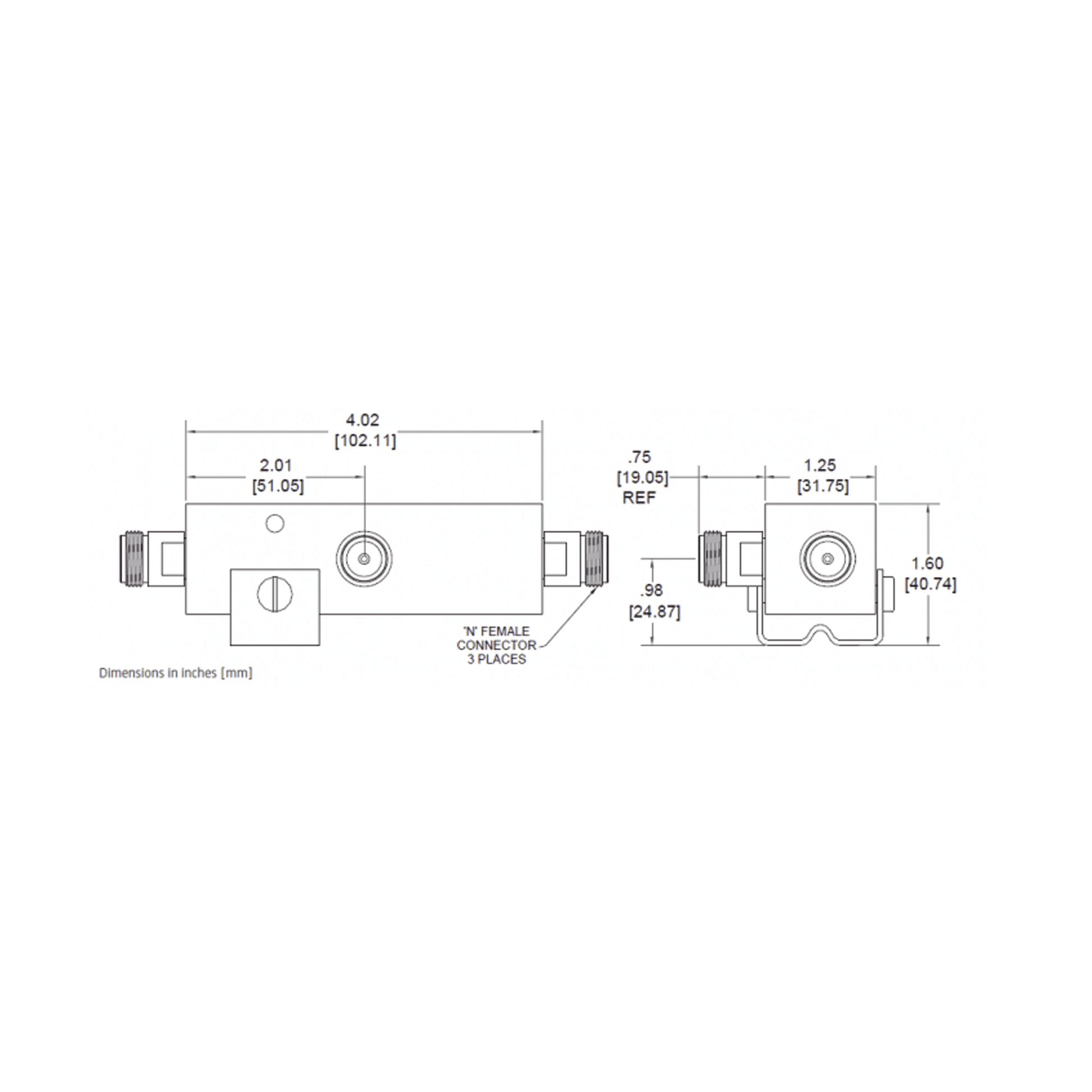

The lightweight design allows for easy attachment to the wall with the supplied bracket. Designed with just a few solder joints and an air dielectric, losses are minimized and reliability is improved. See DN-x4FD and DN-x4FE series for similar Tappers with 7-16 and 4.3-10 connectors.

Characteristics

  • Split ratios from 1000:1 to 2:1
  • Tetra, PMR, Cellphone, UMTS, Wifi
  • Complies with EN50155:2001 (Class T3)
  • Low specified PIM
  • 500W average power rating
  • Minimum RF Insertion Loss
  • RoHS
  • High reliability, IP67

Specifications

Frequency: 350 – 5930MHz
Relationship: 20:1/13dB
Main division/branch: -0,2/-13,0
Can: 500 W on average, 3 kW peak
VSWR: 1:2:1 for 700-2500 MHz
1:3:1 for 350-5930 MHz
PIM: -161 dBc (2 tones at +43dBm)
Connectors: Trimetal type N (f)
Ingress Protection: IP67
Weight: 380 g (0875 lb)
