SEPARATOR 10dB (10:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

  • f40894d56e6229e2f61d5316a51221cb
  • 417ce26d7a183ab3001e54d5863c802e
1 2
  • Separador 10 dB para señales 350-5930 MHz
  • Diseño asimétrico con excelente VSWR de entrada
  • Clasificación de potencia promedio de 500W
  • Bajo PIM especificado para máxima eficiencia
  • Protección IP67 para entornos exigentes

Out of stock

Modelo: DN-74FE

Proveedor: MICROLAB

Código SAT: 32101500

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

SEPARATOR 10dB (10:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67.

Description

Tappers' Microlab DN-x4FE series unequally splits high-power cellular signals in fixed ratios from 1000:1 to 2:1 with minimal reflections or losses over key wireless bands in the 350 to 5930 MHz range (there is no coupling from 1550 to 1650 Megahertz). Innovative asymmetrical design ensures excellent input VSWR and coupling uniformity over specified bands, even up to a 2:1 split.

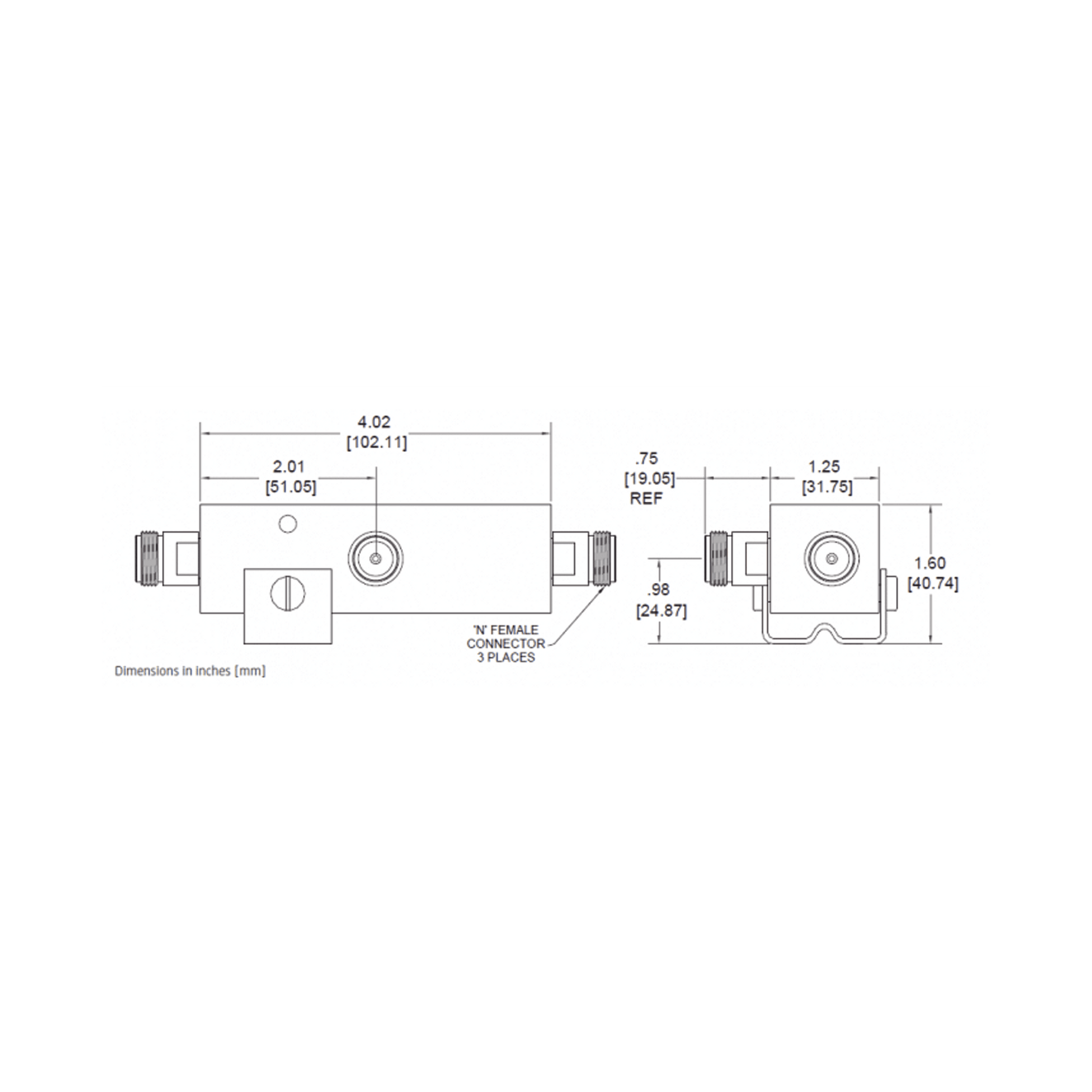

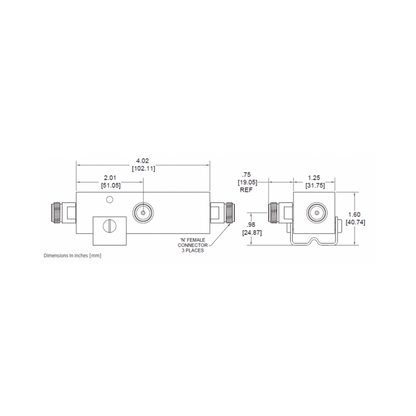

The lightweight design allows for easy attachment to the wall with the supplied bracket. Designed with just a few solder joints and an air dielectric, losses are minimized and reliability is improved. See DN-x4FN and DN-x4FD series for similar Tappers with N and 7/16 connectors.

Characteristics

  • Split ratios from 1000:1 to 2:1
  • Tetra, PMR, Cellphone, UMTS, WiFi at 5,930
  • Low specified PIM
  • 500W average power rating
  • Minimum RF Insertion Loss
  • RoHS
  • High reliability, IP67

Specifications

Frequency: 350 – 5930MHz
Relationship: 10:1/10dB
Main division/branch: -0,4/-10,5
Can: 500 W on average, 3 kW peak
VSWR: 1:2:1 for 700-2500 MHz
1:3:1 for 350-5930 MHz
PIM: -161 dBc (2 tones at +43dBm)
Connectors: 4.3-10 (f) trimetal
Ingress Protection: IP67
Weight: 380 g (0875 lb)
