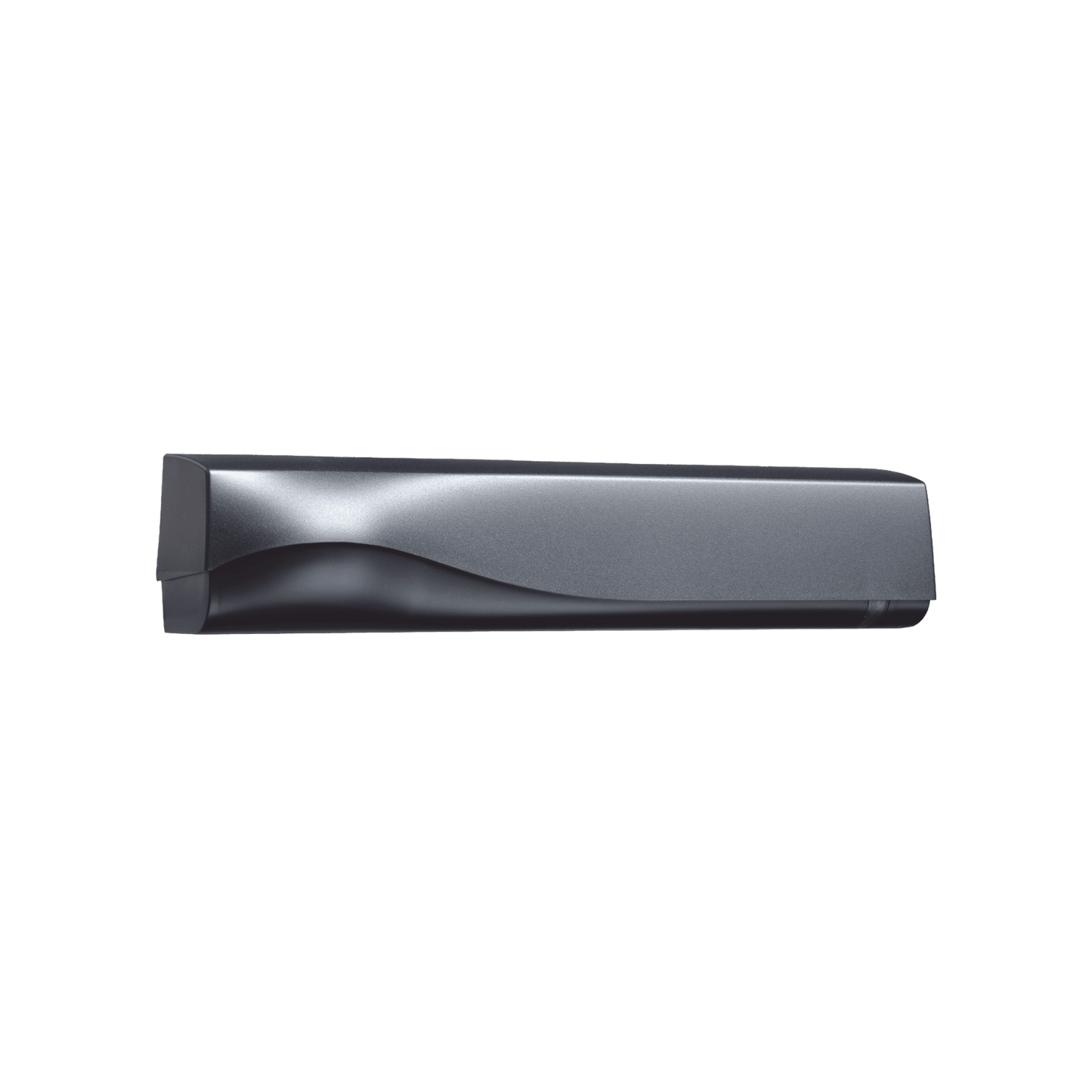

Unidirectional Motion and Presence Sensor for Automatic Doors / Activation and Security in the same Equipment

  • c1d41b053cdc58f2e01a2fac312e596d
1 1

Out of stock

Modelo: 10VIODT1

Proveedor: BEA

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Microwave for Movement.
  • Infrared for presence.
  • Activation and safety sensor.
Physical and Electrical Characteristics:
  • Supply voltage 12 to 30VDC.
  • IP54 protection grade.
  • Operating temperature -25 to 55°C.
Featured Features:
  • Mounting height 1.8 to 3 meters.
  • 4 DIP-Switches for settings.
  • Adjustment potentiometer for detection field.

Opening and security sensor for automatic doors

Additional characteristics

  • Simple adjustments using DIP-Switches and potentiometer.
  • The unidirectionality of the VIO-DT1 allows energy savings to be made inside the building. The door closes sooner and reduces thermal losses.
  • Substantial protection of people thanks to the two fail-safe 24-point infrared curtains.

The 10-VIO-DT1 combines a motion radar sensor to open the door with a double fail-safe active infrared curtain for the protection of users, in accordance with EN 16005. Opening and closing of the door is controlled by a unidirectional radar and safety is guaranteed by the two fail-safe 24-point infrared curtains.
