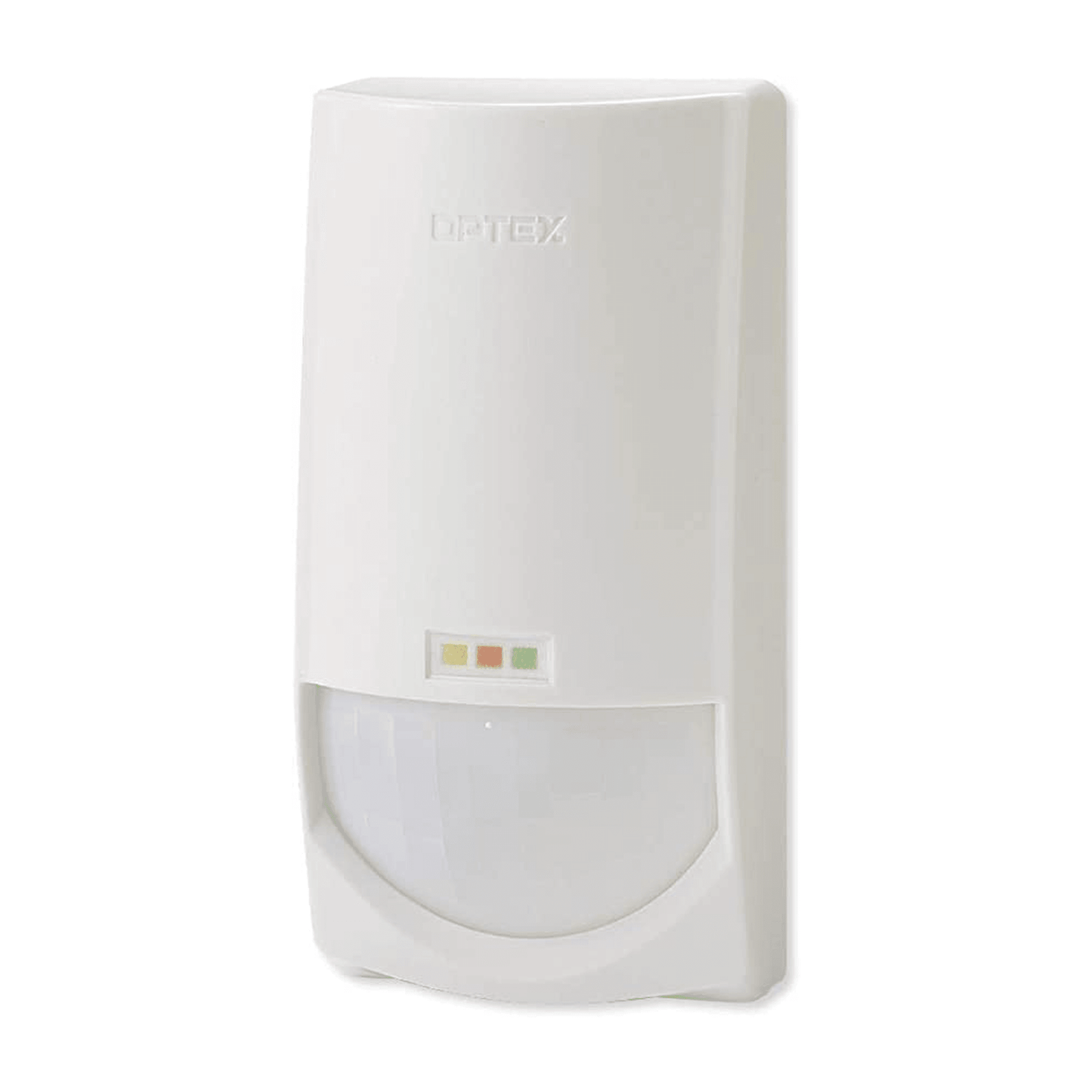

Dual technology indoor detector (PIR + Microwave) with digital QUAD logic and antimasking, reach 15 x 15m (85° fan angle). The CDX series features a dense optical configuration that creates 82 individual detection zones. Thanks to the fact that it has effective digital quad zone logic, 4 or more zones must be crossed to generate an alarm, which allows for truly accurate and reliable detection. The CDX-DAM detector also has double conductive protection, so that visible light interference and radio frequency interference can be easily blocked.
Antimasking
The CDX series uses active infrared technology to detect masking. To provide stable performance, The CDX series differentiates between true masking and other types of masking caused by environmental changes such as the adhesion of dust or dirt, temperature changes and direct light thanks to sensitivity optimization.
