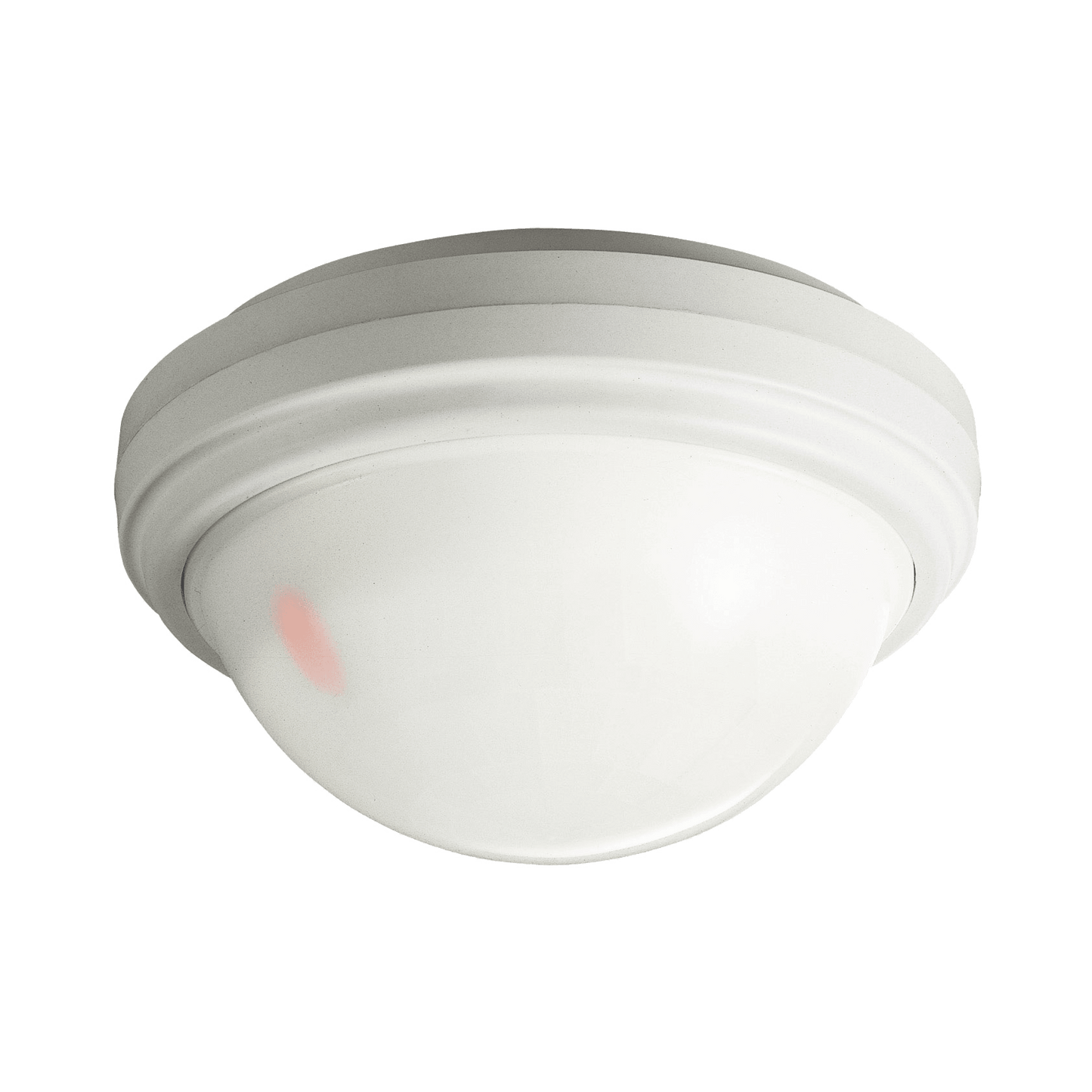

Motion Sensor / 360° Detection / Zoom Function / Ceiling Mounted

  • 00ba563f97d5147f0fd9f55953d38fa4
1 1
  • 276 zonas densas para detección sin puntos muertos
  • Área de detección circular de 18 m de diámetro
  • Ajuste de patrón de 360 grados y alta densidad
  • Instalación flexible entre 2,4 a 5 metros
  • Diseño compacto adecuado para aplicaciones diversas

Out of stock

Modelo: SX-360Z

Proveedor: OPTEX

Código SAT: 46171608

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Description

The exclusive zoom system of the SX-360Z series puts the most flexible detector on the market today. The 276 dense zones provide a circular detection area of ​​18 m (60 ft) at any installation height from 24 to 5 m (8 to 16 ft) without any dead spots. The compact design of the SX-360Z series provides the perfect detector for all types of applications, both residential and commercial, whether they are big or small.

Zoom/pattern adjustment function High density
The pattern angle can be variably adjusted. The special lens can be adjusted up or down by rotating the zoom mechanism housing cover. The angle adjustment can provide a 360-degree detection area with a diameter of 18 meters (60 feet) at any mounting height up to 5 meters (16 feet) with high-precision detection performance. Provides high-density coverage with 276 detection zones, eliminating dead spots in the entire detection area which has a diameter of 18 meters (60 feet).

Applications

  • Buildings
  • Home

Characteristics

  • Patented multifocal lens
  • Protection against false alarms
  • Pattern detection
  • Flexible pattern adjustment with zoom function (patent listed)
  • Circular detection area with 276 dense zones
  • Patented multi-focus lens
  • Selectable pulse count: 1.2 to 4
  • Selectable sensitivity: high, medium or low
  • LED on/off switch
  • Inline Quad Element (Dual Triple)
  • RFI Immunity 30V/m
  • Multilevel Pattern
  • UL/ULC Listed
