Wireless RouterBoard 5GHz ac, 1 Gigabit Port, 720MHz CPU, L4 License

  • 1cf59f0a2b401eb7a77f8f223baae4df
  • ce1e3843bdf3ac630651f403bef367df
  • d460ca45628145b72e4e99fce990b6aa
  • a00c5a11024a7607875116bf88e7b62b
  • 29dcab9386ada8a3f0ec5a06e3edc803
1 5
  • Conexión 802.11ac hasta 866 Mbit/s
  • Soporta canales de 20/40/80 MHz
  • Puerto Gigabit Ethernet para transferencia rápida
  • Ranura miniPCIe para modem 3G/4G adicional
  • Licencia RouterOS L4 para máxima configuración

Out of stock

Modelo: RB922UAGS-5HPACD

Proveedor: MIKROTIK

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

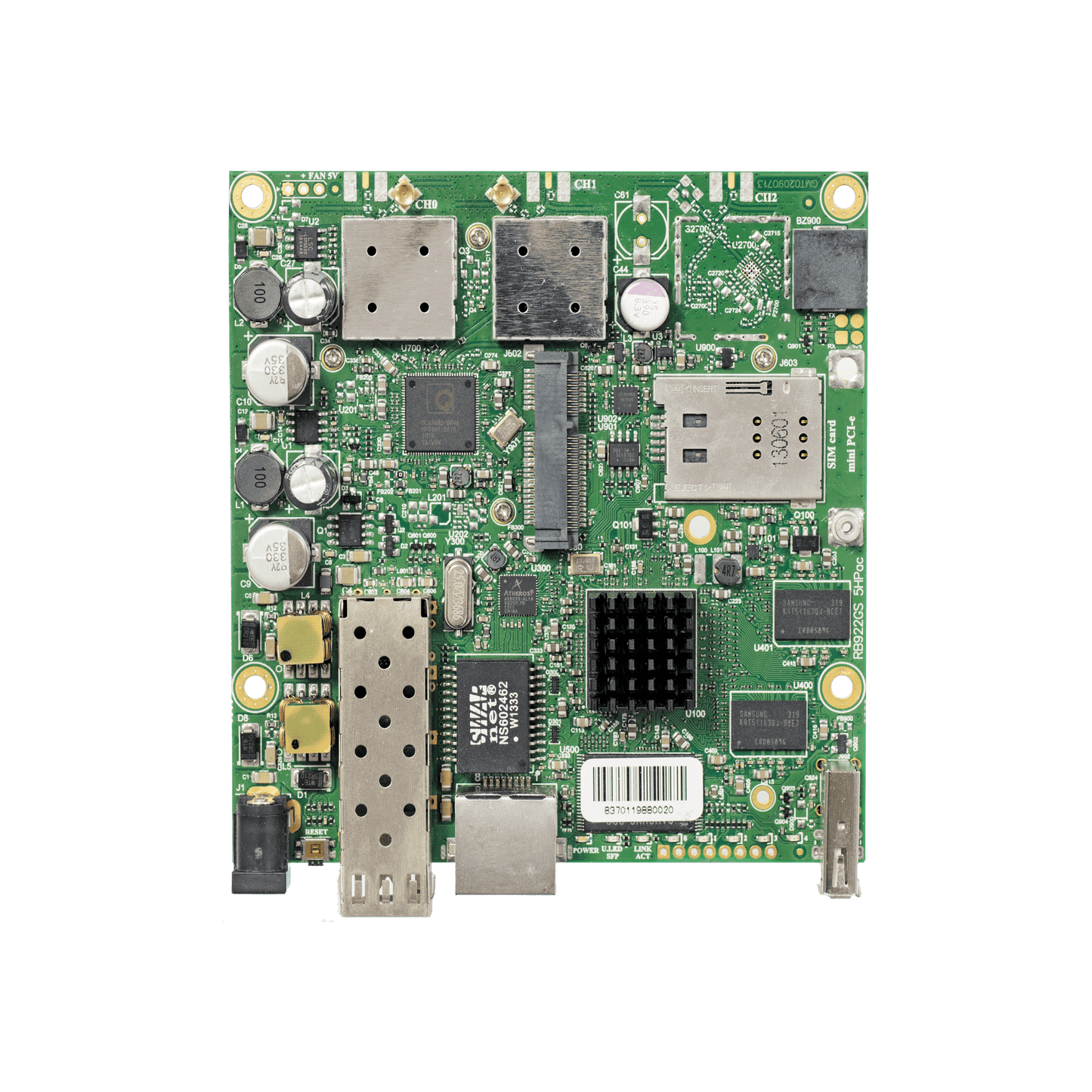

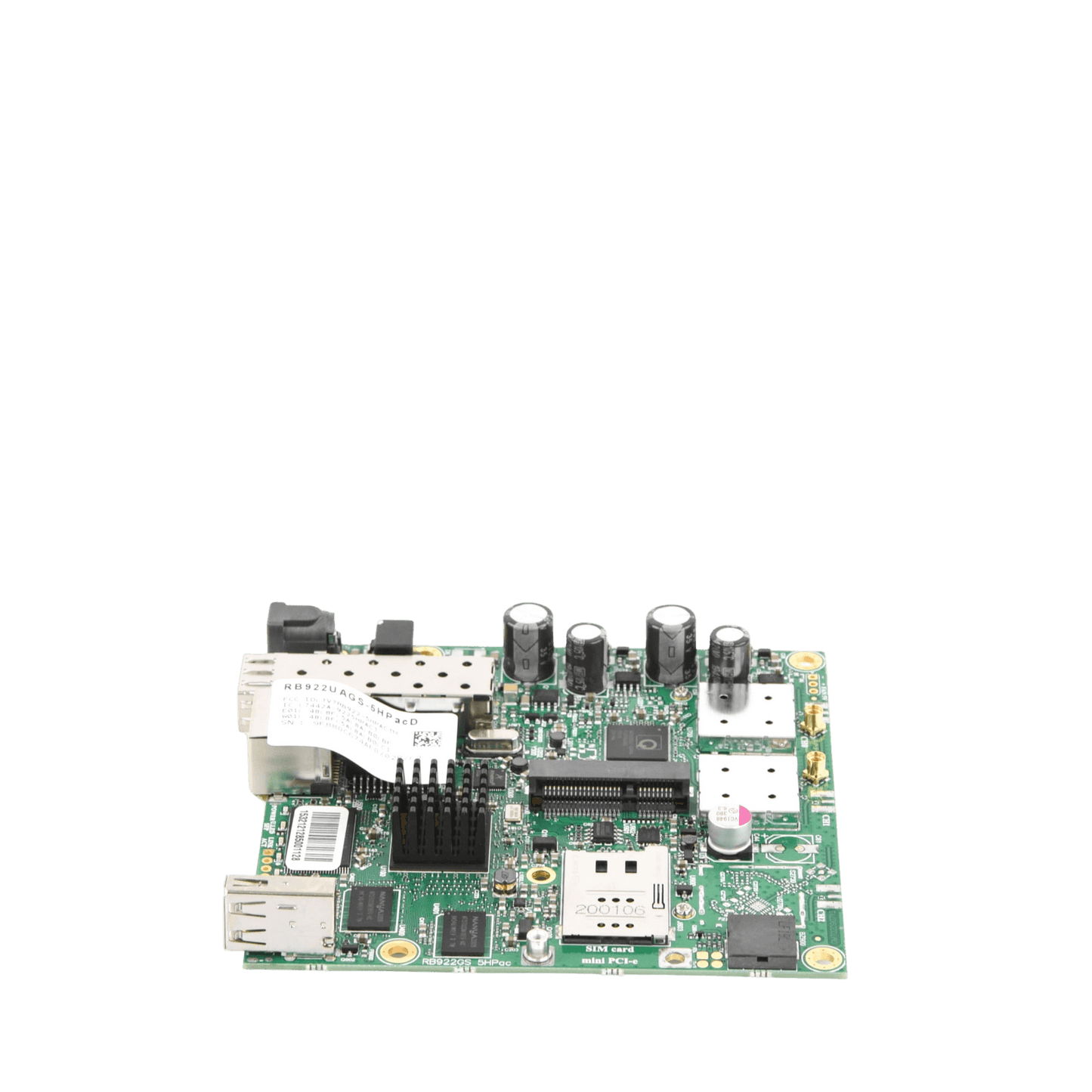

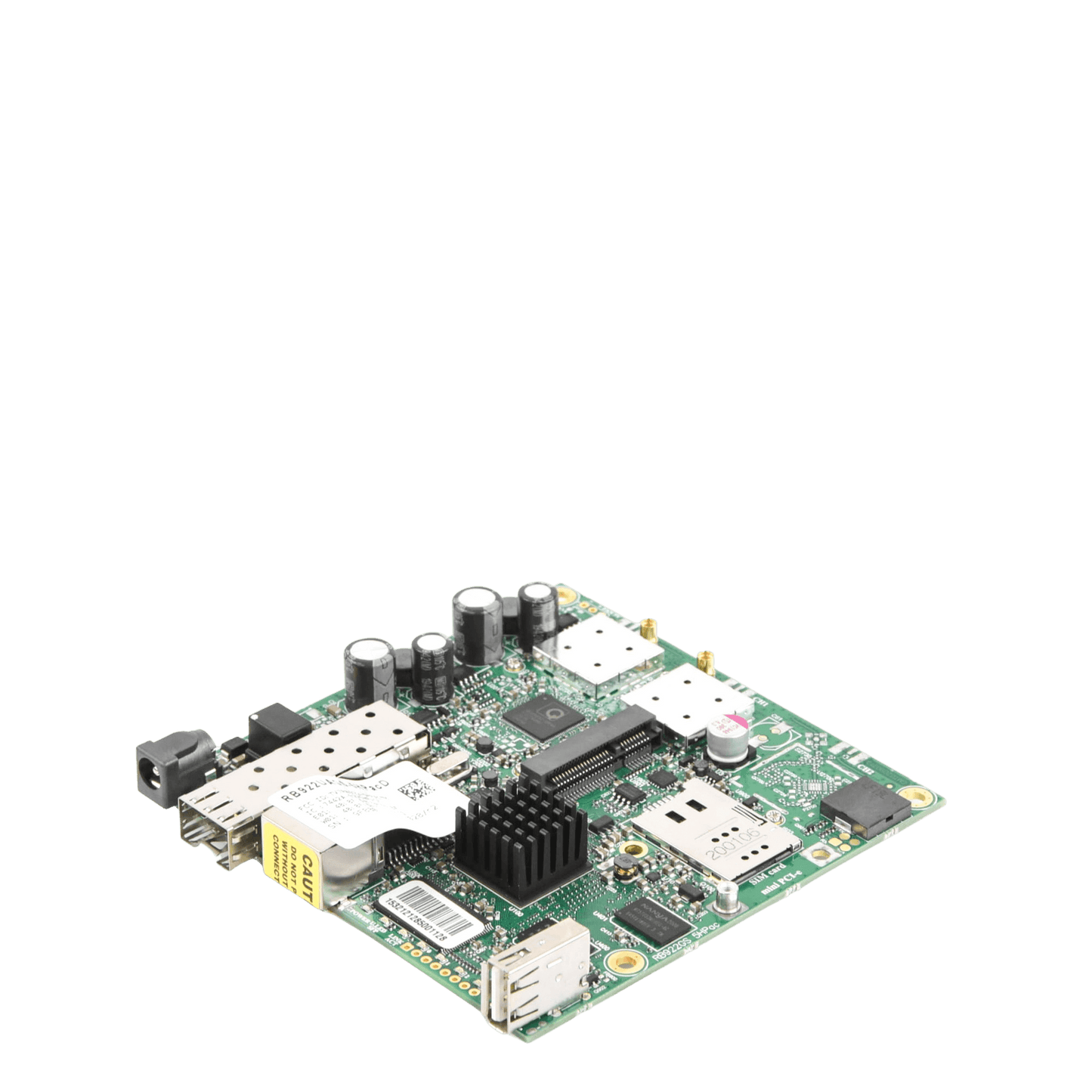

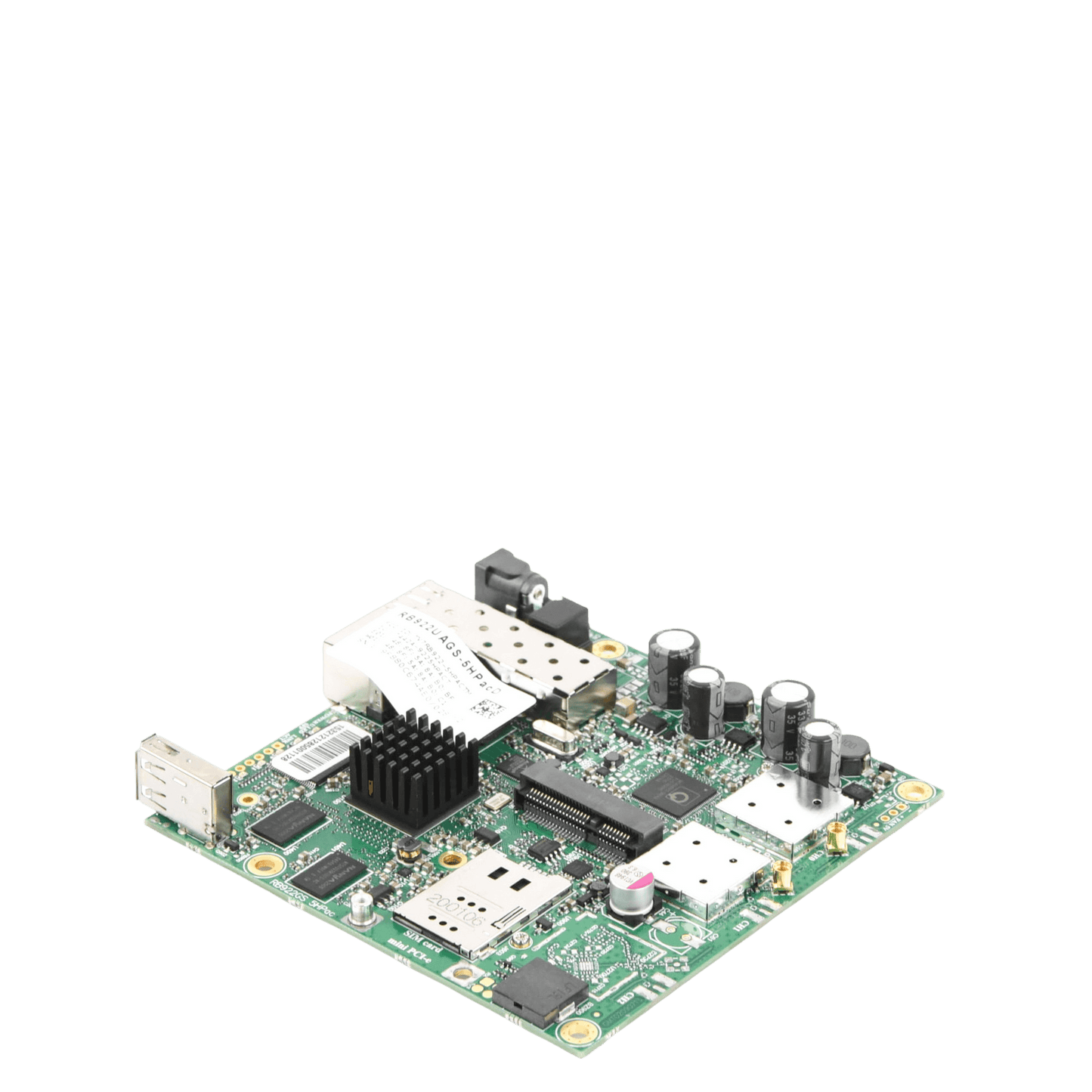

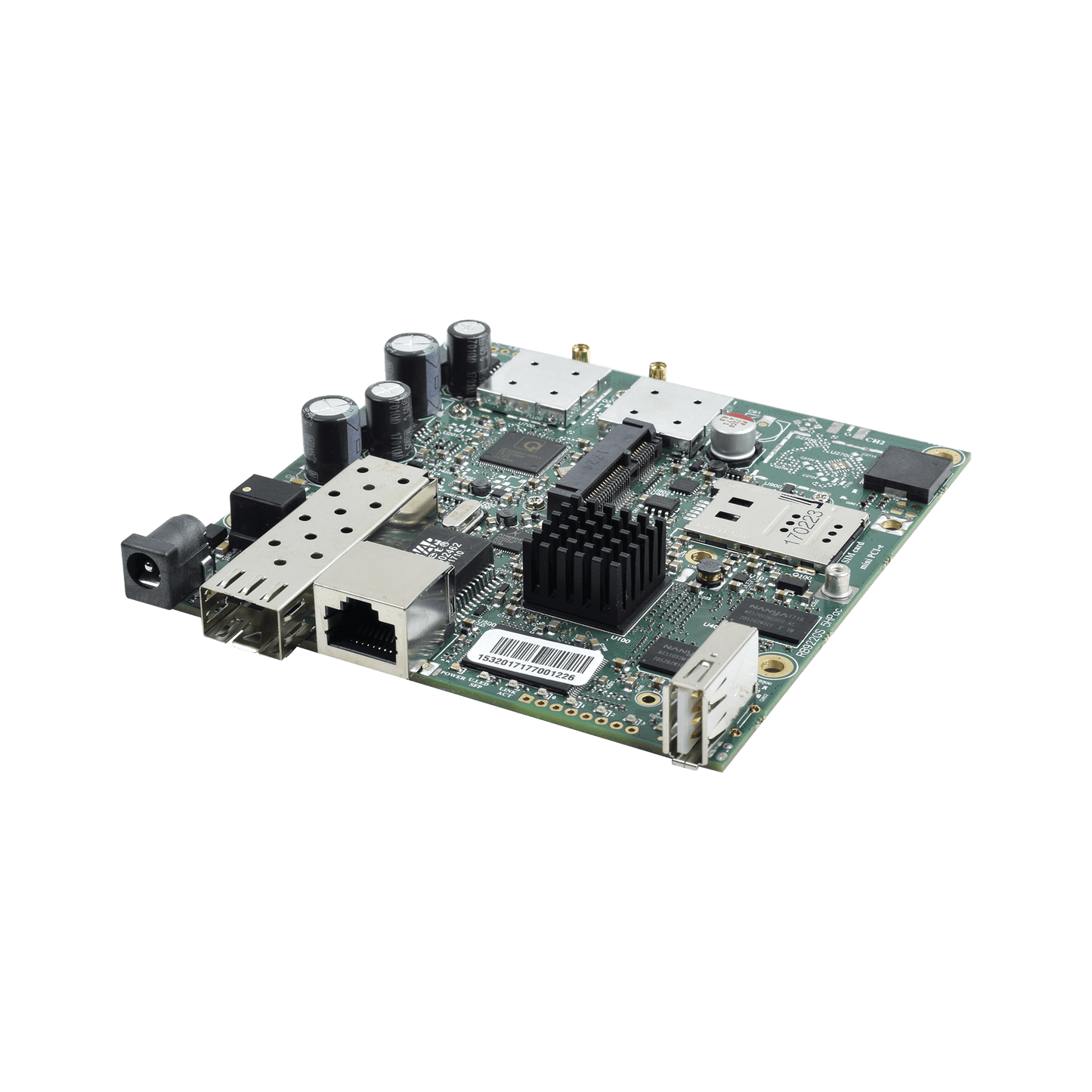

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high-speed wireless connection (up to 866 Mbit data rate and 20/40/80 MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or other wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the powerful integrated 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

Specifications

Details
Product code RB922UAGS-5HPacD
Architecture INTO MIPS
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 105x105mm
RouterOS License 4
Operating system RouterOS
RAM size 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C up to 70°C
MTBF Approximately 100,000 hours at 25°C

Feeding

Details
PoE in Passive PoE
PoE in input voltage 8-30 V
Number of DC inputs 2 (CC content, PoE-IN)
DC jack input voltage 8-30 V
Maximum power consumption 17 W
Fan count Passive

Wireless specifications

Details
Maximum wireless data rate of 5 GHz 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n/ac
MODEL 5GHz wireless chip QCA9882
5 GHz wireless generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP DDMI and
SFP ports 1

Peripherals

Details
Number of SIM slots 1 modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB power reset and
USB slot type USB type A
Maximum USB current (A) 1

Other

Details
PCB Temperature Monitor and
Voltage monitor and

Certifications and approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz Transmit (dBm) Receive sensitivity
6 MBit / s 31 -96
54 MBit / s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

Ethernet test results

RB922UAGS-5HPacD QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
