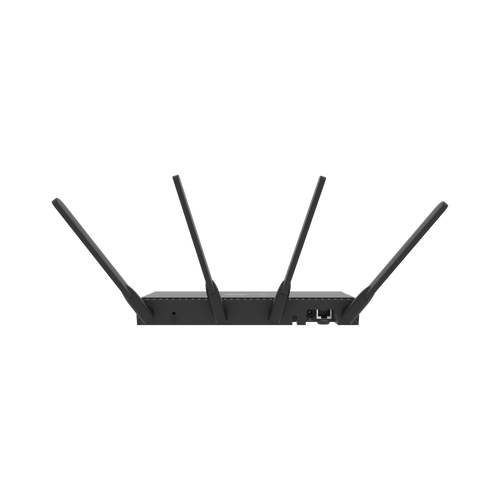

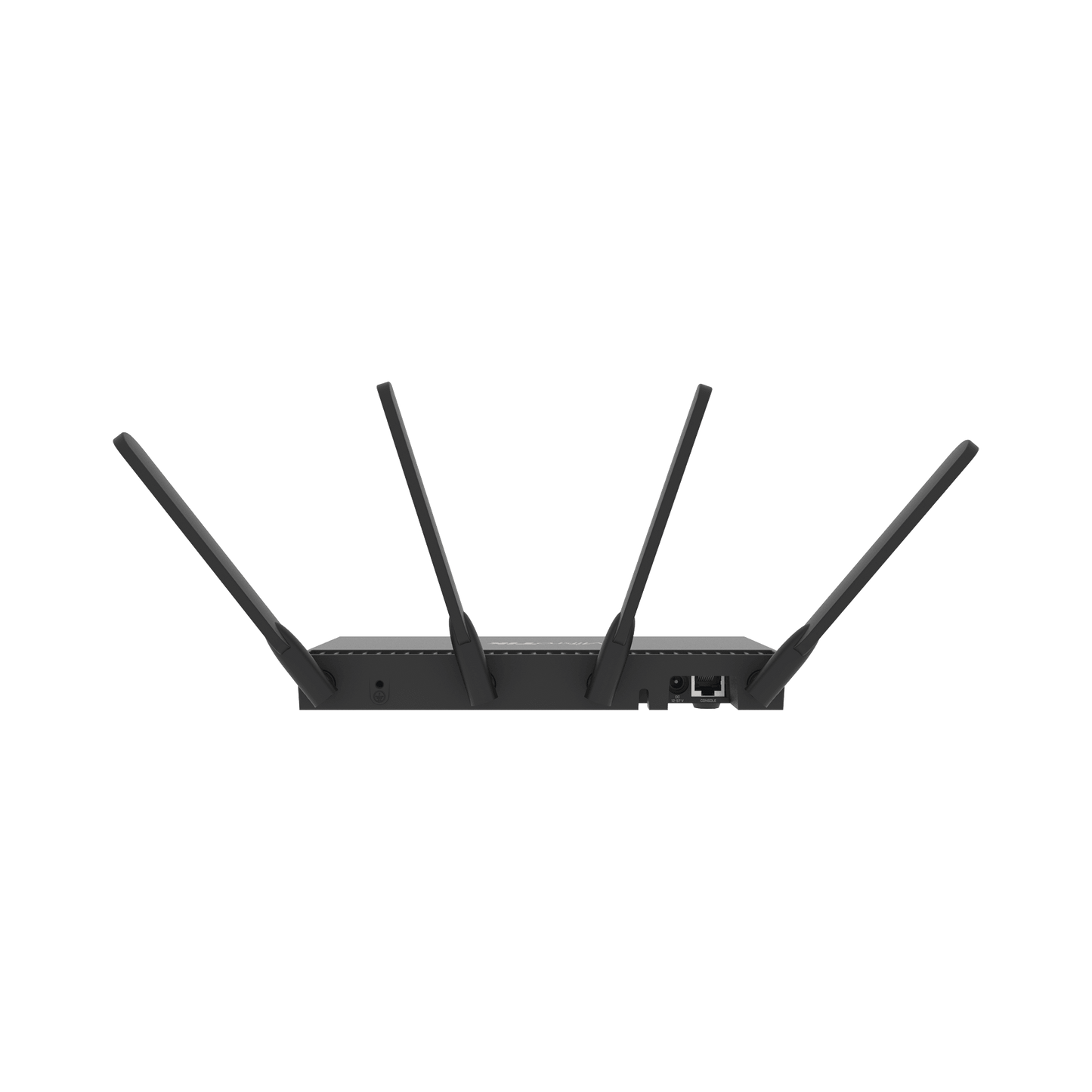

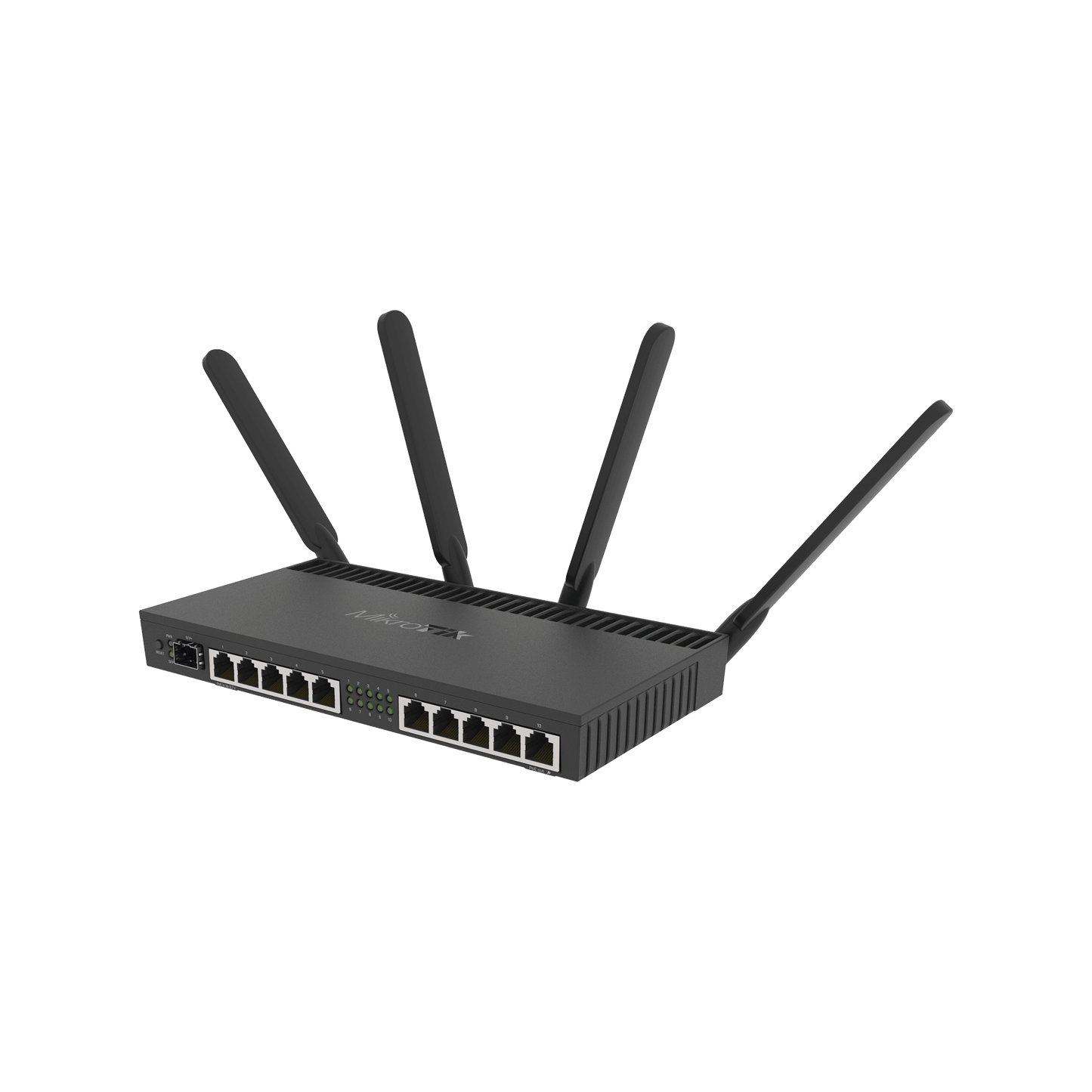

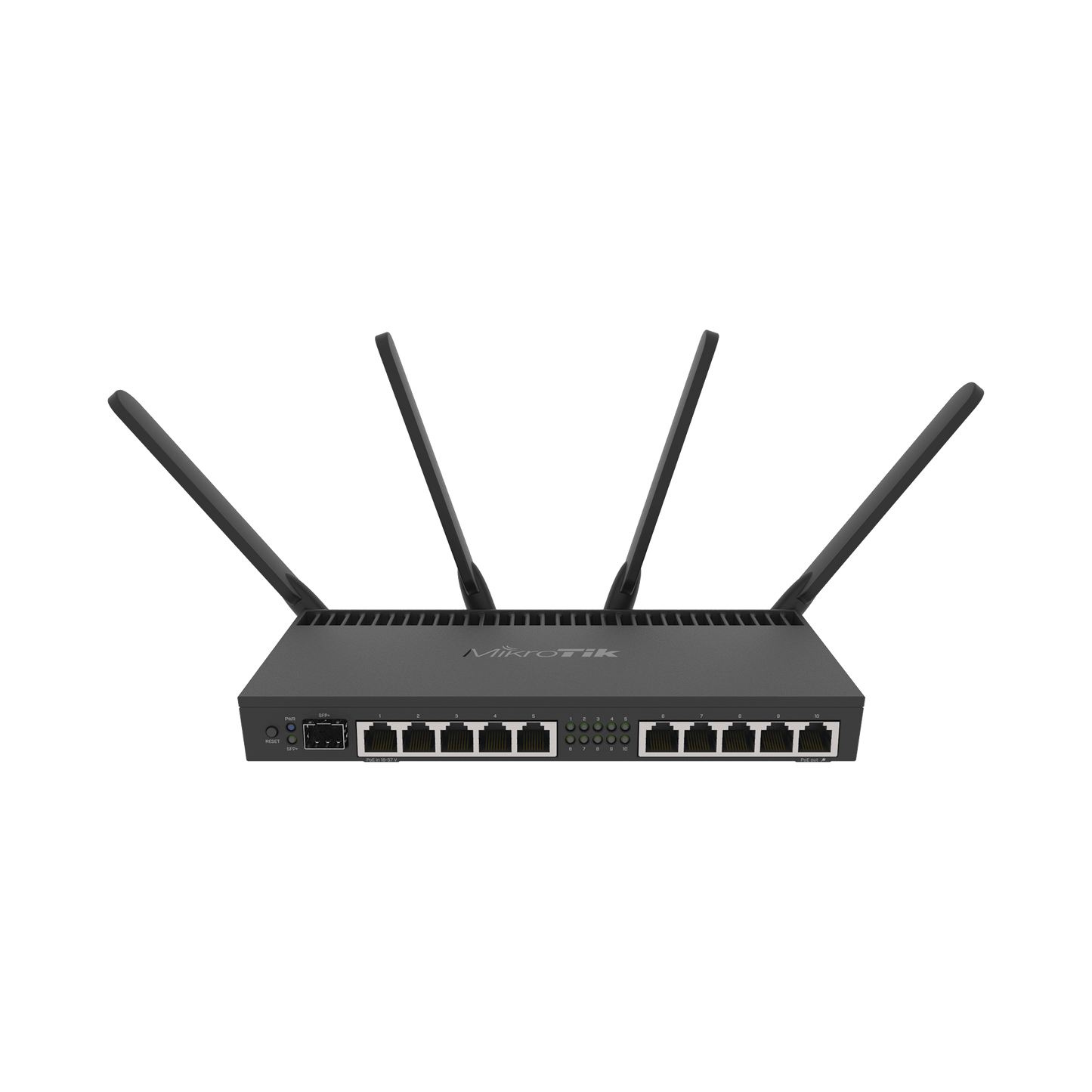

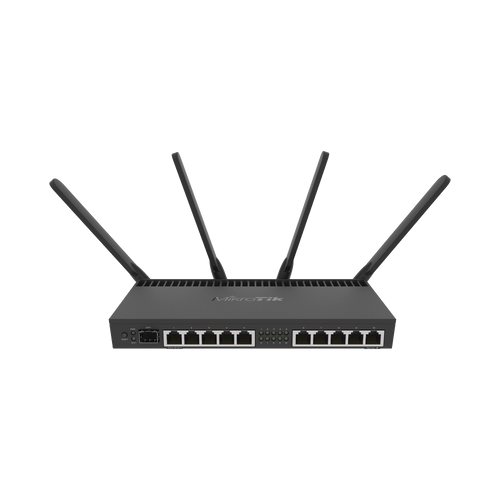

4x4 MU-MIMO Wi-Fi Router, up to 2 watts of power, 3 dBi antennas, 10 Gigabit ports, 1 SFP port

  • 72245a5ab1da0c46337e676ddccd0226
  • 4990c619eadee54ff4e0d33e054b8a19
  • 0b58a2ea6f0779571ac0c537667a7448
1 3
  • Quad Core Processor 1.4 GHz, RAM 1 GB
  • 10 Gigabit RJ-45 ports, 1 SFP+ 10G
  • Wi-Fi Mu-MiMo 4x4 5 GHz 802.3ac
  • Hardware Acceleration for IPsec
  • For desktop or wall mounting

Out of stock

Modelo: RB4011IGS+5HACQ2HND-IN

Proveedor: MIKROTIK

Código SAT: 43222609

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


The RB4011 has a powerful quad-core Cortex A15 CPU. The CPU supports hardware acceleration for IPsec.

In addition, it has 10 1 Gbps ports on ethernet, and the equipment has Wave-2 MU-MIMO 4x4.

Key features of RouterOS

Specs

Details
Product Code RB4011iGS+5HacQ2HnD-IN
Architecture ARM the 32 bits
CPU AL21400
CPU core count 4
Nominal CPU Frequency Automatic (533 - 1900) MHz
Switch MODEL chips RTL8367SB
Dimensions 228x120x30mm
OS Router License 5
Operating system RouterOS v7
RAM Size 1GB
Storage size 512 megabytes
Storage Type NAND
MTBF Approximately 200,000 hours at 25C
Tested ambient temperature -40°C a 45°C
IPsec hardware acceleration Yes

Wireless capabilities

Details
Maximum 5GHz wireless data rate 1733 Mbit/s
Number of 5 GHz wireless chains 4
5 GHz wireless standards 802.11a/n/ac
dBi antenna gain for 5 GHz 3
5GHz wireless chip QCA9984
5 GHz wireless generation Wifi 5
2&comma wireless data rate; 4 GHz maximum 300Mbps
Number of 2&comma wireless chains; 4 GHz 2
2&comma wireless standards; 4 GHz 802.11b/g/n
dBi antenna gain for 2, 4 GHz 3
2&comma wireless chip 4 GHz R11e-2HnD
2&comma wireless generation; 4 GHz Wifi 4
WiFi speed AC2000

Ethernet

Details
Puertos Ethernet 10/100/1000 10

Fibre

Details
SFP+ Ports 1

Peripheral

Details
Ranuras MiniPCI-e 1
Console serial port RJ45

Feeding

Details
Number of DC inputs 2 (takes CC'comma; PoE input)
DC Connector Input Voltage 12-57V
Maximum power consumption 44W
Maximum power consumption without accessories 23W
Cooling Type Passive
PoE in Passive PoE
PoE at input voltage 18-57V

PoE output

Details
PoE output ports Ether10
PoE output Passive PoE up to 57V
Maximum output per output port (input 18-30 V) 600 mA
Maximum output per output port (input 30-57 V) 420 mA
Maximum Total (A) 600 mA

Certifications and Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Details
PCB Temperature Monitor Yes
Voltage Monitor Yes

Wireless Specifications

5GHz Transmit (dBm) Receive sensitivity
6MBit/s 33 -96
54 MBit/s 29 -81
MCS0 33 -96
MCS7 28 -77
MCS9 26 -72
2, 4 GHz Transmit (dBm) Receive sensitivity
1 MBit/s 28 -100
11MBit/s 28 -94
6MBit/s 29 -96
54 MBit/s 25 -80
MCS0 26 -96
MCS7 24 -79

Parts Included

The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
