Preformed Galvanized Steel End for Mini-ADSS fiber, diameters 6-7 mm

  • b702fb8fe4e366655ea09df68e18e075
  • 16699fa759e0bb70ec8c9d6f313eaa8b
  • 681dbff4fc75d49d5d6771a142814373
1 3
  • Maximum tension: 1300N
  • yellow marking

500 in stock

Modelo: GDE-ADS-060

Proveedor: PLP

Código SAT: 39121405

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

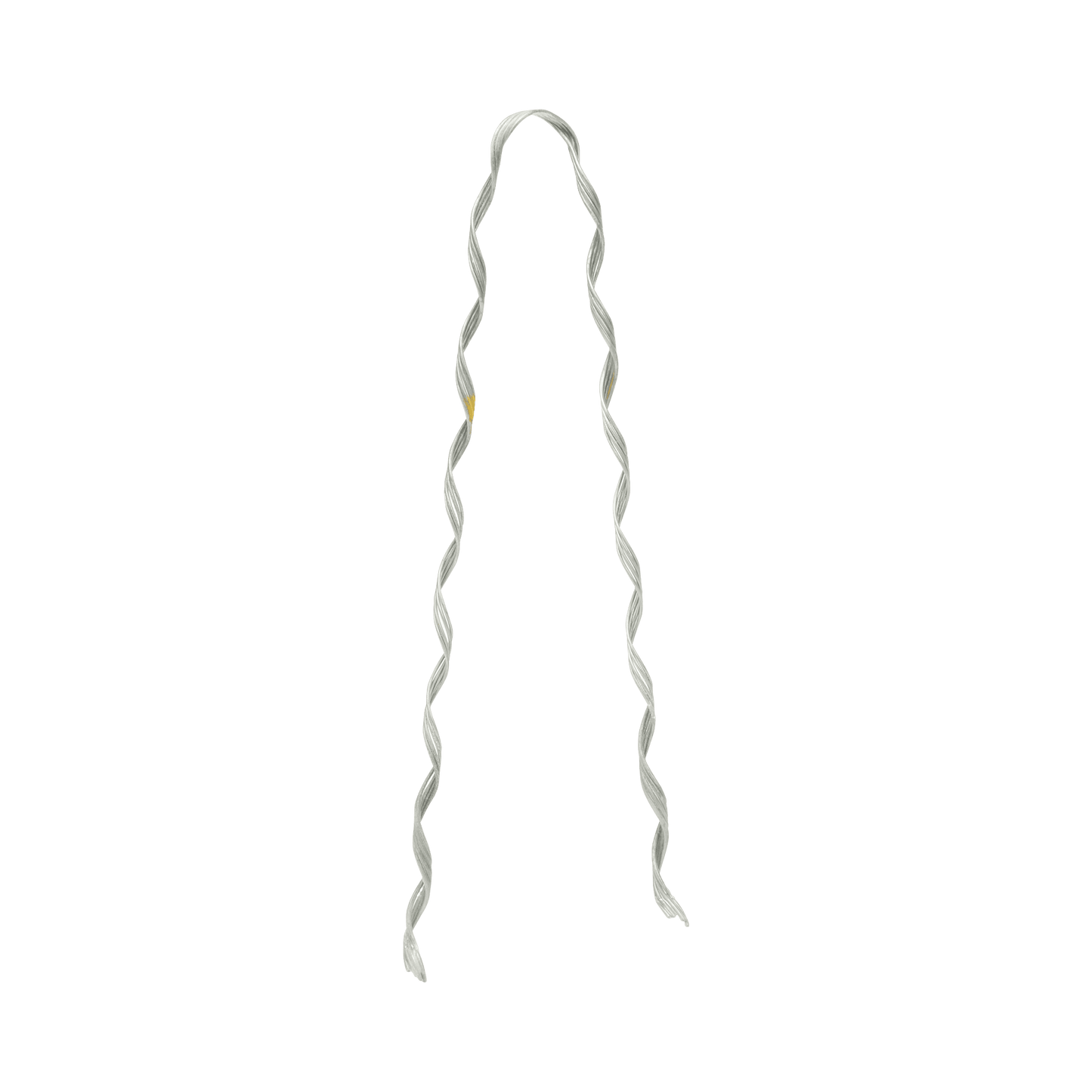

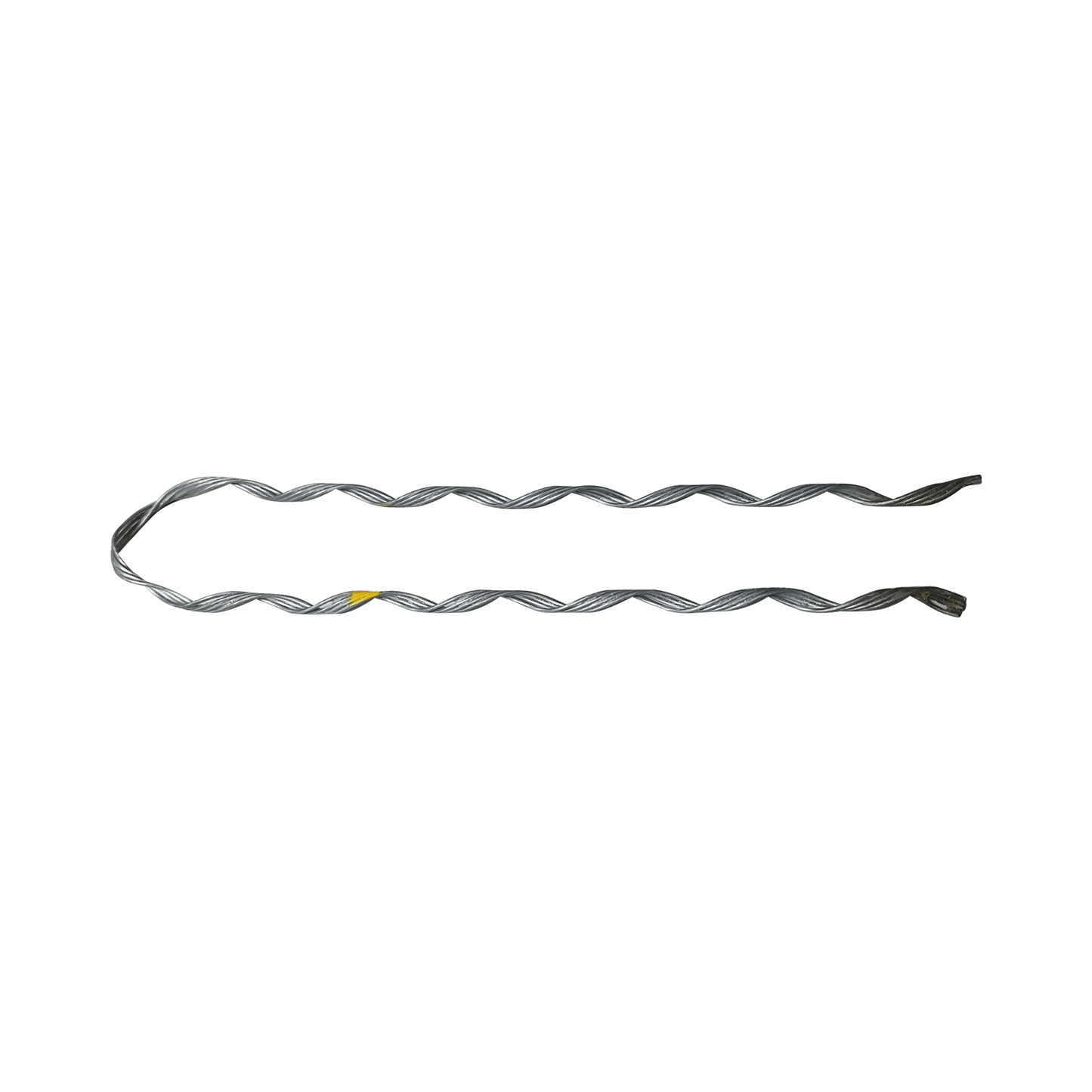

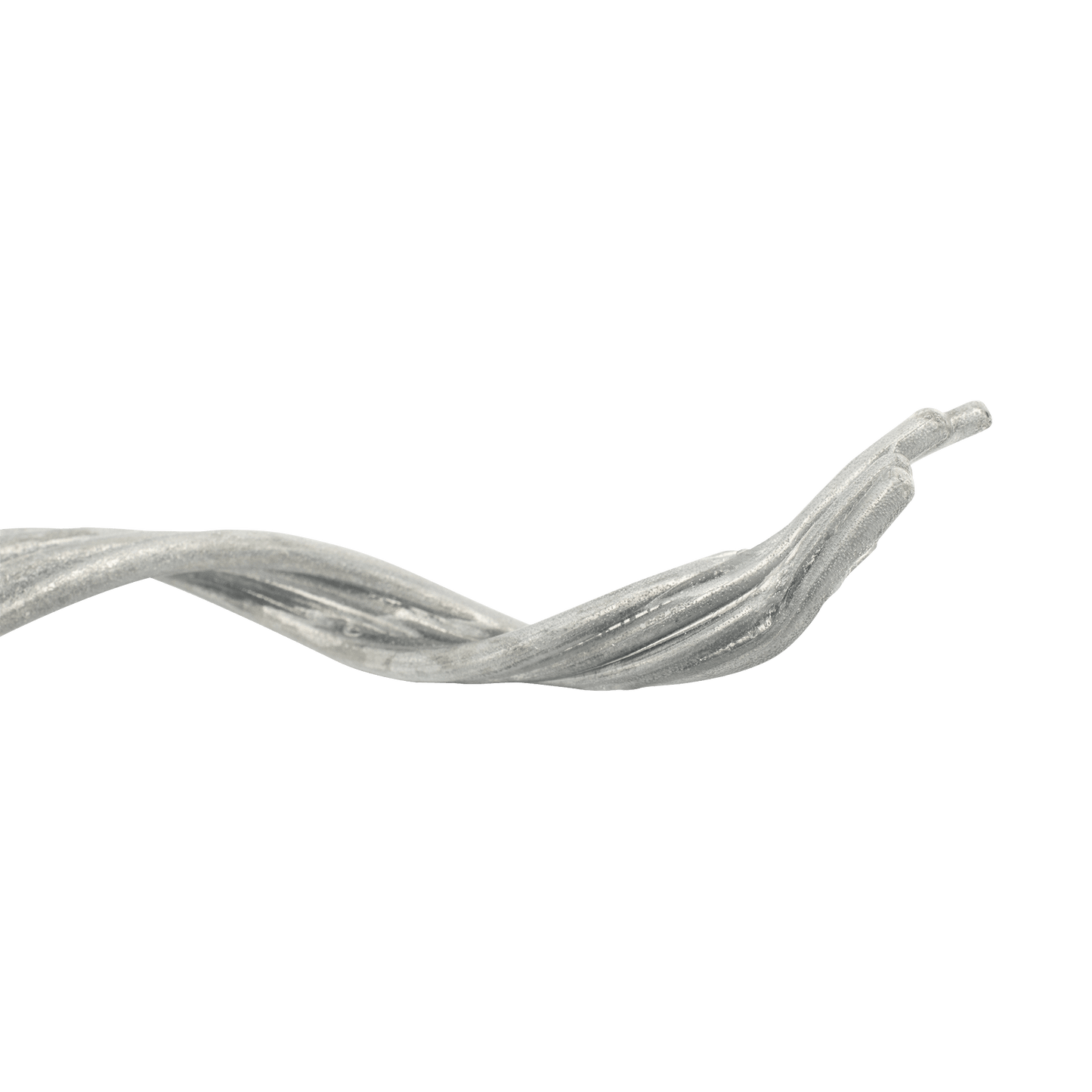

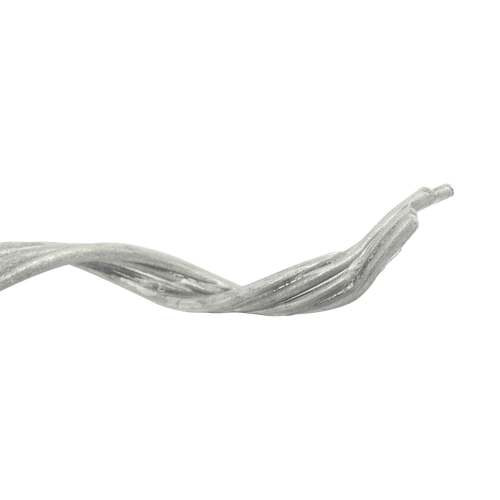

The GDE-ADS-060 Preformed End Cap is manufactured from galvanized steel for high durability. It is designed for use with MINI-ADSS fiber with diameter of 6 - 7 mm.

Characteristics:

  • Maximum tension: 1300N
  • yellow marking
  • Total Length: 292mm (11.50")
  • Application Length: 197 mm (7.75")
  • For fiber optic cable: Ø 6 - 7 mm
  • Uneven Leg for easy installation
  • Specially designed for installation of dielectric optical cable without damaging the jacket
  • Provides a uniform grip along the finish that does not damage the optical fiber
  • Easy installation, can be installed and uninstalled without tools
  • Made of Galvanized Steel that withstands coastal environments
  • Does not require a thimble
  • Useful life: 20 years
  • Guaranteed for 15 years
  • Weight: 30 grams

Compatible with the following Fiber Optic cable models:

  • MINI-ADSS-06C
  • MINI-ADSS-06C/4KM
  • MINI-ADSS-08C
  • MINI-ADSS-08C/4KM
  • MINI-ADSS-12C
  • MINI-ADSS-12C/4KM
  • MINI-ADSS-24C
  • MINI-ADSS-24C/4KM

CLICK HERE! HARDWARE CALCULATOR FOR ADSS AERIAL FIBER OPTICS, MINI-ADSS, FIGURE 8 AND FINI FIGURE 8.
