Preformed Galvanized Steel Trim for Φ 3 mm Round Drop Fiber

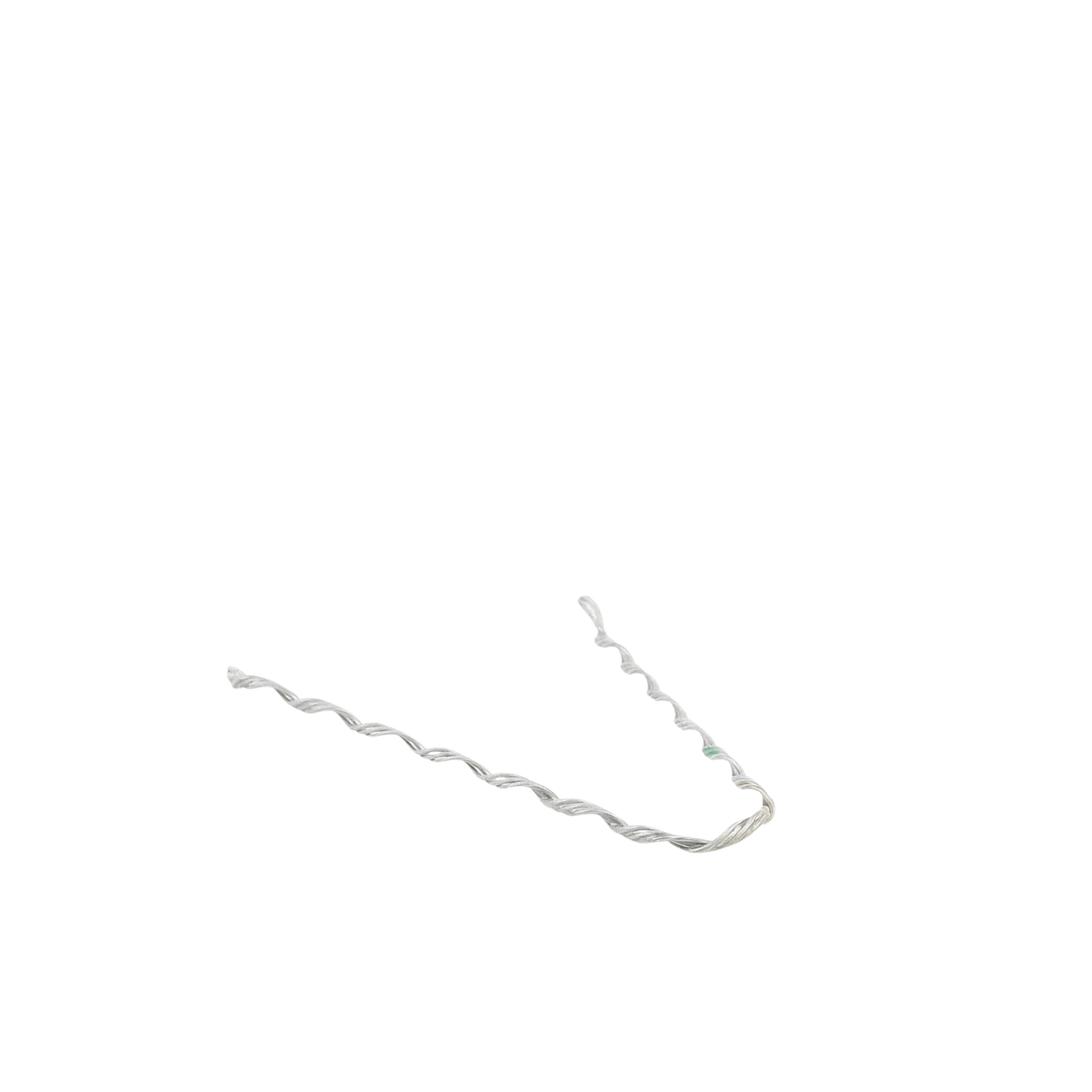

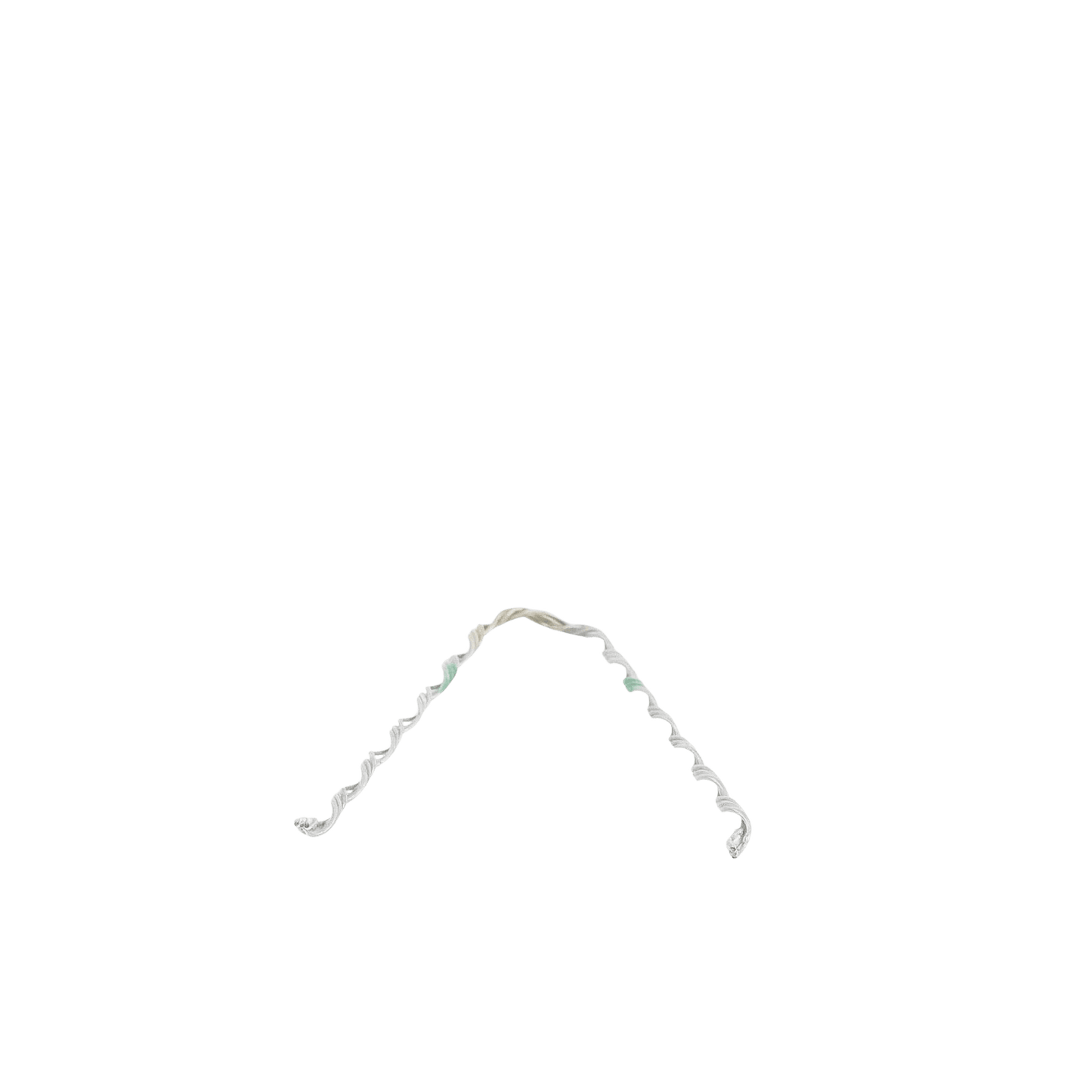

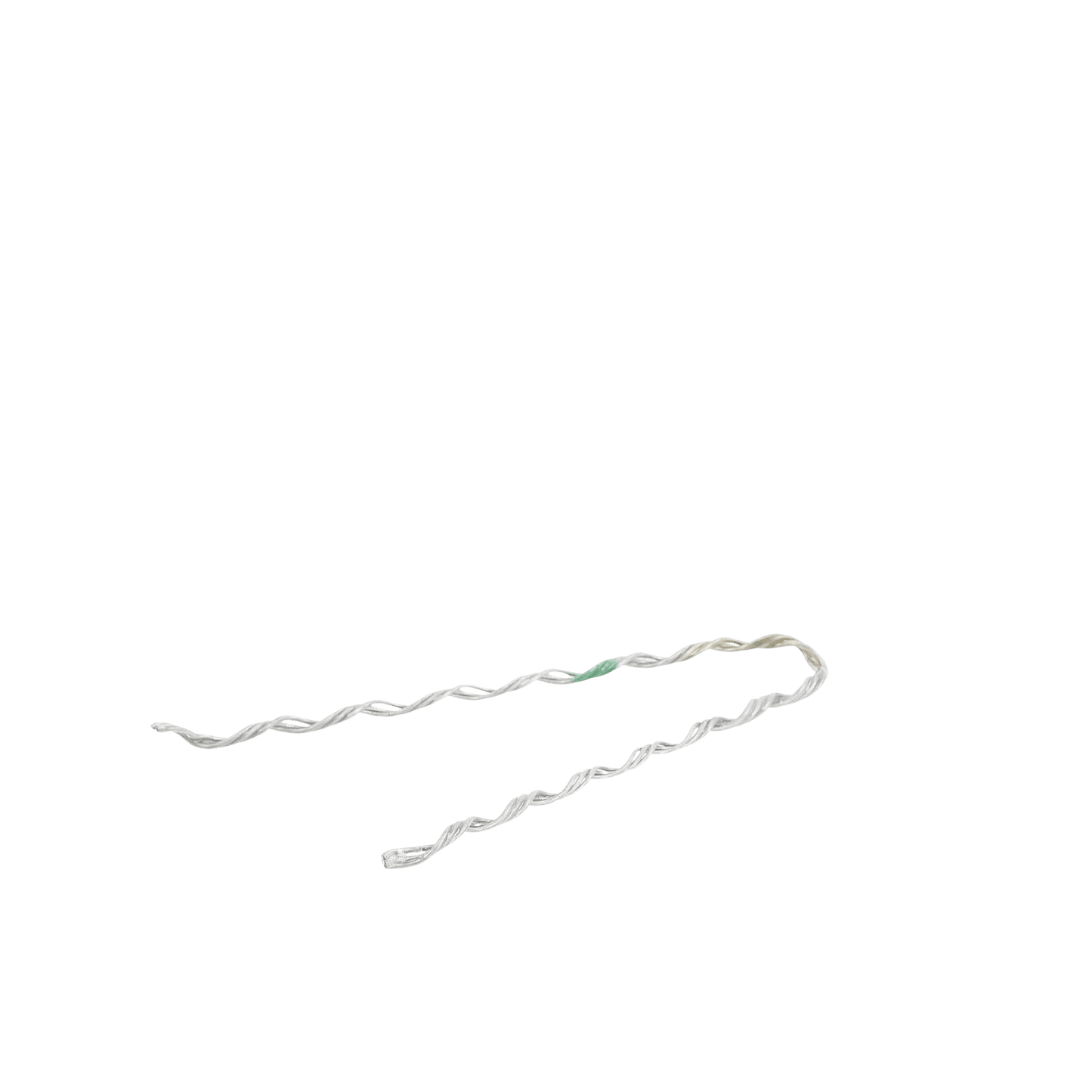

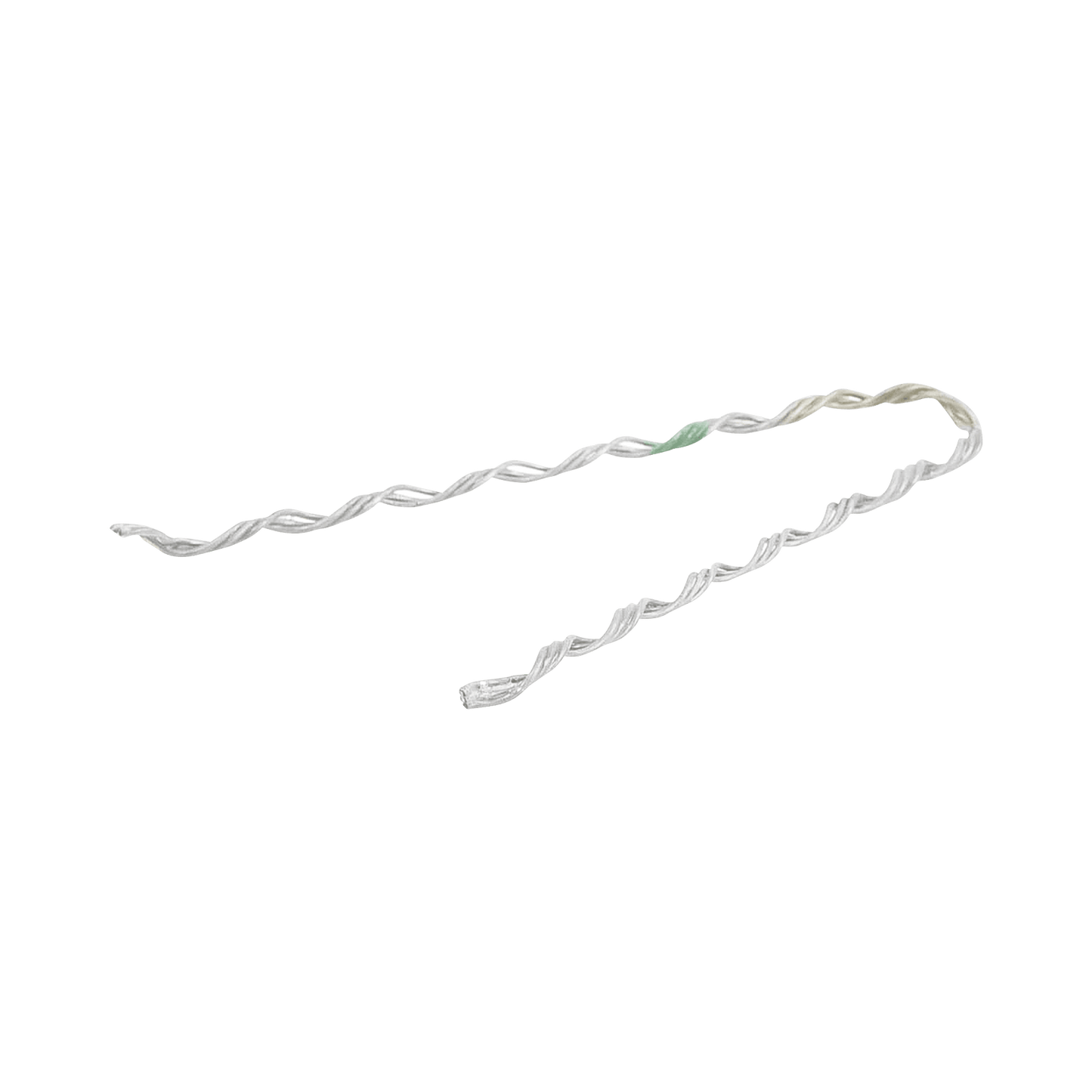

The GDE-ADS-030 Preformed End Cap is manufactured from galvanized steel for high durability. It is designed for use with 3mm round drop fiber.

Characteristics:

• Breaking load: 1200kg
• green marking
• Total Length: 196mm (7.7")
• Application Length: 120 mm (4.75")
• For fiber optic cable: Φ 3 mm
• Uneven Leg for easy installation
• Specially designed for installation of dielectric optical cable without damaging the jacket
• Provides a uniform grip along the finish that does not damage the optical fiber
• Internal non-slip 120 grade Alumina grain coating on both legs to improve cable grip
• Weight: 10 grams

Compatible with the following Fiber Optic cable models:

• RDC-1FO-G657B3/2KM
