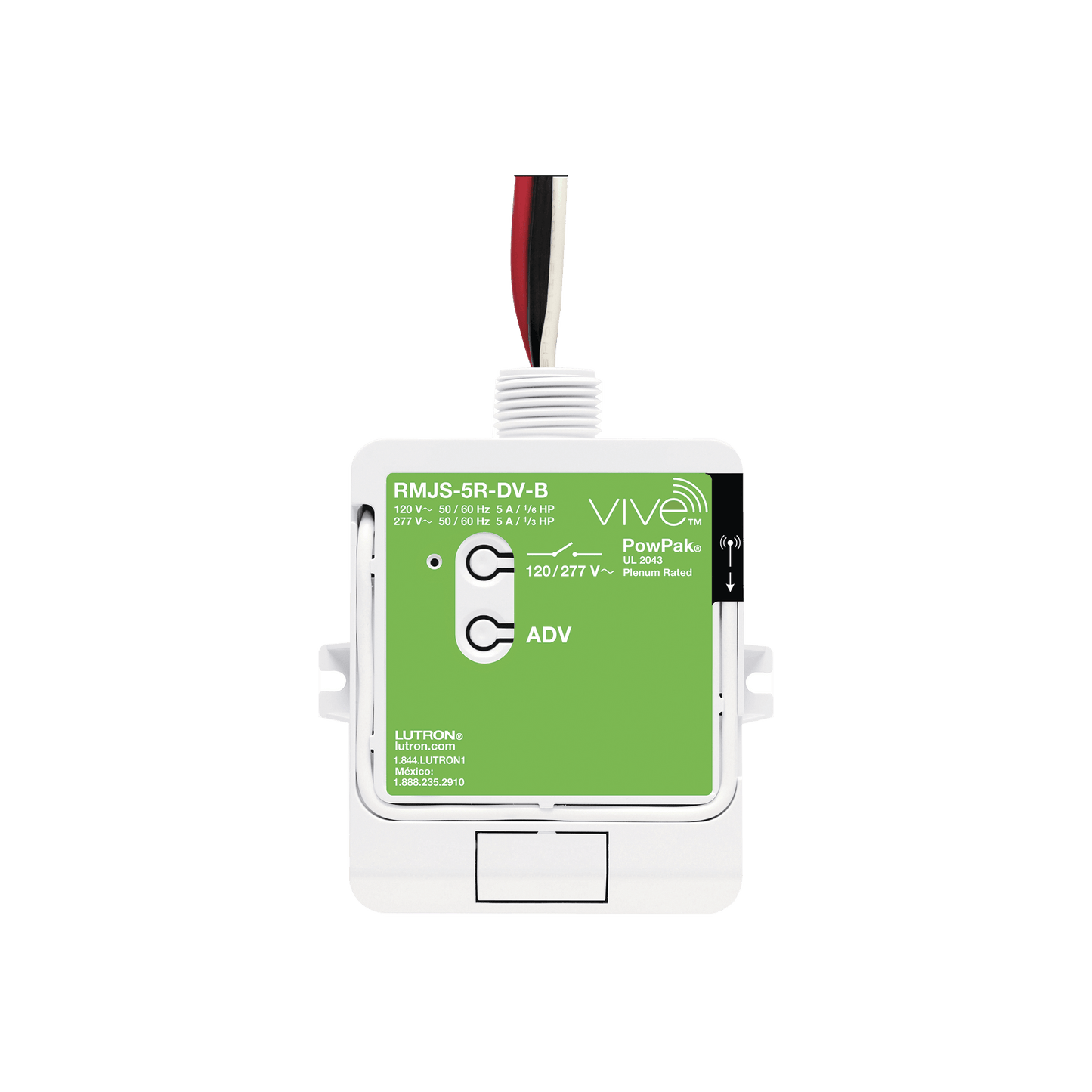

Wireless On/Off relay with ClearConnect signal, 5A for lighting.

  • 337516af6272487d5a5d574ecc5e50ec
1 1
  • Módulo de relé para cada zona de iluminación
  • Capacidad de carga: 1920W a 120V o 4432W a 277V
  • Salida de contacto seco para integración HVAC
  • Entrada de voltaje dual: 120/277V
  • Dimensiones compactas: 48x87x32 mm

21 in stock

Modelo: RMJS5RDVB

Proveedor: LUTRON ELECTRONICS

Código SAT: 39112403

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Load Controllers: Wall-Mounted Switches and Dimmers
connections Box.

How to design and specify.

  • A relay module. For each controlled lighting zone in the space.
  • Control. Select the appropriate model according to the size of the connected load.

- 5 A: 600 W or 1/6 HP at 120 V or 1385 W or 1/3 HP at 277 V
- 16 A: 1920 W or 1/2 HP at 120 V or 4432 W or 1 1/2 HP at 277 V

  • Dry contact output. To send presence information to third-party equipment such as HVAC systems.
  • 120/277V input
  • Integrate the RMJS module to the HJS0FM antenna to generate calendars, scenes, integration with third parties.

Dimensions.

  • Width: 48 mm (2:89 in)
  • Height: 87 mm (3:44 in)
  • Depth: 32 mm (1:25 in)
