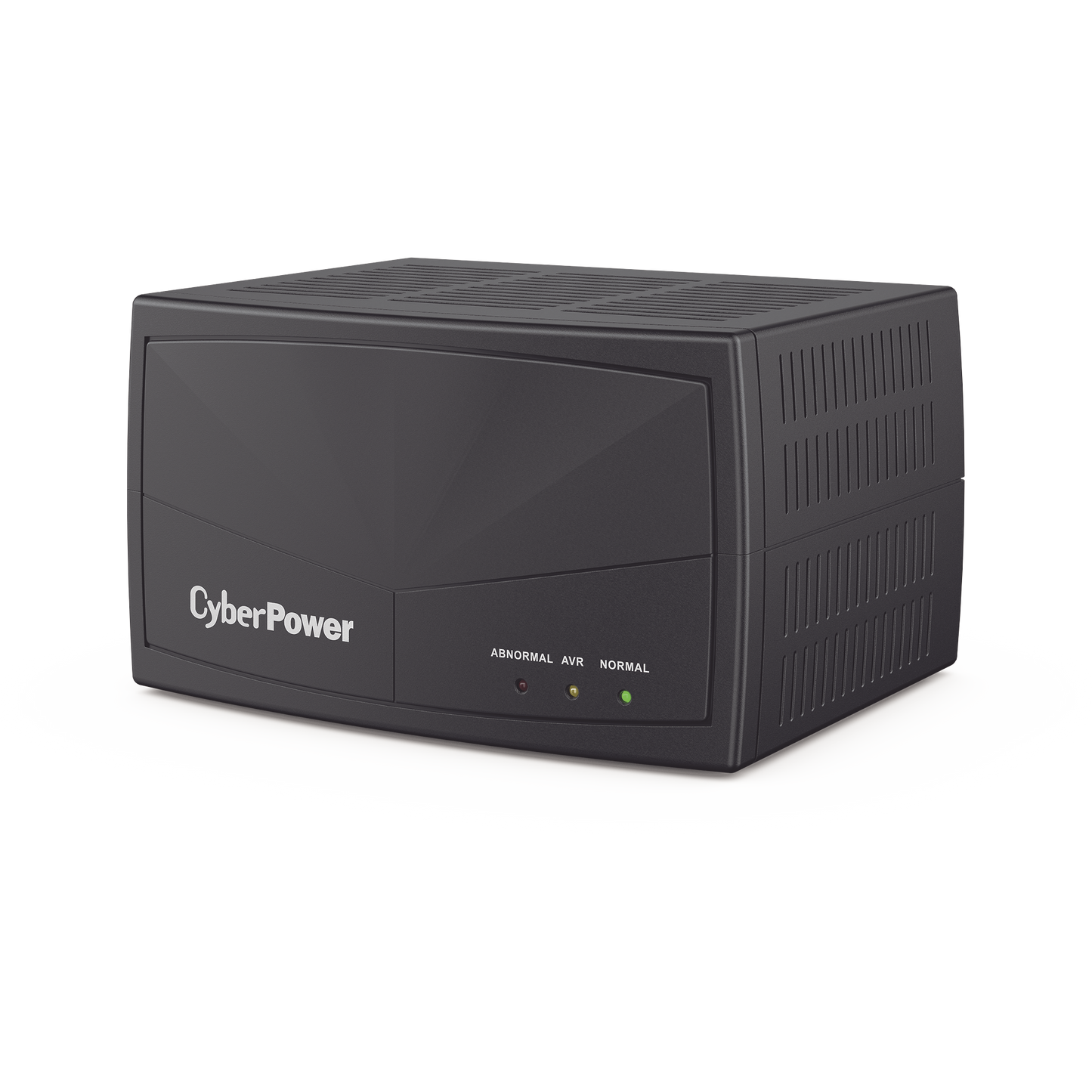

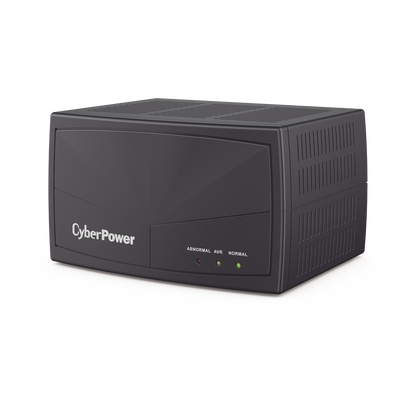

1500VA/750W Voltage Regulator, NEMA 5-15P Input, with 8 NEMA 5-15R Output and Peaks Suppression to 245 Joules

Ideal for home and office & comma; the CL series has a built-in automatic voltage regulation (AVR) function to offer stabilized AC power & comma; especially suitable for areas with unstable utilities or for use with generators. The regulators have built-in outlets protected against surges and voltage spikes & comma; EMI filter and overload protection to protect the connected equipment. The voltage regulator is equipped with an LED indicator to show the power status.

Features ::

• Automatic voltage regulation (AVR)
• Compatible with generator
• Overload protection
• Protection against surges and voltage spikes
• EMI and RFI filtration
• LED State Indicator
• Compact Form Factor

Technical Specifications:

• Nominal input voltage (Vca): 120 ± 10%
• Input Voltage Range (Vca): 82 ~ 148
• Input Frequency Range (Hz): 45 ~ 65
• Rated Input Current (Amp): 10
• Input Plug Type: NEMA 5-15P
• Capacity: 1500VA/750W
• Automatic voltage regulation (AVR): Single impeller & comma; Single reducer
• Overload Protection: Circuit Breaker
• Total Departures: 8 NEMA 5-15R
• Exits with only peak suppression: 4
• Exits with regulation and suppression of peaks: 4
• Peak suppression (joules): 245
• EMI/RFI filter: Yes
• LED Indicators: Normal, AVR, Failt
• Form Factor: Compact
• Dimensions: 205x115x146mm (Width x High x Depth)
• Weight: 2.3 kg.
• Operation temperature: 0 to 40 °C
• RoHS: Si
