2000W 220/380 VAC to-48 VDC 200A Redundant Rectifier

  • b34765aa3e8738df0f6926c20189e75a
  • 483c4d97487839983c57b3d36381253d
  • b0ae3ece39a88bde9b5dd2a6a13c6f1f
  • 976106fd81391a68003fed44808b0d69
1 4
  • Carrier Class redundancy to operate 24/7
  • Power: 2000W
  • Installation in 19" rack

Out of stock

Modelo: ETP-48-200

Proveedor: HUAWEI

Código SAT: 39121000

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

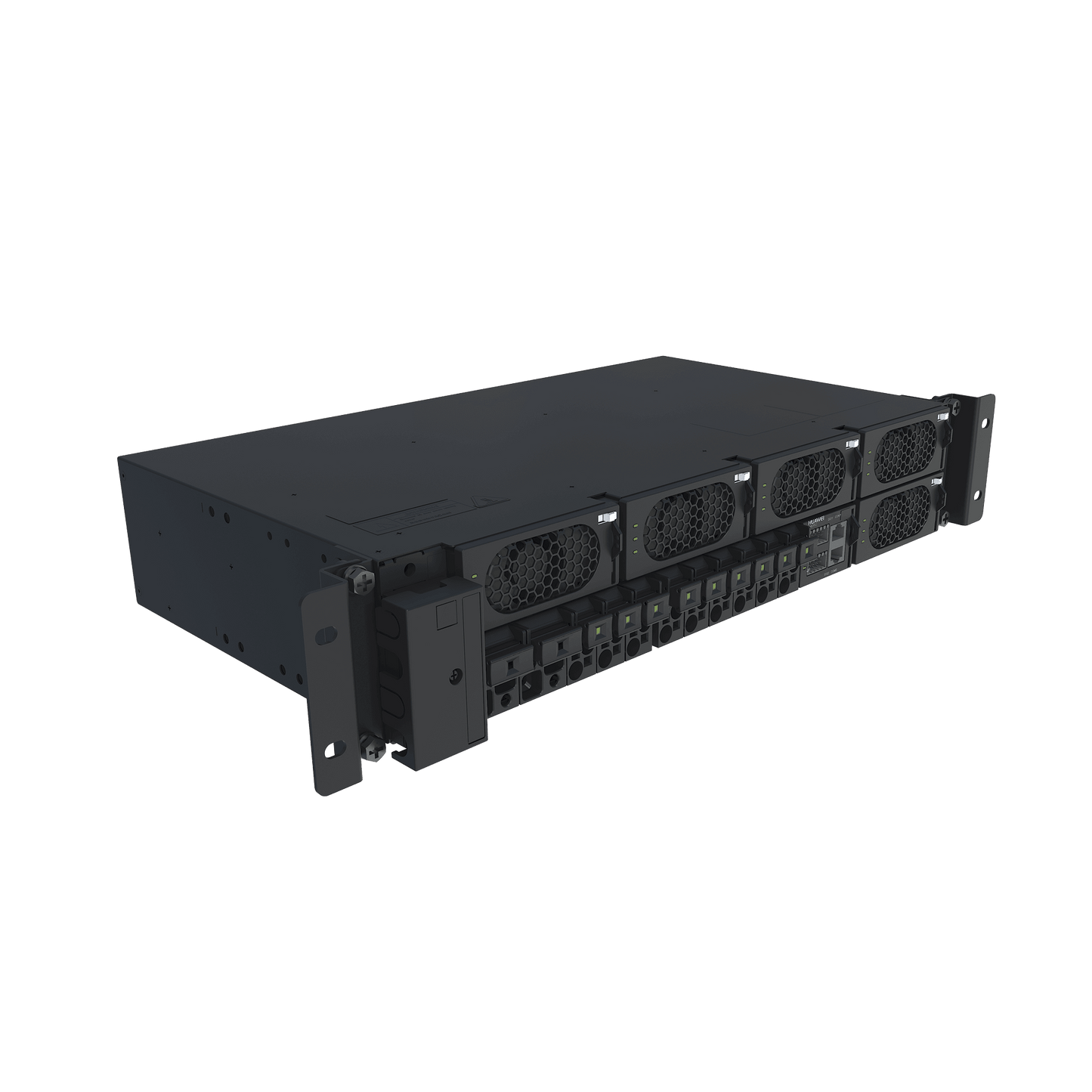

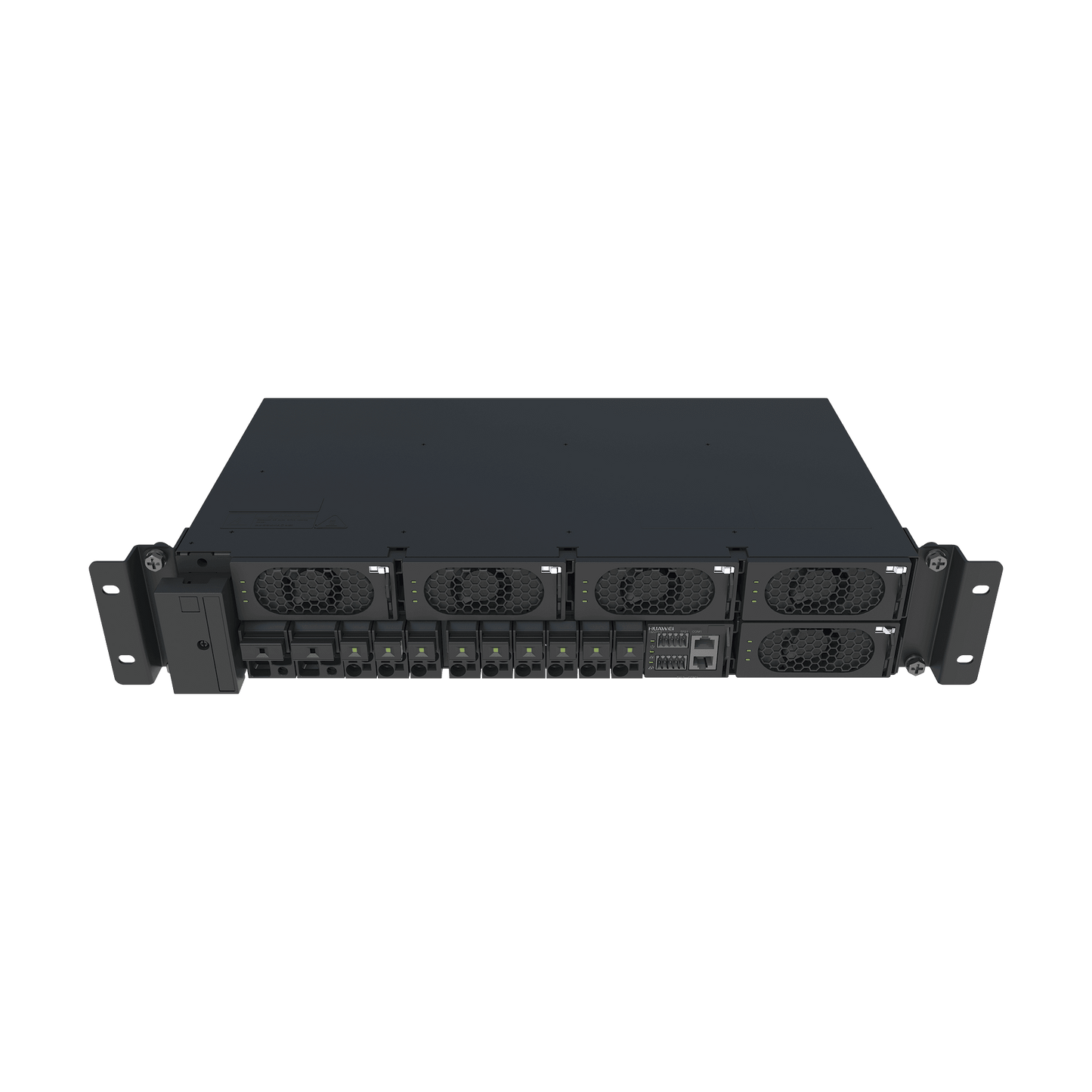

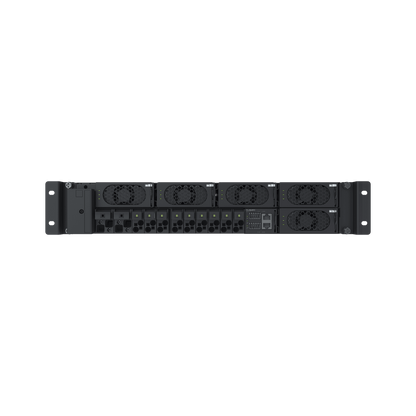

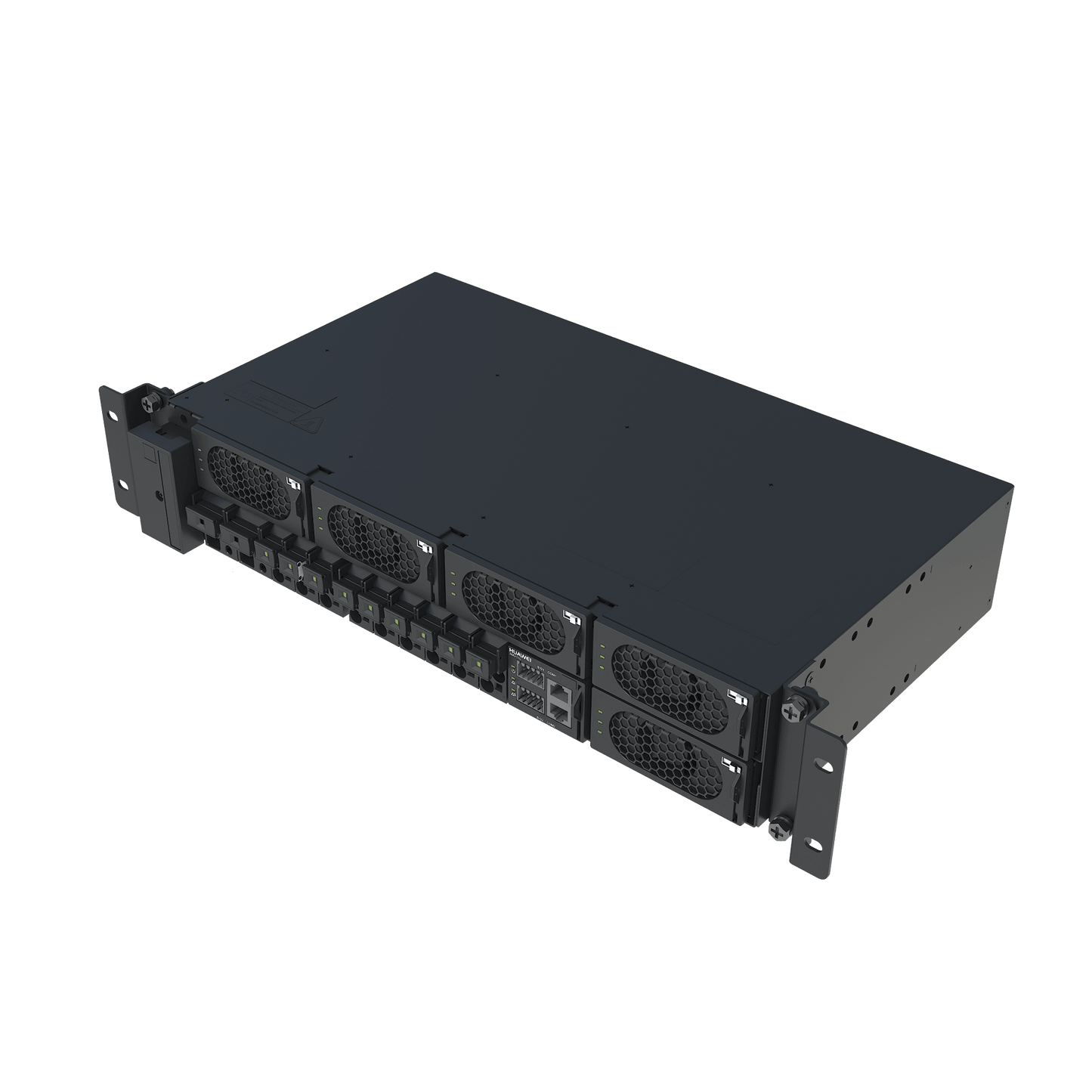

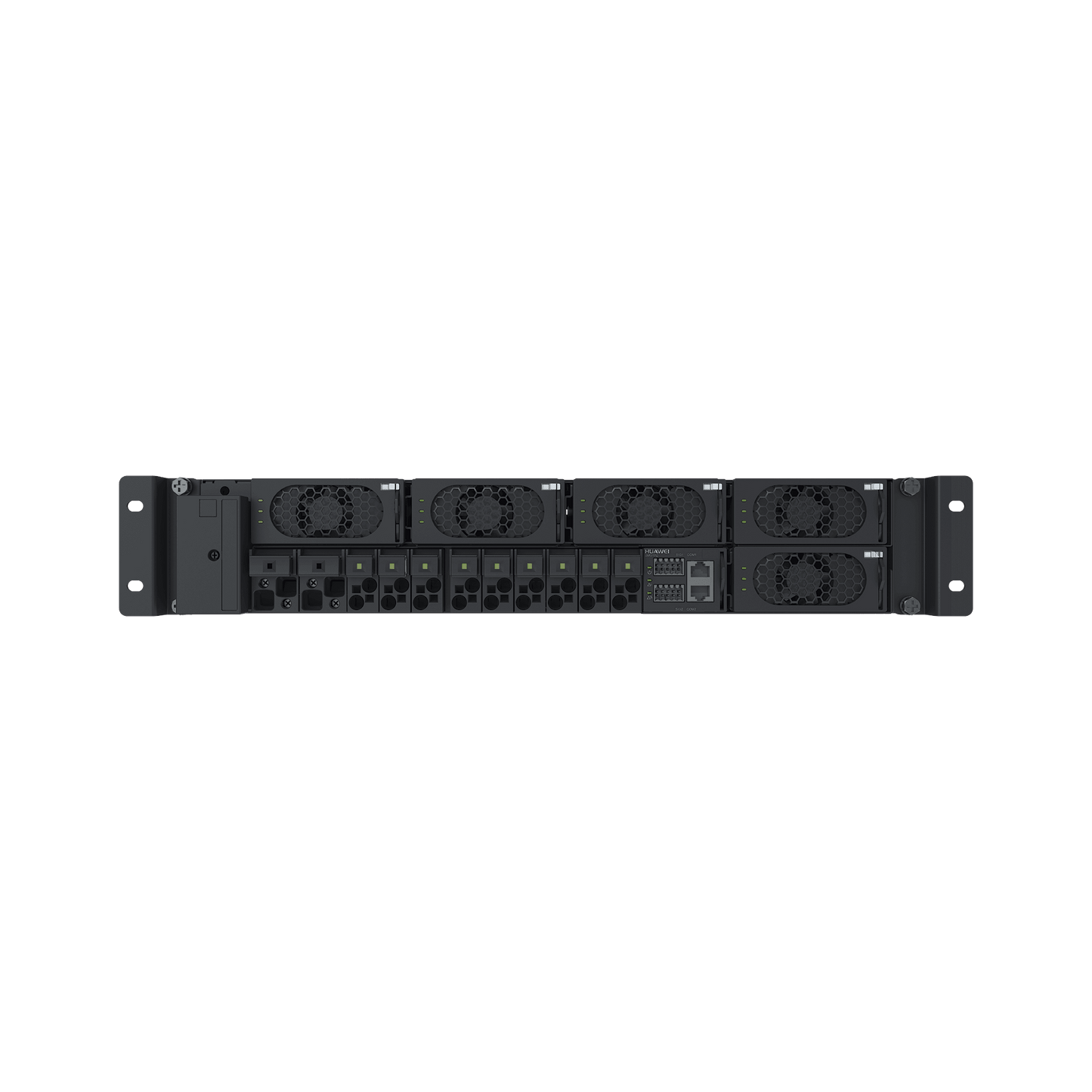

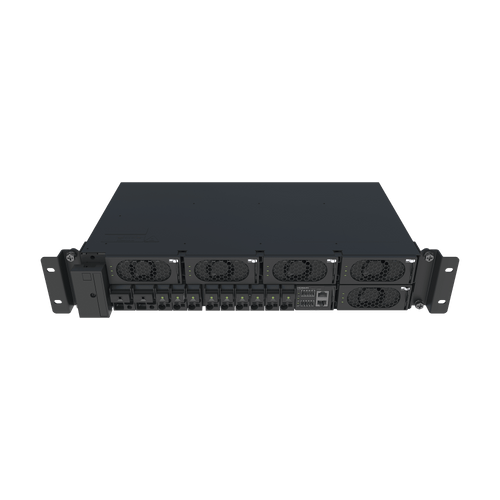

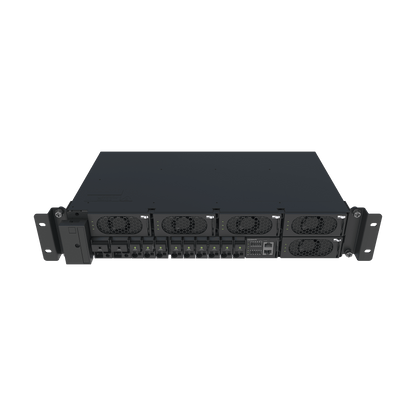

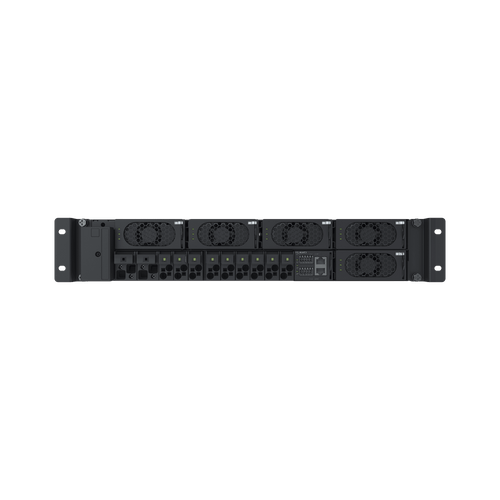

ETP48200-B2A1 is an integrated AC/DC power system with excellent performance & comma; high energy efficiency & comma; intelligent battery management & comma; remote management & comma; wide AC/DC input voltage range & comma; etc. It can be integrated into a 19-inch rack or cabinet.

Features:

  • Hot-swappable rectifier and DC distribution unit
  • Compact design
  • High efficiency (above 96%) helps save energy
  • Inactivity function that dramatically increases system efficiency
  • Intelligent battery protection and management function that help prolong its service life (batteries not included)
  • Supports environmental signal monitoring and remote management via RS485

Specifications:

  • Dimensions: 482.6mm (Width) x 255mm (Depth) x 86.1mm (2U & comma; High)
  • Entry: 220/380VAC Trification & Comma; 220VAC monophyly the 220VAC phase
  • Input frequency: 45-66Hz & comma; nominal value: 50/60Hz
  • Output: 42-58VDC & comma; nominal value: 53.5VDC
  • Operation Temperature: -40 °C to 65 °C
  • Storage temperature: -40 °C to 70 °C
  • Maximum Capacity: 2000W (redundant)

Incluye:

  • 1 Chasis ETP48200-B2A1
  • 2 Rectifier Modules R4830G1
  • 1 SMU11C monitoring module
