Universal receiver with direct connection to the Keybus of the alarm panel with auxiliary relay to open garage doors or momentary pulse applications

  • f4c51cdd3ba4838d60b435bb850195cc
  • f4c51cdd3ba4838d60b435bb850195cc
1 2

187 in stock

Modelo: CE3

Proveedor: HONEYWELL HOME RESIDEO

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

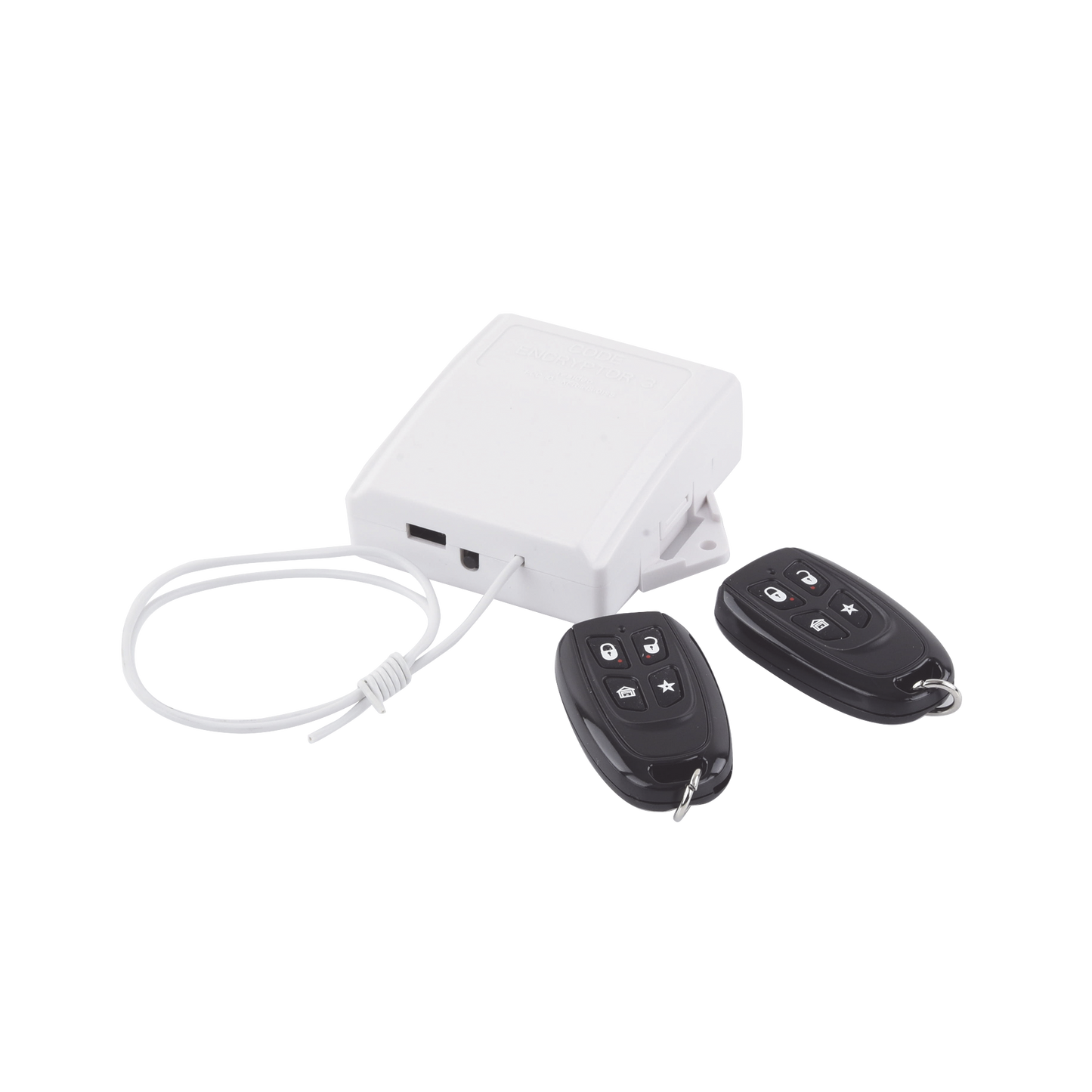

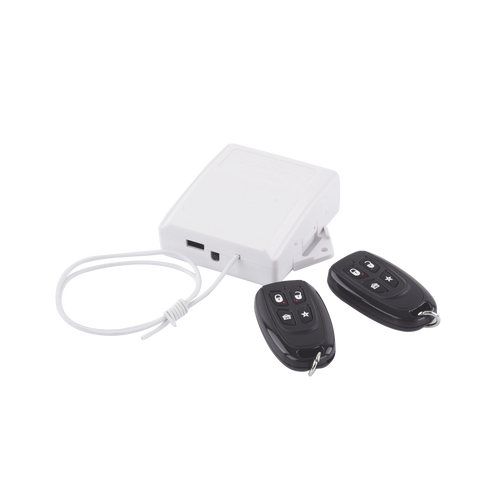

The Code Encryptor 3 allows you to control the Alarm system to be able to Arm/Disarm the Panel, You can also open and close garage doors.
The Kit Includes:
- 433MHz receiver.
- 2 4-Button CEREMLXB Remote Controls.
- Status indicator LED.

Characteristics:

- 12Vdc power supply.
- Two Dry Contact Outputs
- Accepts 7 CEREMLXB keychain controls
- Output 3 Relay (N/A, Com) up to 10A- Momentary Action
- Output 4 Relay type C (Com, N/A, N/C) up to 5 A- Momentary Action-Led System Status Indicator.
-Frequency 433Mhz.
-Current Consumption:

This equipment is compatible with the following Alarm panels:

Honeywell DSC GE- Caddex Napco
4110XM The entire power series NX4 V2 P816
VISTA-10SE/P 816 NX6 V2 P1632
VISTA-15/P 832/5010/5020 NX8 V2 P3200
VISTA-20/SE/P PC1616 NX8E V2 With RP keyboards
VISTA-21Ip/VISTA48LA (Version 5.3 forward) PC1832/1834, PC1550/2525/3000
