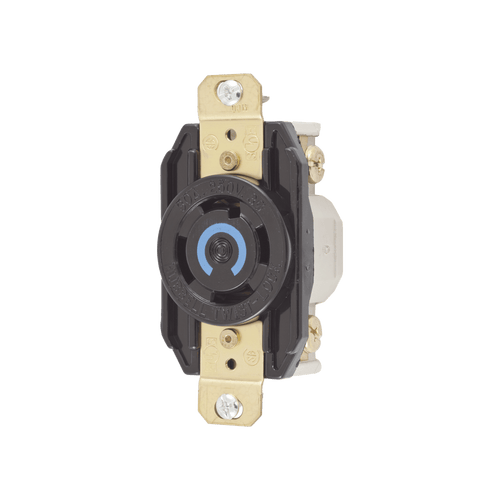

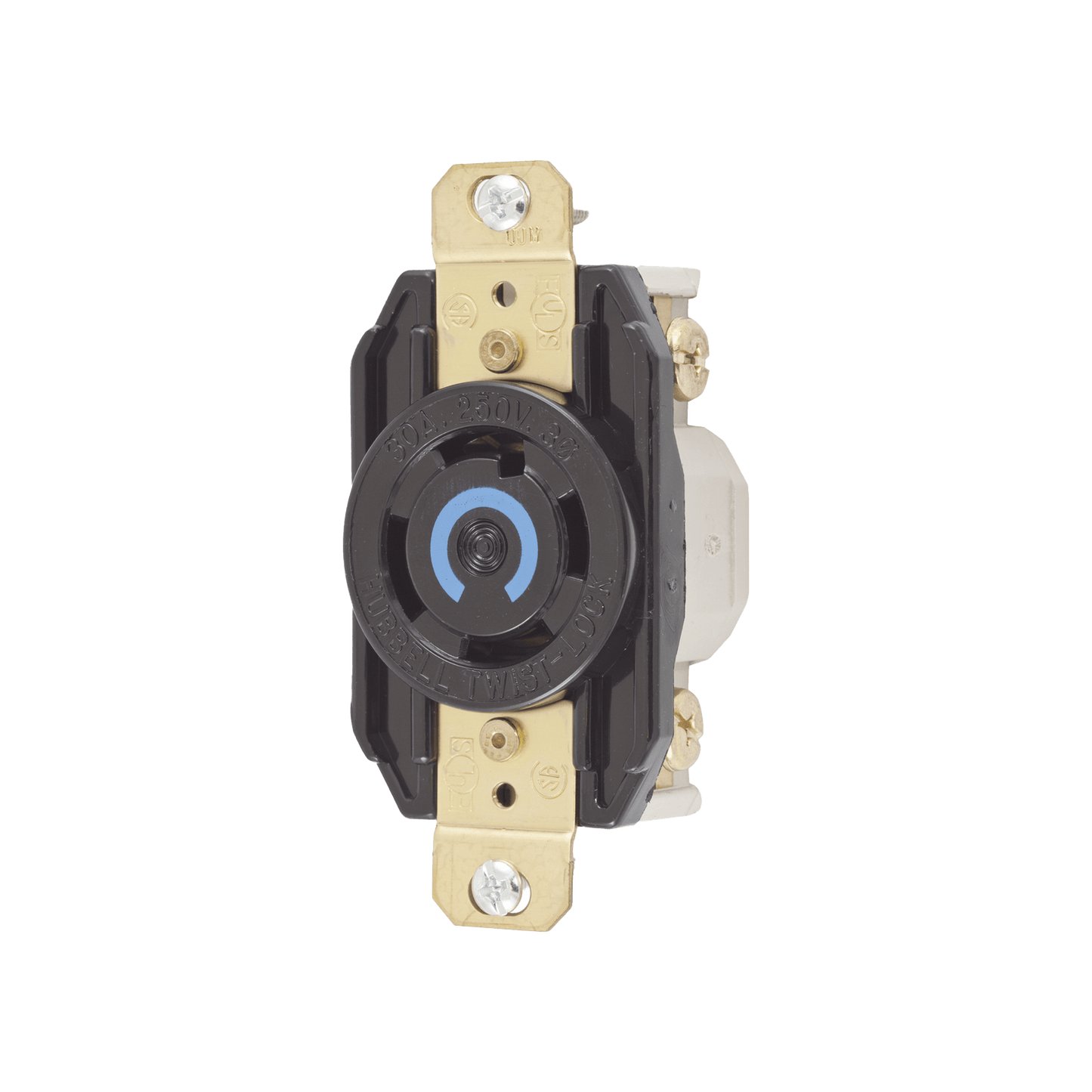

Industrial Half-Turn Locking Receptacle 30 A 250 VAC / 3 Pole 4 Wire / Nema L15-30R.

  • 059f99062224f291529a7f2cb1e59636
1 1

103 in stock

Modelo: HUB-HBL-2720

Proveedor: HUBBELL

Código SAT: 39121406

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Specifications:

Application Extra heavy duty
Material Nylon
Work environments Dry interior unless protected by additional means.
Power - max. 3hp
Kind of team Simple discharge receptacle
Mounting Screw mounting
Number of poles 3 Poles
Operating Temperature Continuous maximum of 75 °C and minimum of -40 °C without impacts.
Performance

Electrical - Current Interruption - Certified for current interruption at full rated current.

Electrical - Dielectric voltage - Supports a minimum of 2,000 V.

Environmental - Flammability - V2 or better per UL 94/CSA 22.2 No. 0.17.

Environmental - Resistance to humidity - IP20 suitability.

Environmental - Operating Temperatures - Maximum continuous 75°C and minimum -40°C without impacts.

Mechanical - Terminal Housing - #16 #18 AWG solid or stranded copper conductor only.

Mechanical: Terminal Identification - Terminals identified in accordance with UL 498.

Series Heavy Duty/Industrial
Dimensions

3.28 in x 1.70 in x 1.31 in

83.31mm x 43.18mm x 31.24mm

Height 1.31 in (33.27 mm)
Long 3.28 in (83.31 mm)
Broad 1.70 in (43.18 mm)
Weight 0.30 lb (0.13 kg)
Amperage range 30A
Voltage Range 125/250 VAC
Phase 3 Phases
Number of threads 4- Threads
Cable Size #16 AWG to #8 AWG
Nema L15 - 30R
