Satellite tracker for containers, vehicles and ships.

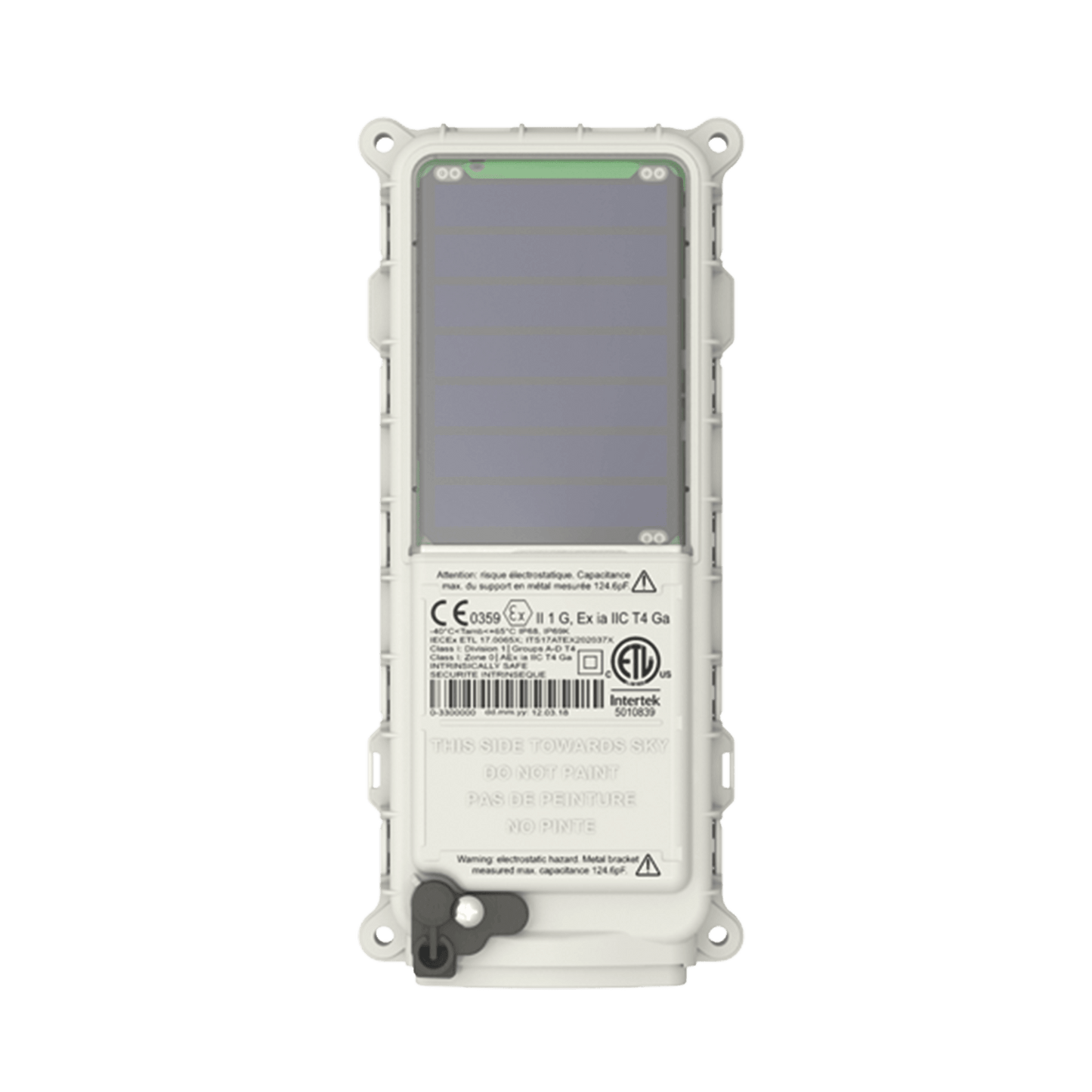

Solar Powered Satellite Asset Tracker

SmartOne Solar is the next generation product in Globalstar's award-winning SmartOne product line. Although it runs on solar energy through one of the most modern and fastest satellite networks in the world, This IoT device offers excellent track and trace features in remote locations.

SmartOne Solar's NiMH rechargeable batteries can last more than 10 years, dramatically reducing your maintenance costs and the cost of labor and parts. Allows users to intelligently configure reporting times and intervals for personalized information delivery.

SmartOne Solar is Intrinsically Safe certified as well as unparalleled safety or device certifications such as ATEX Class I Zone 0: Division 1, OSHA Hazard Location Classification of Class 1, UL 60079-0, CSA STD C22.2, IP69K, HERO (Hazards of Electromagnetic Radiation to Ordnance) and others to meet the needs of any application. Let SmartOne Solar streamline your M2M operations today.

MAIN FEATURES

• It runs on solar energy and the battery has a lifespan of up to 10 years
• Intrinsically Safe
• Bluetooth interface for configuration and firmware update
• Wide selection of reporting capabilities, which include:
  • GPS location that sends reports in four ways
  • Geofencing capabilities with configurable range settings
  • Static or moving reports
  • Reduced Messaging and Theft Recovery Modes
  • Receive and transmit data from external sensors
• Two dry contact or wet voltage inputs available to manage motor run time: tank level or various alarm inputs
• Quick and easy installation that requires no harnesses, external power supply or antennas

SPECIFICATIONS

MEASURES

• 8:26 CM (HEIGHT) X 17:78 CM (WIDTH) X 2:86 CM (DEPTH)
• 3:25" (HEIGHT) X 7" (WIDTH) X 1:125" (DEPTH)

WEIGHT

• 385g/13.5oz
• With optional 1,150 g (40:57 oz) mounting bracket

OPERATING TEMPERATURE

• -40° to +65°C

INPUT VOLTAGE

• 10 TO 48 VDC

BATTERY TYPE

• Built-in rechargeable NiMH batteries (not replaceable)

CERTIFICATIONS AND REGULATIONS

• ATEX/IEC Ex ia IIC T4 Ga, AEx ia IIC T4 Ga for Zone 0 applications internationally
• OSHA Hazard Location Classification of Class 1
• UL 60079-0
• CSA STD C22.2, CSA 157-92 (Class1 Div1)
• HERO (Hazards of Electromagnetic Radiation to Ordinance)
• FCC, ISED, EC
• IP69K (Watertight Protection)
• MIL-STD-810G
• Complies with the Waste Electrical and Electronic Equipment Directive
• GMPCS-MoU
