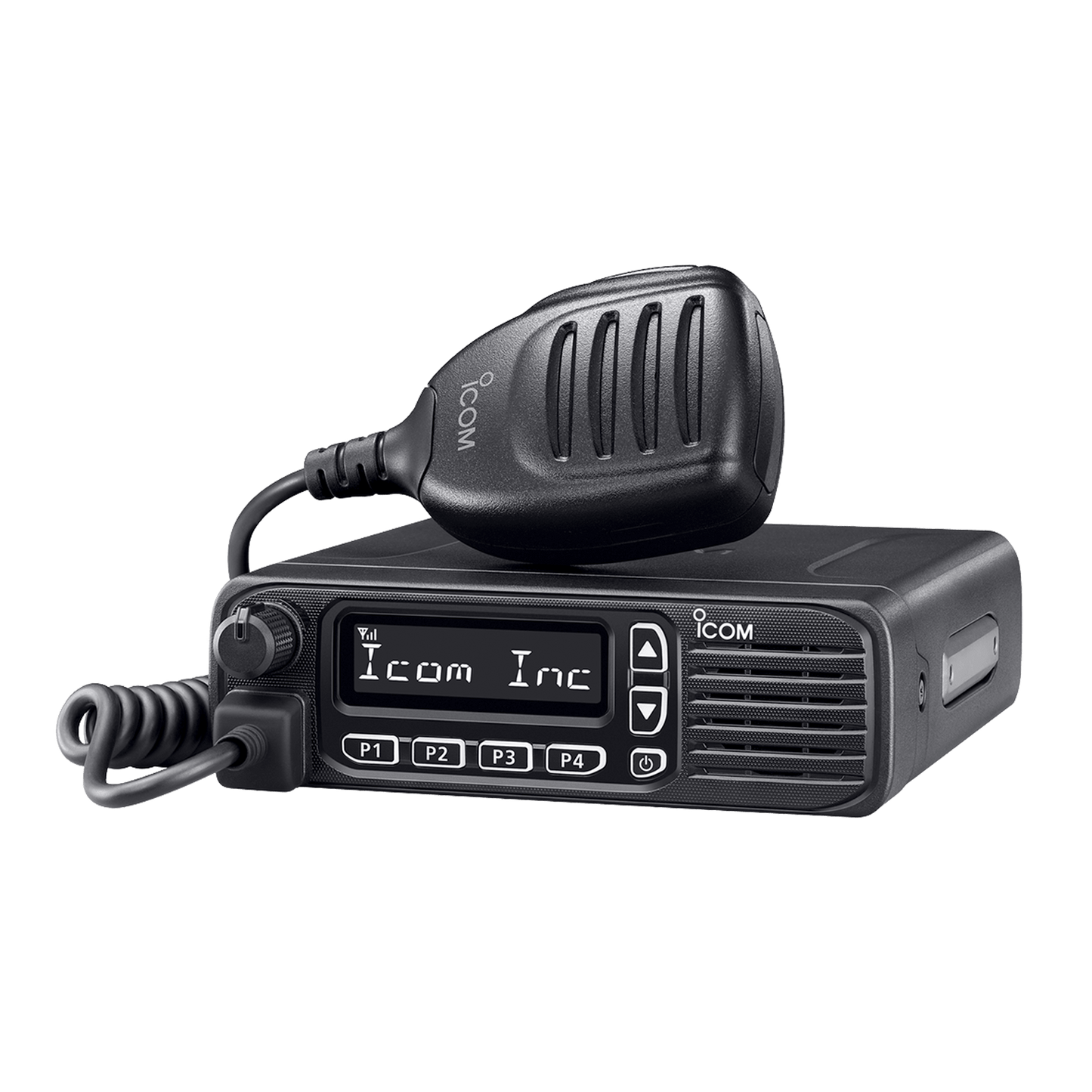

NXDN / IDAS Mobile Radio with Screen, 128 Channels, 400-470 Mhz

  • 70c3db9457b6964ac024034ddc553923
1 1

214 in stock

Modelo: IC-F6130D

Proveedor: ICOM

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
placeholder

Dual mode operation: IDAS™ digital mode and analog FM mode

IC-F5130D series supports analog mode, the conventional IDAS™ digital multisite mode and the IDAS™ digital single site trunked mode. And it is possible to migrate from Analog to Digital according to the end user's requirements.

Improved visibility with black-background LCD with high contrast and wide viewing angle

The IC-F5130D/F6130D series is a simple, single-body IDAS™ mobile radio utilizing Icom's latest design platform and enhanced visibility with a high-contrast, wide-viewing angle black-background LCD display.

placeholder

Input/output interface for external devices with optional D-SUB accessory cable

The ACC connector cable can connect various external equipment to the transceiver. It is possible to operate external equipment through the transceiver or operate the transceiver from the external equipment. Data transfer by air, as GPS location, barcodes or telemetry data, is available. Transceiver remote control can improve operations efficiency.

placeholder

Safe Features for Transceiver Operators

With the IC-F5130D series, it is possible to confirm the safety of the transceiver operator. If there is no operation of the transceiver, The lone worker function issues an alert and indicates operation. Also, if the operation is not yet carried out, The transmission can be forcibly started to check the sound in the surrounding area and the operator's status. And the power-on password, the digital voice encoder, etc are available in IC-F5130D series to protect confidential communication.

General characteristics

  • Versions from 136 to 174, 400 to 520 MHz.
  • RF output power 50W/45W for USA and EXP: 25W for EXP.
  • 128 Channels / 8 Zones.
  • High contrast, wide viewing angle black background LCD.
  • Eight character alphanumeric display.
  • 4W front speaker (typical).
  • MIL-STD-810 G shock, vibration, temperature and more.
  • DTMF automatic dialing memory capacity.
  • Programmable microphone stand action.
  • Four programmable buttons.
  • GPS position display and GPS sending with automatic synchronization (external GPS required).

Operating mode

  • conventional NXDN™.
  • NXDN™ Type D Single Site Raceway.
  • NXDN™ simulcast.
  • Conventional network over IP multisite NXDN™.
  • Analog mode.

Digital Features (Voice and Data)

  • PTT ID and ANI.
  • Over-the-Air Alias ​​(OAA) displays the caller name without programming.
  • Individual call, group and general.
  • Late entry for group call.
  • Status call and polling call.
  • short data messages.
  • Alert call.
  • Radio check (RX only).
  • Call log.
  • Response timer.

Analog functions

  • CTCSS and DTCS tone.
  • 2 tones and 5 tones.
  • CDM functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stunning (RX), Resuscitation (RX).
  • BIIS PTT ID transmission.

Protection and security

  • Digital voice coder.
  • Emergency call and lone worker.
  • Remote monitor (RX).
  • Kill, stun and revive by radio (RX).
  • Power-on password.

Scan functions

  • Up to 17 programmable scan lists.
  • Priority scan monitors one or two priority channels while scanning non-priority channels.
  • Voting scanning automatically selects the optimal repeater site.

Hardware Features

  • Connection of GPS receiver with optional ACC cable.
  • Optional D-SUB connector: OPC-2078/OPC-1939, for external PTT, channel, horn, power switch and dimming control, according to programming.
  • Bluetooth® capability with optional UT-137A.

Note: There is no digital "IN" modulation when using an accessory cable.

placeholder

Example of advanced system with VE-PG4

placeholder

The VE-PG4 is a versatile RoIP (radio network over IP) gateway unit that interfaces the IC-F5130D series with other radio systems, even when systems use different bands*.
As shown in the example, any transmission from “Radio System A” connects to other radio systems, so the radio user on “Radio System A” can talk to all connected radio users in the figure.

*Cross band operation may be prohibited in some countries.
Please check your country's legal requirements before installation.
