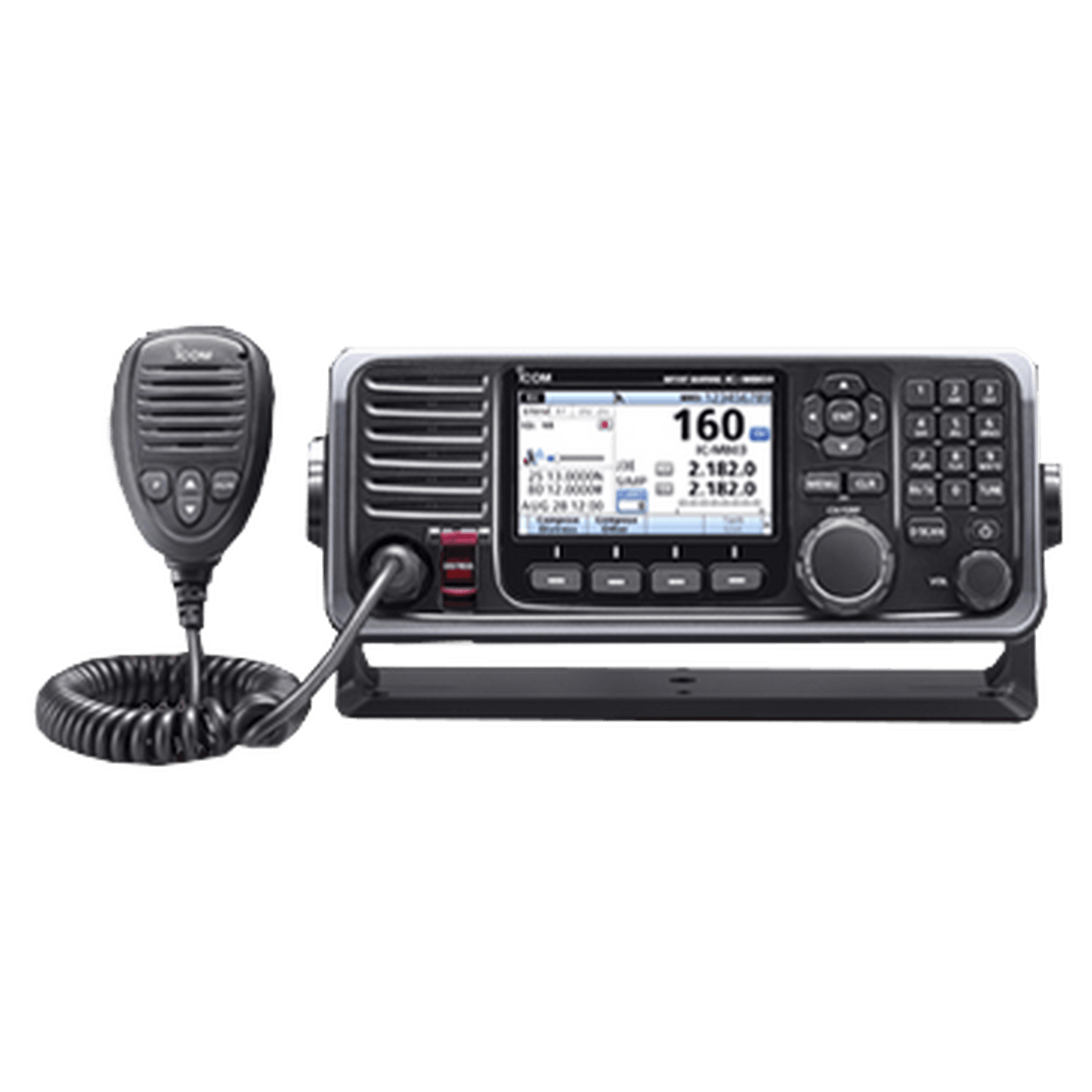

MF/HF Marine Mobile Radio in operating modes SSB, LSB, AM, CW, FSK, AFSK, DSC digital call, with remote head, large easy-access color screen

The IC-M803 is the long range communication radio for any cruiser. W ith Class E DSC MF/HF certification. It's packed with features to keep users safe, like a distress call button, audio playback, GPS and more.

The intuitive interface of the TFT color display and the similarity of the M605's user interface allow for easy operation between the two radios. The M803 also includes an advanced RF direct single sampling system that improves receiver sensitivity and higher quality audio.

Operation range:

Rx:

0.5 - 29.999MHz

TX:
1.6 - 2.9999MHz
4.0 - 4.9999MHz
6.0 - 6.9999MHz
8.0 - 8.9999MHz
12.0 - 13.9999 MHz
16.0 - 17.9999 MHz
18.0 - 19.9999 MHz
22.0 - 22.9999 MHz
25.0 - 27.5000 MHz

DSC:

2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 12.8045MHz

Characteristics:

• Operation modes: SSB, LSB, CW, FSK, AFSK, AM* (*Reception only).
• 830 channels (160 programmable, 72 ITU SSN duplex, 249 ITU SSB simplex, 193 ITU FSK duplex, 160 email)
• Easy access emergency button
• Screen with IPX7 protection
• Large 4.3" TFT color screen (LCD)
• GPS receiver, GLONASS, SBAS (antenna included)
• Data input and output via NMEA 0183
• DSC calls (ITU Class “E”).
• Power 150W
• Up to 2 minutes of recording of the last calls received
• Manufactured in ISO 9001:2015 environment
• 2 years warranty

Includes:

• Remote control cable
• HM-214 Handheld Microphone
• GPS antenna
• Power cord.
• Assembly and accessories

Radius dimensions : 240 x 94 x 238 mm
Weight: 4.41g.
Head dimensions: 274 x 114 x 86 mm
Weight: 760g.

Antenna connector: SO-239 or UHF female.
