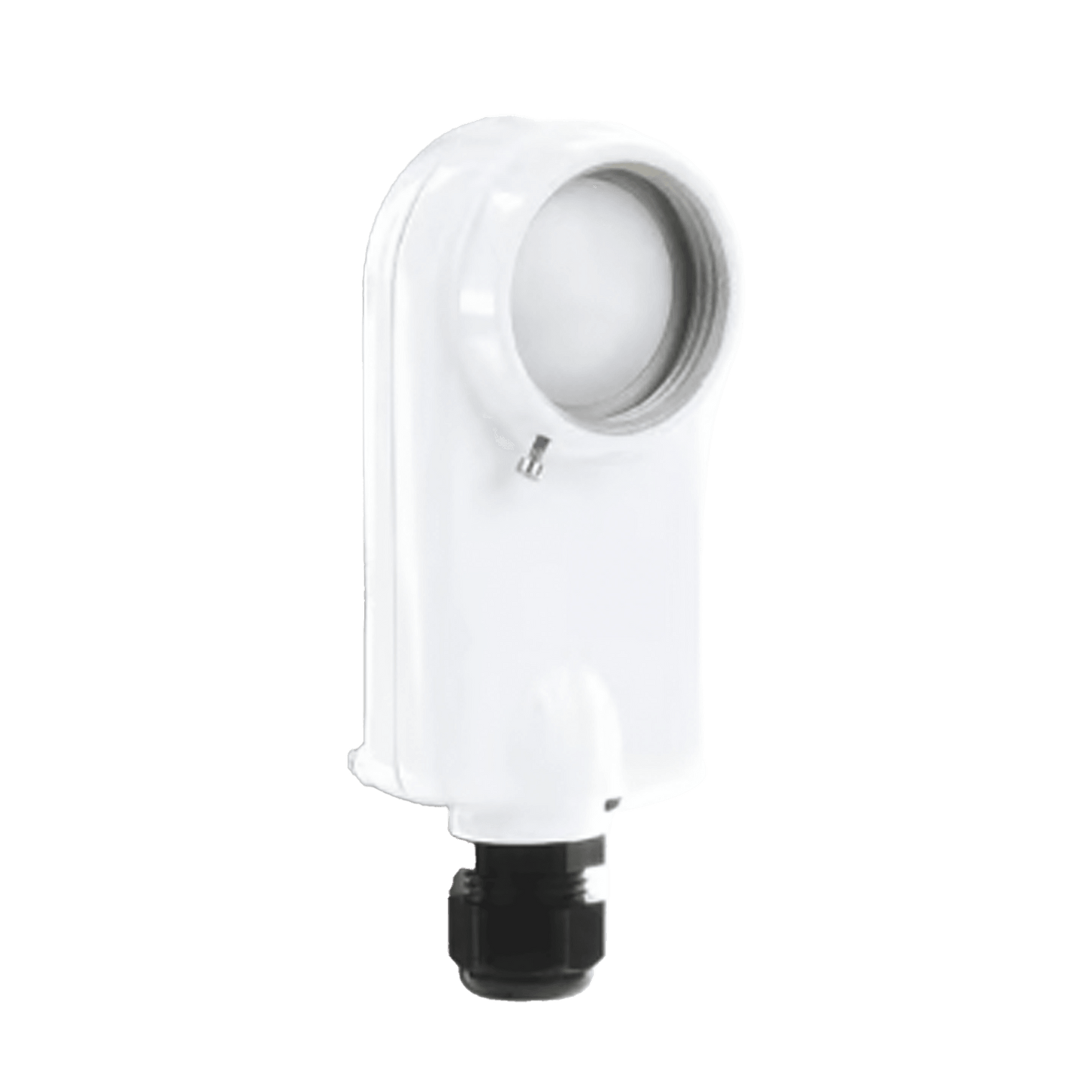

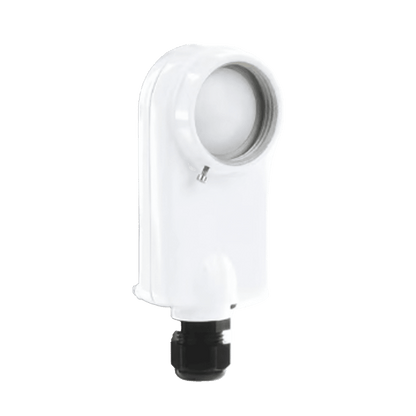

Modular Radio (\ \ 8dB \ \ Integrated Antenna \) up to 700 Mbps, (4.9 - 6.4 GHz), IP67, Automatic Adaptation to the environment, Monitoring through the cloud.

  • 0da7ada42a189a491423f3a94ff637d7
  • 6e84b84e6ba6077b23dcbc2abbbebdf6
  • c2d470e9840e65a88207af9356f31880
  • 47ba34a724b2a3318d02f0a62a6a0914
1 4
  • Super frequency range 4.9 - 6.4 GHz
  • Antennas for longer distance: TXPD36B5X, NPPROS2PACK,TXP-D30-C5X, TXPD34B5X, NPPRO-S36, CSPD46C5X
  • NPTWRV Adapter Compatibility
  • Mode of operation: access point and station.

Out of stock

Modelo: C5X

Proveedor: MIMOSA NETWORKS

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
INCLUDES INTEGRATED 8dB ANTENNA

Main features:

Operation mode:

PTMP client up to 500 Mbps

PTP hasta 700 Mbps

Frequency: 4900-6400 MHz.

Gain: 8 dBi (native).

12–25 dBi (with antennas).

Antennas for longer distance: TXPD36B5X, NPPROS2PACK,TXP-D30-C5X, TXPD34B5X, NPPRO-S36, CSPD46C5X

Maximum output power: 27 dBm

IP Rating : IP67

Power consumption: 12.9 W max.

Requires PoE adapter ("POE-24V") and Power Cable (PCC53)

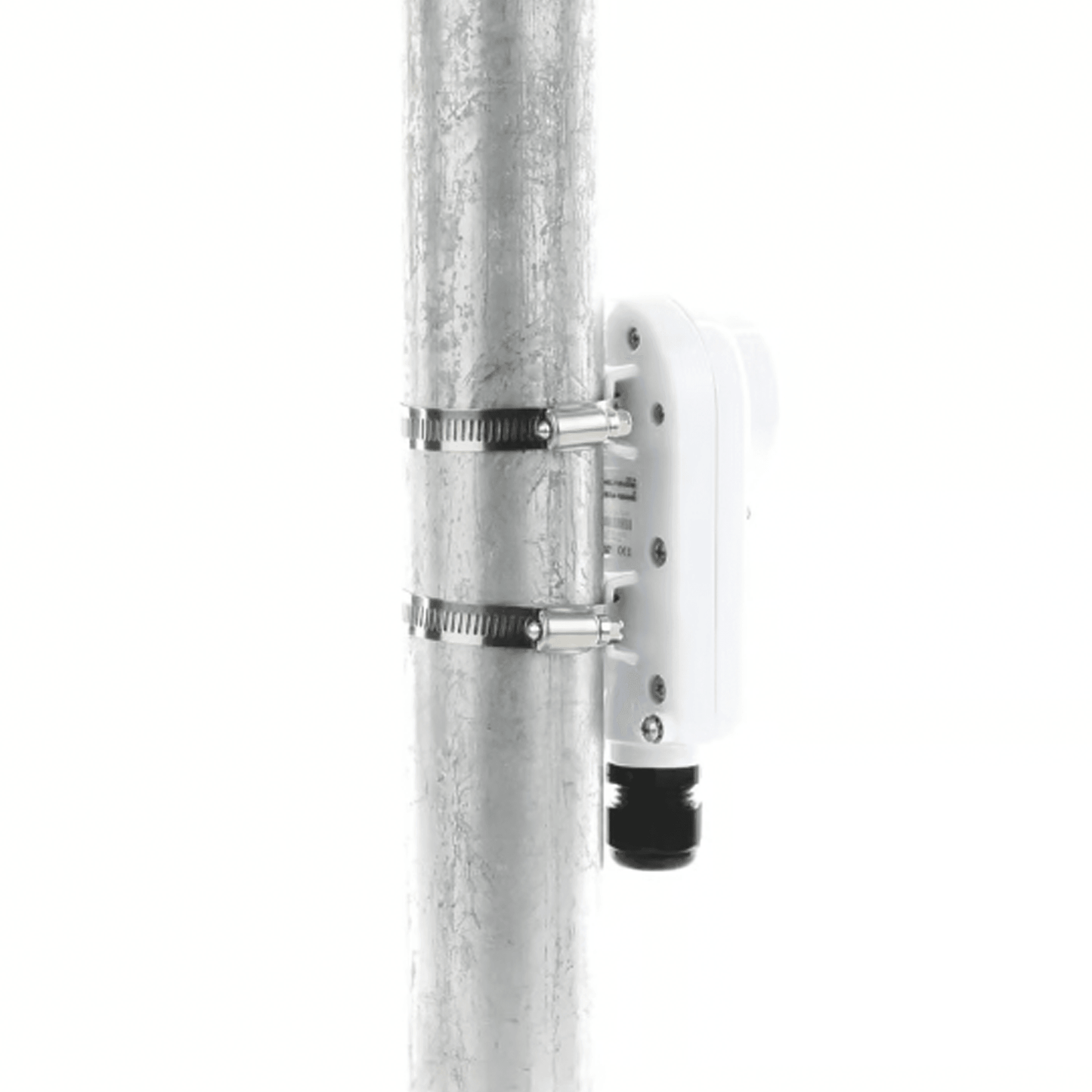

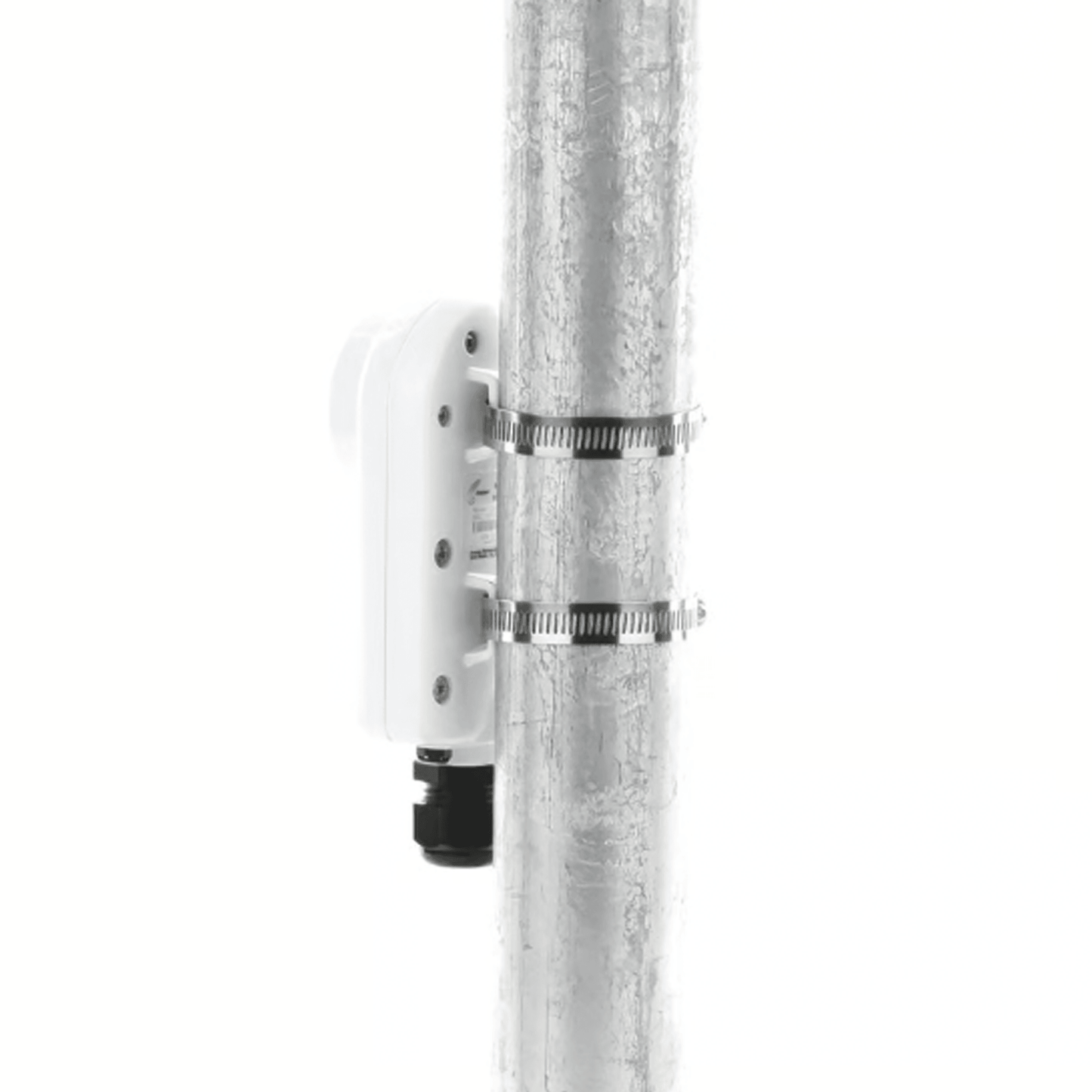

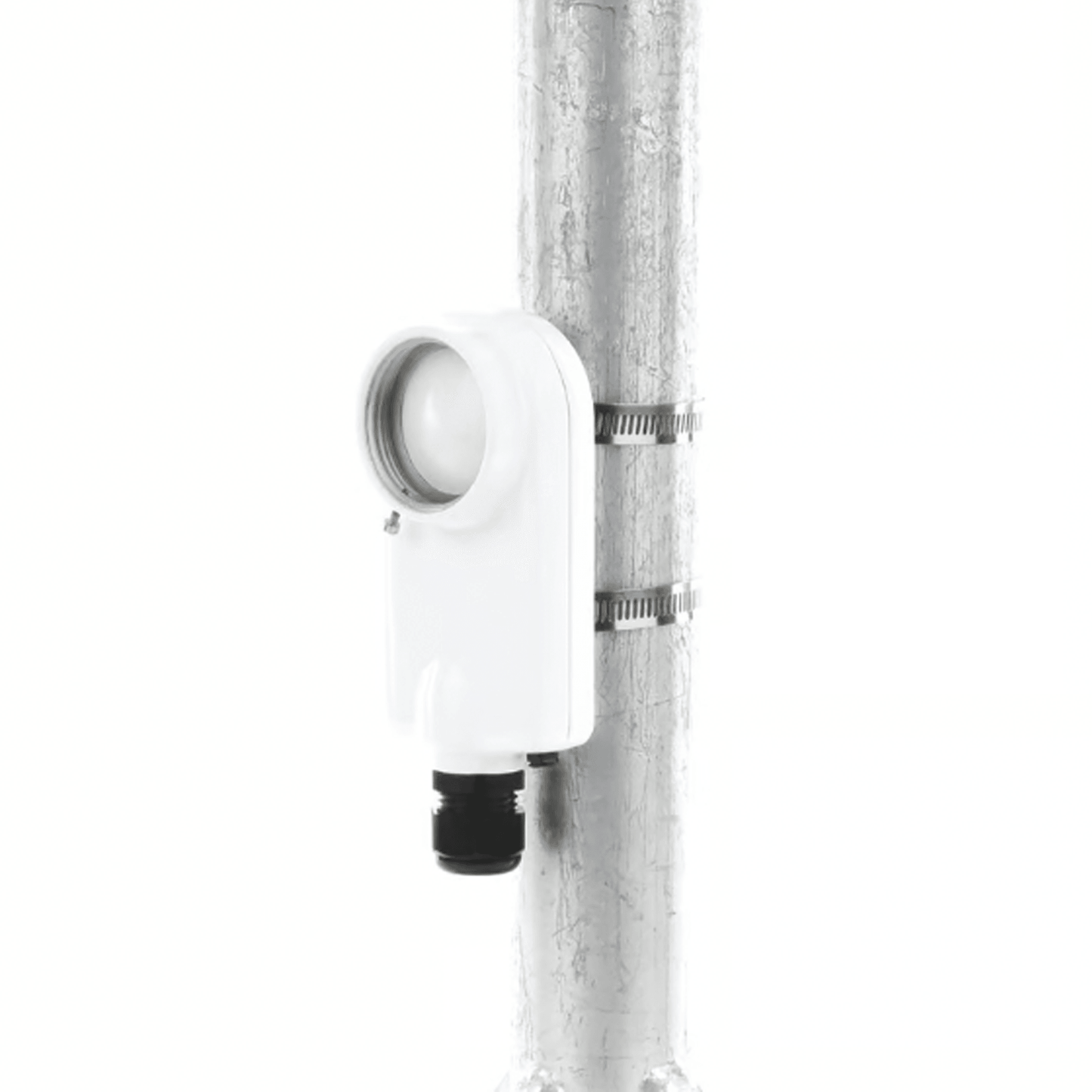

Note: For vertical alignment use U-MOUNT or FLEXIMOUNT (NOT INCLUDED).

Note : the equipment already includes an internal shock protector, It is recommended to land on a physical ground.

Note: The device works only as a PTP for another C5x and as a client for an A5x or A5c.




THE BASIC

APPLICATIONS

fickle

Ultimate flexibility

Out of the box, C5x entry level can be used in PTMP or PTP mode with speeds up to 700 Mbps

FLEXIBLE

Incredible RF performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides interference immunity with revolutionary front-to-back and front-to-side advancement. Each antenna in the N5-X family is optimized for noise isolation with incredible sidelobe rejection.

BROADBAND

Extended Frequency

To escape the noise, The C5x allows you to take advantage of 4.9 GHz public safety applications and authorized frequencies up to 6.4 GHz, where local regulations allow. Custom designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

DESIGNED

Ultra Resistant

The C5x, with its die-cast aluminum metal casing, bipolar mounts and industrial grade screw-on antenna options, is optimized to reduce noise, Resist outdoor elements and stay mounted in extreme weather conditions.
