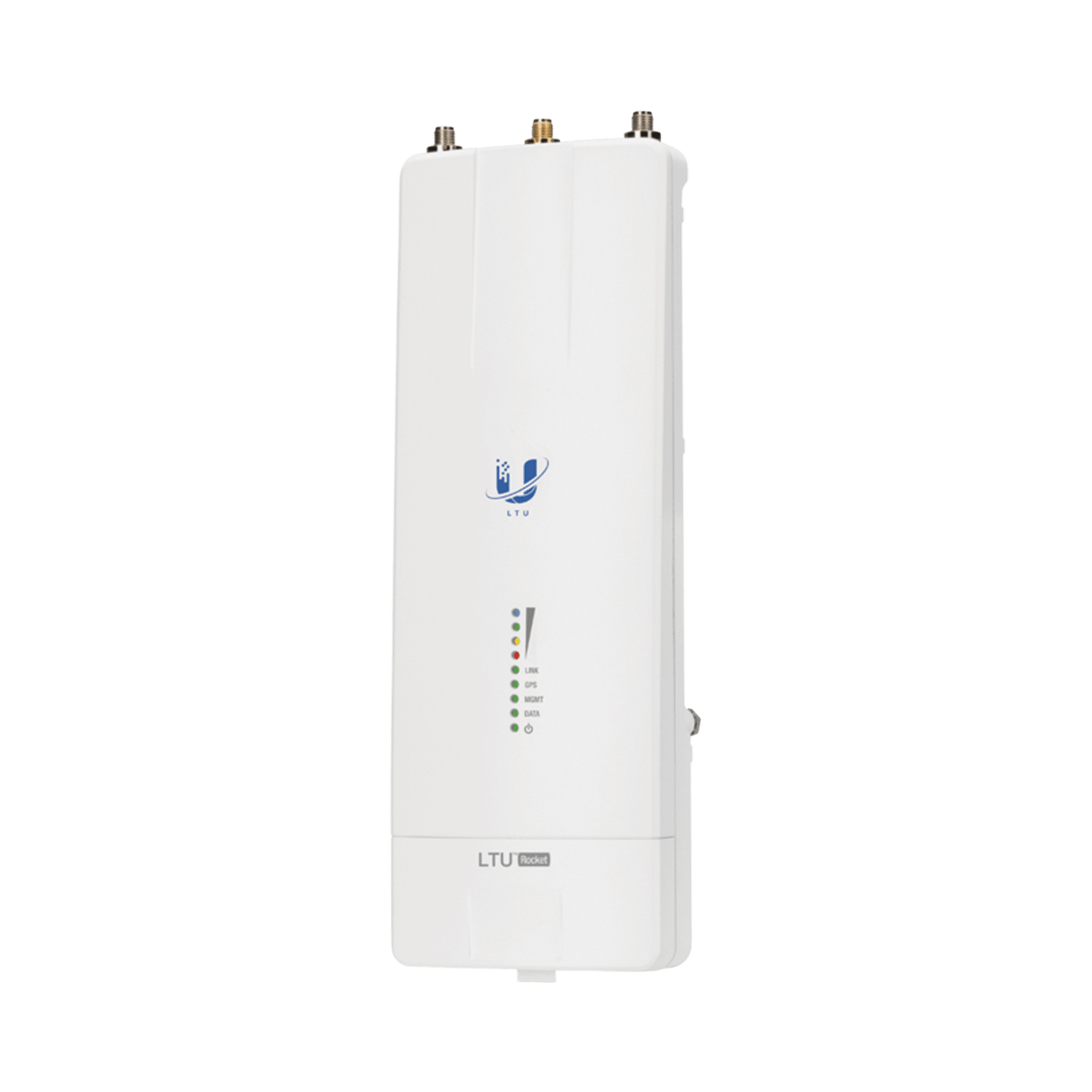

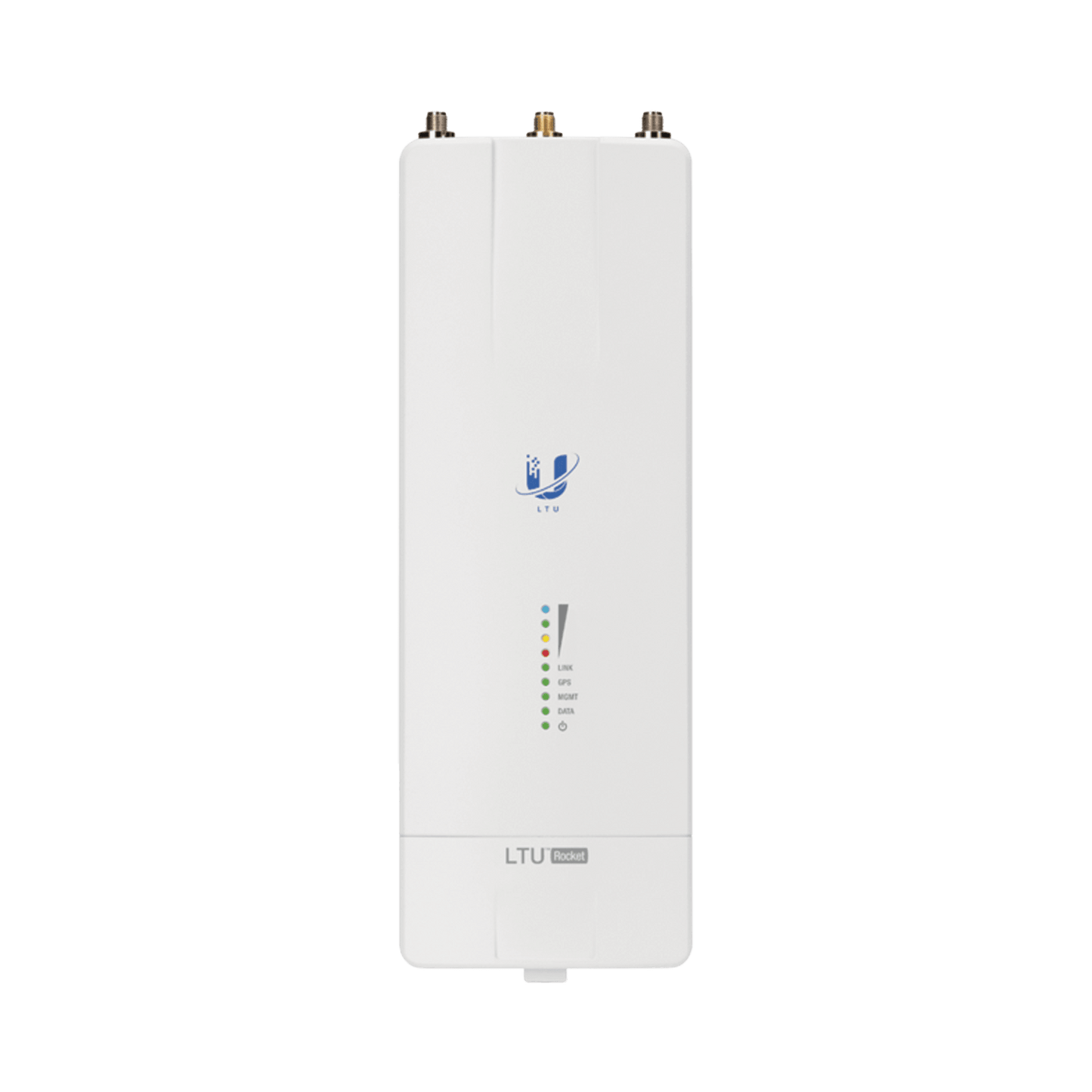

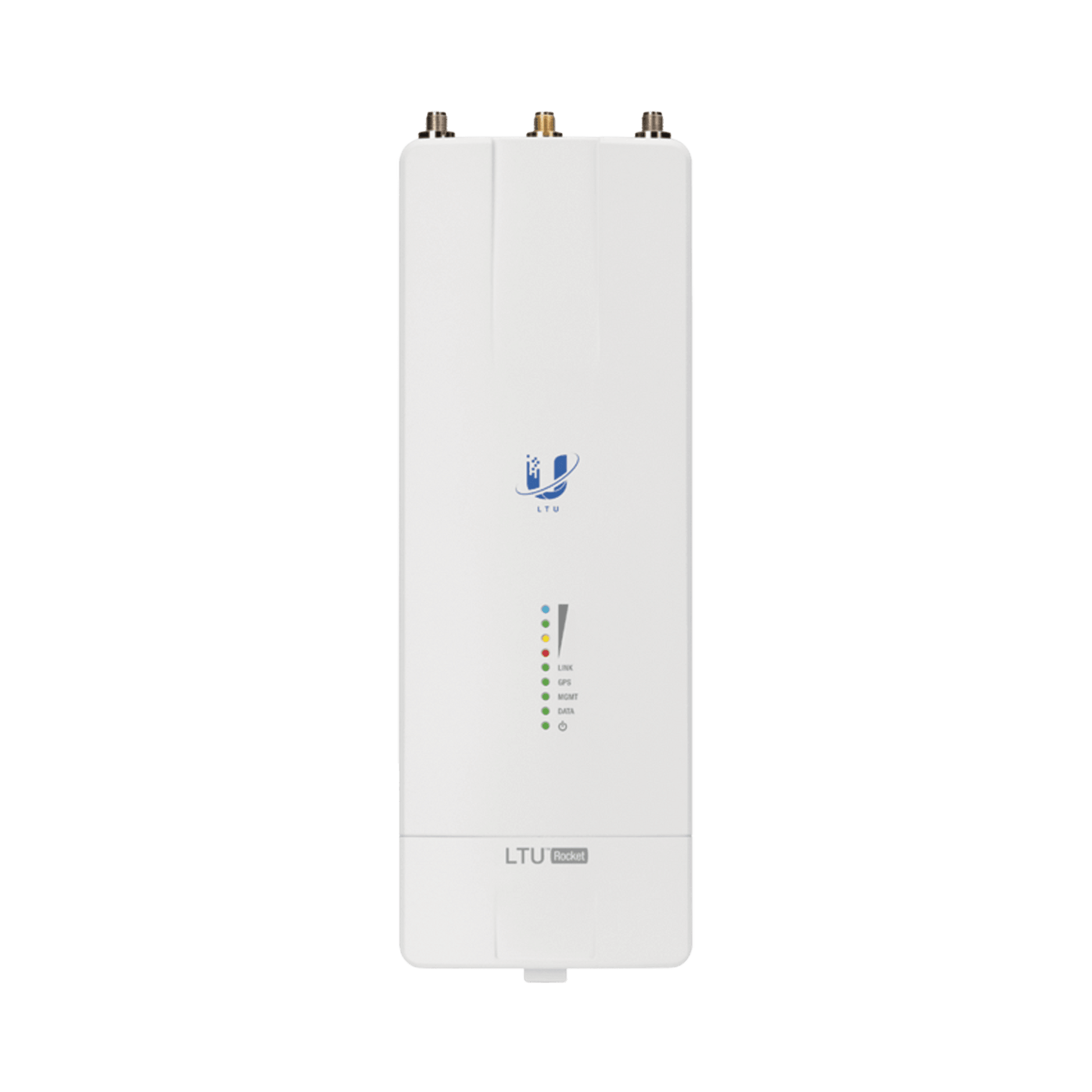

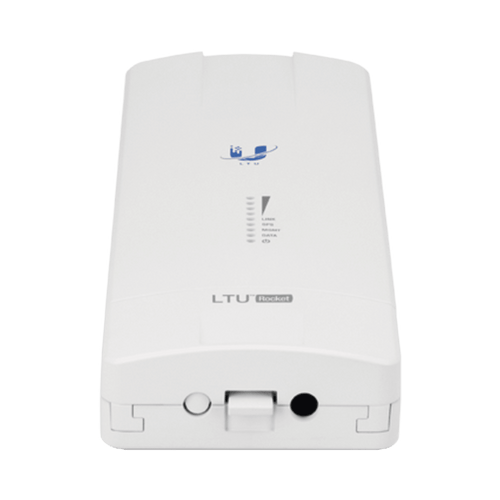

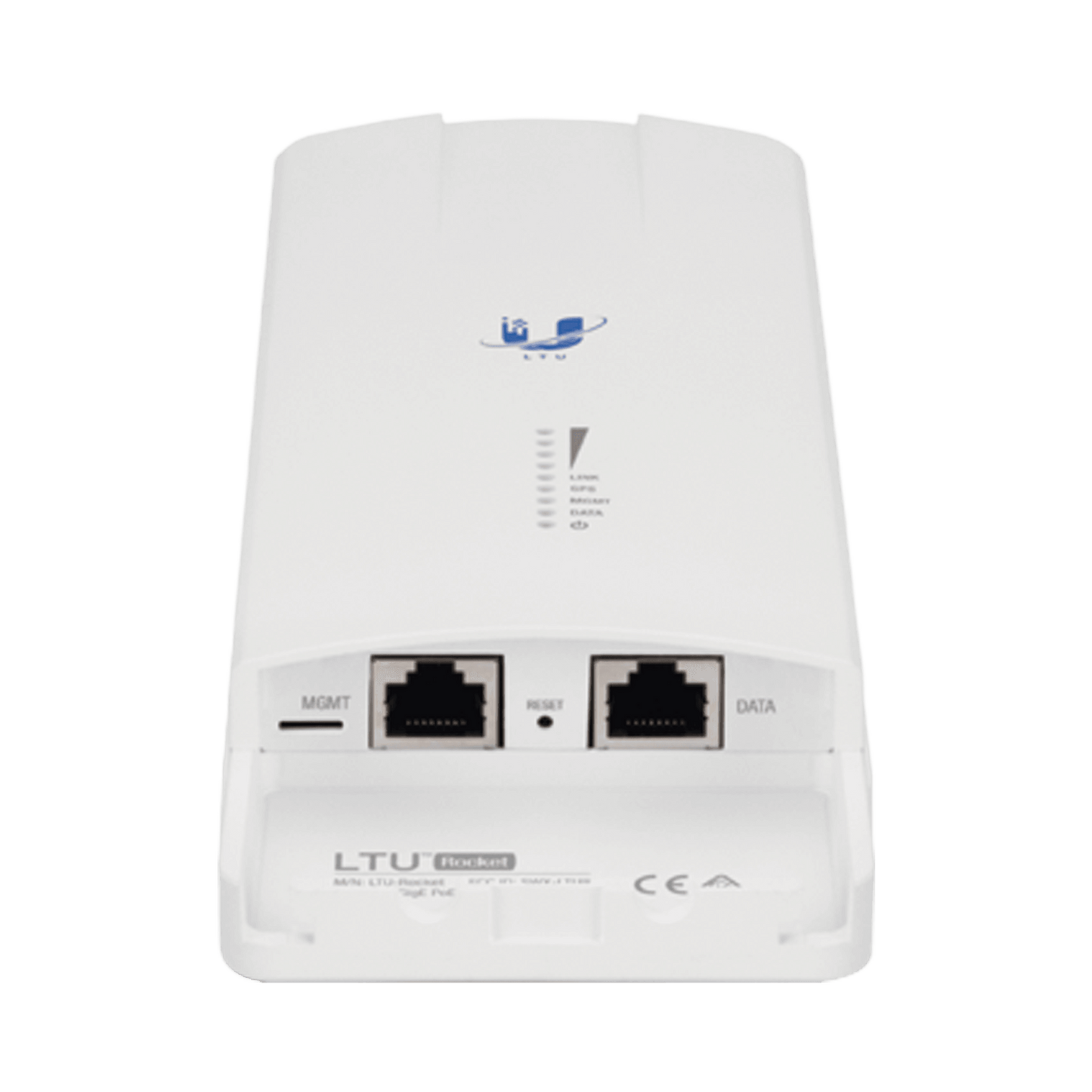

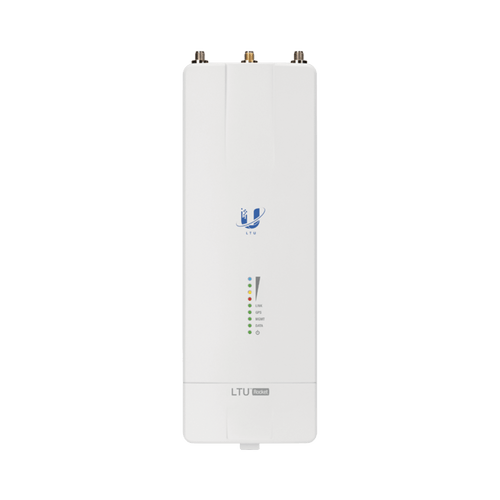

LTU™ Rocket PtMP Base Station Radio, up to 600 Mbps, 5 GHz (4.9 - 6.2 GHz), with patented RF filtering and GPS sync for superior performance

  • 3ede8c4a2db45e711ea97624f4659ac6
  • 38033b483dd0056595246a40ea5bf736
  • 9fcd05bf9d6a5e3a2cf4453e77960acf
  • 18c6f5eae6eda9786ed8a2704842785c
  • 47d28691c80e6186fb47a73aeff5bb76
  • 57d166ee656f5878e2f94de0a8f3d37a
1 6
  • Tecnología para WISP, eficiencia espectral inigualable
  • Radio banda ancha 5 GHz para alto rendimiento
  • Arquitectura multi-radio con motor de análisis RF
  • Dimensiones compactas: 244x82x48 mm, peso 0.468 kg
  • Conectores RF impermeables para mayor durabilidad

101 in stock

Modelo: LTU-ROCKET

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Technology designed for WISP

Unmatched spectral efficiency, noise resistance and scalability to power long-range wireless networks

Broadband radio technology at 5 GHz

802.11n Spectral Efficiency Comparison, 802.11ac, airFiber vs LTU

Spectral Efficiency

Packages per Second

Modulation symbols

Exceptional Performance

Designed for difficult RF environments

The first end-to-end custom PtMP technology

No subscription fees, Fast flow and new features.

Multi-radio architecture that powers a revolutionary RF analysis engine

Ubiquiti Network Management System

Product specifications
Dimensions 244 x 82 x 48mm
(9.61 x 3.23 x 1.89")
Weight 0.468kg
(16.5oz)
Enclosure Aluminum and Polycarbonate

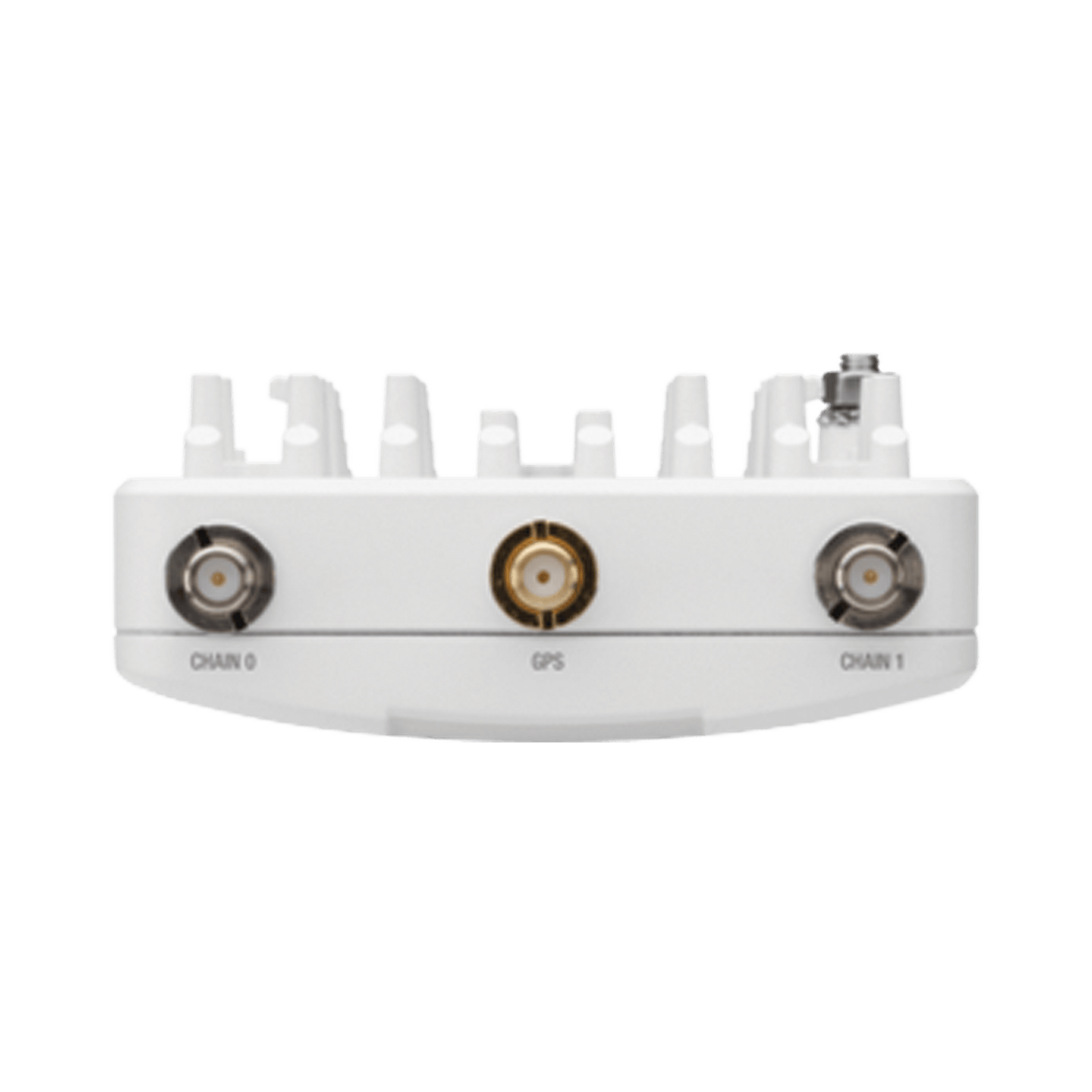

RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External
Power supply 24V PoE Adapter 1A (Included)
Feeding method Owner 4-Pair Passive PoE
Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-
Max consumption 15W
Voltage Range +18 to +54VDC*

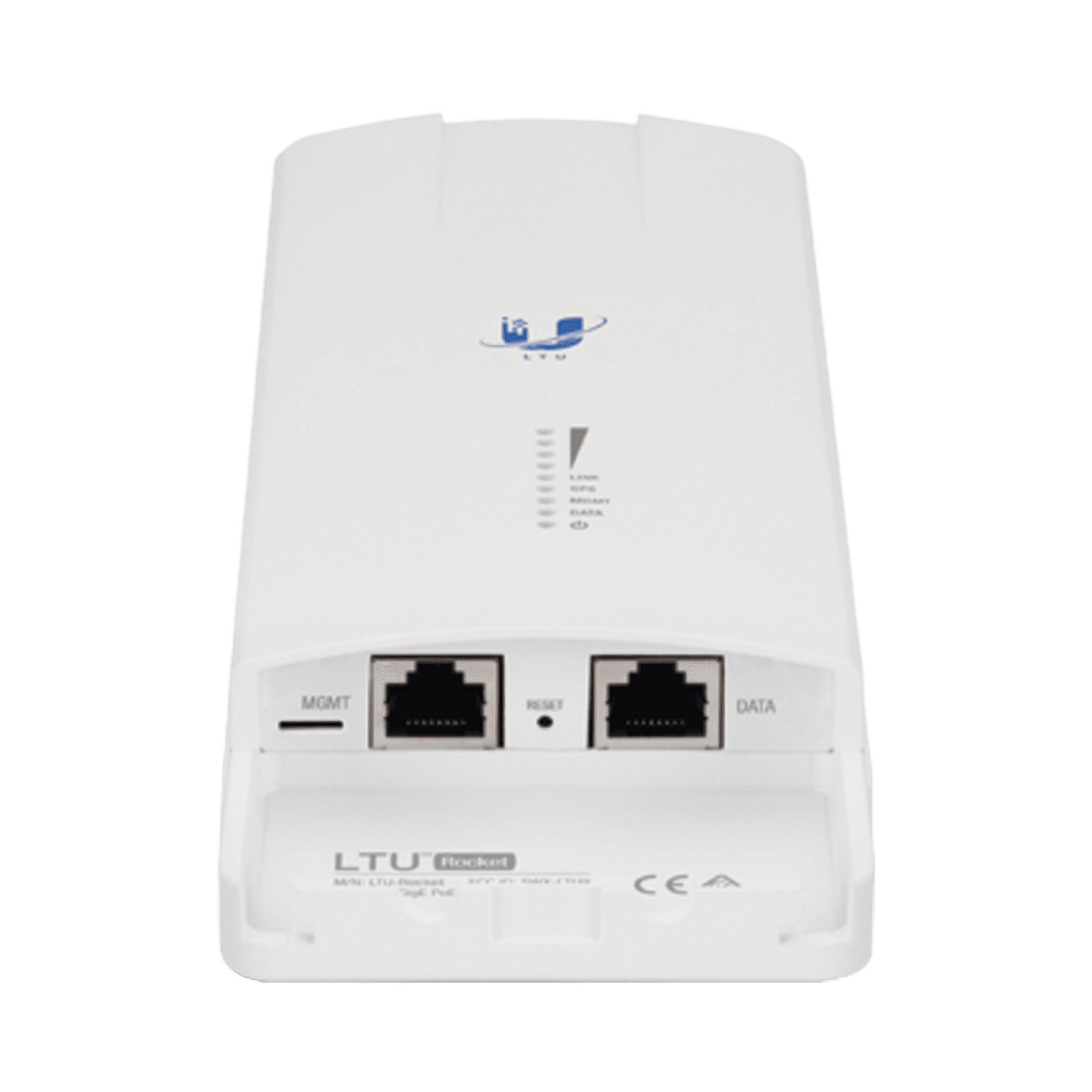

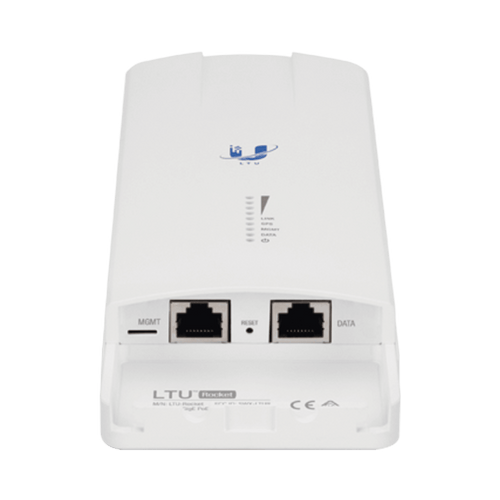

Network interface (1) 10/100/1000 Ethernet Port
Mounting Pole Mounting (Included)
Rocket mount compatible
Temperature range -40 to 55°C
(-40 to 131°F)
Weatherproofing IP672**
Certifications FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
System
Maximum Performance 675.84 Mbps ***, ****
Packages per Second 2+ Million
Encryption WPA2-PSK (AES)
Forward Error Correction LDPC
Uplink/Downlink Ratio 25/75, 33/67, 50/50
YOU airOS LTU
Operation mode AP
MHz Frequency Range
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
Worldwide 4900 - 6200
Max. Conducted TX Power 29 dBm (Depends on Region)
Frequency Accuracy < 2ppm
Channel width 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink

* Full range depends on cable length.
** After installation of the IP67 kit (included).
***Values ​​may vary depending on environmental conditions.
**** 1+ Gbps with future firmware update.
