Ports:

1 10/100/1000 Mbps data port.

OS:

airOS® 8.

Operation modes:

Access Point.

Season.

*Performance values ​​and the number of clients may vary depending on the environmental and installation conditions of the CPE clients.

Characteristics:

Adjustable channel widths:

• PtP: 10/20/30/40/50/60/80 MHz.
• PtMP: 10/20/30/40 MHz.

Operating range (5150 - 5875 MHz) depends on country.

Atheros MIPS processor.

Strong WPA2 AES security.

High performance.

Scalable.

Local administration radio in 2.4 GHz.

Improved SNR.

Improved noise immunity.

Physical and electrical characteristics:

Power: 24 V, 1 A.

Dimensions: 83 x 117 x 69 mm.

Weight: 770g.

Operating Temperature: -40 to 70° C.

Includes:

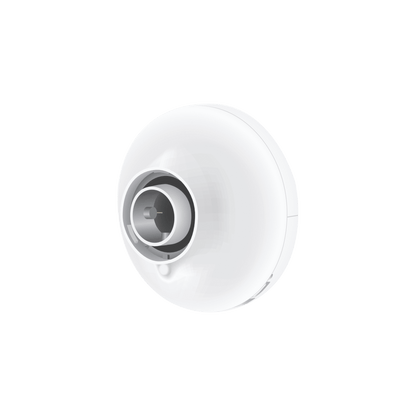

PrismStation 5AC.

GPS antenna.

24 V 1 A Gigabit PoE Adapter.

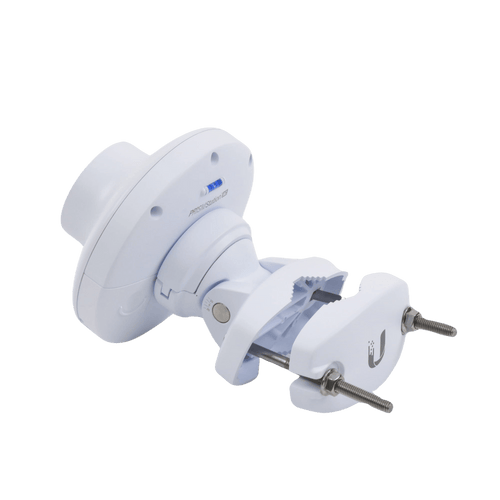

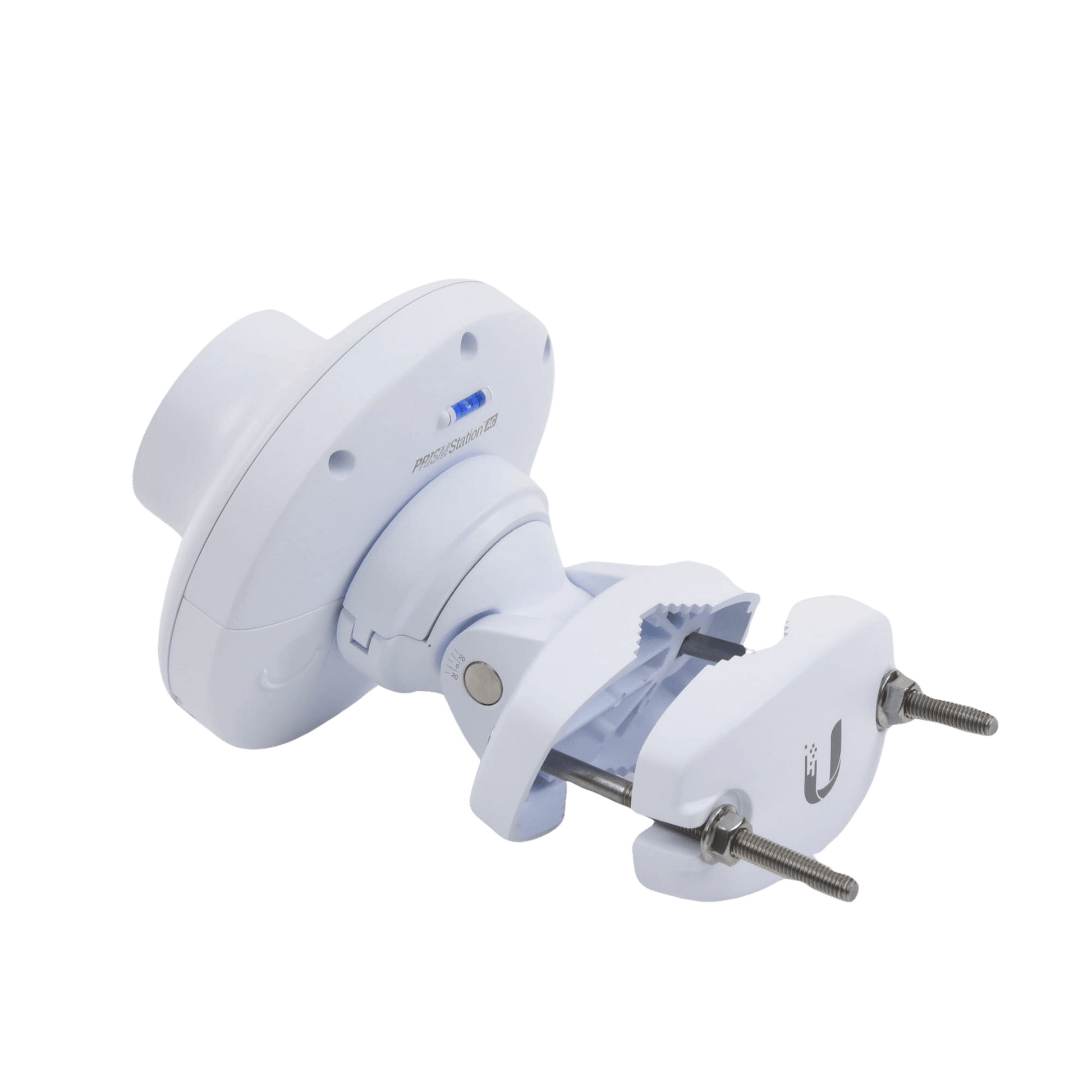

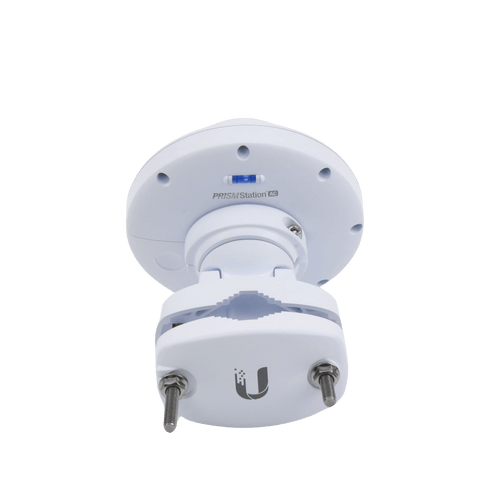

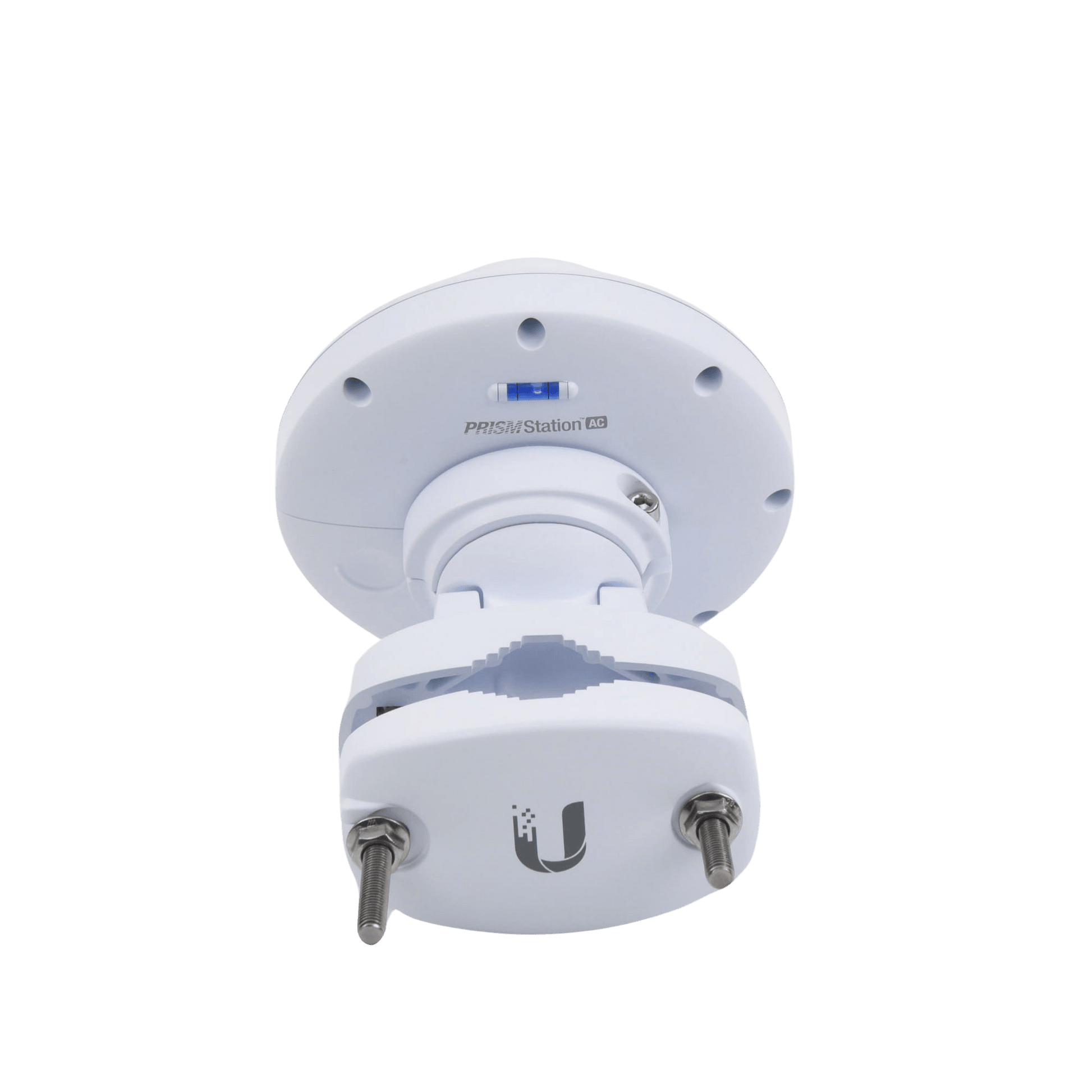

Mounting kit.

Warranty:

1 year.

Built to combat noise with the Prism active RF filter.

Ubiquiti Networks designed the airPrism filter as a robust solution to interference. airPrism enables greater system capacity and overall performance by further reducing out-of-band power.

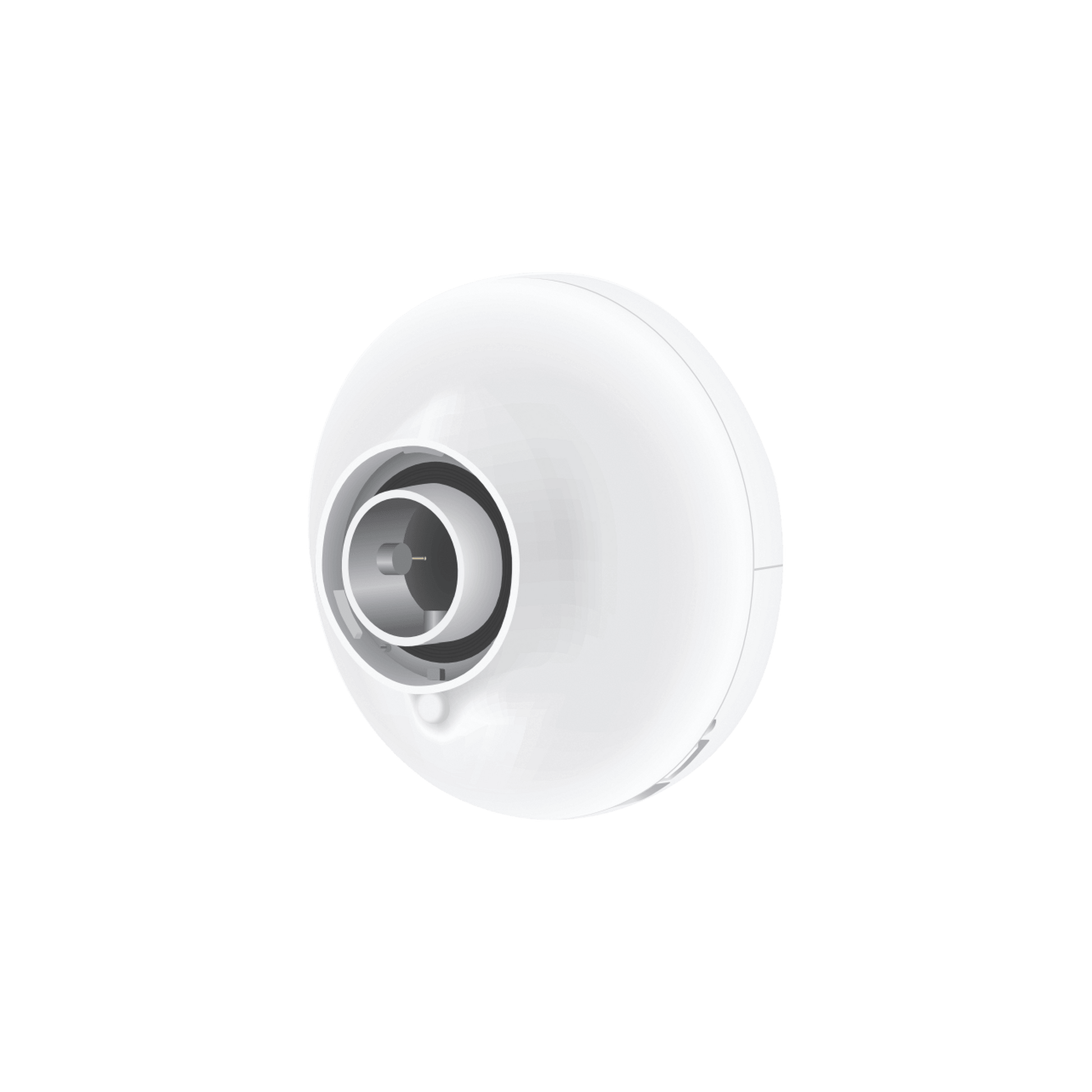

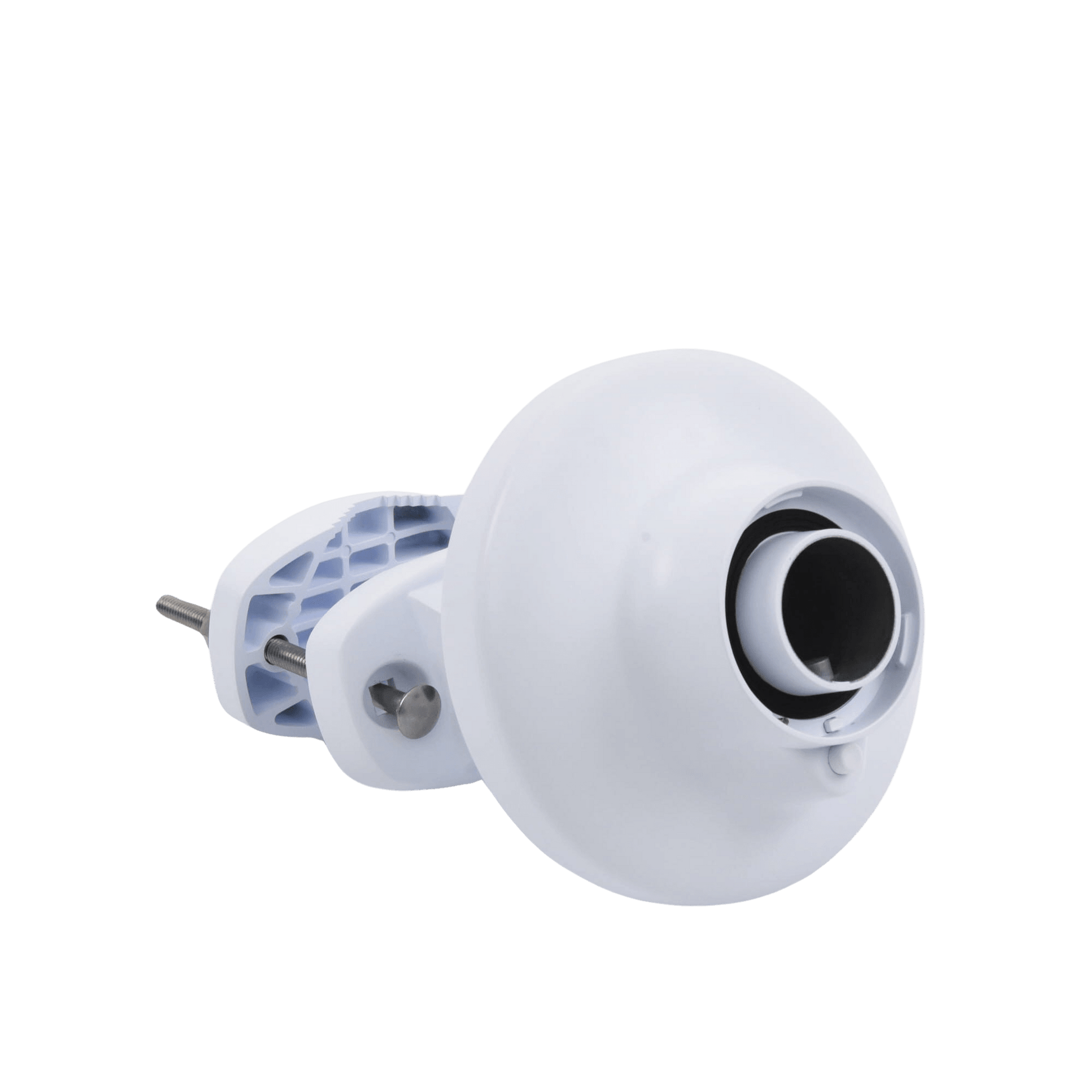

Modular Design.

The horn antenna is interchangeable and helps us shape the beam for specific deployments and environmental needs.

GPS synchronization.

The PrismStation™ AC supports GPS Sync for faster networks, more scalable and carrier class.

Improved Co-Location.

Asymmetric antenna options (60 and 90º) have naturally attenuated side lobes and very low rear lobe radiation and offer an excellent front-to-back ratio. Symmetrical antennas (30 and 45º) are ideal for installations in sectors with high co-location requirements.

Improved noise immunity.

PrismStation™ AC blocks or filters noise, thus improving noise immunity. This feature is especially important in an area filled with other RF signals of the same or similar frequency.

Management Wi-Fi radio.

PrismStation™ AC integrates a separate Wi-Fi radio for quick and easy setup using a mobile device.

Now with airOS®8 and airView®.

airOS®8 offers powerful features, including support for the airMAX® AC protocol, Real-time RF analysis and a completely new design for better usability.
