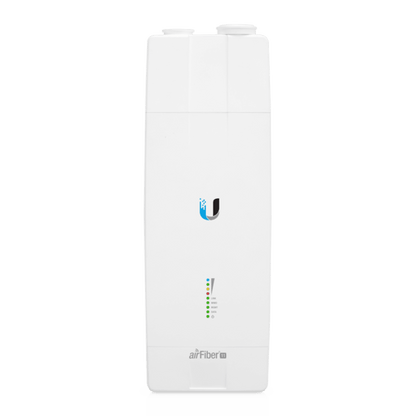

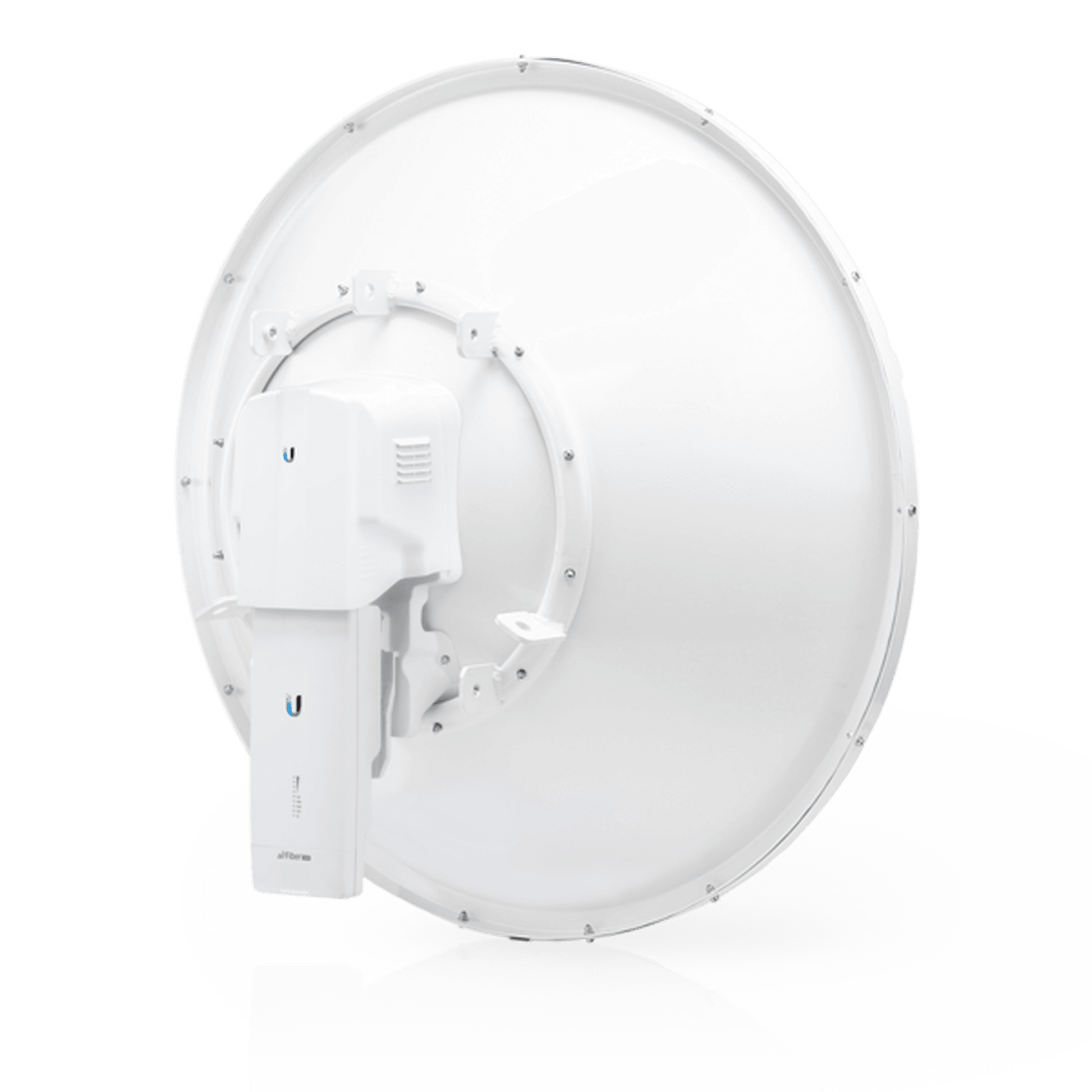

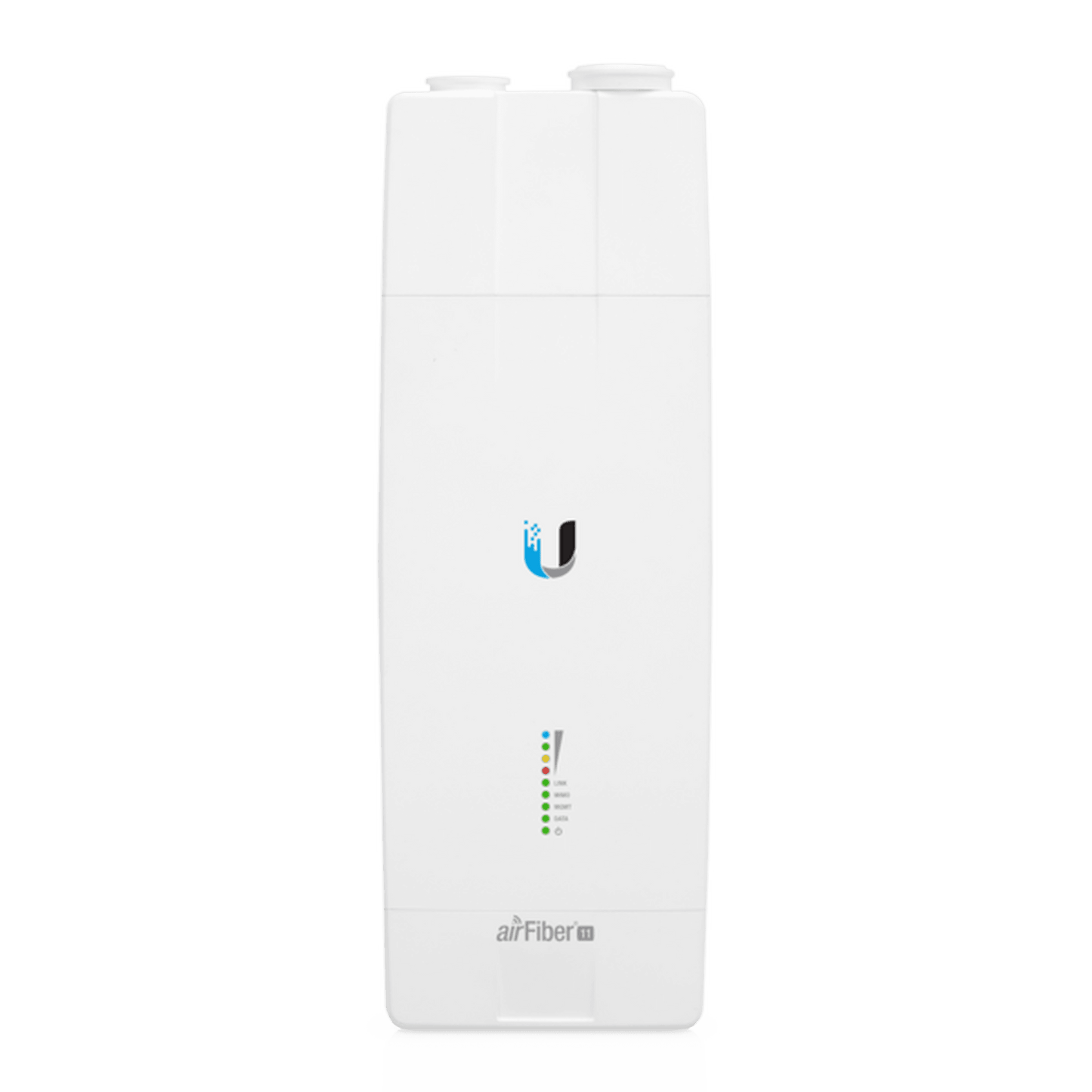

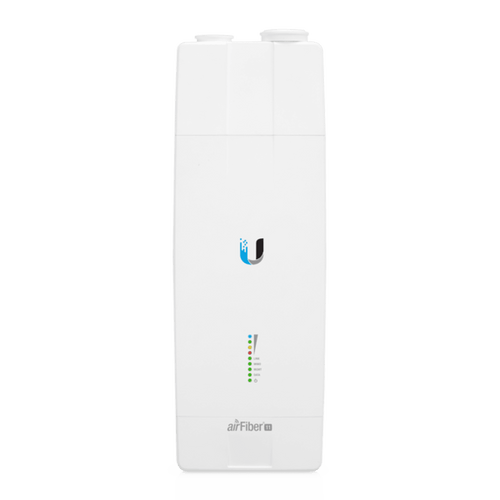

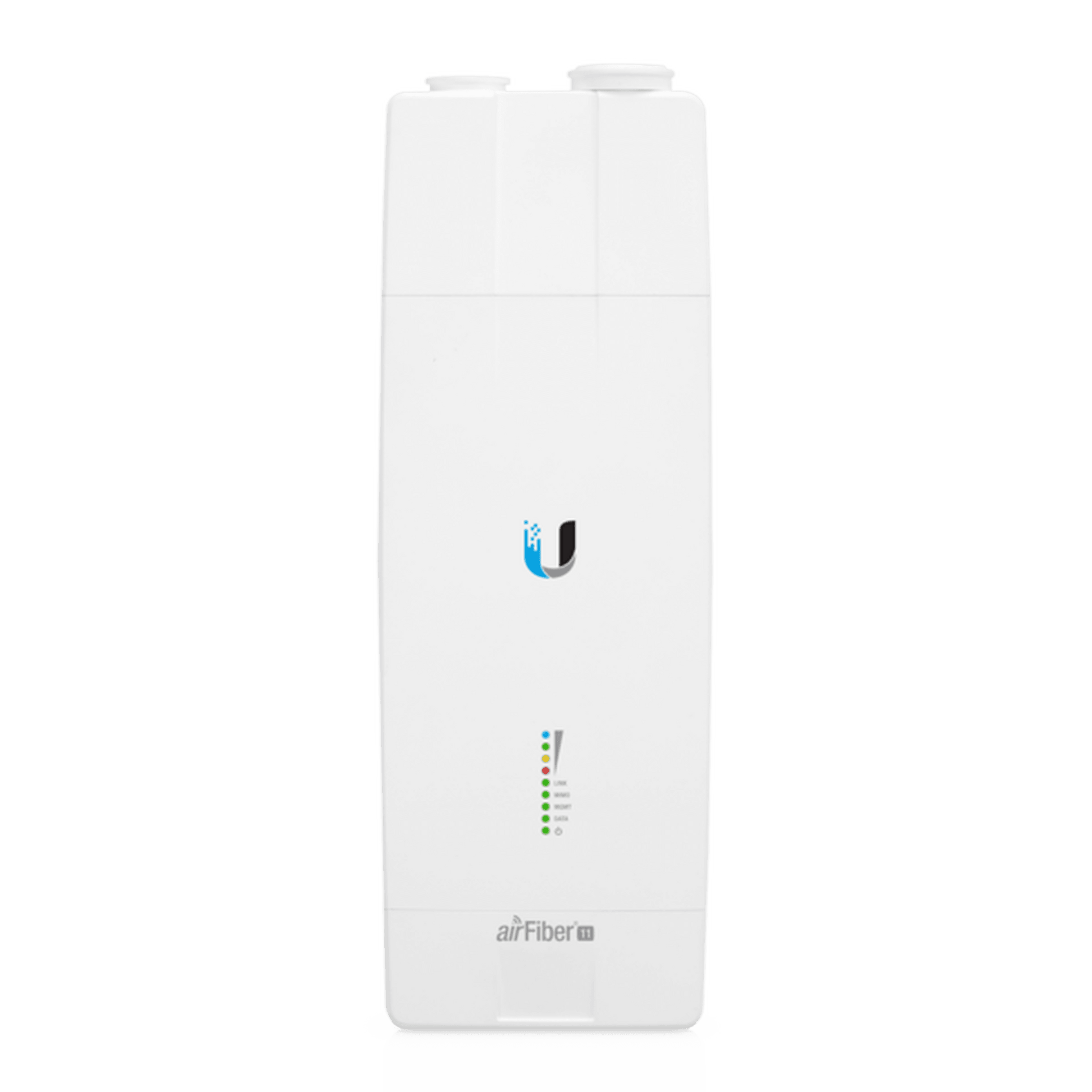

High capacity Backhaul radio up to 1.2 Gbps, licensed band 11 GHz (10.7-11.7 GHz), Includes AF-11G35 antenna and an AF-11-DUP-L low band duplexer

  • 0f9b598e4c93fa823589dd54152d5910
  • 7bef7d90ae232ade0817ae3bdf537271
  • 589b10c7a8d43134a5ef89cd873f9642
  • 184421360d57dd36d515ac711a64e7bc
1 4
  • Full-duplex point-to-point radio
  • Patented INVICTUS™ processor
  • Use different Rx and Tx frequencies
  • Accepts PoE or DC power
  • Secure 128-bit AES encryption

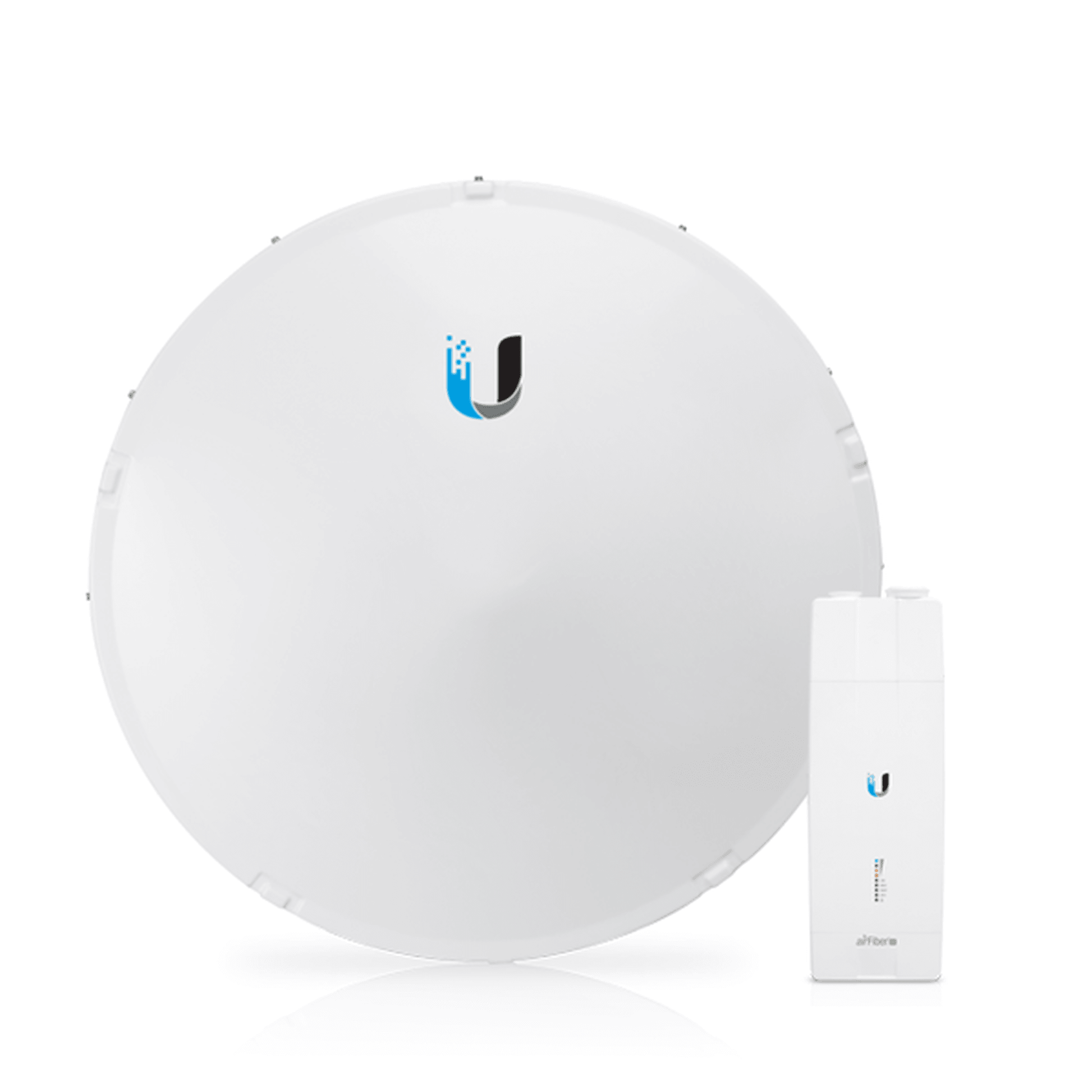

  • Comes with (1) AF-11 Radio, (1) AF-11G35 Antenna and (1) AF-11-DUP-L Low Band Duplexer

Out of stock

Modelo: AF11-COMPLETE-LB

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Advanced Engineering

Ubiquiti's INVICTUS™ 2 and proprietary radio architecture are designed specifically for outdoor long-distance wireless applications, providing superior performance, long range capability and higher performance.

Power Source Options

Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.

Reversible Duplexers

Each AF-11 requires one or two Duplexers (sold separately; models AF-11-DUP-H and AF-11-DUP-L).

Channel Settings

The airFiber AF-11 can use individual (SISO) or joined (MIMO) channels, based on your specific licensing requirements. The AF-11 also features different channel widths to meet your deployment needs, and can independently set the TX and RX channel frequencies.

Product specification
Dimensions 327 x 112 x 86mm
(12.87 x 4.41 x 3.39")
Weight 2.26kg
(5.0lb)
RF Connectors (4) SMA Weatherproof, Two per Chain:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per Duplexer
Power supply Gigabit PoE Adapter 50V, 1.2A (Included)
Feeding Method Passive PoE or DC power terminal
Supported Voltage Range 38-56Vdc
Certifications FCC Part 101, ETSI EN 302 217
Operating Temperature -40 to 55° C (-40 to 131° F)
Network interface
Data
Management
(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port
System
Processor INVICTUS™ 2 IC
Maximum performance 1.2+ Gbps
Encryption 128-bit AES
YOU airOS F
Wireless modes SISO/MIMO
Radio
Operating Frequency 10.7-11.7 GHz
(Depends on the Regulatory Region*)
Max. TX Power 30 dBm
(Depends on the Regulatory Region*)
Frequency Accuracy ±1ppm
Channel Bandwidth 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz**
Programmable uplink and downlink duty cycles

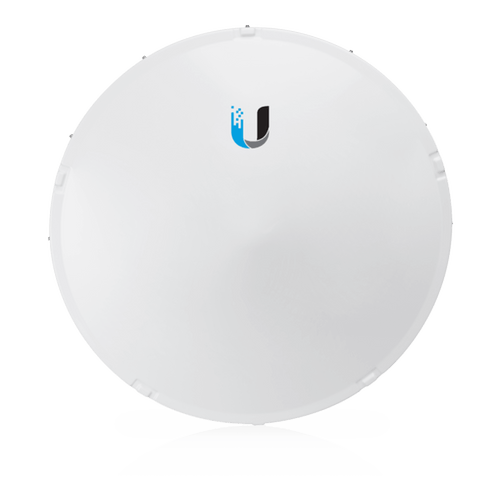

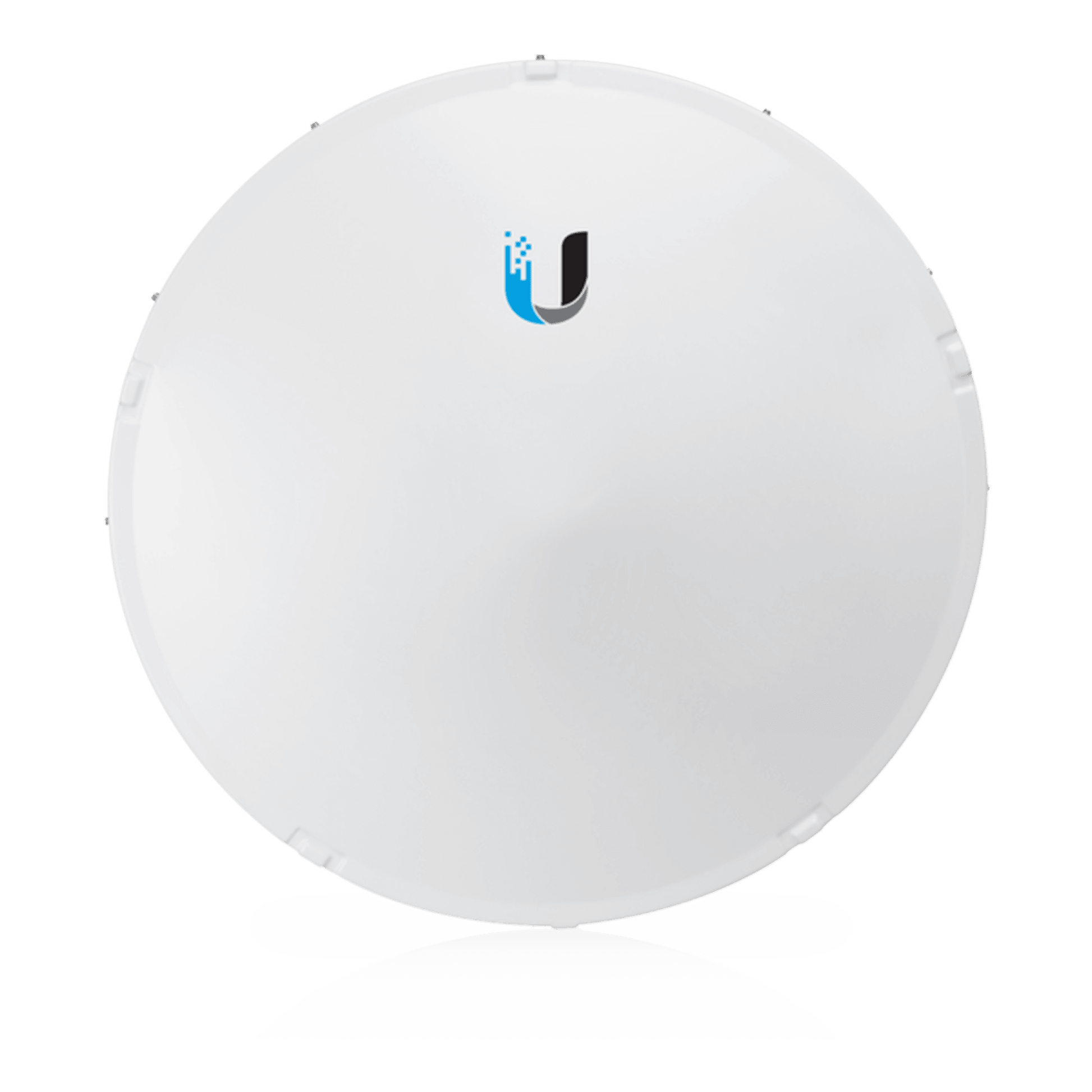

AF‑11G35 Antenna
Dimensions 811 x 811 x 460mm
(31.9 x 31.9 x 18.1")
Weight
Without Assembly
With Assembly
7.14 kg (15.74 lb)
11.85kg (26.12lb)
Frequency 10.3 to 11.7 GHz
Revenue 35 dBi
HPOL Beamwidth 2.5°
VPOL Beamwidth 2.5°
Maximum VSWR 2:1
Wind Load 1538 N @ 200 km/h
(346 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization
Default
After Rotating OMT
H/V
±45°
Cross-Pol Isolation 35dB
Mounting Pole Mount
Regulatory Pattern ETSI 302 217-4-2, Class 3
and FCC Cat B

Includes a low-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)


Installation requirements

  • Clear line of sight between airFiber devices
  • Vertical mounting orientation
  • Mounting point:
    • At least 1 m below the highest point of the structure
    • For installation in towers, at least 3 meters below the top of the tower
  • Ground wire: minimum 10 AWG (5 mm 2 ) and maximum length: 1 m. As a precaution, connect the airFiber device to a grounded outlet, post, ground connection tower or bar.

    WARNING : If not grounded properly, your warranty will be voided.
