Super WiFi Professional Access Point 802.11a/b/g/n/ac to 500 m

Carrier-Class WiFi Super Coverage Solutions
A2 Series with 2x2 MIMO Technology

The professional access points of the A2 Super WiFi Coverage series from Altai Technologies & comma; have been designed to provide the best WiFi coverage with the least number of equipment for the same coverage area. Thanks to its multiple technologies such as smart antennas and great interference mitigation; makes them ideal for universities & comma; hotel & comma; subdivisions & comma; government buildings & comma; wineries and industries & comma; internet cafes & comma; public parks and many other applications.

General Characteristics of the A2 Series

• 2X2 MIMO technology in 2.4 and 5 GHz with smart antennas.
• Fast Roaming 802.11r to minimize time between cells.
• Band steering to balance users on both 2.4 and 5 GHz bands.
• SNR connection threshold management for coverage cell control.
• Support AltaiCare professional management platform based on the internet cloud.
• Power 28 dBm in 2.4 and 5 GHz.
• Power consumption: 10 W (typical) & comma; 20 W (max).
• Power supply: 56 Vcc via passive PoE injector (included) or support 802.3at POE.
• Dimensions: 220x220x60mm.
• Weight: 1.3 kg.
• Operation temperature: -40 ° to 60 ° C.
• Mounting on mast or tower.
• Supports IP67.


802.11a/b/g/n/ac

• 2.4 GHz 300 Mbps and 5.1 - 5.8 GHz 867 Mbps.

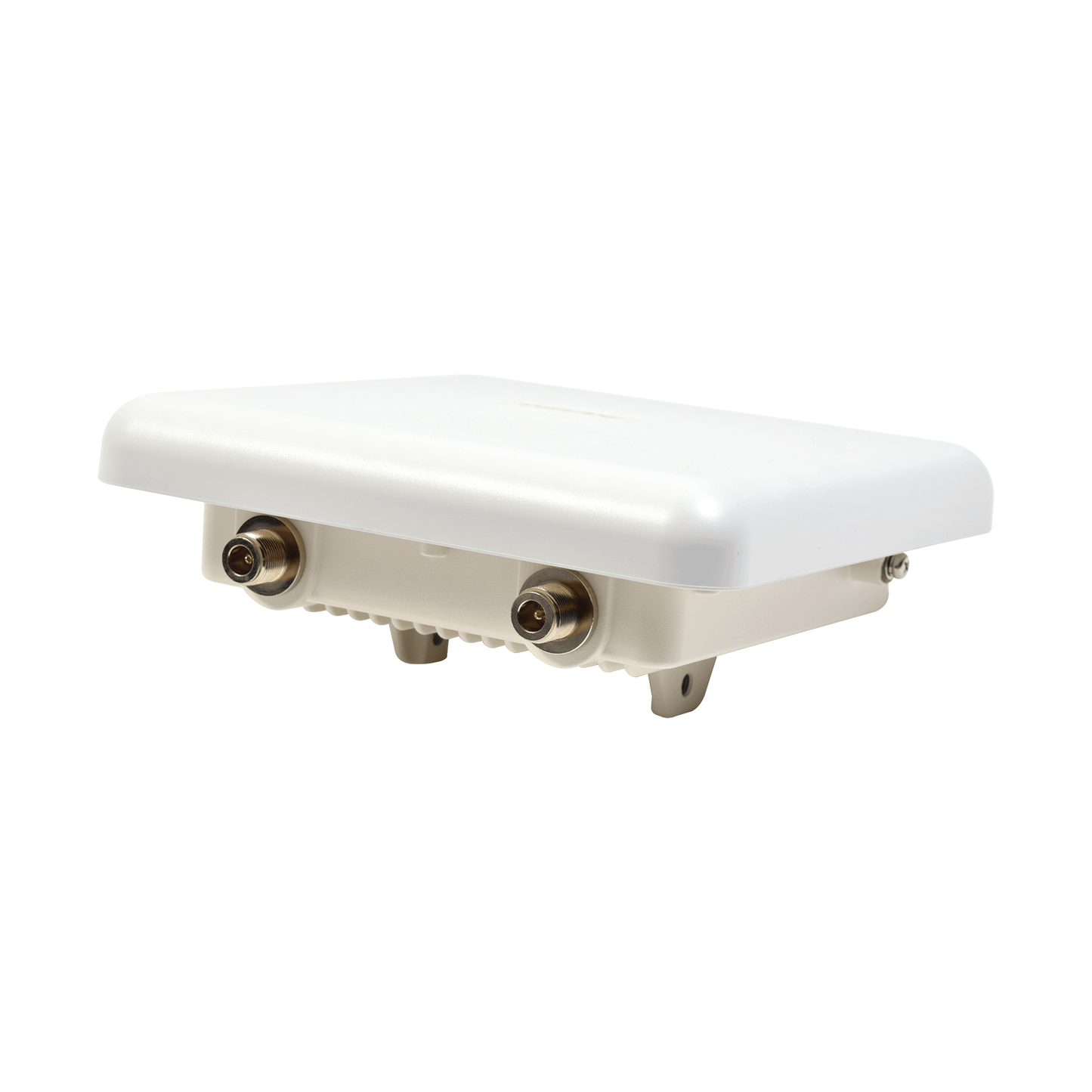

• Connectors: 2 x N-Female in 2.4 GHz radio for external antennas (not included).
• Integrated panel antenna in 5 GHz & comma; 16 dBi & comma; 20 ° H & comma; 20 ° V.
• Up to 512 devices in total adding both bands.
• MIMO 2X2 polarized spatial polarization.
• 2.4 GHz laptop/smartphone distance up to 500 m with LOS.
• 5 GHz laptop/smartphone distance up to 250 m with LOS.

* 1 year warranty
