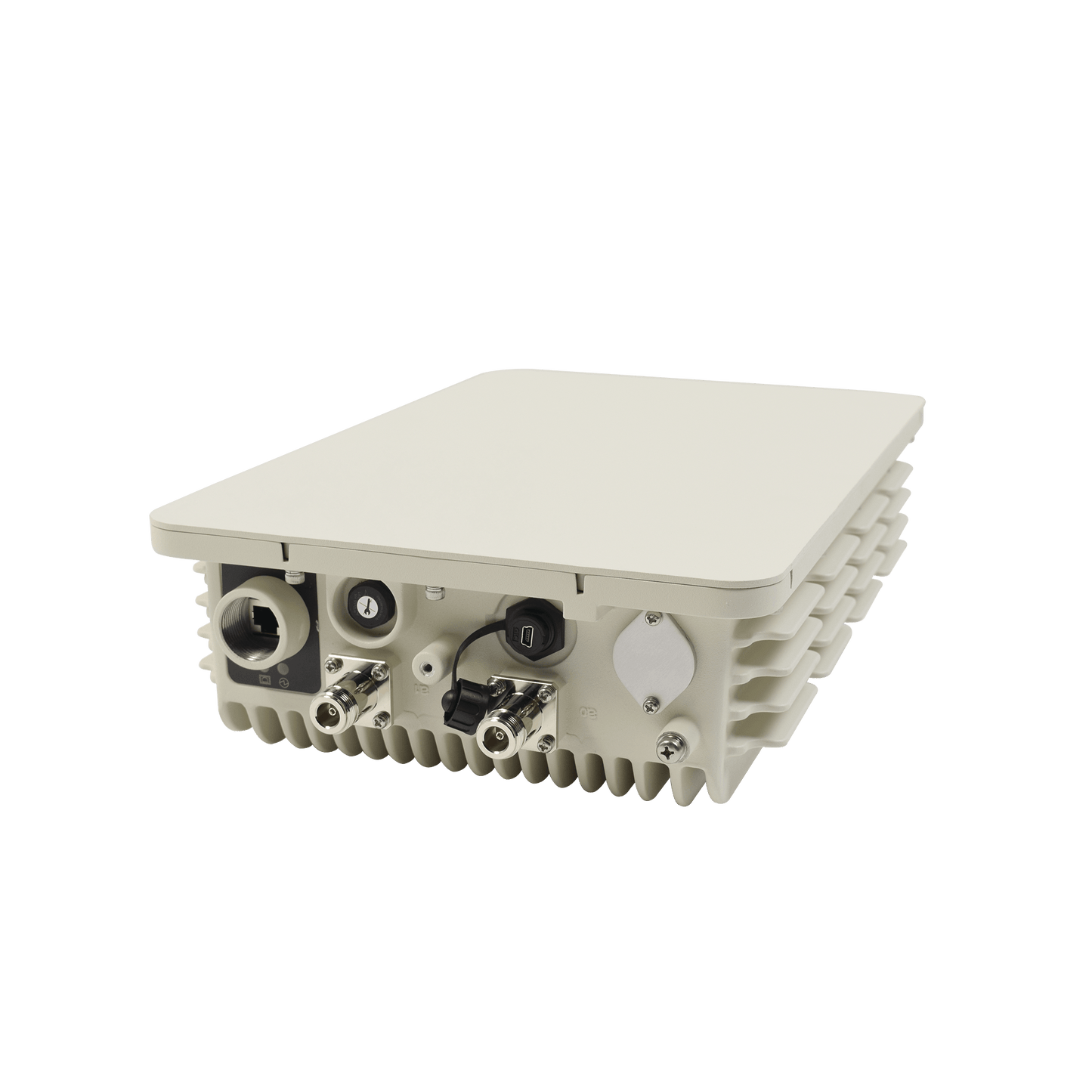

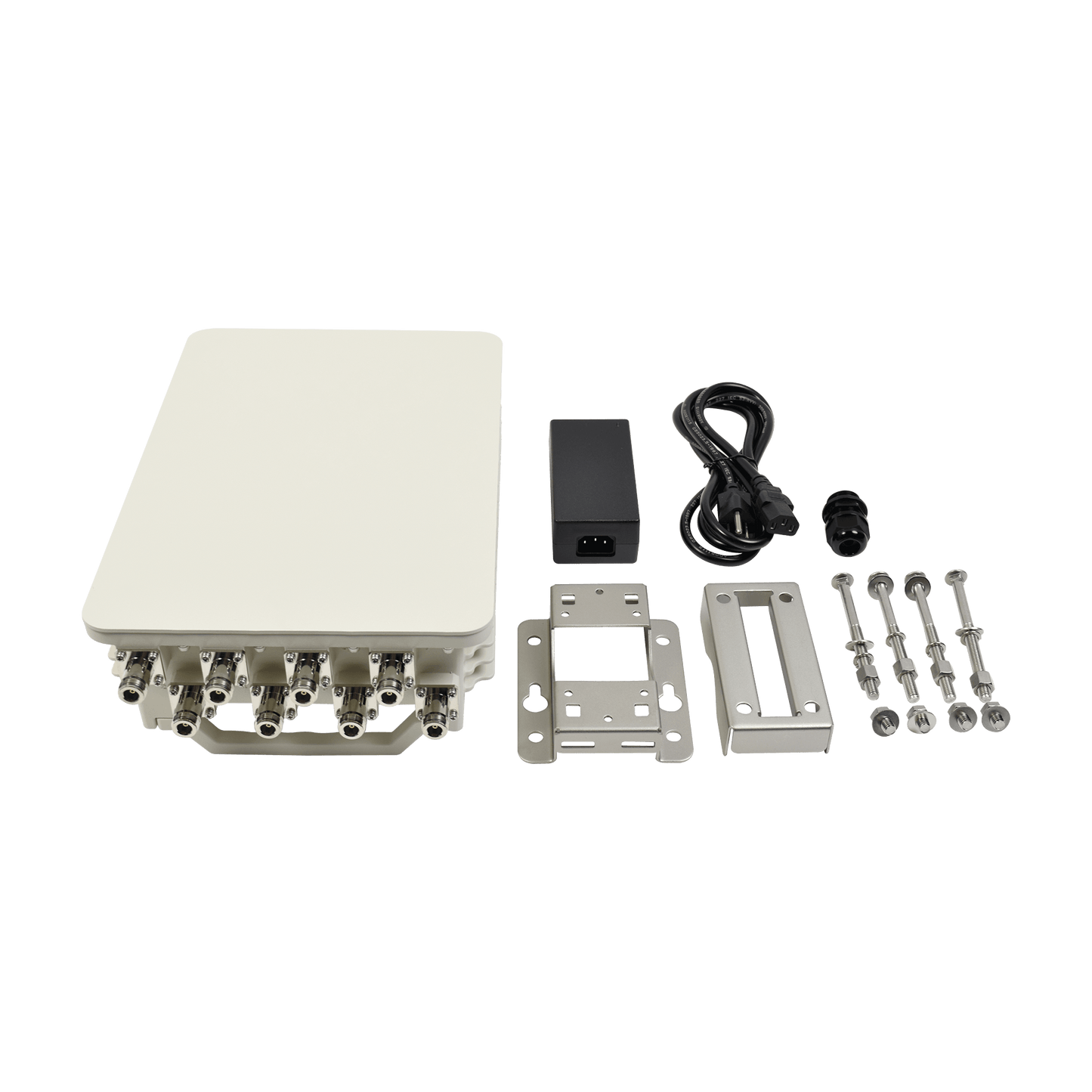

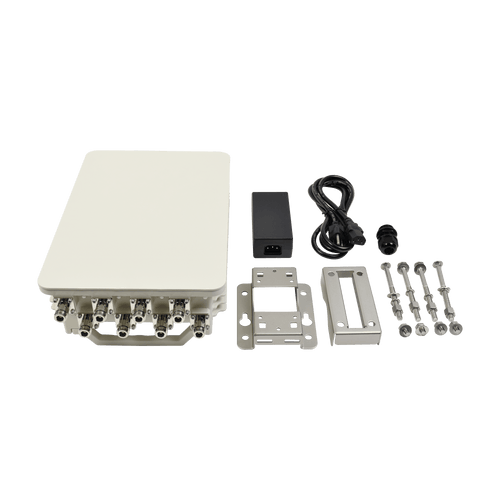

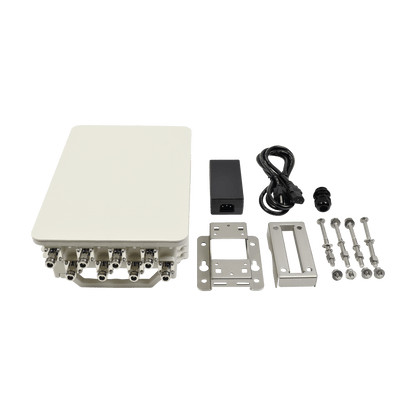

Super WiFi Connected Access Point, 8X8 MIMO for Industry 4.0, Up to 1 km Coverage, Dual Band in 2.4 and 5 GHz, IP67 Housing, Up to 1167 Mbps

  • 3cb6ad1f07addc64a3fd292114e67d27
  • 6d45438ff97e40905c7c7f97215c1951
  • fa01858c1388c29662dd6694f9c94e4f
1 3
  • Super High WiFi Connectivity up to 1 km with mobile devices
  • Super High Reception Sensitivity MIMO 8X8
  • Supports IP67 for any climate
  • Intelligent SNR connection threshold control
  • Supports management and monitoring on local server or in the cloud

11 in stock

Modelo: A8N-AC

Proveedor: ALTAI TECHNOLOGIES

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Maximum Distance Up to 1 km for Wi-Fi / 2.4 5 GHz devices


802.11 a/b/g/n/ac

512 concurrent devices

300Mbps - 2.4GHz
867Mbps - 5GHz

Access Point / Client / Altai Repeater
26 dBm Max.TX Power
Altai Care/On-Premise Support

General Characteristics of A8n (ac)
802.11b/g/a/n/ac

• 8X8 MIMO Technology in 2.4 GHz with High Reception Sensitivity .

• 2X2 MIMO technology at 5.1-5.8 GHz high capacity for backhaul, WiFi access or PTMP connections.

• Up to 300 Mbps in 2.4 GHz and 867 Mbps in 5.1 – 5.8 GHz.

• Fast Roaming 802.11r to minimize overlap time between cells.

• Altai Smart-Antenna Technology

• Adaptive Interference Control

• Multi-sector array

• Band steering to balance users on both 2.4 and 5 GHz bands.

• Management of the SNR connection threshold for control of coverage cells.

• Supports professional cloud management and monitoring platform through AltaiCare Cloud.

• Supports professional management and monitoring platform on a local server through AltaiCare on-premises.

• Power 27 dBm in 2.4 GHz and 20 dBm in 5 GHz.

• Power consumption: 30 W (typical), 65 W (maximum).

• Operating temperature: -40 to 60° C.

• Power: 56 Vdc, 1.1 A, via passive PoE injector included .


Base Station Super Flexible WiFi Coverage, 802.11b/g/a/n/ac

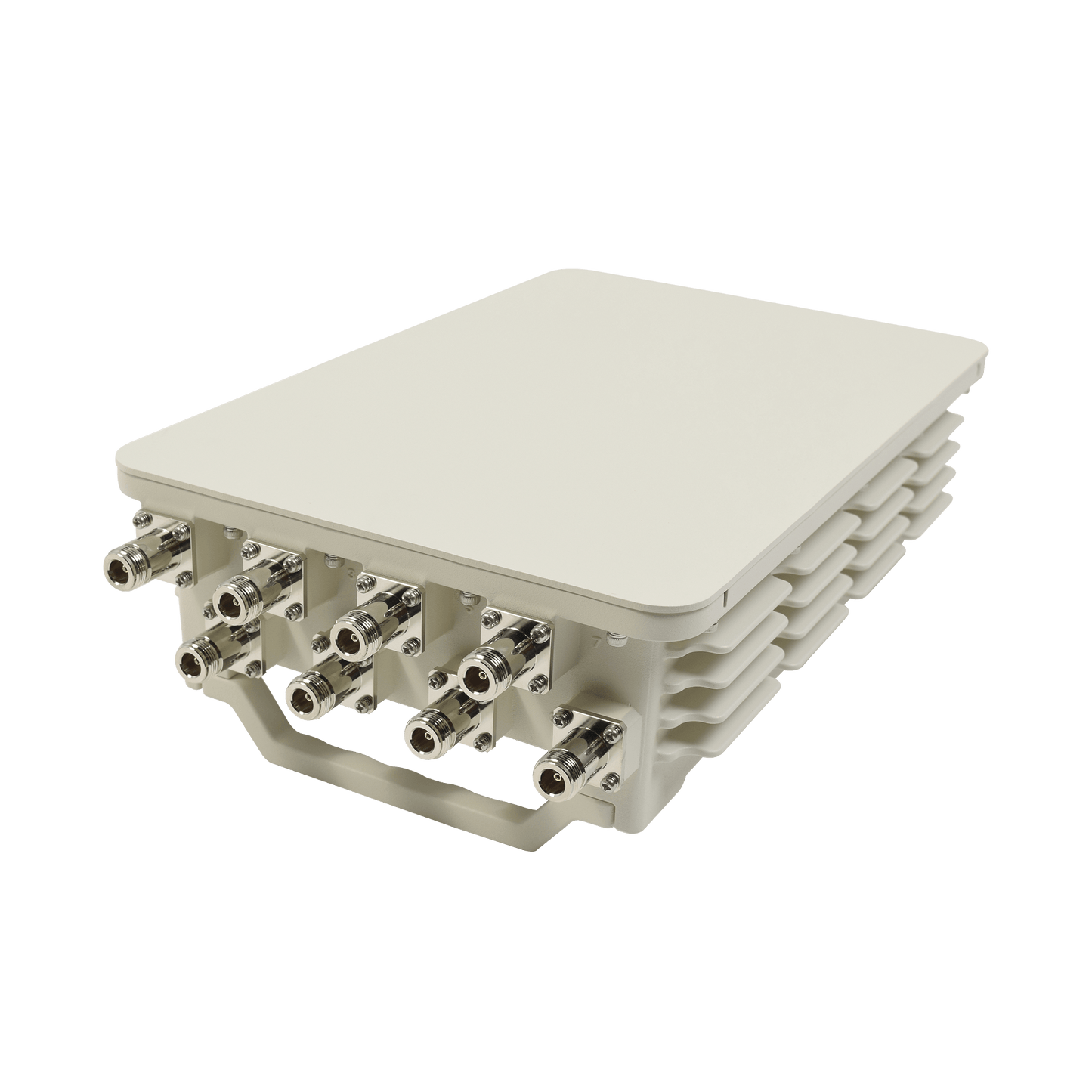

• 8 N-Female connectors for 4 SP-AN-2S14-00 antennas in 2.4 GHz (not included).

• 2 N-Female connectors for 5 GHz antenna (not included).

• Distance for laptop/smartphone in 2.4 GHz up to 1 km with full line of sight.

• Distance for laptop/smartphone in 5 GHz up to 900 m with full line of sight.

• Up to 1024 devices in total adding both bands in optimal conditions.

• Wall installation, mast or tower at great heights of 21 to 30 m .

• Dimensions: 360 x 234 x 80 mm.

• Weight: 6.5 kg.

*1 year warranty

• Mining

 • Ports/Containers • Stadiums • Airports

• Tourist Complexes

• Campus/Education

• Hospitality

• Urban/Housing





Some benefits of A8n (ac) base station

-Large capacity of concurrent WiFi devices up to 1024 in optimal conditions.

-Large bandwidth capacity in each radio.

-2.4 GHz smart antenna technology for maximum coverage.

-High sensitivity technology in 8X8 MIMO reception in 2.4 GHz for long range.

-Adaptive interference control that helps reduce sources of interference.

-Supports professional cloud management and monitoring through AltaiCare Cloud.

-Supports professional management and monitoring on a local server through AltaiCare on-premises.

-Fewer Altai Technologies access points are used for the same coverage area compared to other solutions on the market.


unifi

Management Systems Licensing Scheme

Create your WiFi Hotspot with AltaiCare

Create Advertising Campaigns with your AltaiCare WiFi Hotspot

Manage Reports & Alerts on your WiFi network with AltaiCare

The maximum distance in coverage, WiFi mobile device capability, connection speeds, etc It will depend particularly on each installation site.

-- The scope mentioned here is based on:

·       Excellent Line of Sight.

·       Conventional channel width

·       Areas with low level of interference and/or floor noise.

·       Recommended heights according to the distance required

·       It is recommended to have physical ground.

·       It is recommended to have a UPS, This stops voltage surges and drops and prevents damage to equipment.

- If any of the previous points or several of them are not met, The ranges will be lower.
