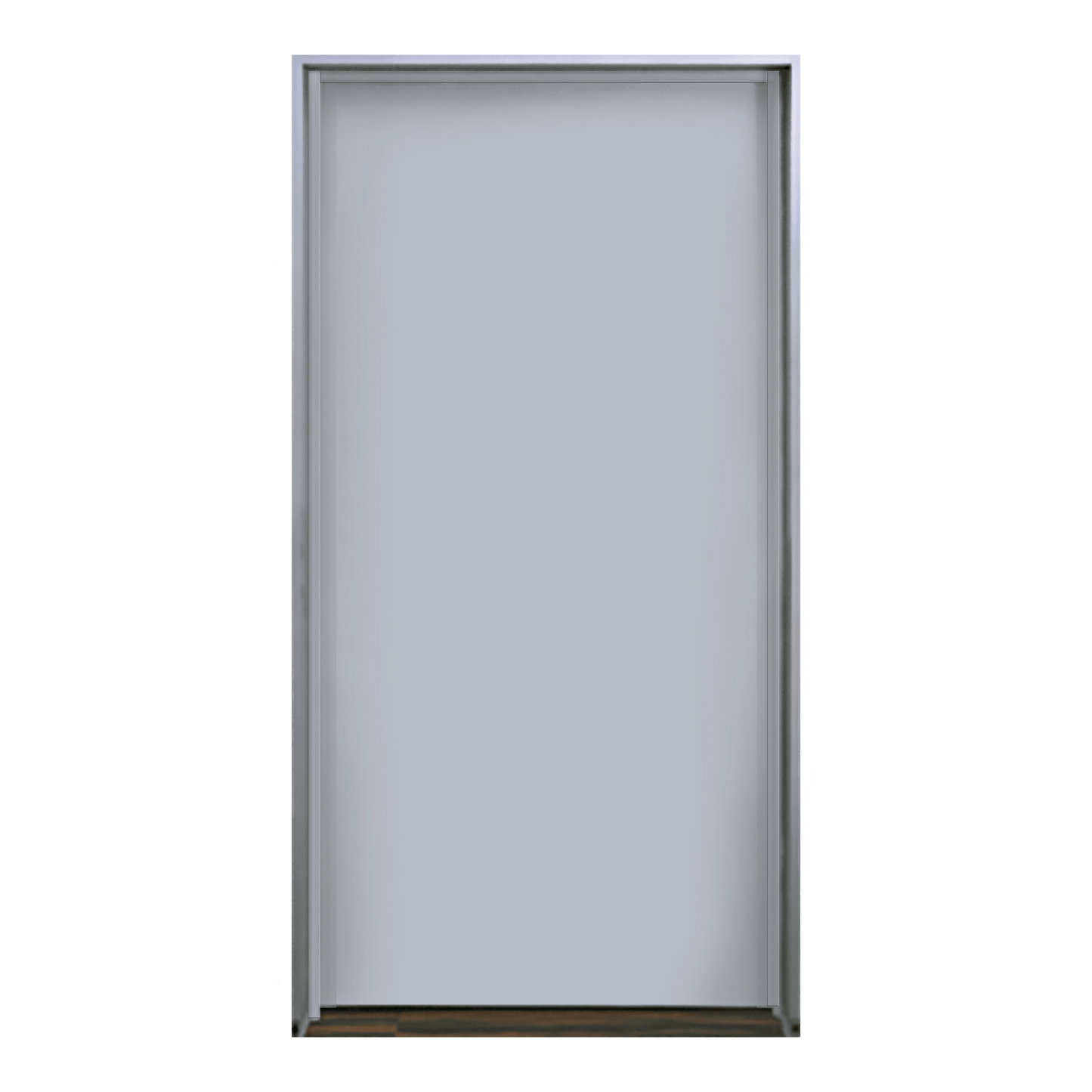

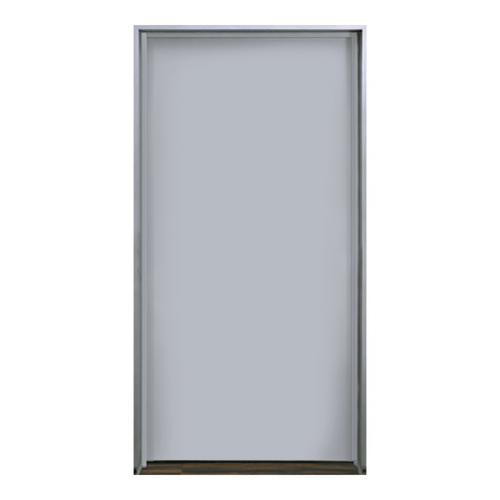

Galvanized metal door 4\' 0\" x 8\' ​​0\" / Fire resistant for 180 min / UL

Special features:

• Mechanically interlocked for strength and rigidity
• Honeycomb core that provides natural resistance.
• Reversed channels, ends welded to both face sheets

Door Description:

• Fire resistant for 180 min.
• 1-3/4” thickness.
• Honeycomb interior.
• “Interlocked” unions.
• Inverted “Top/Bttm” channels.
• 7 gauge hinge reinforcement.
• “Prime” anti-corrosion finish.
• Standard preparations.
• UL certification.
• STC 32 (in 18 gauge).
• “Interlocked” unions.
• Gauge: 18
• 1,000,000 use cycles in 18 gauge.
• Dimensions: 4'0” x 8'0”.

ESSENTIAL ACCESSORIES (Counter Jamb, Hinge Jamb, Head and 4 Hinges):
Determine the type of door (see image below)

• Right Door: 5063 (reverse jamb), 5057 (hinge jamb).
• Left Door: 5064 (reverse jamb), 5058 (hinge jamb).
• ​The use of head is required: 5069
• Requires 2 pack of model 5040 hinges (contains 3 pieces).

For the door to be fire resistant, additional accessories are required:

• Perimeter seal : model 5019
• Sardinel: 5021 , or 5026, 5027 (option with stop).
• Seal under door: 5017A or 5033 (with rubber).
• Dropper : 5037 , (for use on doors facing outside).
• Door closer: 84883.

*Optional you can use emergency door bar, mechanical lock and signaling.

Product on request
