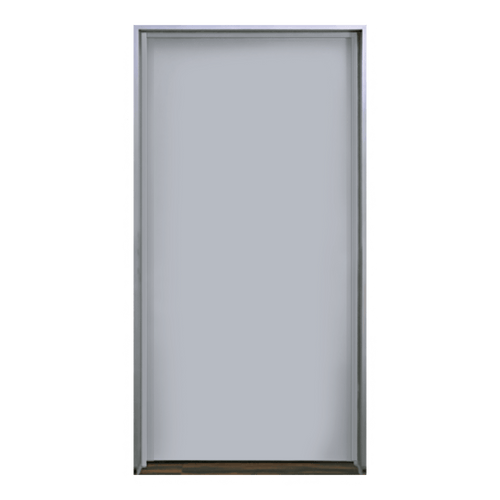

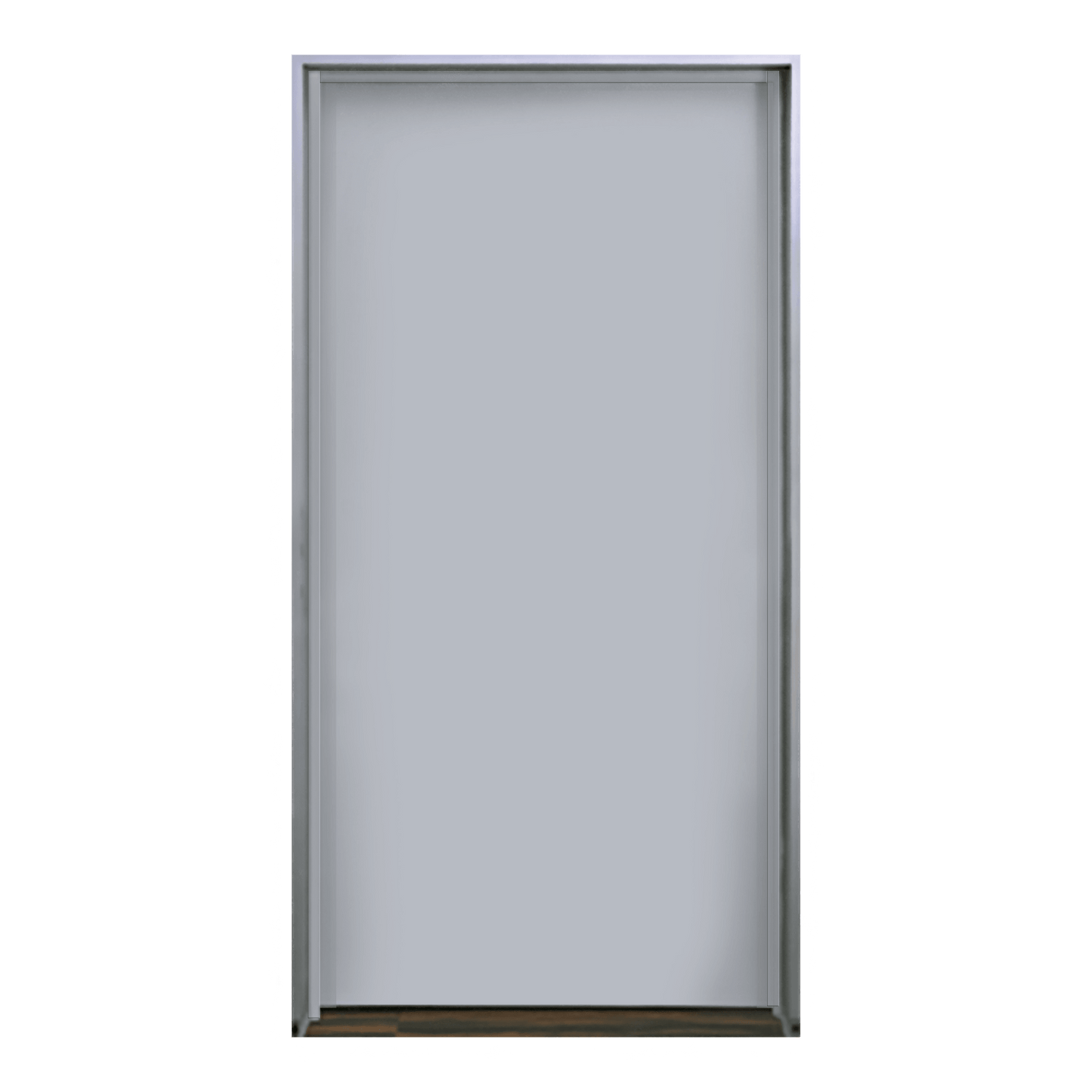

Galvanized metal door 3\' 4\" x 7\' 0\" / Fire resistant for 180 min / UL

  • da45e9073f012a704d64f76a9c65ac91
1 1

Out of stock

Modelo: 5048

Proveedor: ASSA ABLOY

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Special features:

  • Mechanically interlocked for strength and rigidity
  • Honeycomb core that provides natural resistance.
  • Reversed channels, ends welded to both face sheets


Door Description:

  • Foldable on both sides.
  • Fire resistant for 180 min.
  • 1-3/4” thickness.
  • Honeycomb interior.
  • “Interlocked” unions.
  • Inverted “Top/Bttm” channels.
  • 7 gauge hinge reinforcement.
  • “Prime” anti-corrosion finish.
  • Standard preparations.
  • STC 32 (in 18 gauge).
  • “Interlocked” unions.
  • UL certification.
  • Gauge: 18
  • 1,000,000 use cycles in 18 gauge.
  • Dimensions: 3'4” x 7'0”
ESSENTIAL ACCESSORIES (Counter Jamb, Hinge Jamb, Head and 3 Hinges):
Determine the type of door (see image below)
  • Right Door: 5061 (reverse jamb), 5055 (hinge jamb).
  • Left Door: 5062 (reverse jamb), 5056 (hinge jamb).
  • ​The use of head is required: 5067
  • Requires 1 package of model 5040 hinges (contains 3 pcs).

For the door to be fire resistant, additional accessories are required:
  • Perimeter seal : model 5019
  • Sardinel: 5021 or 5026, 5027 (option with stop).
  • Seal under door: 5017A or 5033 (with rubber).
  • Goterón : 5037, (for use on doors facing outside).
  • Door closer: 84887
*Optional you can use emergency door bar, mechanical lock and signaling.

Product on request
