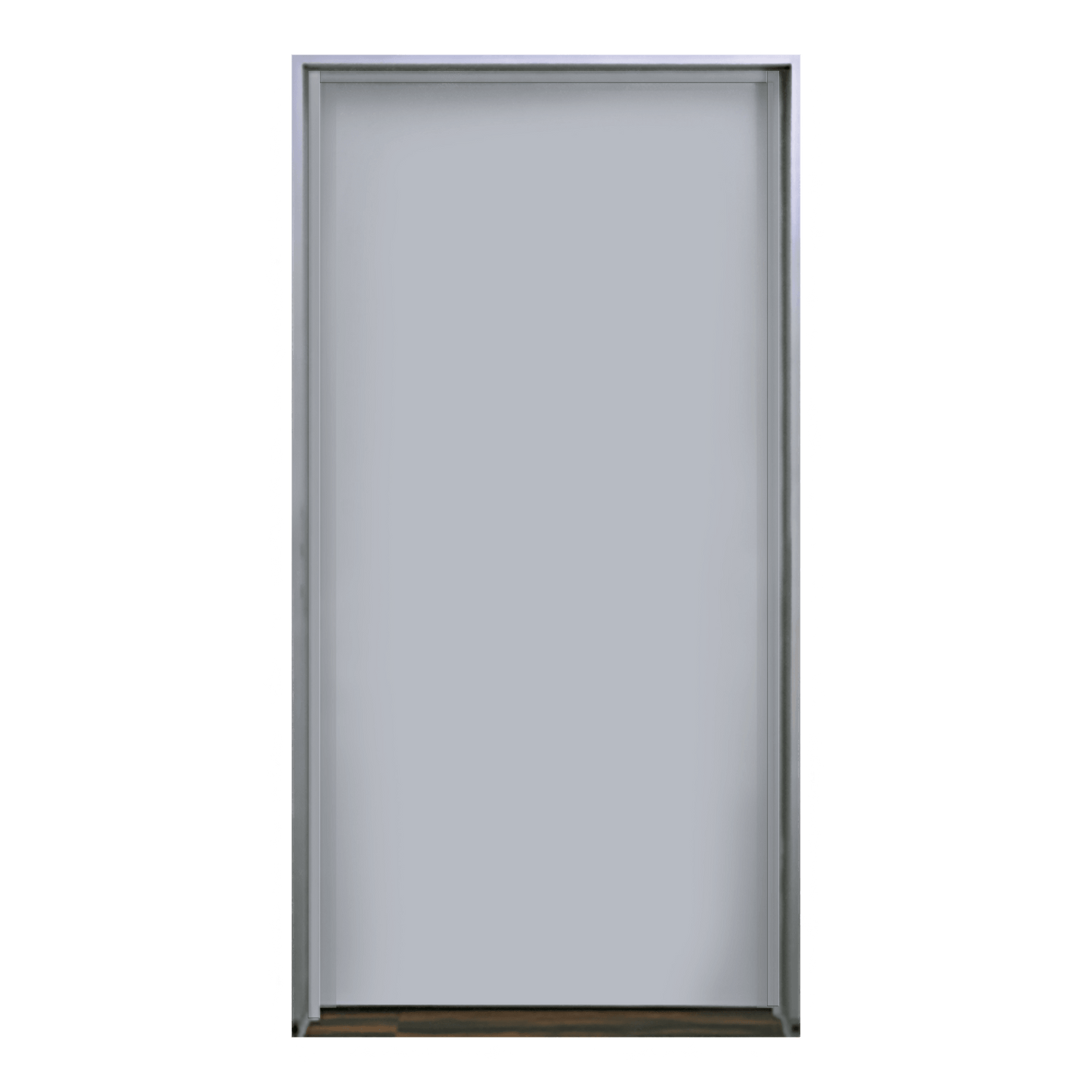

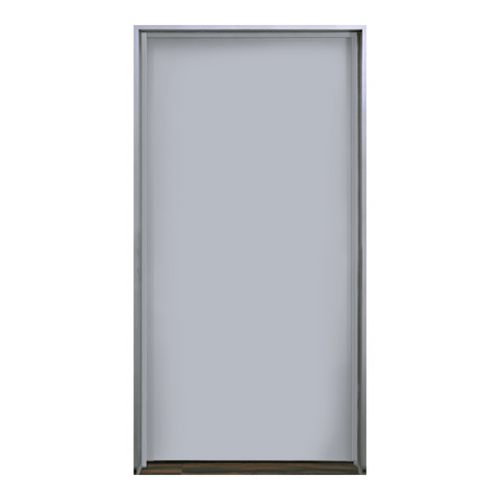

Galvanized metal door 3\' 0\" x 6\' 8\" / Fire resistant for 90min / UL

  • 83454c718c70560d3a46054dbcf927bd
1 1

Out of stock

Modelo: 5042

Proveedor: ASSA ABLOY

Código SAT: 30171505

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Special features:

  • Mechanically interlocked for strength and rigidity.
  • Honeycomb core that provides natural resistance.
  • Reversed channels, ends welded to both face sheets.


Door Description:

  • Foldable on both sides.
  • Fire resistant for 90 min.
  • 1-3/4” thickness.
  • Honeycomb interior.
  • “Interlocked” unions.
  • Inverted “Top/Bttm” channels.
  • 7 gauge hinge reinforcement.
  • “Prime” anti-corrosion finish.
  • Standard preparations.
  • STC 32 (in 18 gauge).
  • “Interlocked” unions.
  • UL certification.
  • Caliber: 20.
  • 250,000 use cycles in 20 gauge.
  • Dimensions: 3'0” x 6'8”
ESSENTIAL ACCESSORIES (Counter Jamb, Hinge Jamb, Head and 3 Hinges):
Determine the type of door (see image below)
  • Right Door: 5059 (reverse jamb), 5053 (hinge jamb).
  • Left Door: 5060 (reverse jamb), 5054 (hinge jamb).
  • ​The use of head is required: 5066
  • Requires 1 package of model 5040 hinges (contains 3 pcs).

For the door to be fire resistant, additional accessories are required:
  • Perimeter seal : model 5018
  • Sardinel: 5020A, or 5024 (option with stop).
  • Seal under door: 5016 or 5032 (with rubber).
  • Dropper : 5036 , (for use on doors facing outside).
  • Door closer: 84887
*Optional you can use emergency door bar, mechanical lock and signaling.

Product on request
