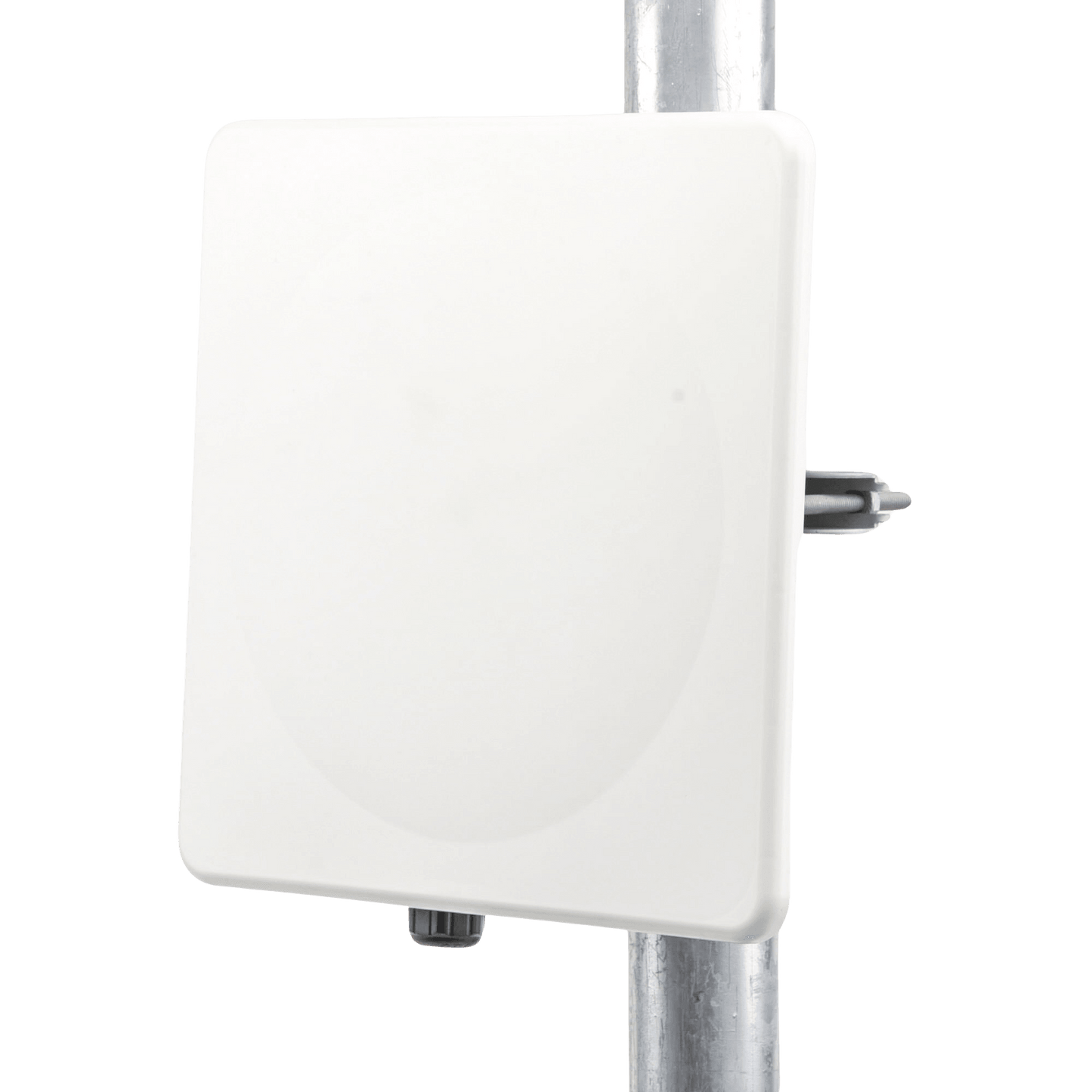

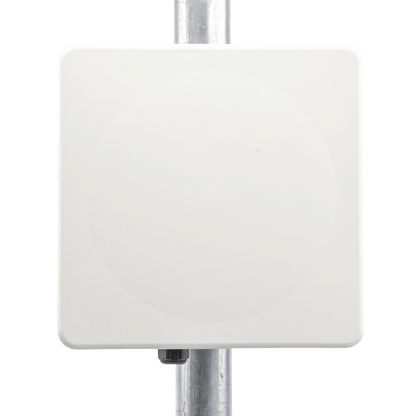

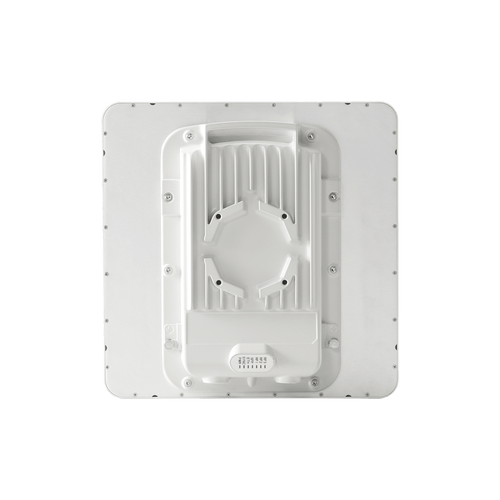

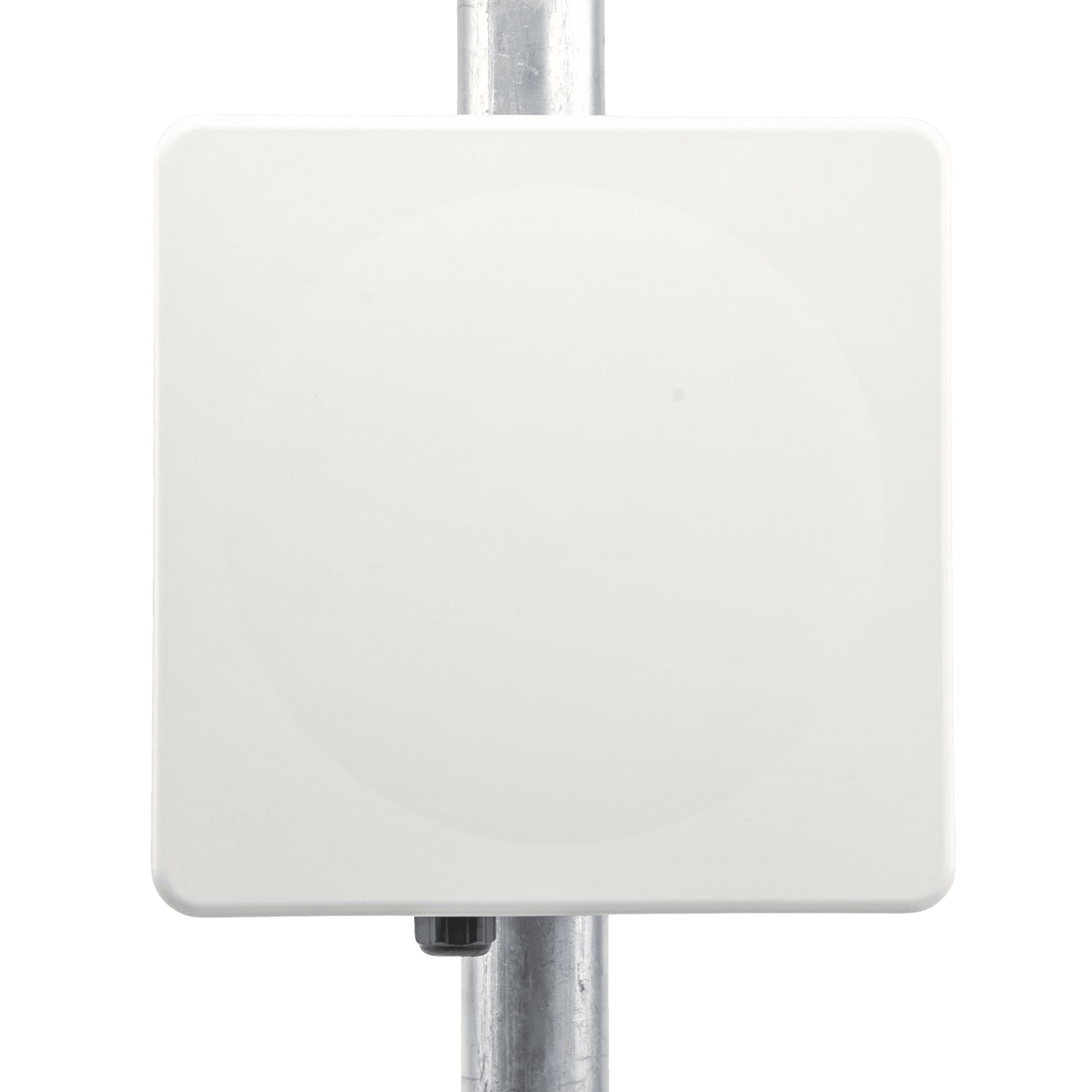

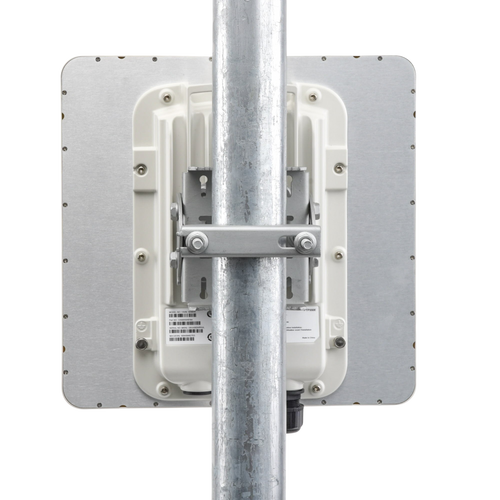

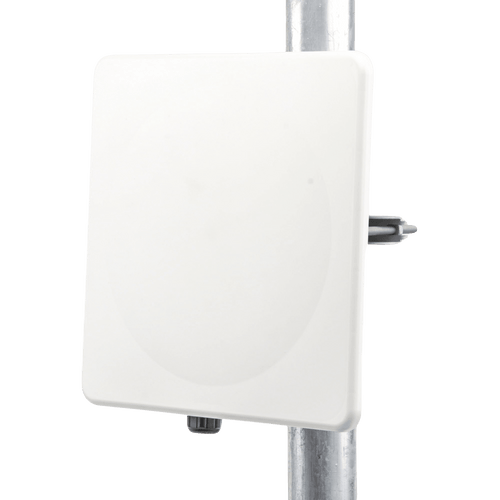

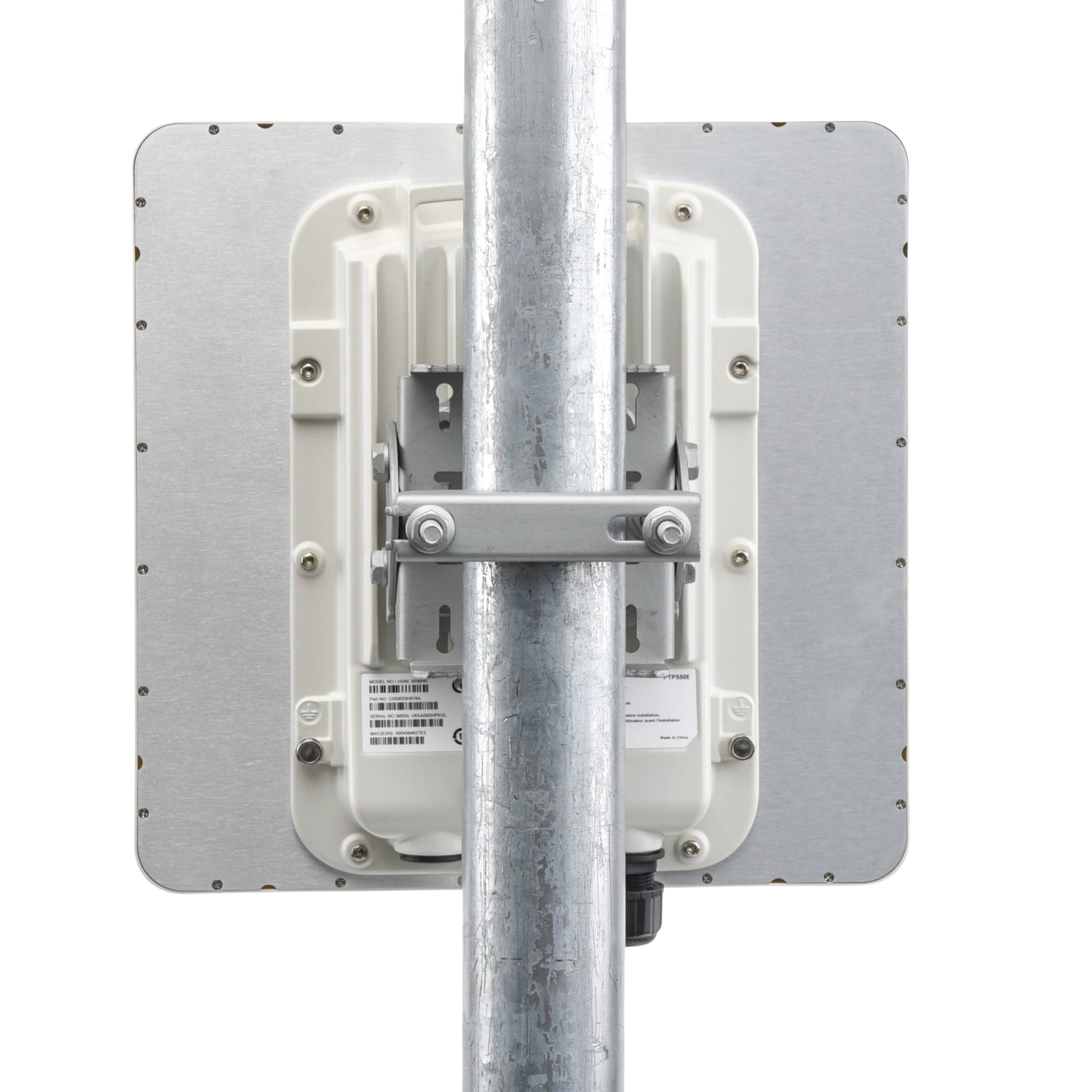

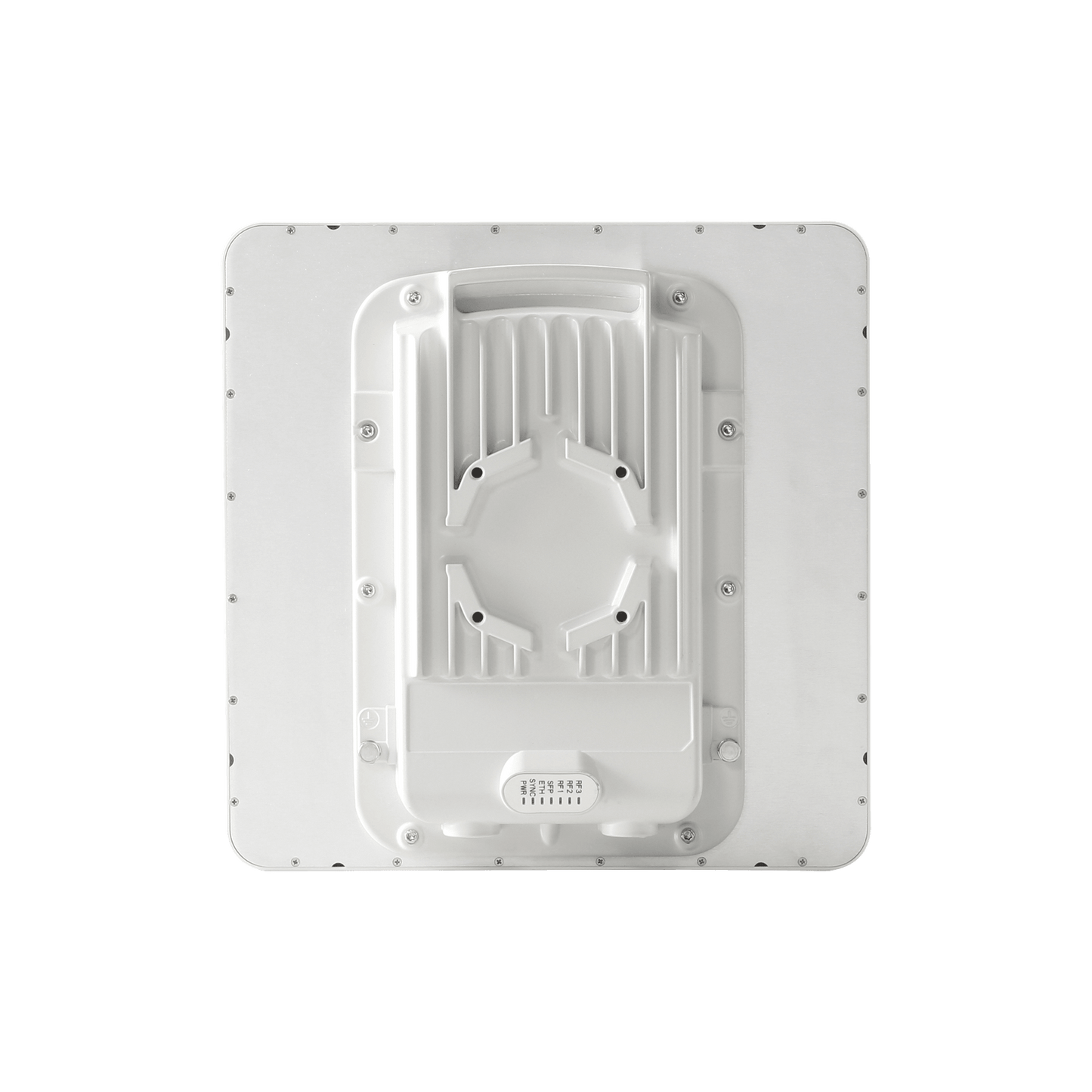

4910 - 6200 GHz1.36 GbpsGigabit Ethernet Port and one SFPFlat Panel port 23 dBi
FREQUENCY
4.9 GHz up to 6.2 GHz
THROUGHPUT Up to 1.36 Gbps
LATENCY
2.2-6 msec
ASYMMETRIC AGGREGATION OF NON-CONTIGUOUS CHANNELS
5 GHz spectrum, AES 128 encryption
INDUSTRY STANDARDS
This product is approved by the FCC
DYNAMIC CHANNEL SELECTION (DCS)
With dynamic channel selection, 550 systems constantly optimize the operating channel to maximize link reliability and performance. In response to the radio interference environment, PTP 550 will look for the lightest spectrum and move to it without problems. The customer benefits from the best performance available with limited spectrum in the most challenging environments.
RF BANDS
Operation in the band from 5.170 to 5.980 GHz (frequencies
and permitted bands are dictated by the regulations of each country)
CHANNEL BONDING
Each channel can have an independent frequency and channel width providing flexibility in channel selection, band selection and steering performance requirements. Using two 80 MHz channels it achieves 1:36 Gbps.
Point-to-point solution with width Bandwidth up to 1.36 Gbps in the 5 GHz band
PTP 550 Cambium Networks equipment is designed to build trunk communication channels with high bandwidth up to 1.4 Gbps.
The equipment is based on the 802.11 AC wave 2 chipset and implements Multi User MIMO 4: 4x4 (MU-MIMO 4: 4x4) technology.
PTP550 has a transmitter that operates on two different frequency channels 2x MIMO 2x2, channel widths of 20, 40 and 80 MHz.
Its MU-MIMO technology allows the feeding of two channels on a single antenna and different frequency bands, for example 5.3 GHz and 5.6 (80 + 80 MHz) or in an example 4910-6200 MHz (20 + 80 MHz),
without the need for a guard interval, and multiplex two 2x2 MIMO spatial streams. Therefore, The total performance of PTP550 is determined by the aggregation of two independent MIMO2x2 frequency channels.
Operating band
4.9 to 6.2 GHz
Channel Width
2 x (20@40@80MHz)
Spectral Efficiency
8.5bps/Hz
Channel Selection
Automatic, via DSO (Dynamic Spectrum Optimization) or manual mode
Maximum power
Up to 26 dBm
Exterior protection
IP66 - IP67
-40° to +140° F (-40° to +60° C),
Protocol
IEEE 802.3
Latency
2.2 - 6ms
Frame Size
Up to 1700 Bytes
Ports
1 x Gigabit Port 1: Data + PoE power 802.3at (Input)
cnMaestro™ is an on-premise or cloud-based software platform for secure end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and touchless provisioning. View and perform a full set of wireless network management functions in real time. Optimize system availability, Maximize performance and meet the emerging needs of business and residential customers.
LINKPlanner allows you to model "what if" scenarios (based on geography, distance, antenna height, transmit power and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and profitability with ease. Available for Microsoft® Windows® and Mac® systems, is a free and easy to use link design tool.
LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed around the world.
Raise the bar on installation accuracy with cnArcher™, The free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.
Built on Cambium Networks' experience in RF planning, propagation and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.
