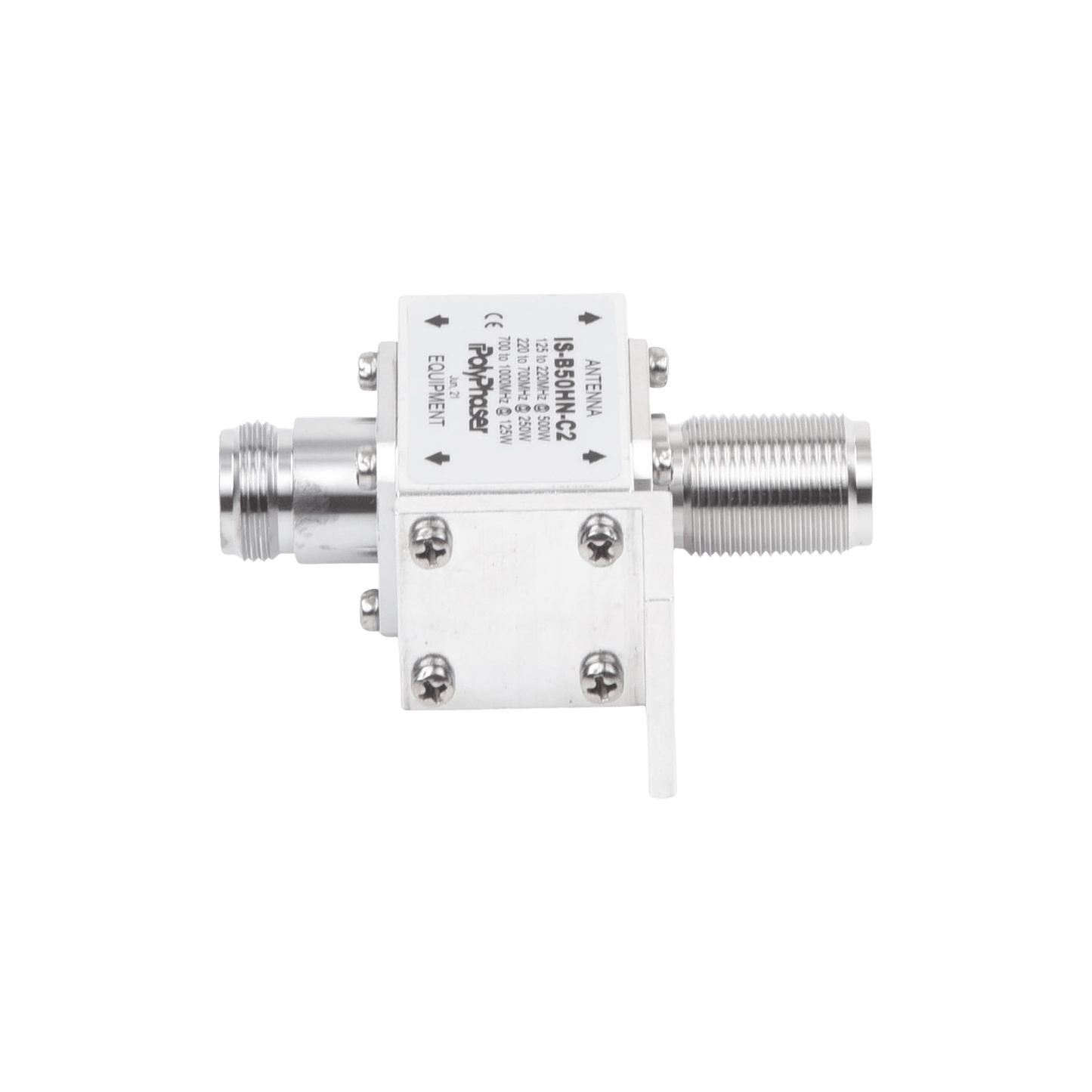

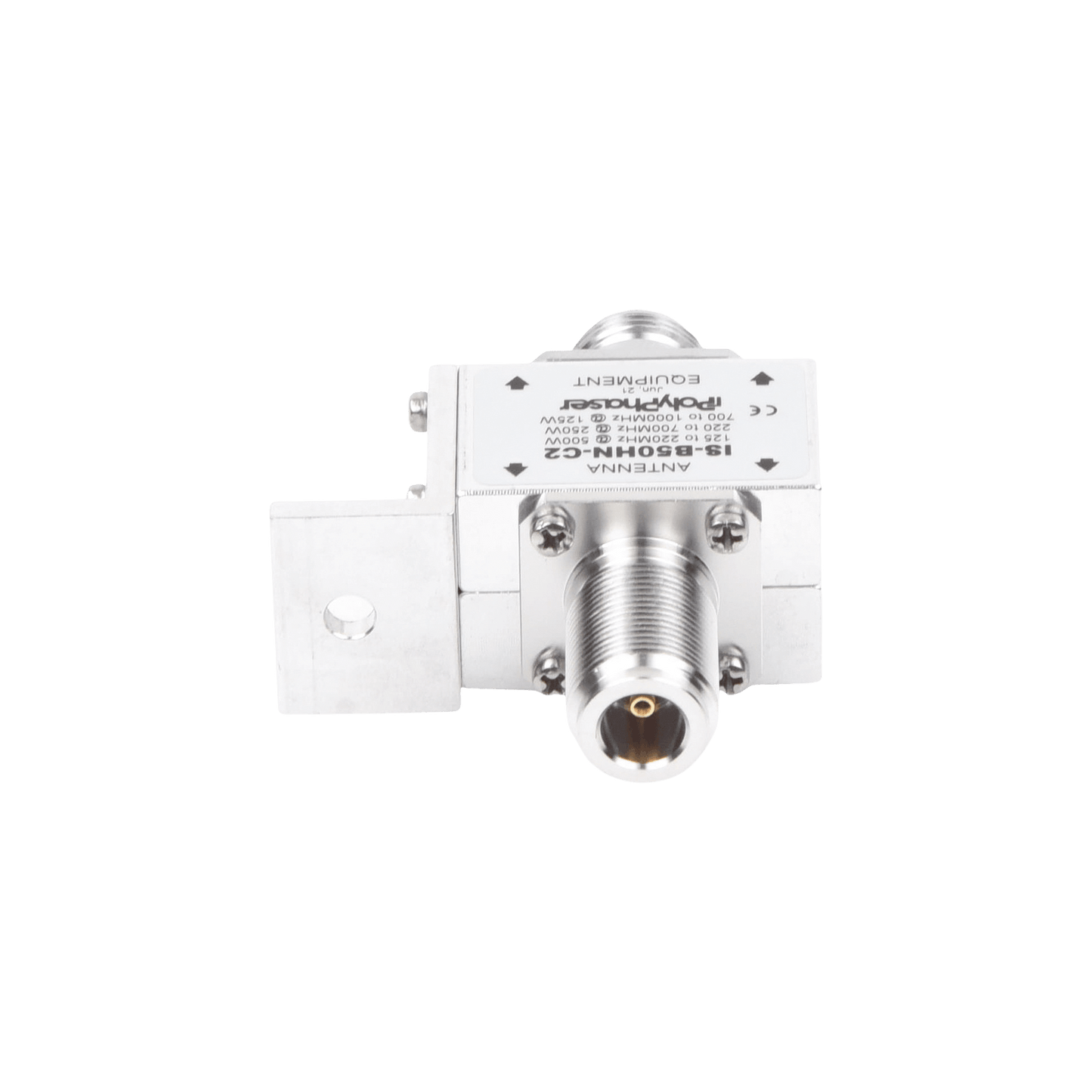

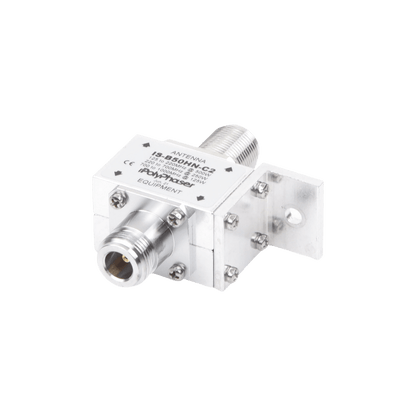

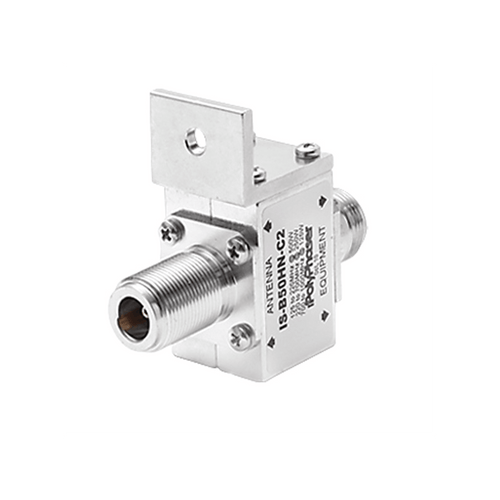

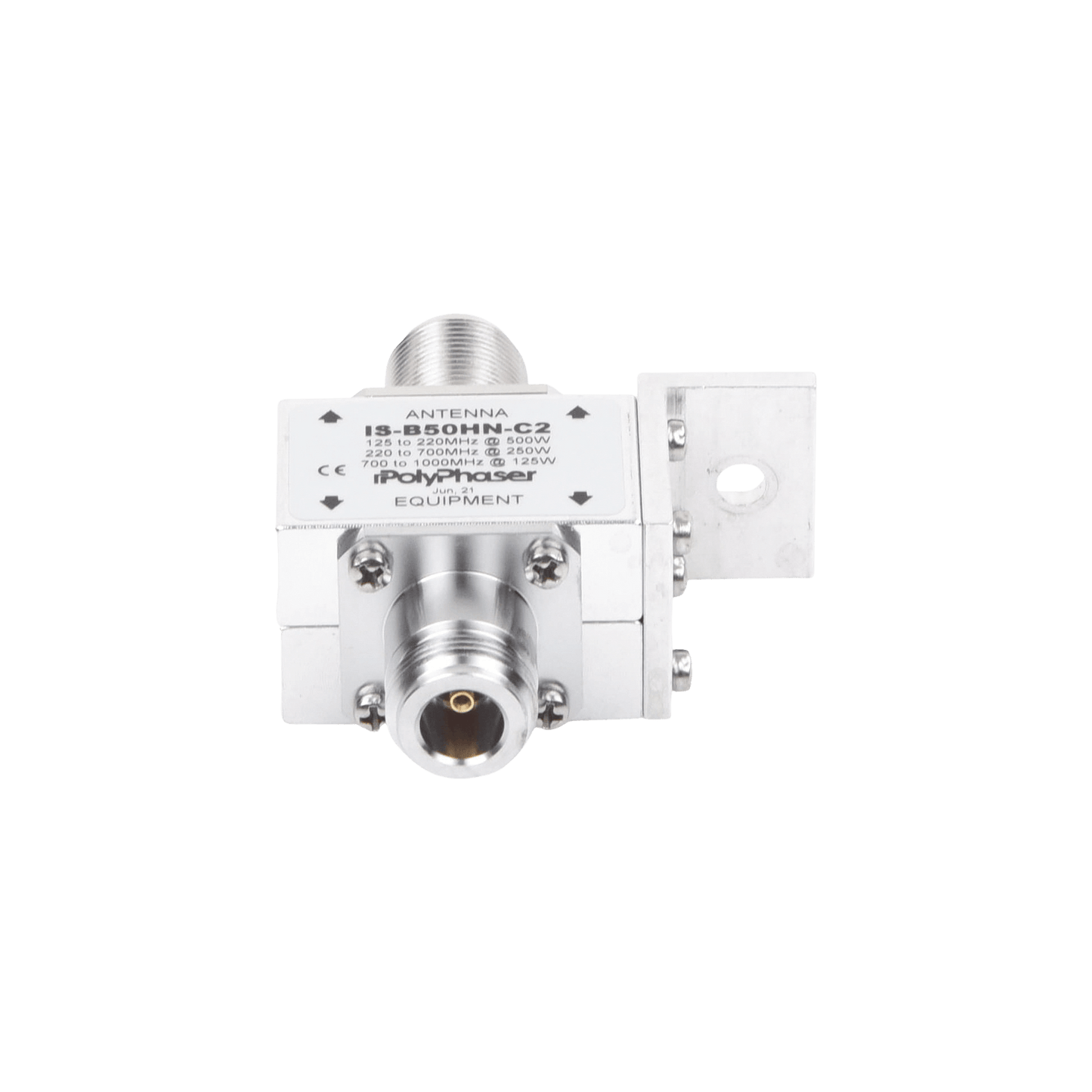

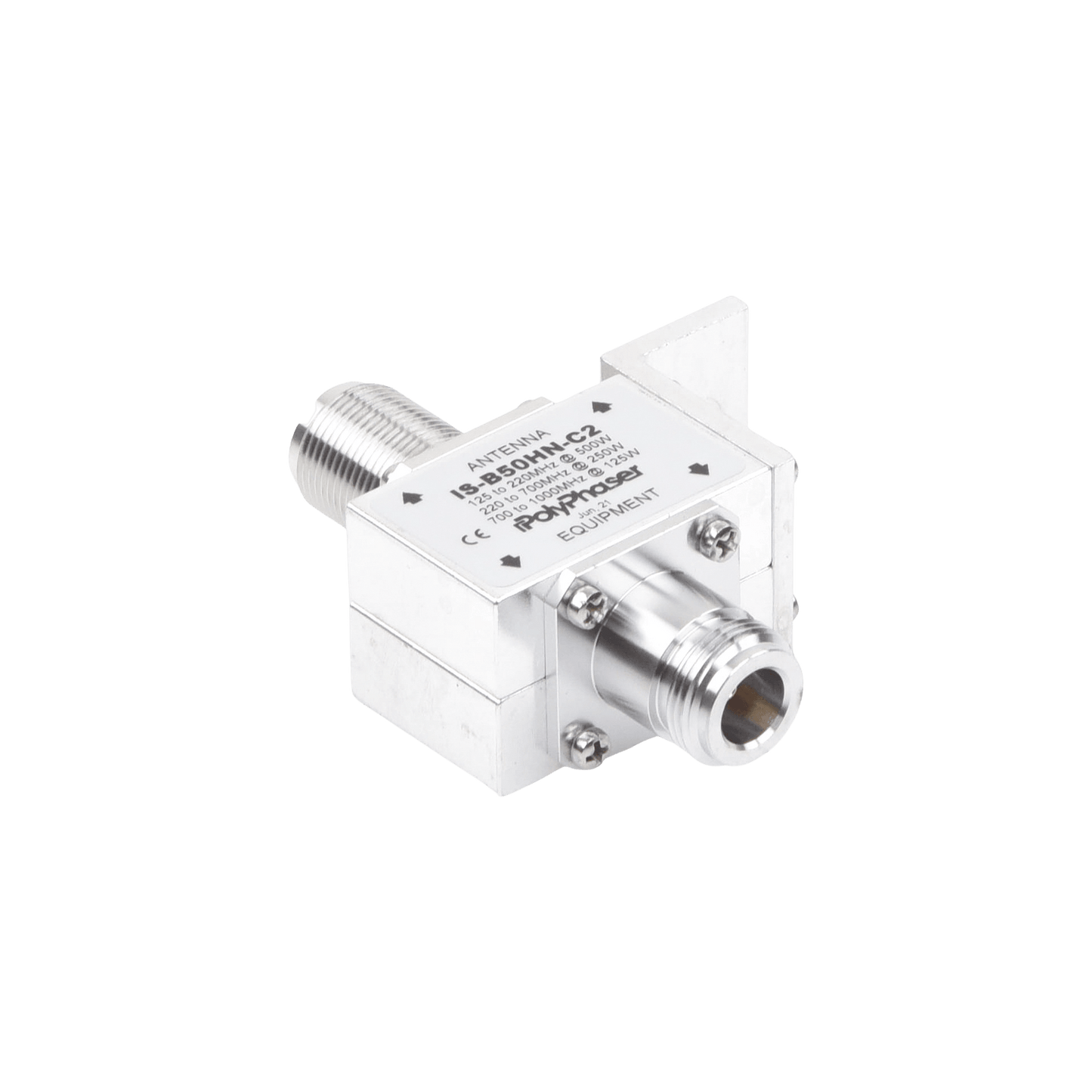

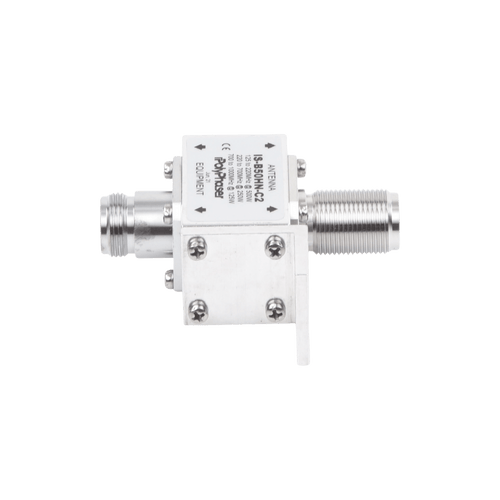

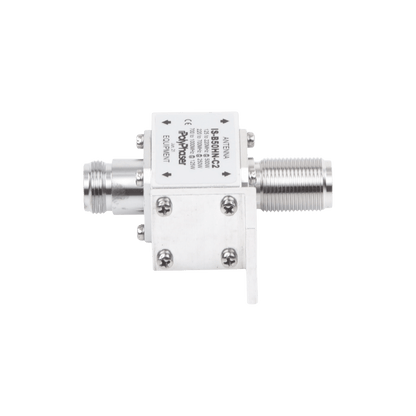

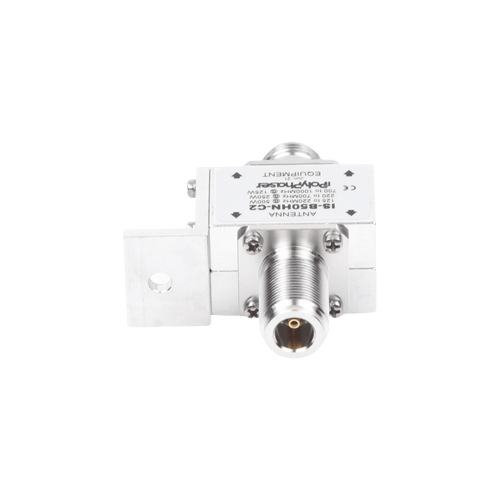

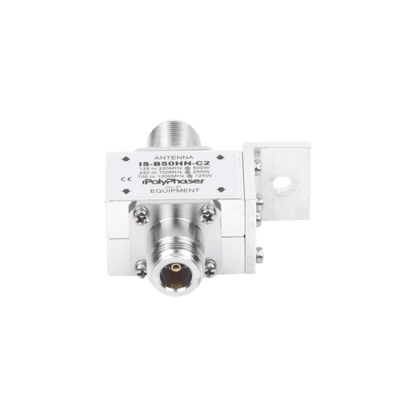

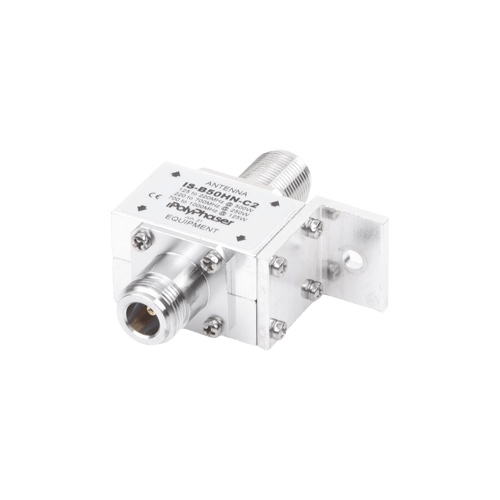

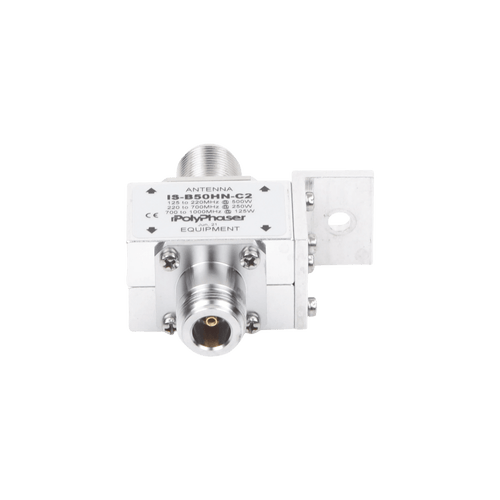

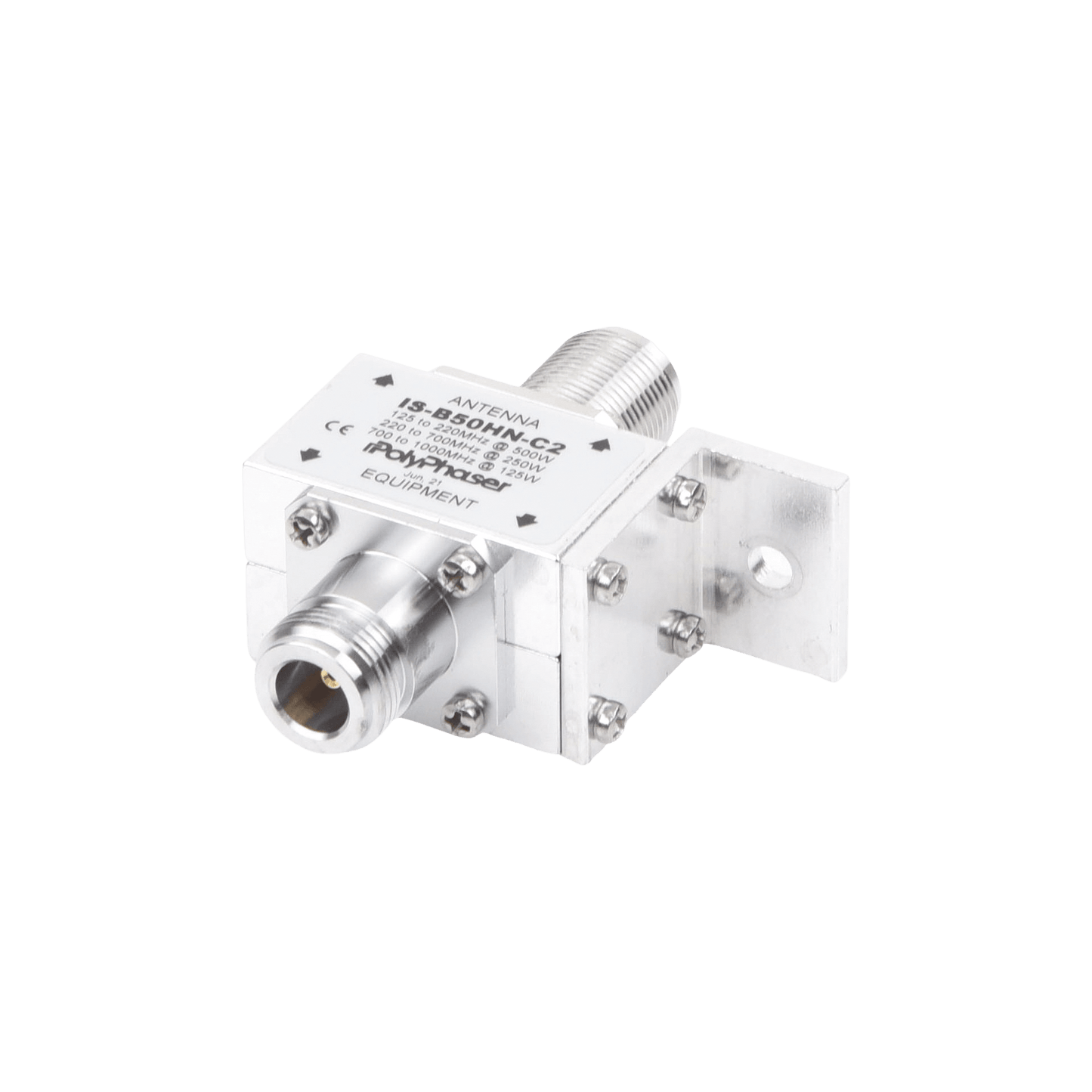

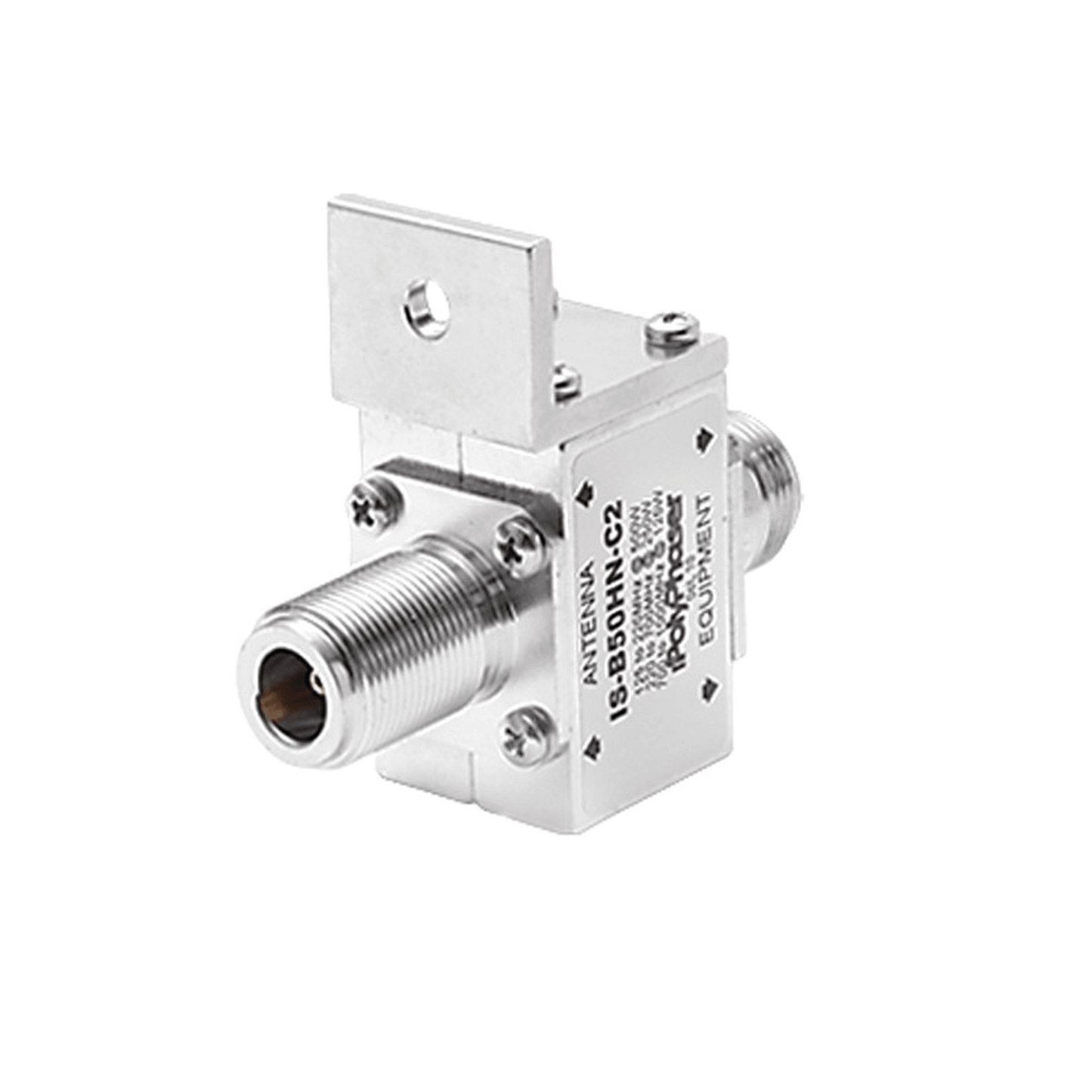

For 125 to 1000 MHz Coaxial RF Protector With Front Eyebrow With N Female Connectors on Both Sacks, 50Ω

  • 1958a11836effbf21d70d039a4de3755
  • 3fa37ed4f369761022fe00bc178917c9
  • 7e60d325306067232771403f924b1684
  • 428de19c989647dae4c76eb2fa6bab5e
  • 7aef039129c0b07ca7c58ea0b38a19a6
  • 73f245f99eaea86b05828340ba802808
1 6
  • Impedance 50 Ω
  • N Female Connectors
  • Frequency 125 - 1000 MHz
  • gas tube
  • Current peaks up to 20 kA

15 in stock

Modelo: IS-B50HN-C2

Proveedor: POLYPHASER

Código SAT: 39121719

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

This RF surge protector/lightning arrester helps protect your equipment from electromagnetic pulses (EMP) or surges that are typically caused by lightning or other strong electrical changes. It is commonly used for radio and antenna installations where part or all of the system equipment is outdoors to protect sensitive equipment and is designed to pass 125 MHz to 1 GHz while suppressing DC surge.

Main features:
  • Impedance: 50 Ω.
  • Connector In: N Female
  • Out Connector: N Female
  • Minimum Frequency: 125 MHz
  • Maximum Frequency: 1 GHz
  • Direction: Directional.
  • Maximum input power: 500 Watts.
  • Energy flow: 800 uJ
  • 20 kA current peaks
  • Technology: Gas tube.
Specs:
  • Easy installation.
  • Ability to perform multiple energy strikes.
  • Insertion loss: 0.1
  • Dimension: 2.76*1*2.25 in(L*W*H*) 70.1*25.4*57.15 mm
  • Operating range: -50ºC to 50ºC
  • Storage range: -55ºC to 125ºC
  • 500 W @ 125 MHz
  • 125 W @ 1 GHz
Applications:
  • HF radios&com; UHF and VHF.
  • Ham Radios.
  • Remote industrial monitoring.
