POE Lightning Protector with SASD-GDT Hybrid Technology

  • 588f99eb91e7987ddcb0edaacb8d6a30
1 1
  • Gas Discharge Tube (GDT) and Silicon Avalanche Diode (SASD) hybrid technology
  • Mounting type: DIN, wall or rack
  • Connectors: Shielded RJ-45
  • Protocol/Application: GbE PoE
  • Safe ground point via DIN rail clip

Out of stock

Modelo: DPR-F140

Proveedor: TRANSTECTOR

Código SAT: 39121634

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

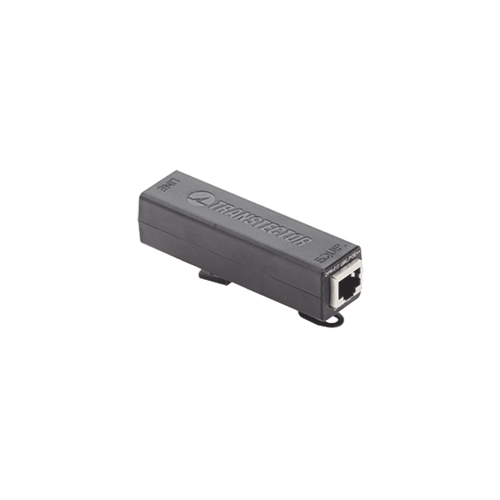

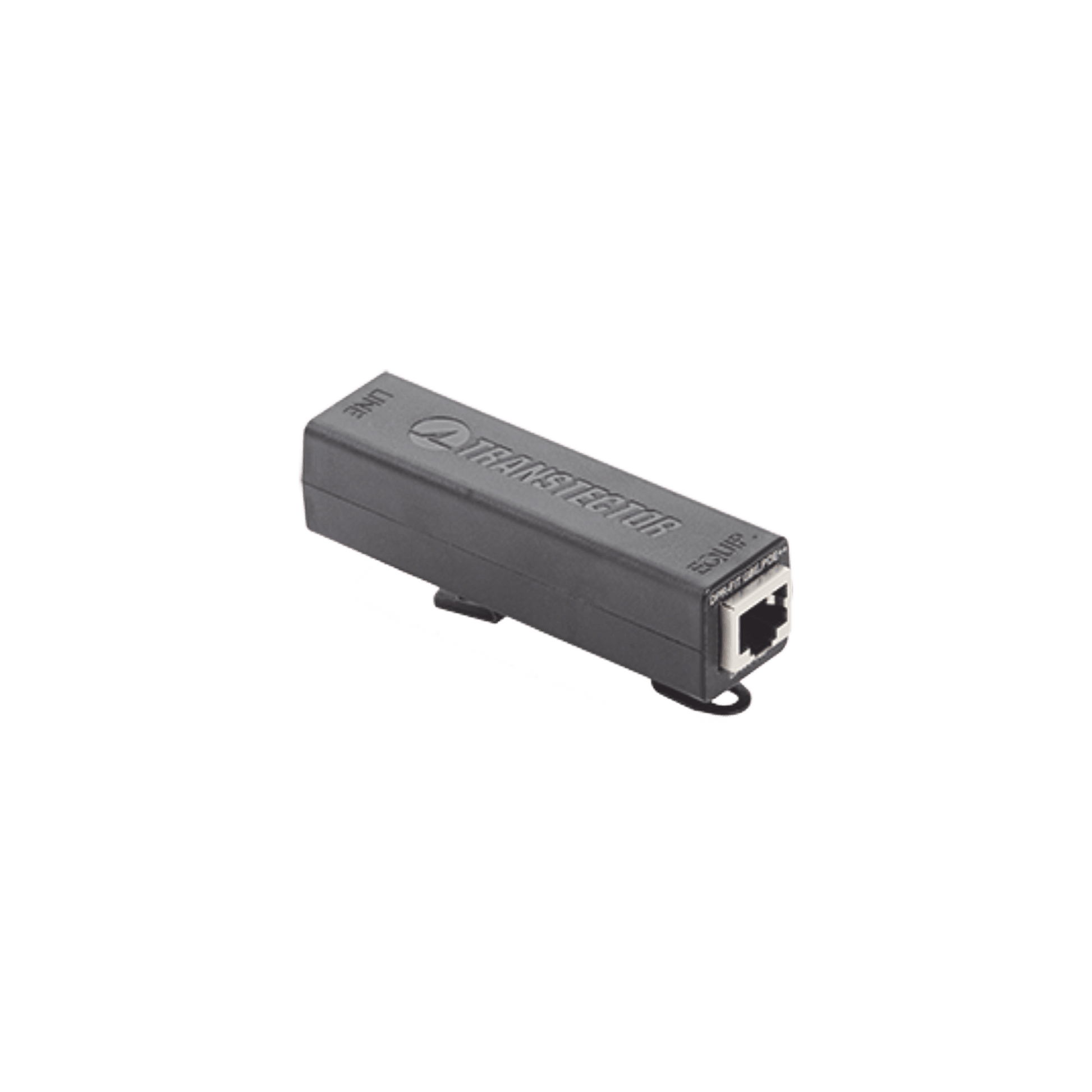

Transtector's DPR-F140 Data Surge Protector (also known as SPD or Lightning Protector) is an indoor SPD that uses cutting-edge SASD/GDT technology to protect critical equipment on Gigabit Ethernet PoE protocol data networks while still maintaining be transparent to data performance. This lightning surge protector provides effective protection against lightning strikes generated by both external lightning events and internal switching events and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a stable voltage. very low clamping

Main features:
  • Gigabit ports.
  • Shielded RJ45.
  • Protection up to PoE++ (100W).
  • Impedance: 100Ω
  • Technology: Hybrid, Silicon Avalanche Diode (SASD) and Gas Tube (GDT).
  • Suppression response time < 5 ns.
  • Temperature range: -40° to 75°C.
  • 3 year warranty.
Benefits:
  • Easy installation.
  • Protected pins (1&comma;2)&comma; (3&comma;6)&comma; (4&comma;5)&comma; (7&comma;8).
  • Weight: 90.72g.
  • Protection modes: LG&comma; LL&comma; SG.
  • Mounting on DPR chassis, DIN rail and wall.
  • Cat5 compatible, Cat5e&comma; Cat6/6A.
Applications:
  • Wireless links.
  • WISP/ISP
  • IP video surveillance.
  • Data centers.
