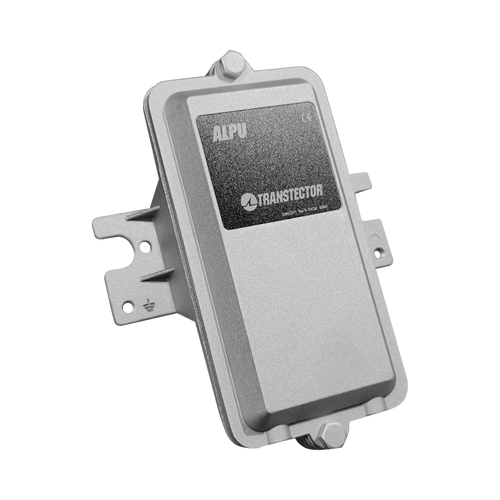

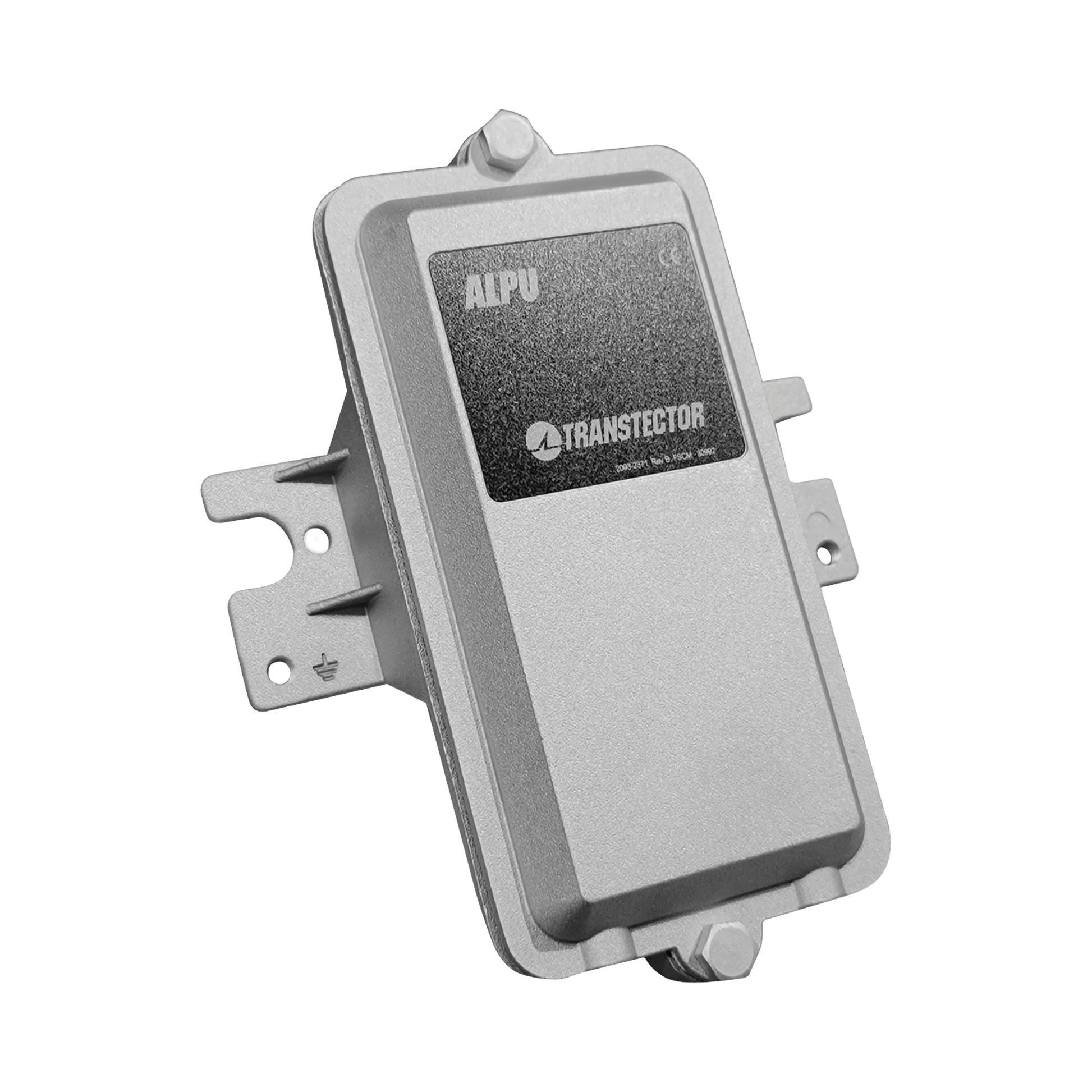

Metallic Lightning Protector Individual PoE 10/100/1000 Mbps (1101-959)(ALPU-PTP-M)

  • 4212fc27ba0d165771a2a777ca268782
  • 9ff3151d4f99c938d5c4d539aeda3a72
  • 7946bd5f8554c4d06e3f53bc84af40e3
  • 217749595fb5f02c9f99c76d3ceac2a4
1 4
  • Outdoor Installation
  • Impedance 100 Ω
  • Silicon Avalanche Diode
  • NEMA 3R
  • Shielded RJ45

Out of stock

Modelo: TALP-55-1000

Proveedor: TRANSTECTOR

Código SAT: 39121719

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Our Gigabit Ethernet/PoE++ surge protector/suppressor provides protection for your electronic equipment and supports long-term system reliability by absorbing large amounts of transient power. This industrial Gigabit Ethernet/PoE++ surge protection device for data line applications helps prevent damage from power spikes that can be caused by lightning and other strong electrical energy sources. TVSS/Transient Voltage Surge Suppression Device for Gigabit Ethernet/PoE++ can act as a lightning arrester and electrical surge surge protection unit.

Main features:
  • Gigabit ports.
  • Protection up to PoE++ (90W).
  • Protection modes: LG.
  • Impedance: 100Ω
  • Technology: Silicon Avalanche Diode (SASD).
  • Maximum current 1 A.
  • Suppression response time < 5 ns.
  • Temperature range: -40° to 75°C.
  • 1 year warranty.
Benefits:
  • Easy installation.
  • Protected pins (1&comma;2)&comma; (3&comma;6)&comma; (4&comma;5)&comma; (7&comma;8).
  • Weight: 362.87g.
  • Pole and wall mounting.
  • Shielded RJ45.
  • Protection: NEMA 3R
  • ATEX certificate ( EN/IEC 60950-1, ETL 60950-1)
  • Cat5 compatible, Cat5e&comma; Cat6, Cat6A.
Applications:
  • Wireless links.
  • WISP/ISP
  • IP video surveillance.
  • Outdoor WiFi.
  • Data centers.

Note* The protector must be grounded

Typical surge protector installation scenario
