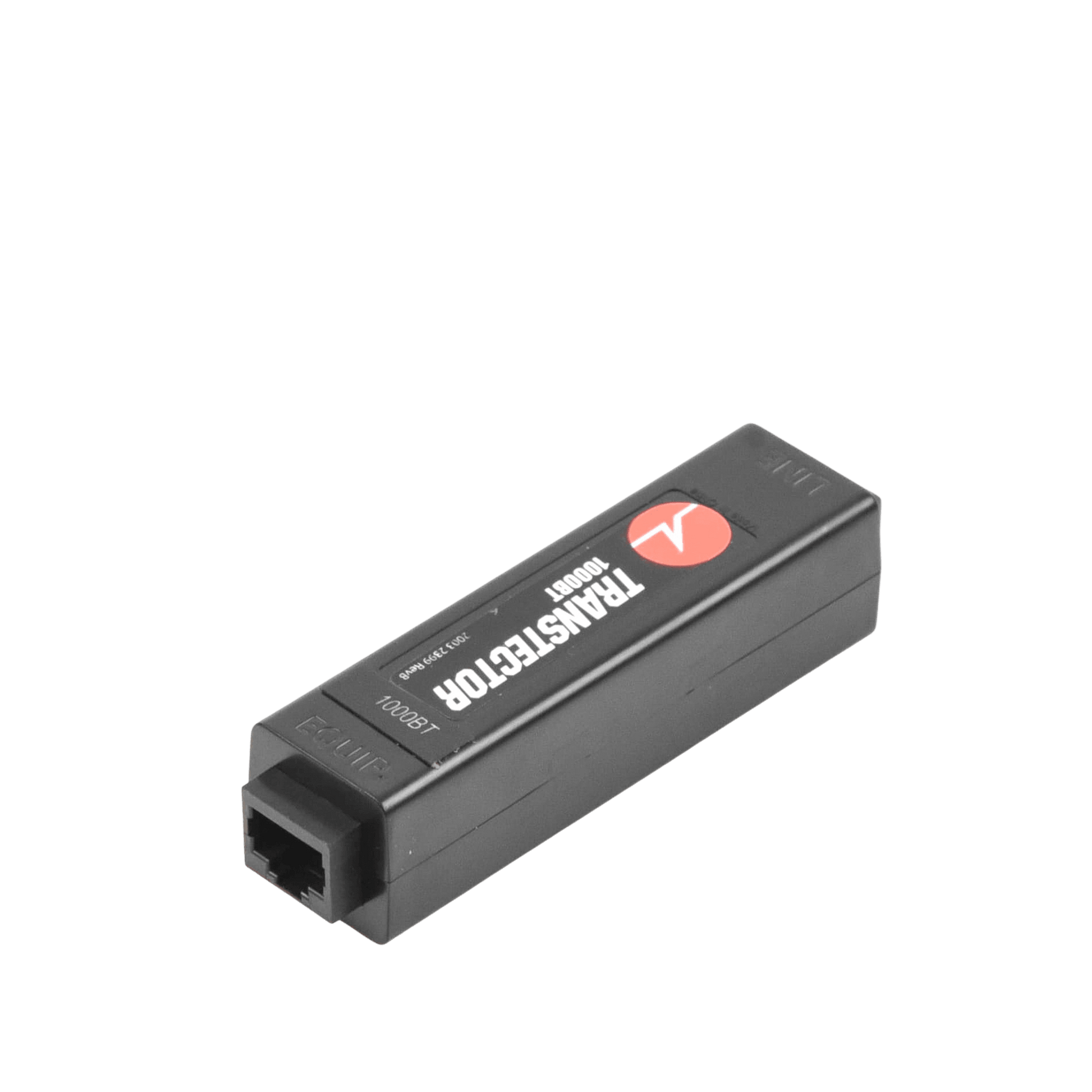

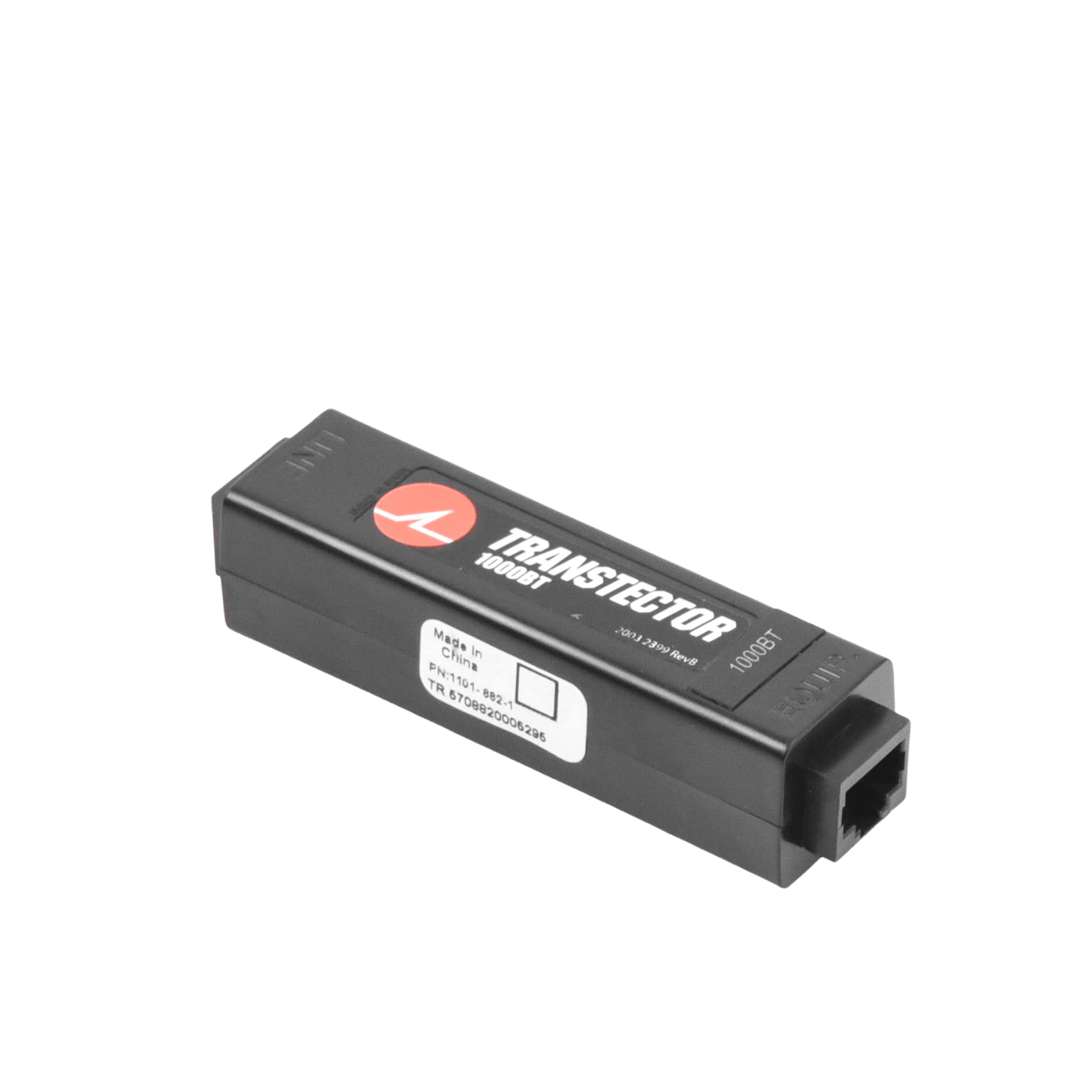

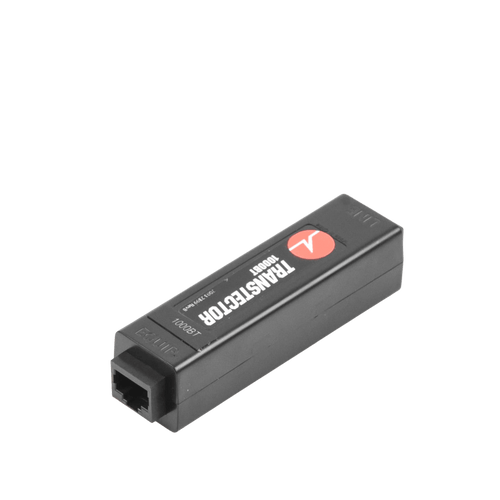

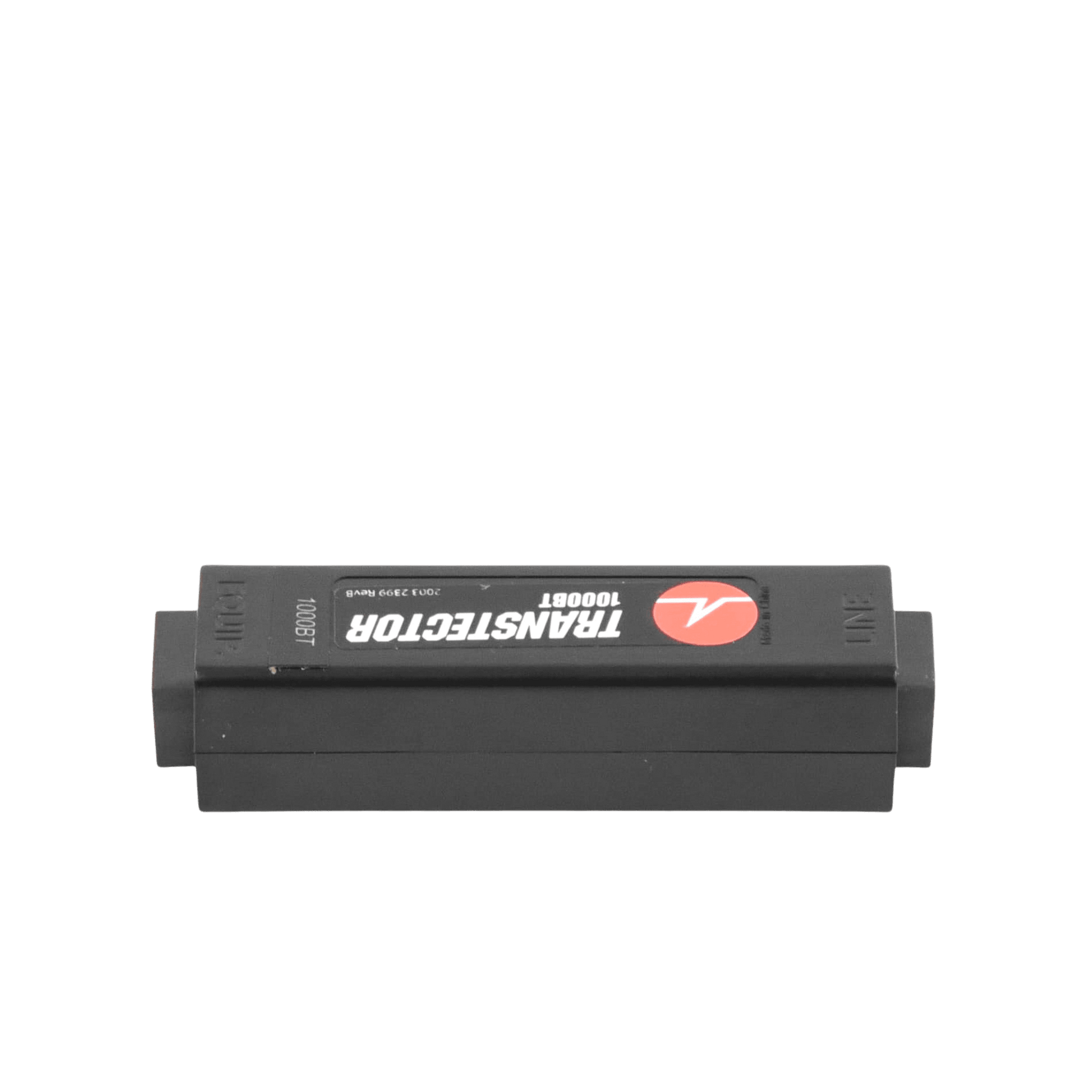

Data Protector, Silicon Avalanche Diode, Surge Protection, Gigabit Ethernet 10/100/1000 Mbps (1101-882-1)

Protect your IP network equipment with Transtector protectors. They use the highest technology in protection systems developed with silicon avalanche diodes (SASD).

Unlike other protector manufacturers that use metal oxide varistors (MOV) that degrade over time by opposing voltage transients or surges that damage your electronic equipment. Transtector uses silicon avalanche diode (SASD) technology that does not degrade by opposing surges, They have the fastest response and the highest performance in their protectors; thus maintaining the best protection and minimizing the costs of repair and replacement of electronic equipment.

-Technology: Silicon Avalanche Diode (SASD).
-It is not degraded by transients.
-Bidirectional protection in load and line.
-Protocol: Gigabit Ethernet.
-Data speed: 10/100/1000 Mbps.
-Maximum operating voltage: 6 Vpk.
-Protected Pins: (1,2)(3,6)(4,5) and (7,8).
-Connectors: RJ45.
-Impedance: 85 to 110 ohms.
-Mounting type: For 19” (48 cm) and 23” (58 cm) racks or on Rail.
-Temperature: -40° to 75° C.

For indoor use, it is recommended to install it on copper rails inside NEMA cabinets or boxes.
