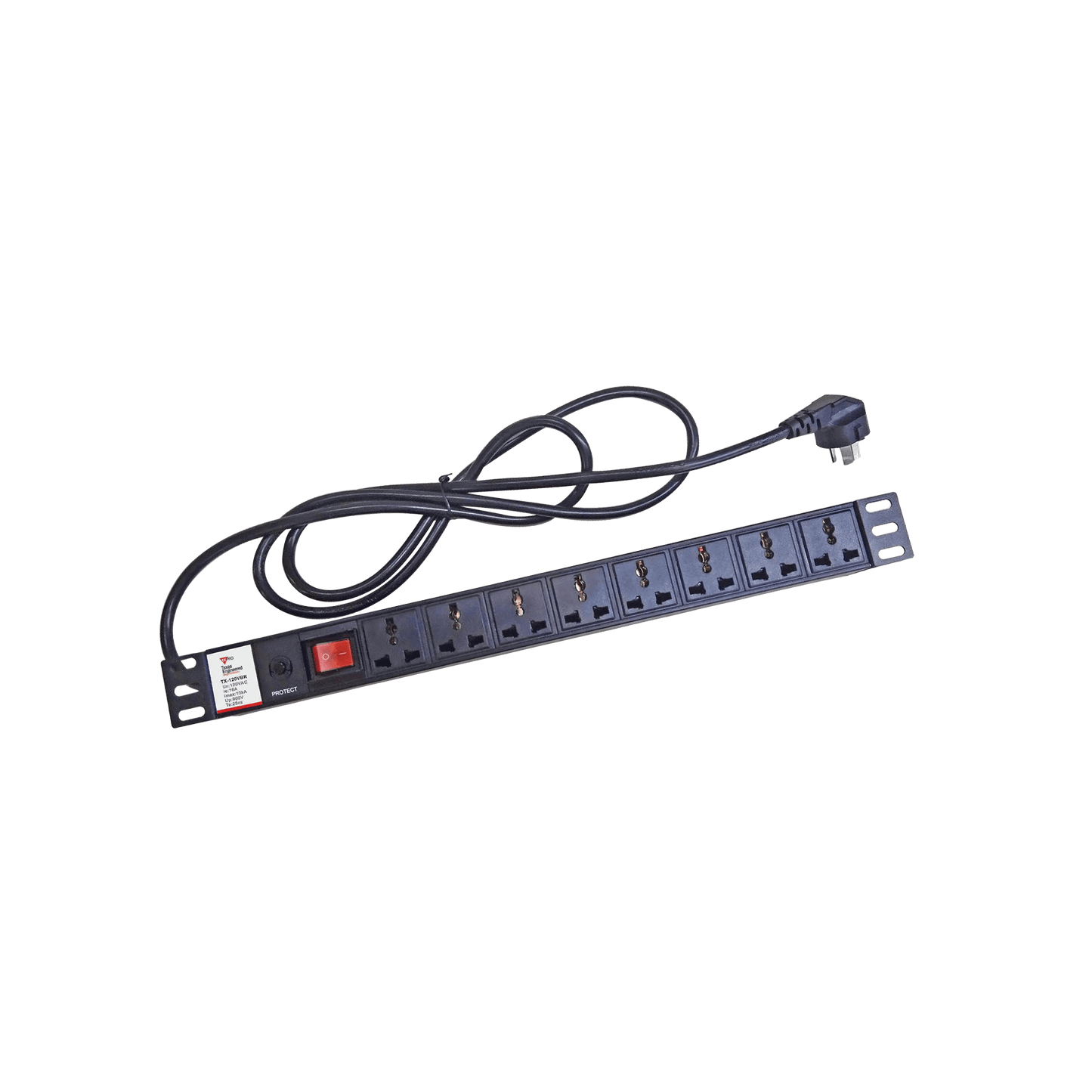

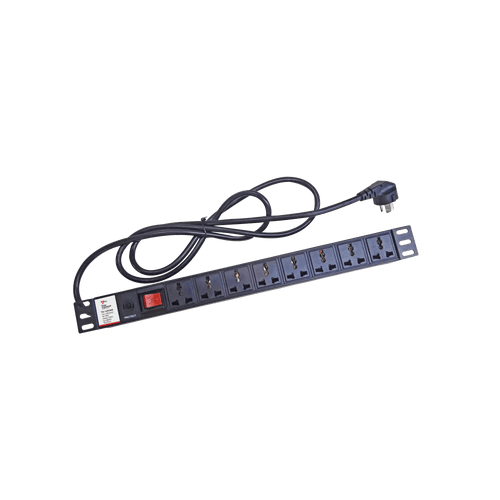

120 Vac protector with 8 black power contacts for Rack applications

  • 9253f2960f9f1f5a95192c8aaf091f02
1 1

Out of stock

Modelo: TX120VBR

Proveedor: TXPRO

Código SAT: Not available.

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Overvoltages can occur in any metallic conductor, including public electricity lines, telephone lines, data lines, video and food, That is why surge protection devices must be installed.
TXPRO recommends protecting all circuits on your network.

Applications:
  • Class D Surge Protection Device for Vac Power System
  • Sensitive electronic equipment
  • Telecommunications centers
  • Automatic control centers
  • Smart buildings
  • Industrial business
  • medical institutes
Characteristics:
  • Low Voltage Limiter Protector
  • Quick protection response
  • 10KA maximum surge current
  • Thermal disconnection device
  • 8 Output Contacts

Technical parameters:

Rated working voltage

-50/60Hz 120V

Breakdown voltage 470 V

470V

Max. Working current

10A

Nominal discharge current (8/20 μs) In

5kA

Max. Discharge current (8/20 μs) Imax

10kA

Allows a voltage step, 8/20 μs

800V

Protection model

LN

General parameters

Dimension

35(H) x 55(W) x 400(L)mm

Weight per unit

200g

IP code

IP20

Operating conditions

Temperature: - 40 to 80 ℃
Relative humidity: ≤95%

Standards Compliance

IEC61643-I, UL94-V0, RoHS
