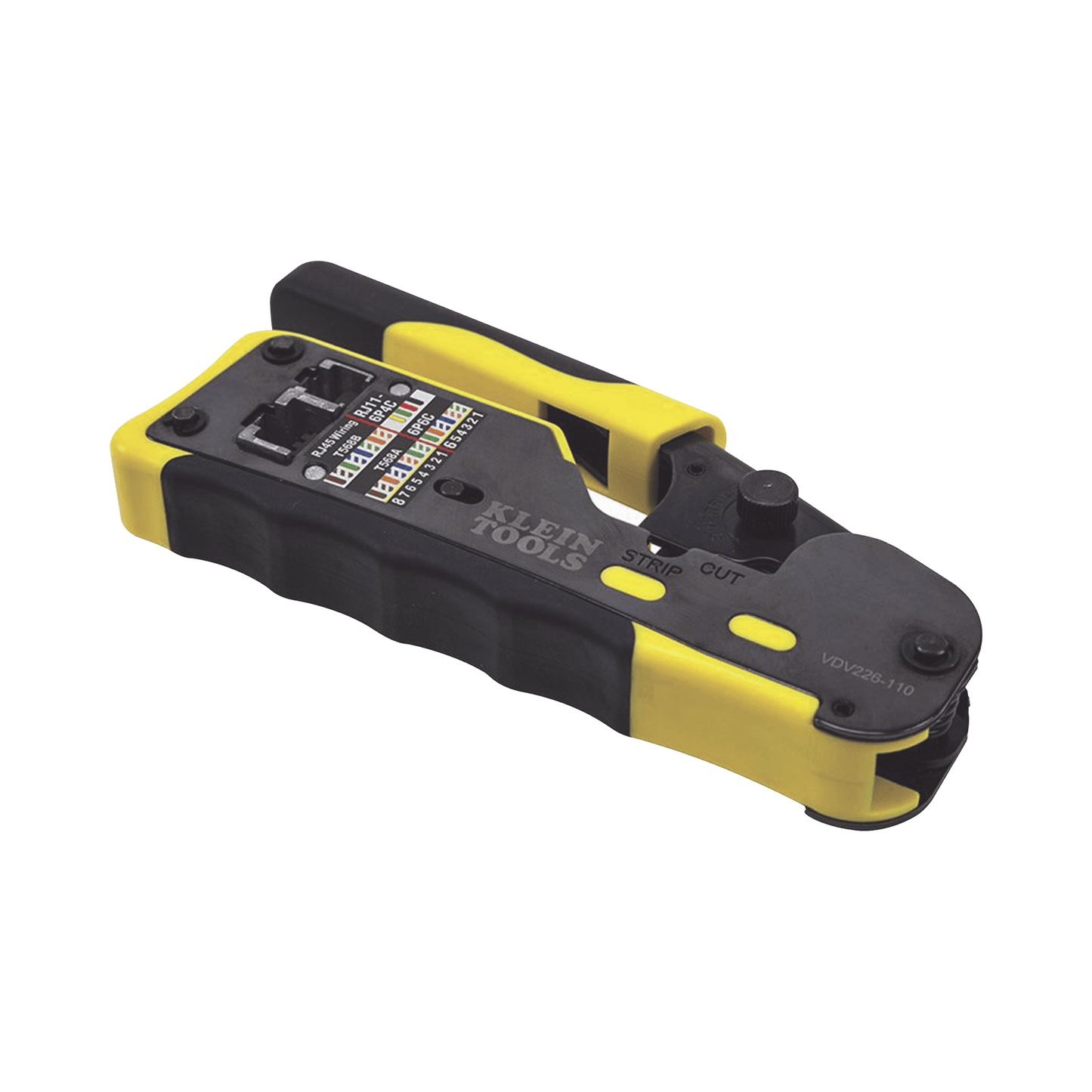

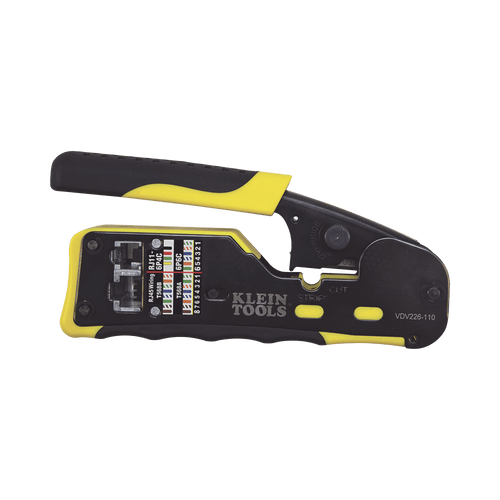

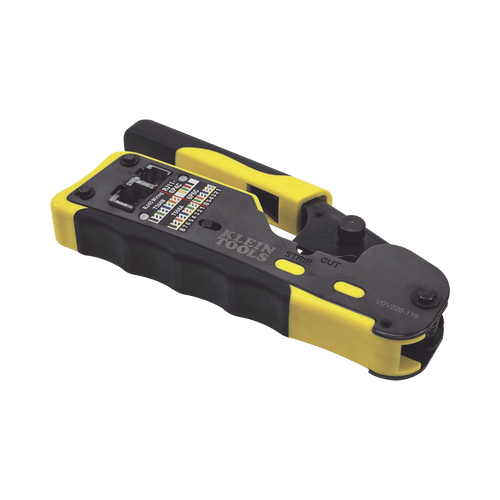

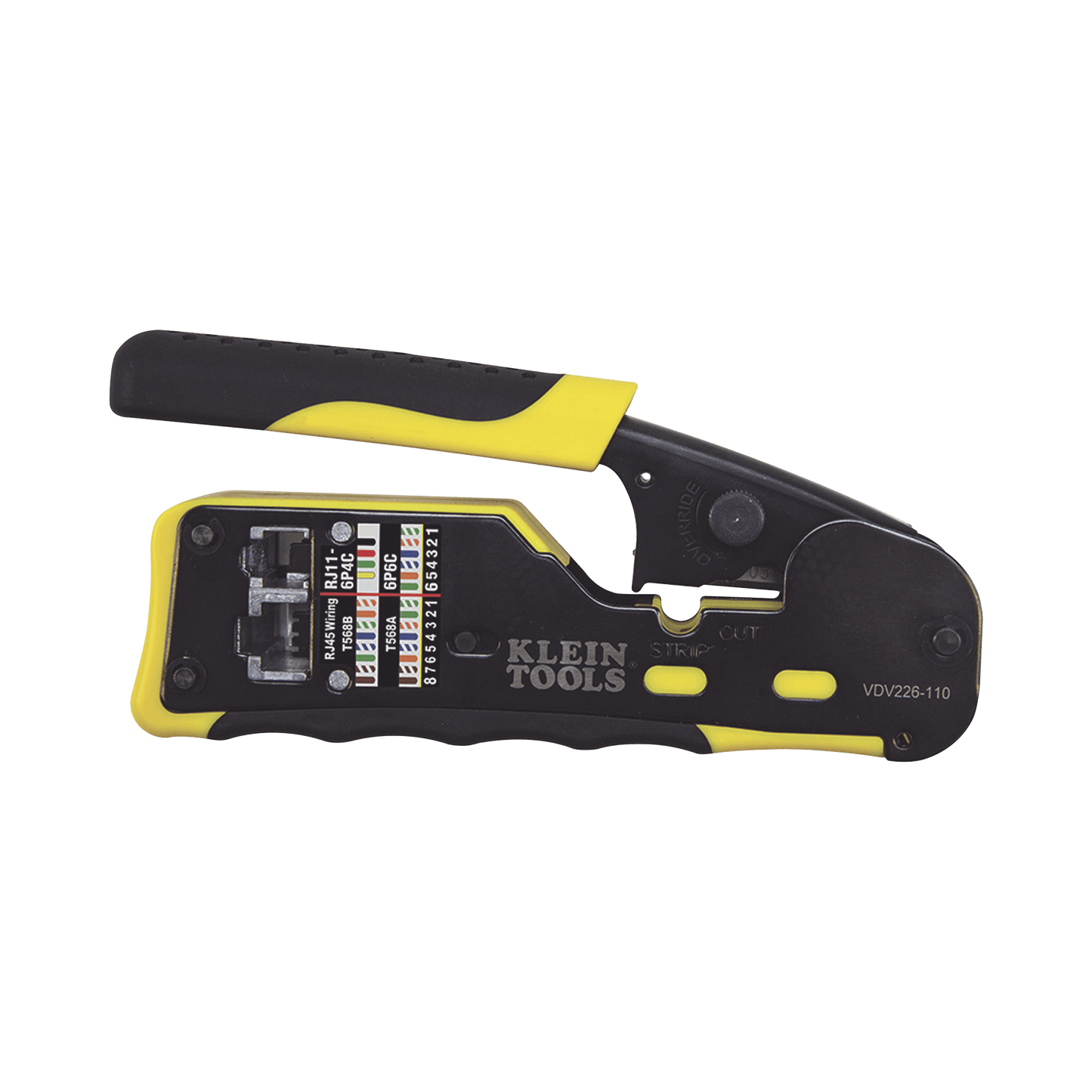

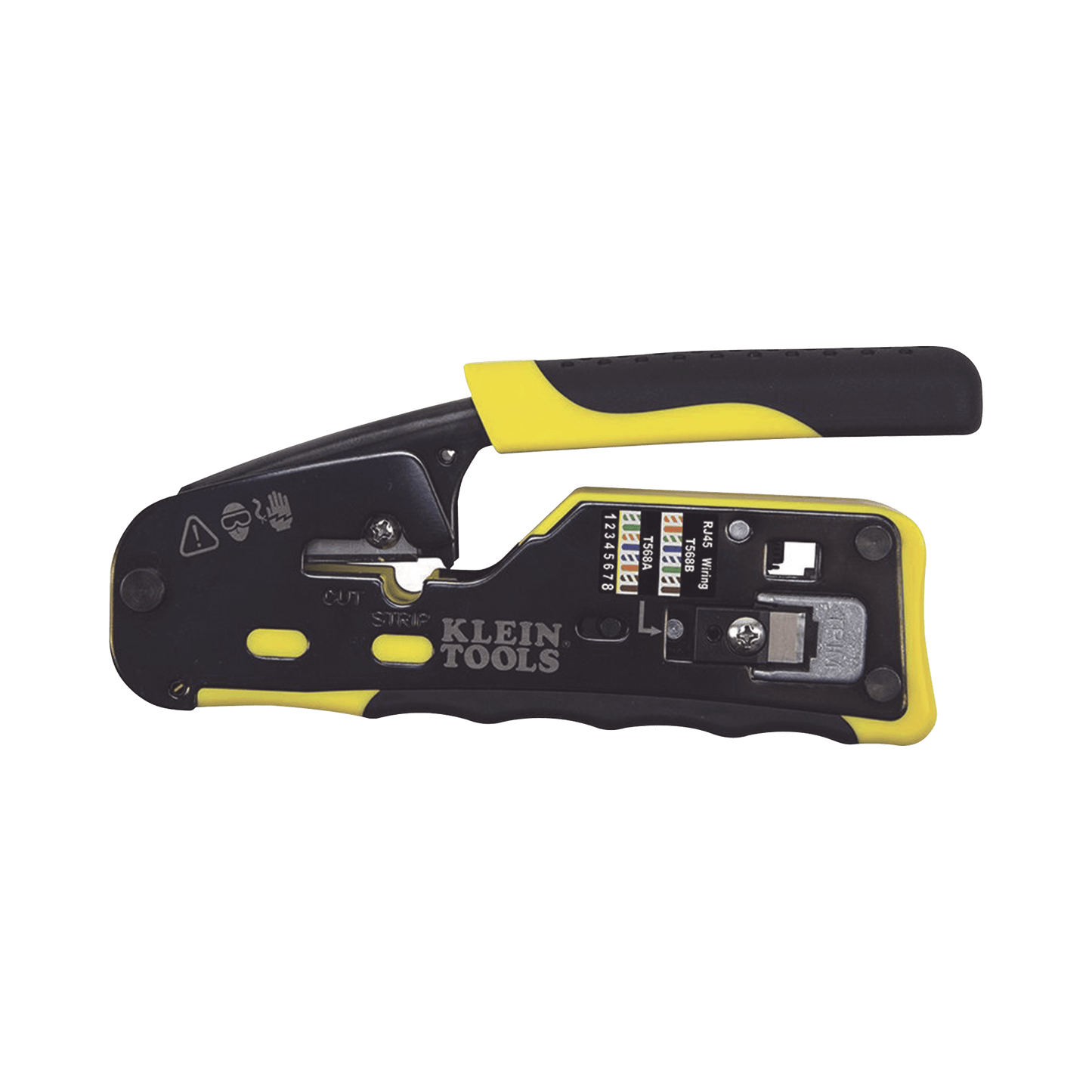

Crimper/Cable Stripper/Cable Cutter with Ratchet for Pass-Thru RJ45 Connectors and Standard RJ11/RJ12 Connectors.

  • 65a80ab4e0cd9553816240a032cc4dfc
  • 2333c7f162ab7d327c78091cc24bccea
  • 4d5fc9834b2a201e3a45f8c16ca66314
  • fe3f37d5337f5dc650bb442c3791cfe7
  • c9dfbee80e046588c22e0878d80469d0
  • 5e589d4965183aaefb91b97403e7db55
  • 03ec3f4e36eafc87aedee18625bc317a
  • 24e571414e2eab241ab31439c4da193b
  • 2d84b140e41eac4243b1f07ee2f0aeb8
1 9
  • Herramienta todo en uno: ponchadora, pelacables, cortacables
  • Recorte al ras para evitar contacto accidental
  • Compatible con conectores RJ11/RJ12 y RJ45 Pass-Thru
  • Guía de cableado impresa para minimizar errores
  • Mecanismo de cierre de matraca de ciclo completo

122 in stock

Modelo: VDV226-110

Proveedor: KLEIN TOOLS

Código SAT: 41113630

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Characteristics:

  • Crimped modular connector installation tool for voice and data applications with RJ45 Pass-Thru™ connector.

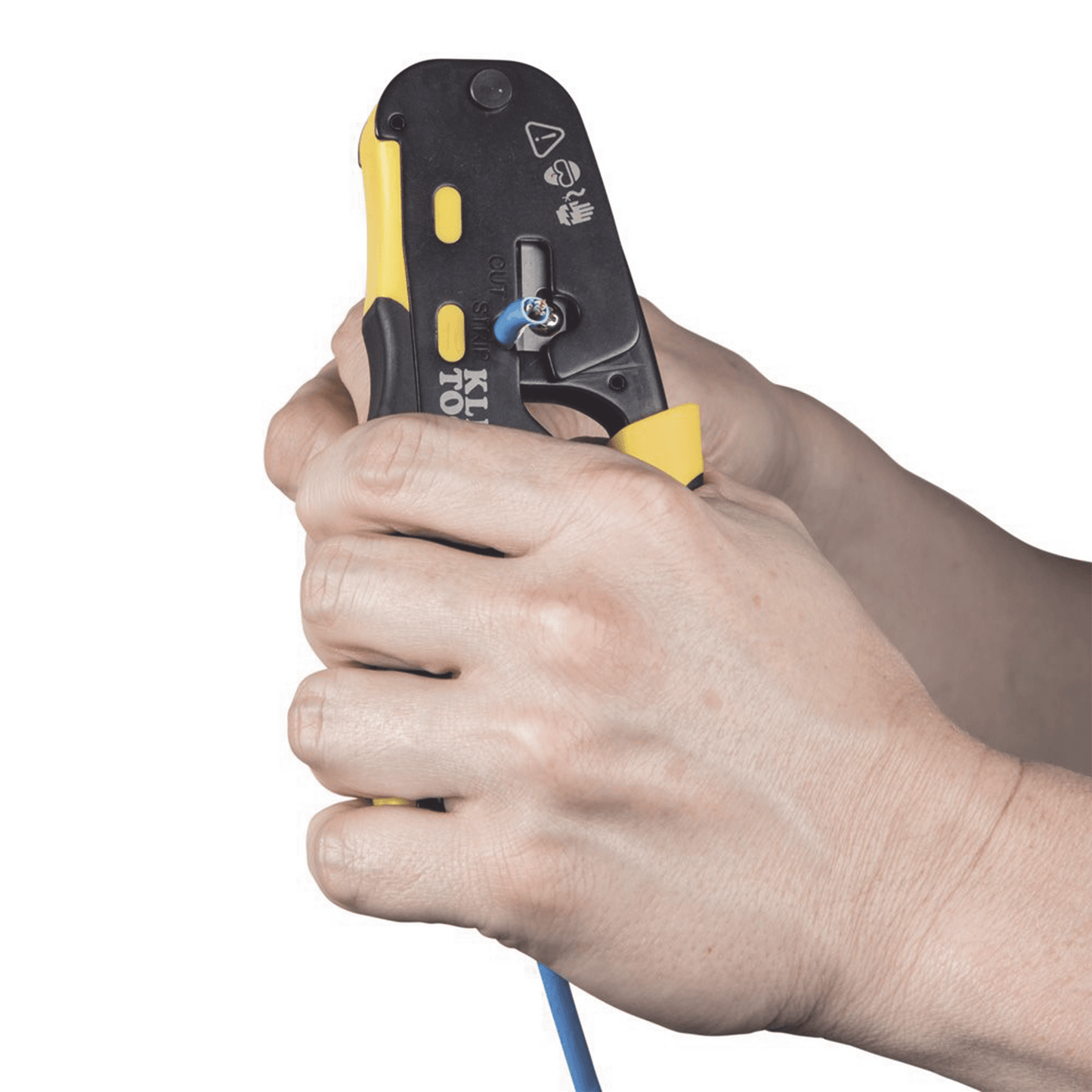

  • All-in-one tool (puncher, wire stripper and cable cutter) for pair conductor data cables.

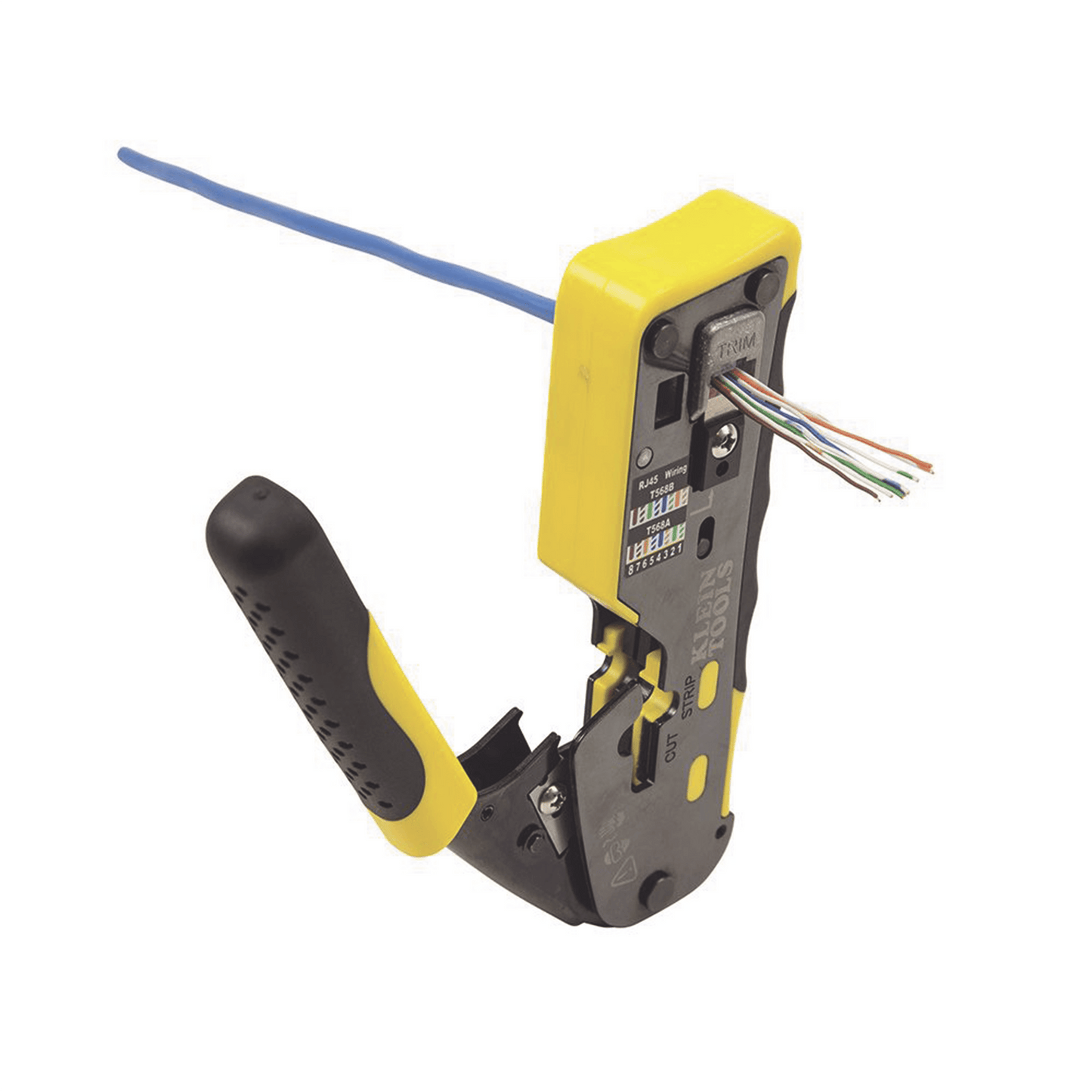

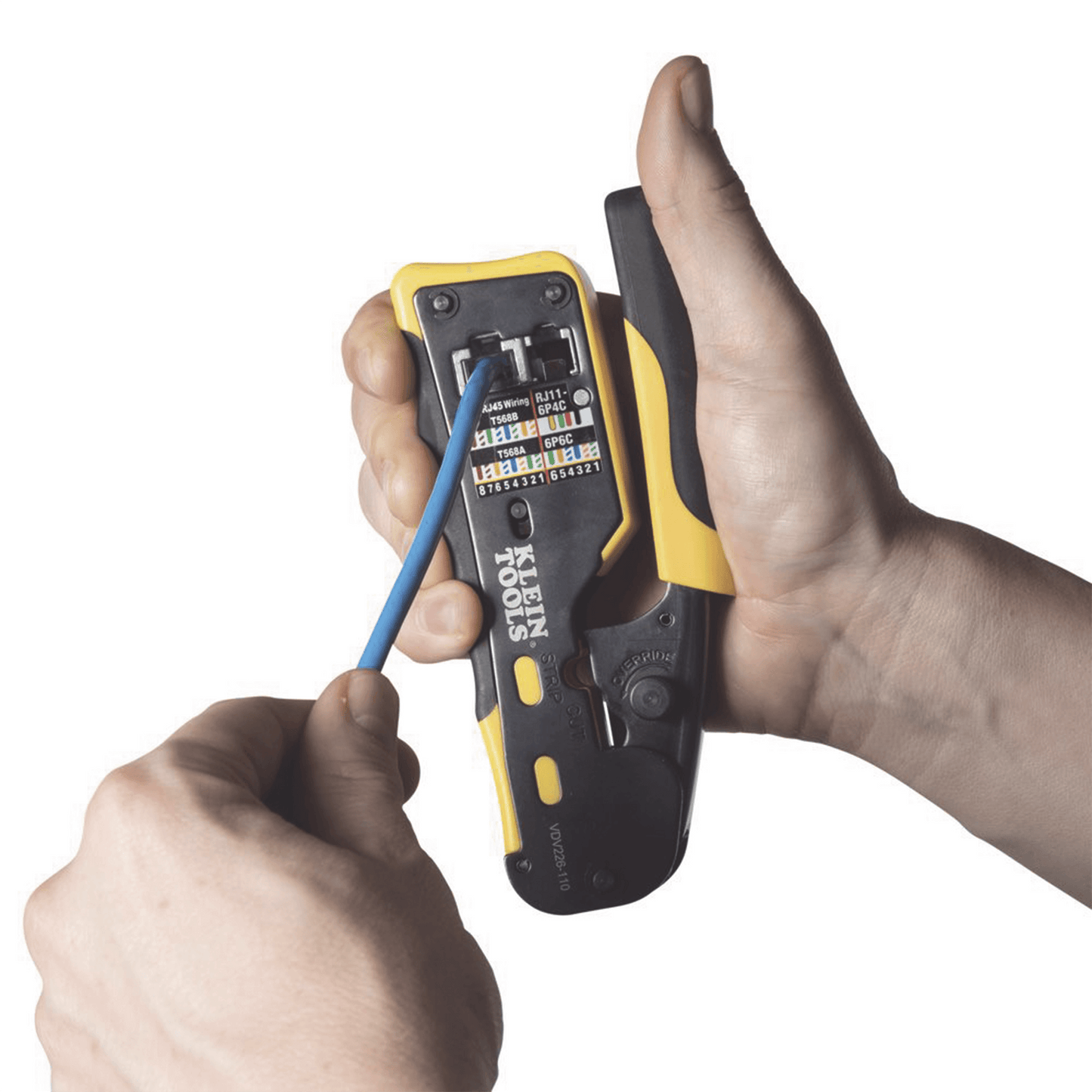

  • Trims flush with the connector end face to eliminate accidental contact between the conductors.

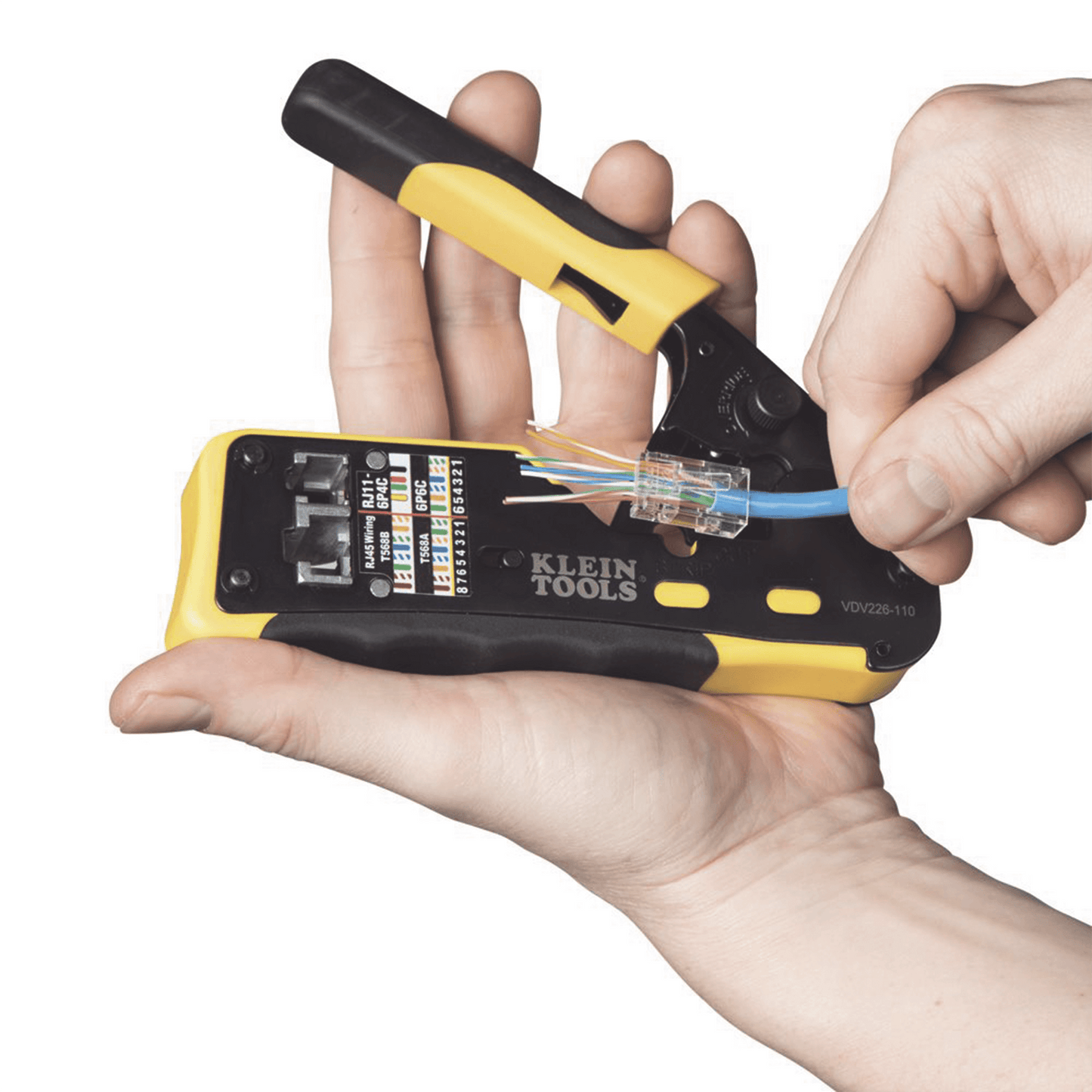

  • Crimps and trims Klein Tools Pass-Thru™ RJ45 connectors.
  • Pinch 4 modular connectors 6 and 8 positions (standard RJ11/RJ12 connectors and Klein Tools RJ45 Pass-Thru™ connectors).
  • Full-cycle ratcheting mechanism ensures complete termination of connectors.

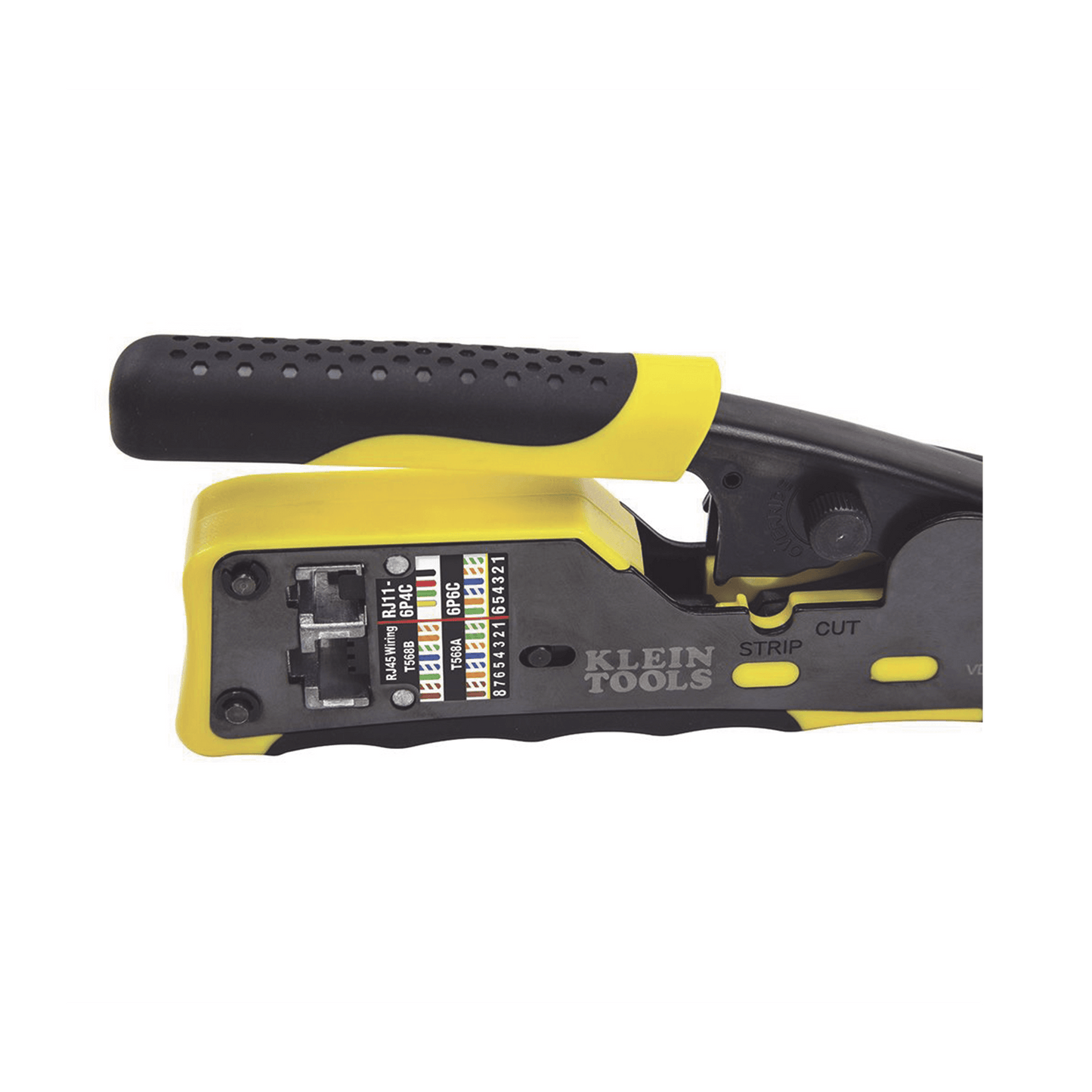

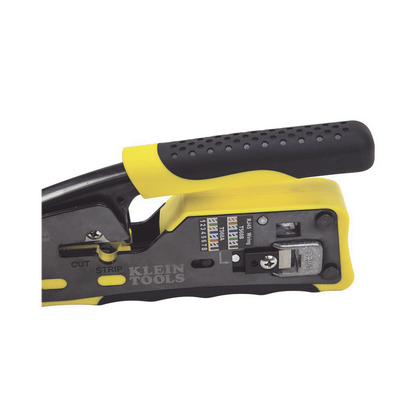

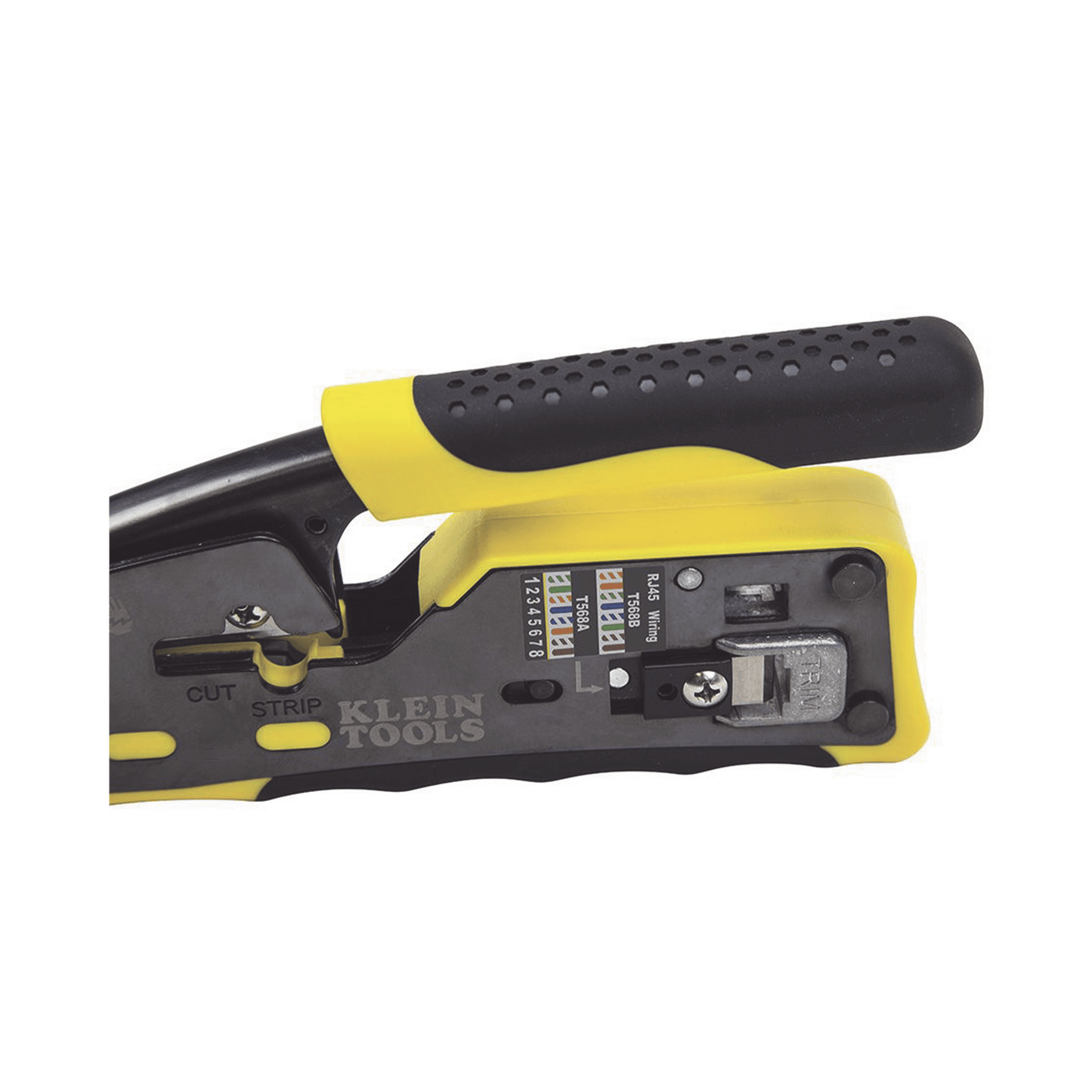

  • Wiring guide printed on the tool that helps minimize wiring errors.
  • Cable parameters: 28-22 AWG flat or round telephone and data cable: solid or braided.
  • Rubber grip to provide added comfort.
  • Ratchet closing mechanism.
  • For use with Klein Tools Pass-Thru™ Connectors.
  • Not for use with standard connectors (non-Pass-Thru™ connectors).

Dimensions:

  • Material: Steel with black oxide.
  • Cable type: CAT3, CAT5e and CAT6/6A
  • Connector Type: Standard RJ11/RJ12 and Klein Tools Pass Thru™ RJ45
  • Drivers/position/torque: 4 positions, 1pair/2 conductors, 4 positions, 2 pairs/4 conductors, 6 positions, 2 pairs/4 conductors, 6 positions, 3 pairs/6 conductors, 8 positions, 4 pairs/8 conductors
  • Overall length: 6.094"" (155mm)
  • Weight: 408g (14.4oz)
