Pneumatic Bollard or Bollard / 100% Stainless Steel / High Speed ​​/ 275MM Diameter / Luxury Finish

  • 2dafdfc67f463c0a8037e238b0553e41
  • a28b7827f7260456521699dca6eb0c04
  • 5d1d6975f9a72f88c95b40ac60524e6e
1 3

26 in stock

Modelo: XB-275

Proveedor: ACCESSPRO

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Bollards

Main features:
  • Made of 304 stainless steel
  • 275mm diameter
  • Lifting height of 750 mm
  • Rise time 3 to 5 seconds.
Physical and Electrical Characteristics:
  • Pneumatic operation method
  • Requires XCONTROLBOX controller for its operation
  • 24V accessory power supply
Featured Features:
  • Operation capacity up to 100 cycles per hour.
  • Impact resistance of 300,000 Joules.
  • Pneumatic hoses are purchased separately.

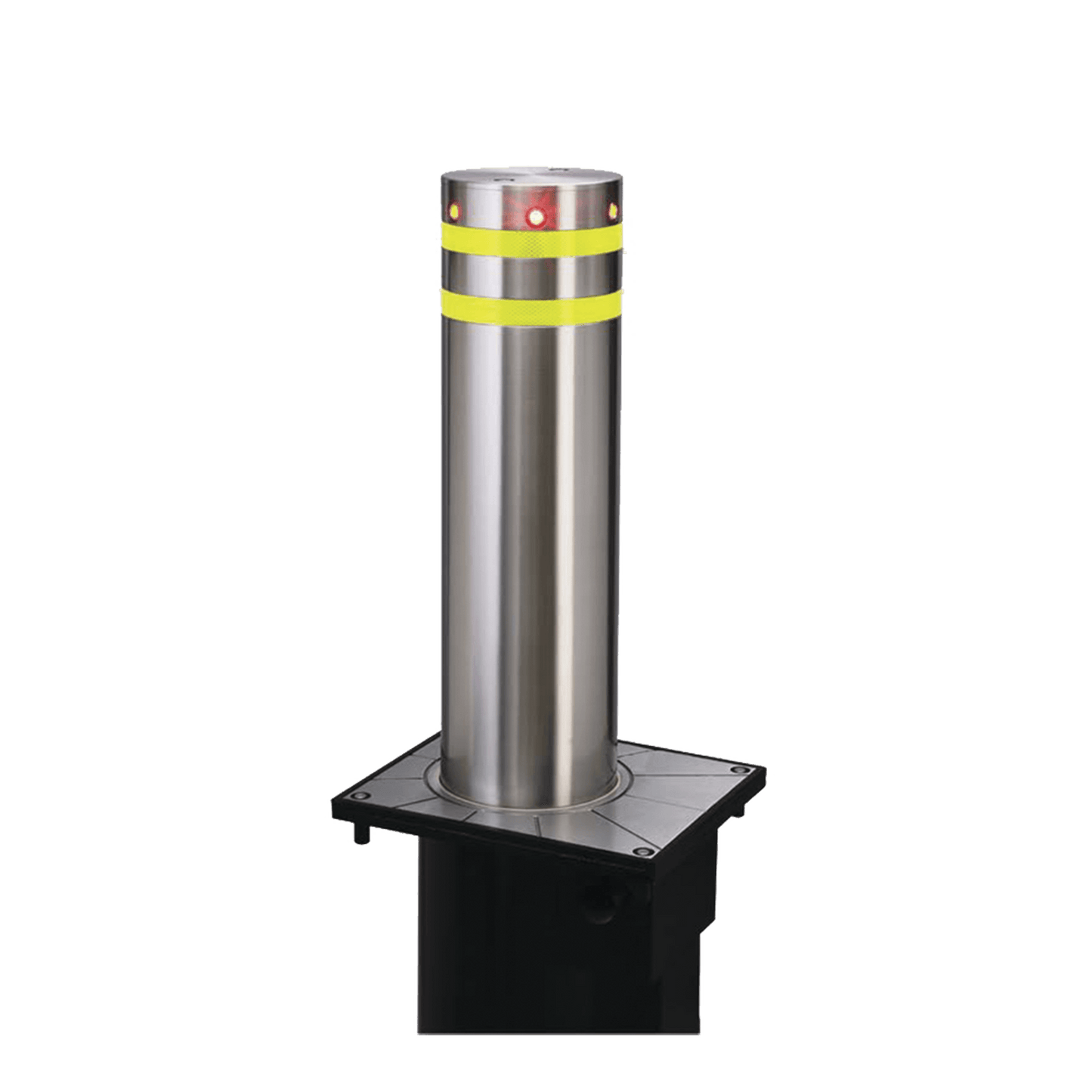

Stainless steel pneumatic bollard

Additional characteristics:

  • Made of stainless steel
  • pneumatic control
  • Impact resistance of 300,000 Joules.
  • High power LEDs and reflective tape
  • Open in case of failure
  • Dimensions 220 x 750 mm
  • Bollard container made of carbon steel.

Video Courtesy of ZIGURAT http://www.zigurat.mx/

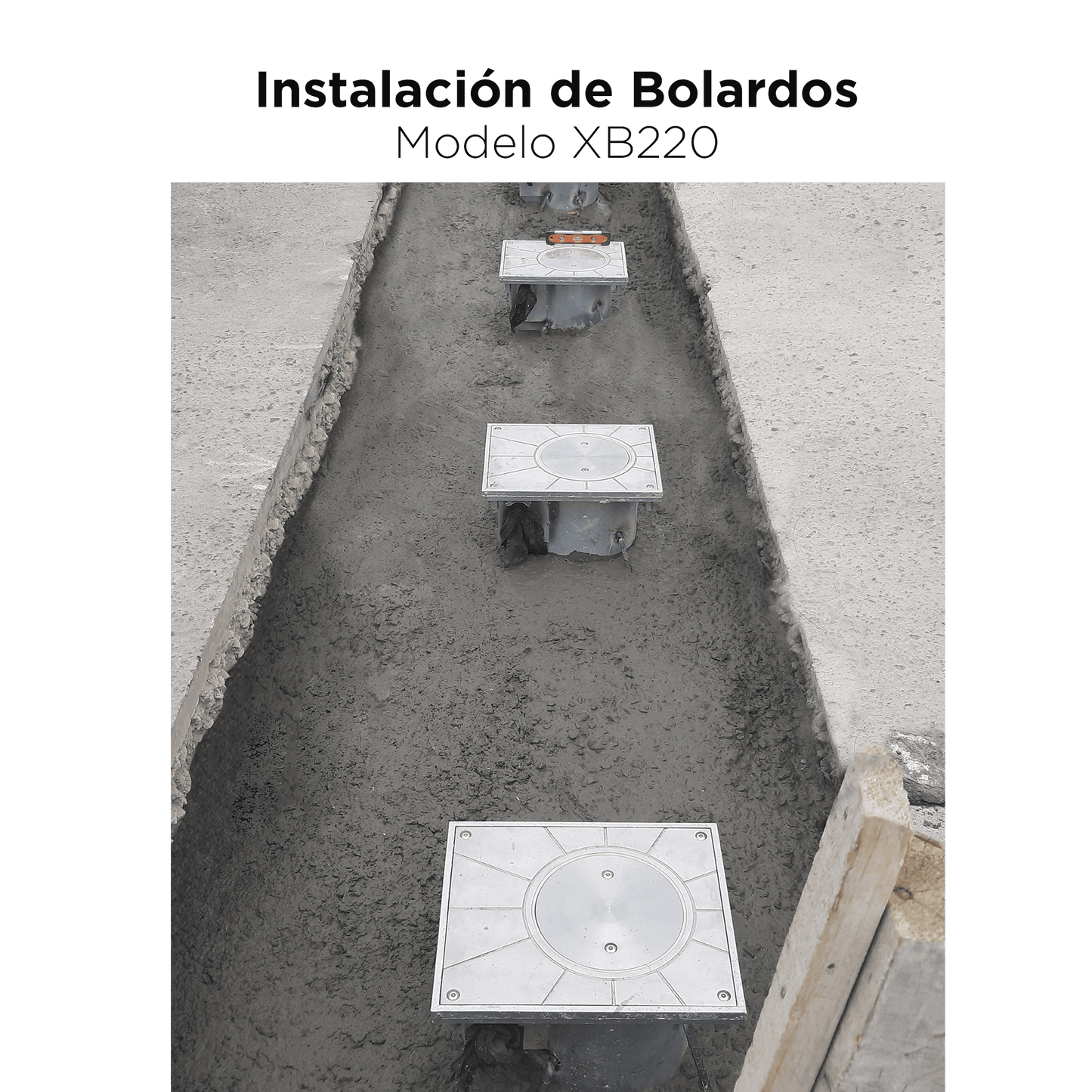

What do I need for an installation?

  • X-CONTROL-BOX Pneumatic bollard controller, Controls up to 4 bollards simultaneously.
  • XBSSW01 Heavy-duty triple button panel for activation.
  • Hoses for pneumatic connection. Features are 10 mm outer diameter, 8 mm inner diameter and must withstand a minimum pressure of 150 PSI (purchased separately) .
  • XBSRR16 Safety photocell.

Additional notes:

  • Equipment with one year warranty against manufacturing defects
  • A dry contact pulse is required for activation.

Main applications

Protection of Boarding Areas
Thefts from shipping areas to directly access the warehouse are increasingly common. AccessPRO bollards allow you to restrict access to vehicles that could extract merchandise from a warehouse.

Secure Protection for Subdivisions
AccessPRO bollards are used to restrict vehicle access in subdivisions where a vehicle barrier is not sufficient, since vehicle barriers have their limitations for areas where high security is required and do not really allow vehicle access.
