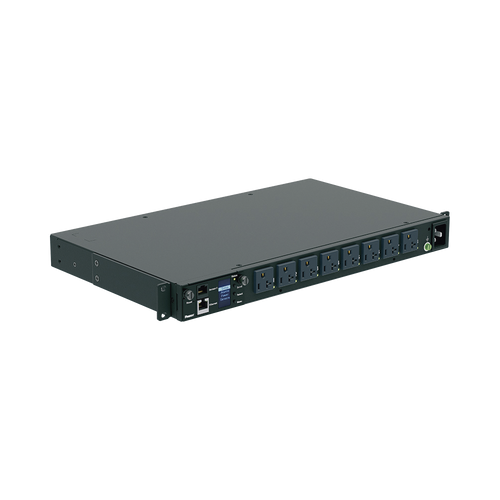

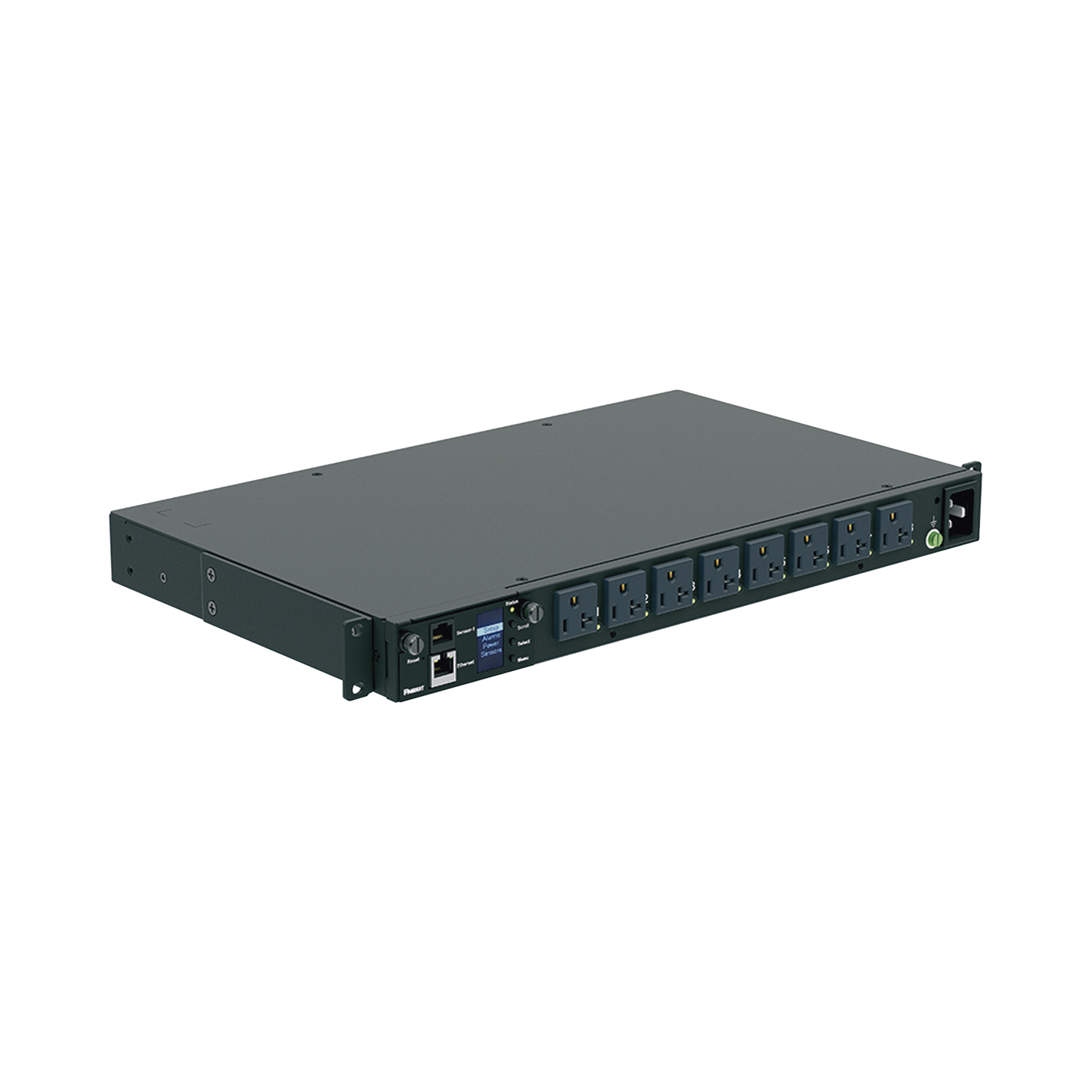

Switchable and Outlet Monitorable (MS) PDU for Power Distribution, NEMA 5-15P Input Plug, With 8 5-20R Outlets, 19in Horizontal, 120 Vac, 15 Amp, 1UR

Panduit SmartZone G5 iPDUs are more than just a power distribution unit and a power meter. These iPDUs monitor power in the data center environment (at the cabinet level), by continuously scanning for electrical circuit surges and physical environmental conditions that put critical IT equipment at risk. Panduit iPDUs provide complete and accurate power metering data to efficiently use power resources, make informed decisions about capacity planning, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money.

Panduit Rack iPDUs are easily installed in Panduit or third-party enclosures. These safely and efficiently manage and distribute power to multiple devices through a single power input connector, by PDU, to improve scalability as a network grows.

Switched Monitoring Series (MS): PDUs with added power monitoring capability, and switching capabilities at the output level, individually or by group. Allows you to sequence the ignition, restart equipment or restrict unauthorized use of each outlet.

Energy Measurement and Monitoring in PDUs:

• Meter for energy consumption, watt-hour, PDU level (kWh), PDU level power measurements (W), power measurements at the Input Phase level (V, A, VA, kWh, pf) and current measurements at the circuit breaker level.
• Embedded memory log to record/consult/report historical data.
• Alarm thresholds and personalized notifications according to user.
• Alarm thresholds and personalized notifications according to user.

Output Level Control

• Remote control for On/Off via individual output.
• The user defines delay in power-on time to sequence IT equipment.
• Automatic sequencing that avoids input current overload.
• User security at the exit level, with assignable roles and user access.

Safety and Environmental Management:

• Plug & Play environmental sensors, optional. They include temperature, humidity, dry contact and water leakage.
• Alarm thresholds and personalized notifications according to user.

Network Management and Local Display Interface:

• OLED screen: the largest in its class, high visibility.
• Complete network management and alerting capabilities, for HTTP support, HTTPS, SSH, Telnet, SNMP, FTP and email.
• Strong encryption, passwords and advanced authorization options, including local permits, LDAP/S and Active Directory.
• Serial connection for PDUs in up to 4 Racks, and 32 environmental sensors, through a single IP address.

Technical specifications:

• Input voltage: 120 Vac
• Output voltage: 120 Vac
• Input current: 15 Amp
• Apparent power: 1.4 kVA
• Input Plug Type: NEMA 5-15P
• Cable length: 3m.
• Receptacle Types: (8) NEMA 5-20R
• Dimensions: 433.5 x 43.5 x 270 mm (Width x Height x Depth)
• Rack Units: 1
• Operating temperature: 10 to 60 ºC
• Storage temperature: -20 to 60 ºC
• Relative humidity without operating: 5 to 95%
• Relative humidity in storage: 5 to 95%
