Hybrid Fire and Intrusion Panel, Up to 32 Wired or Wireless Zones, 24 V-Plex Zones, 2 Partitions, Compatible with AlarmNet and Total Connect

System
• UL Listed, ULC, FM, CSFM and FDNY
• Complies with NFPA 72
• 3 Expansion Technologies; Wired, Wireless and Multiplexed
• 2 1.7 A notification circuits
• Programming by alphanumeric keyboard, Downloading software.
• 31 peripheral devices such as keyboards, expansion and relay modules.
• Supports touch sensitive keyboards.
• Entry time defined by the installer.
• 2 programmable entry and exit zones with different times.
• Automation functions.
• Auto arming and disarming function.
• Supports 4204 relay module, maximum 24.
• 512 events in memory. The memory can be read with the COMPASS Downloading software in Spanish.
• 2 partitions
• Confirmation of arming and disarming.
• Telephone line cut detection.
• Auxiliary current of 600 mA.
• Power supply.

Zones
• 8 programmable zones, Configurable with or without end-of-line resistor.
• 3 Expansion Methods: Wired, wireless and Vplex.
• Zones can be configured for fast or slow response.
• Zones 1 and 2 support up to 16 2-wire smoke detectors each.
• Supports 4-wire smoke detectors.
• Supports up to 32 wireless zones by adding the Honeywell 5800 receiver.
• Maximum capacity of 24 Vplex Zones.
• Supports 4208U wired zone expansion module.
• 100% wireless system supervision.
• Range up to 60 m on the wireless 5800 series.
• Requires PL712 backup battery and 6160CR programming keyboard (Not included)

Users
• 75 user codes.
• 6 levels of authority: installer, teacher, standard, guest, only arming and coercion.
• Quick assembly system.
• 5 arming levels: total, partial, night, instant and maximum
• Open door warning (CHIME).

Communication
• Built-in telephone communicator for communication with the alarm receiving center.
• Supports 4+2 and CONTAC/ID communication formats.
• Supports double and split reporting option.
• Compatible with third generation 3i communication systems.

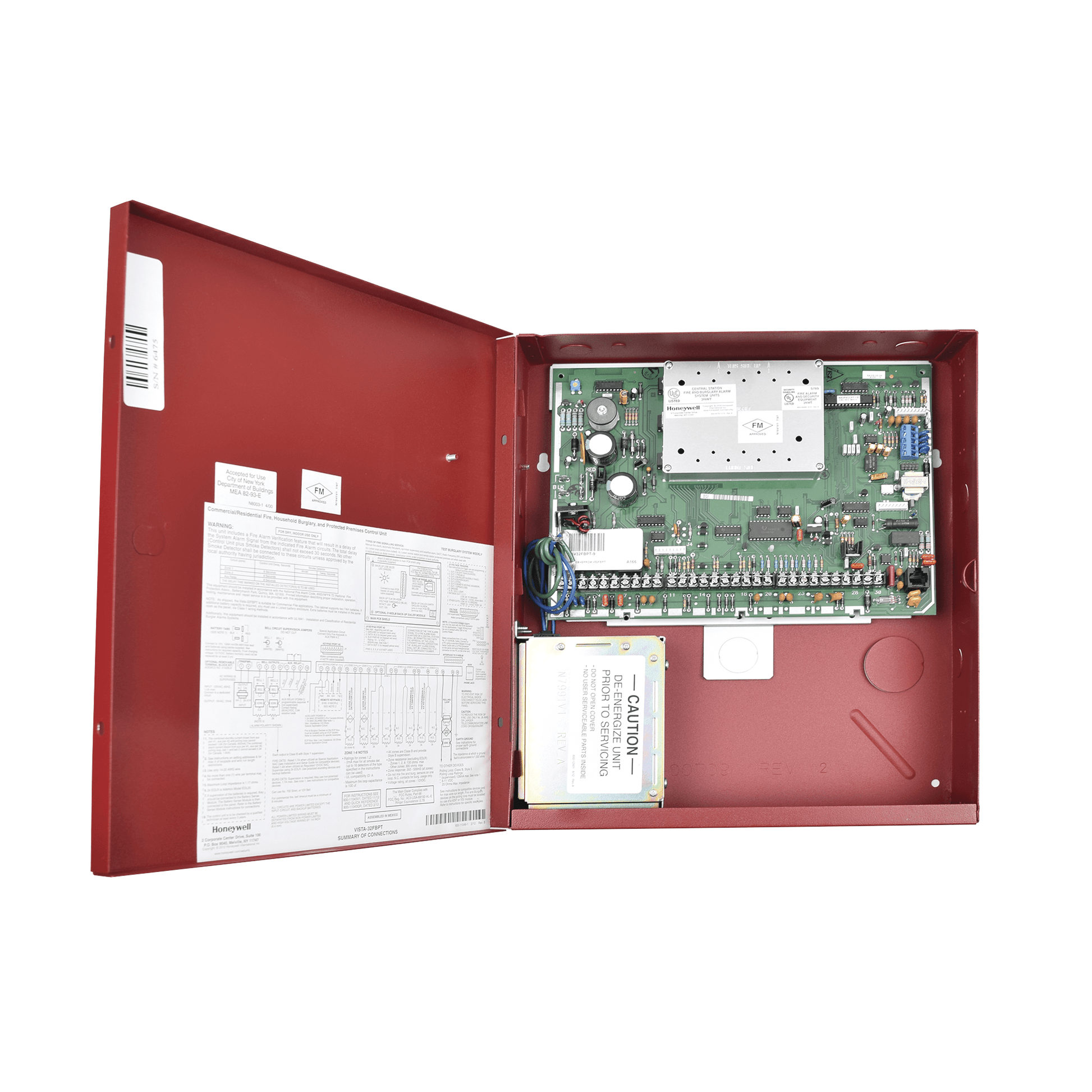

VISTA-32FBT control panel includes:
• 1 Card
• 1 Cabinet
• 1 Power supply

*Requires PL712 backup battery and 6160CR programming keyboard (Not included)
*1 year warranty
