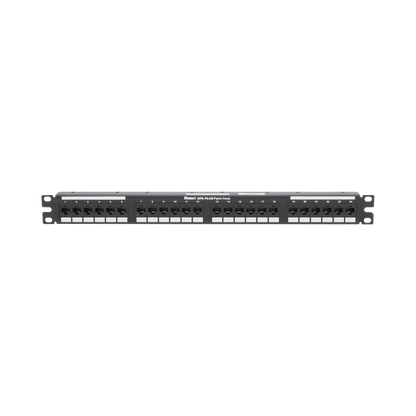

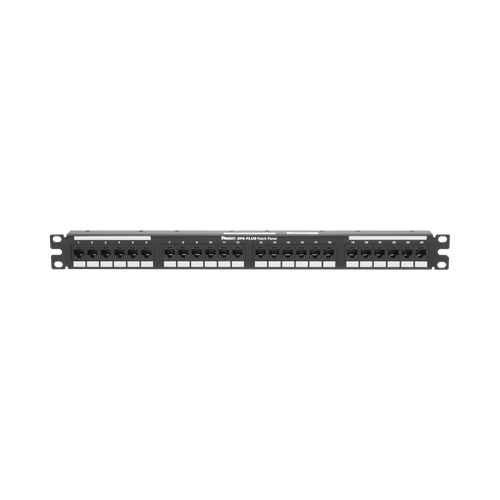

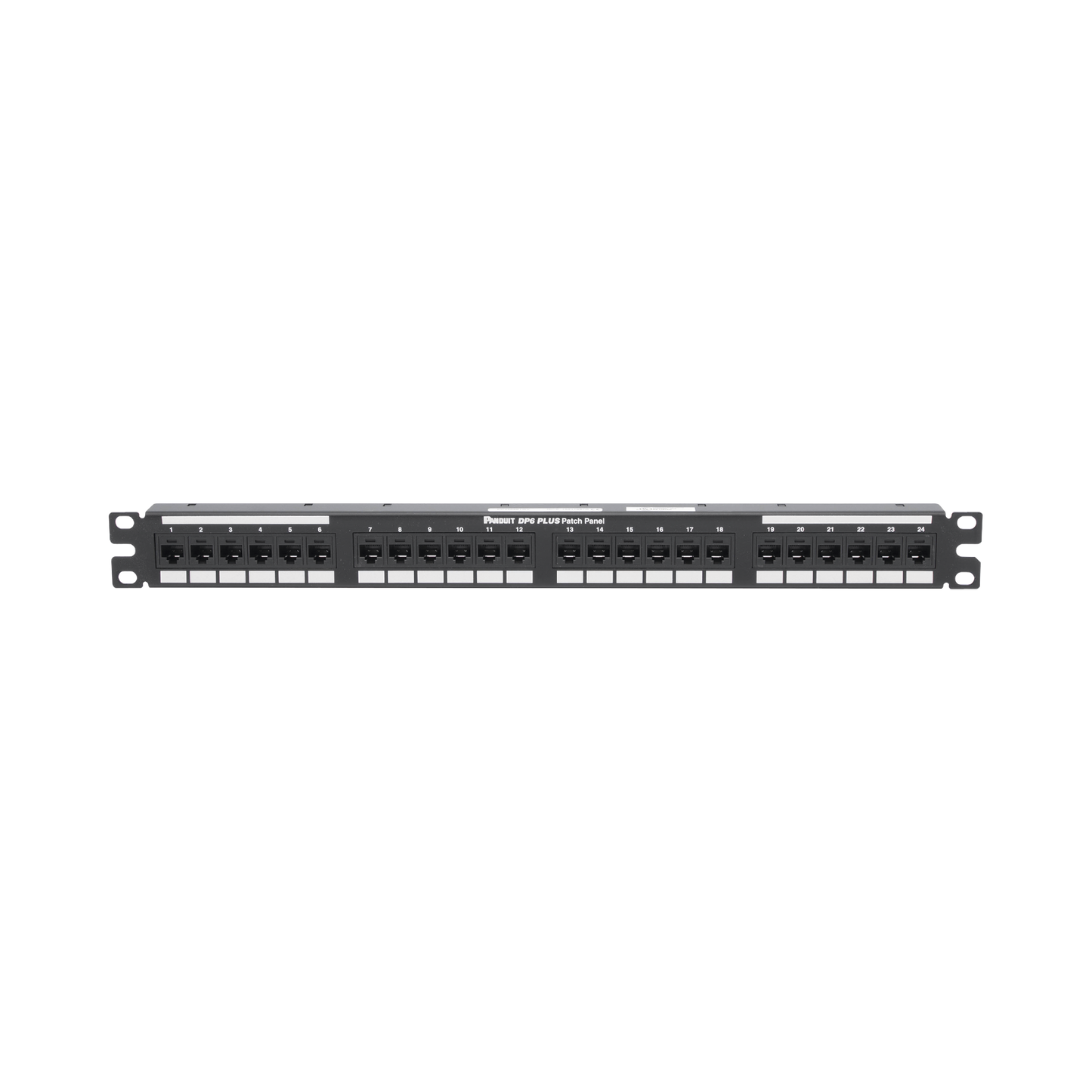

Impact Patching Panel (110), Flat, Category 6, 24 Ports, 1UR

  • 5e4fbae89e8644255a39bfc5115ba1d0
  • 5e4fbae89e8644255a39bfc5115ba1d0
1 2
  • Compatibilidad con cables de 22-26 AWG
  • Cumple con ANSI/TIA-568-C.2 categoría 6
  • Soporta PoE hasta 100W, IEEE 802.3bt tipo 4
  • Contacto chapado en oro de 50 micras
  • Frecuencia de operación entre 1 y 250 MHz

298 in stock

Modelo: DP24688TGY

Proveedor: PANDUIT

Código SAT: 43223309

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6/Class E, impact patch panels shall be terminated with 4-pair, 22-26 AWG, 100 ohm, unshielded twisted pair cables using a 110 impact tool. Patch panels shall include a universal label coded for T568A and T568B wiring schemes and shall be mounted in 19in Racks or Cabinets. Patch panels are easy to identify with pre-printed numbers, write-on areas and optional label kits.

Technical specifications:

  • Exceeds channel requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies from 1 to 250 MHz
  • FCC and ANSI Compliance: Meets all applicable ANSI/TIA-968-A requirements; 50 micron gold plated contacts for superior performance
  • IEC Compliance: Complies with IEC 60603-7
  • PoE Compliance: Supports IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and 4 for PoE applications up to 100W
  • Conductor Range: Compatible with 22 - 26 AWG solid or stranded wire with conductor insulation diameters of 0.048 in.
  • Mounting Option: Mounts in standard EIA 19in racks. The 12-port version can be wall-mounted using the optional 89D bracket.
  • Includes M6 and #12-24 hardware for rack mounting
