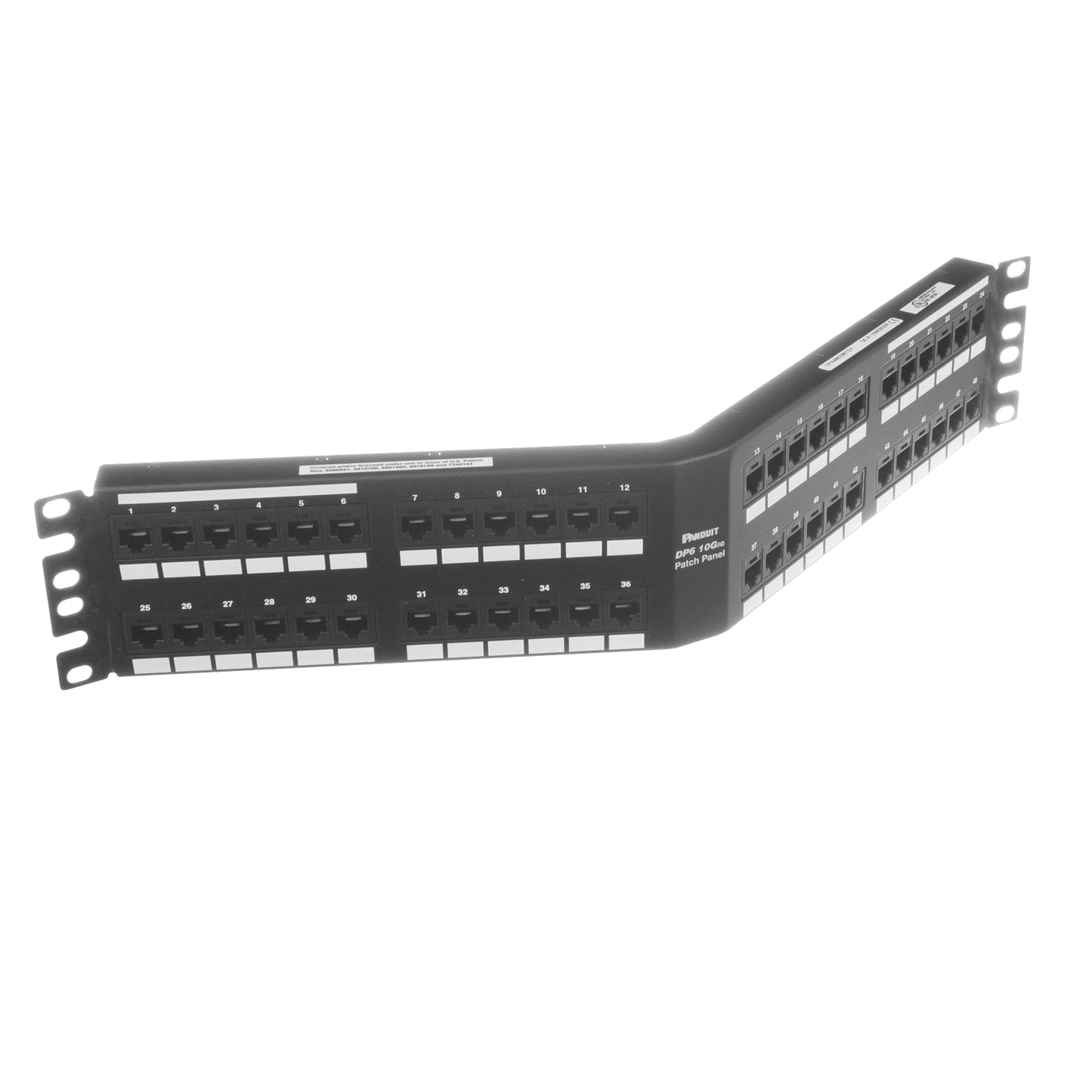

Impact Patching Panel (110), Angulated, Category 6A, 48 Ports, 2UR

  • c03cb32350f6e486f86e1cb79e739847
  • c03cb32350f6e486f86e1cb79e739847
1 2
  • Cumple ANSI/TIA-568-C.2 para rendimiento óptimo
  • Compatible con IEEE 10GBASE-T hasta 100 metros
  • Conexión mediante herramienta de impacto 110
  • Etiqueta universal para T568A/T568B
  • Frecuencia de operación hasta 500 MHz

Out of stock

Modelo: DPA486X88TGY

Proveedor: PANDUIT

Código SAT: 43223309

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6A/Class EA Impact Patch Panels are terminated to 100 ohm, 22 to 26 AWG, 4-pair unshielded twisted pair cable using a 110 impact tool. Patch panels include a universal label keyed for T568A and T568B wiring schemes and can be mounted in 19" Racks or Cabinets. Patch panels are easy to identify with pre-printed numbers, write-on areas and optional label kits. The DP6A™ 10Gig Punchdown Patch Panel is installed as part of the TX6A™ 10Gig UTP copper cabling system to achieve IEEE 10GBASE-T certified performance.

Technical specifications:

  • Exceeds channel requirements for ANSI/TIA-568-C.2 Category 6A standards and ISO 11801 Class EA to support 10GBASE-T transmission over twisted pair cabling systems in a 4-connector configuration up to 100 meters at swept frequencies from 1 to 500 MHz
  • FCC and ANSI Compliance: Meets all applicable ANSI/TIA-968-A requirements; 50 micron gold plated contacts for superior performance
  • IEC Compliance: Complies with IEC 60603-7
  • PoE Compliance: Supports IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and 4 for PoE applications up to 100W
  • Conductor Range: Compatible with 22 - 26 AWG solid or stranded wire with conductor insulation diameters of 0.048 in.
  • Mounting Option: Mounts in standard EIA 19in racks.
  • Includes M6 and #12-24 hardware for rack mounting
