Fire Detection Panel / Addressable / Up to 2100 Points in Any Combination / Compatible with IDP, SK and SD Protocols

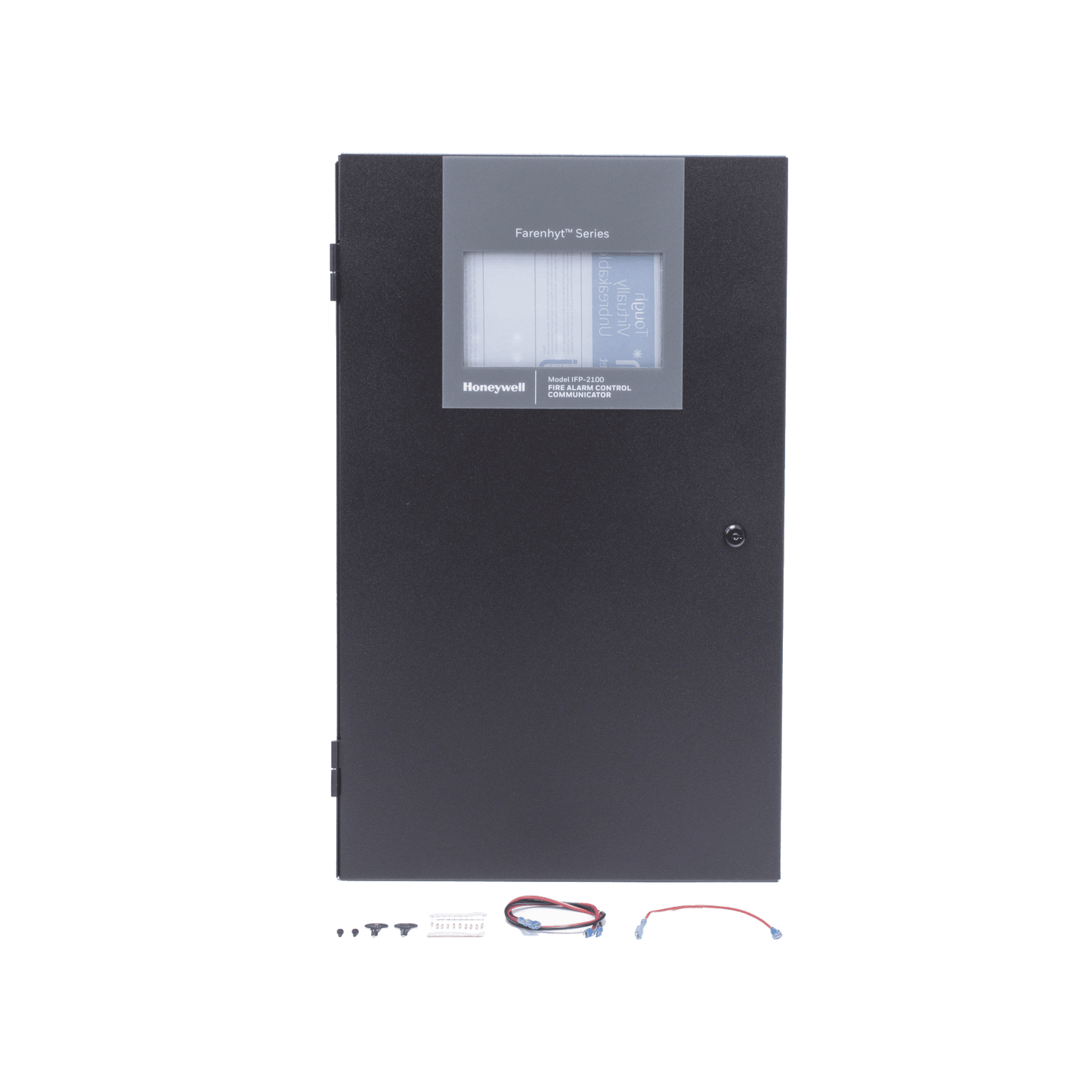

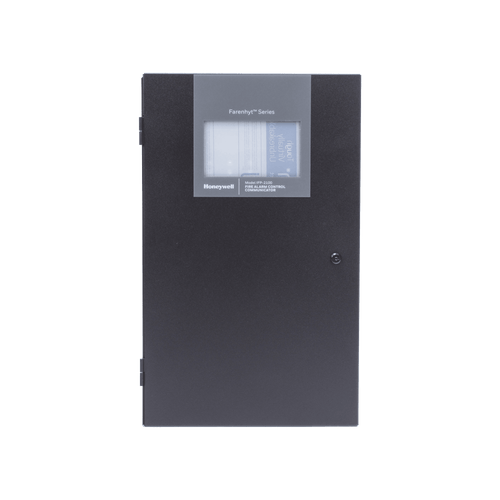

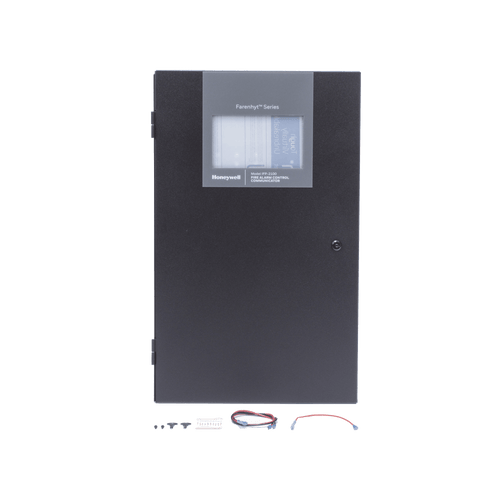

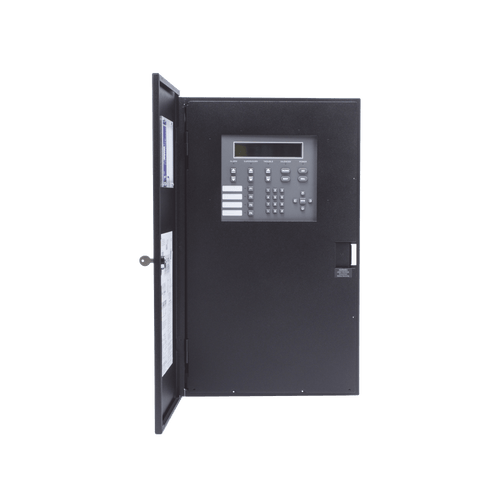

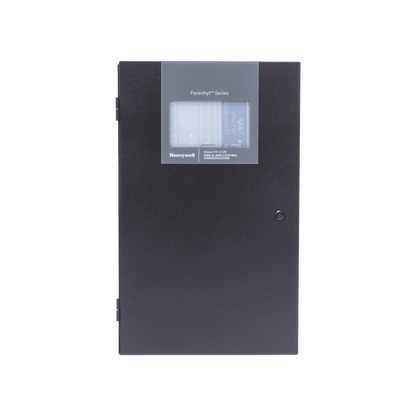

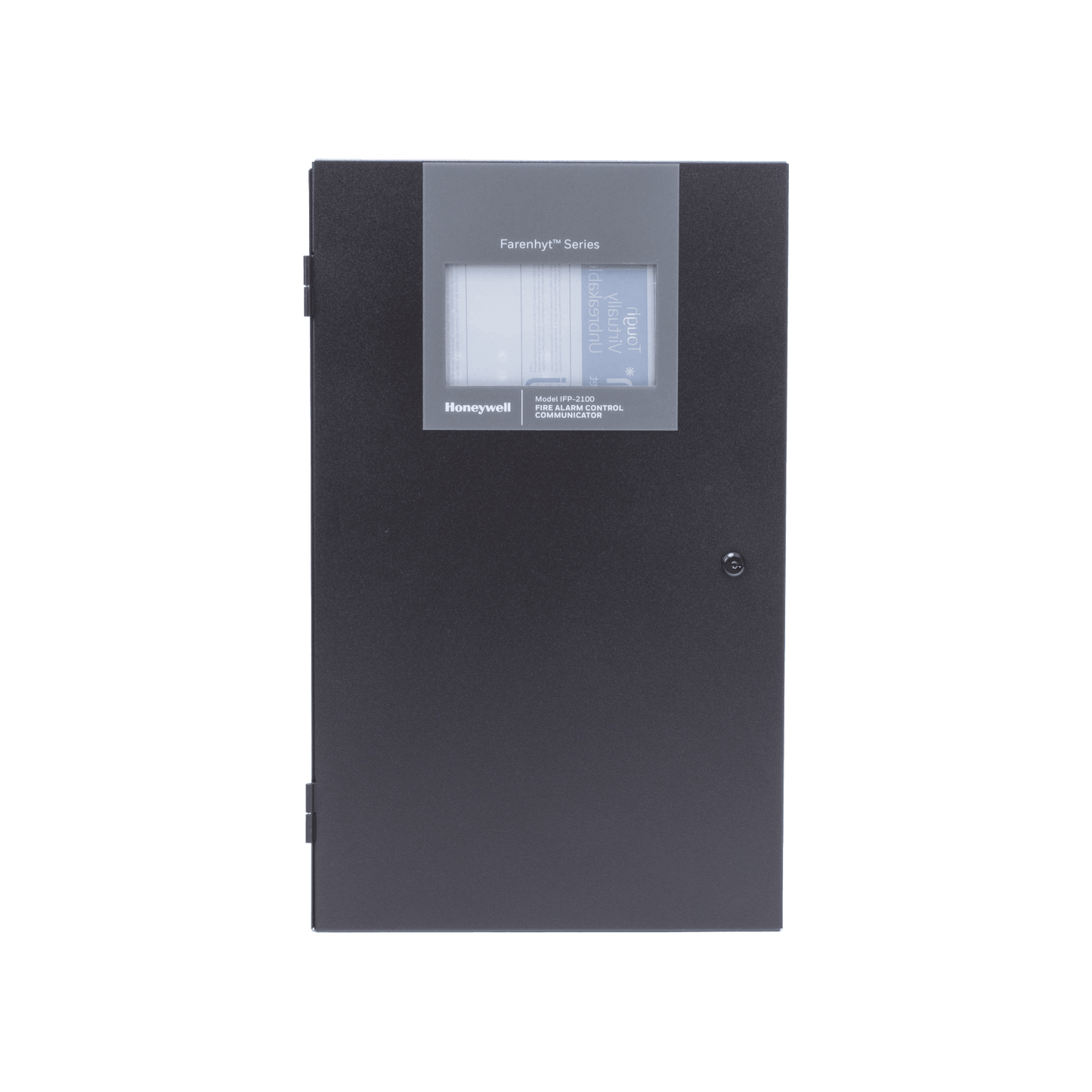

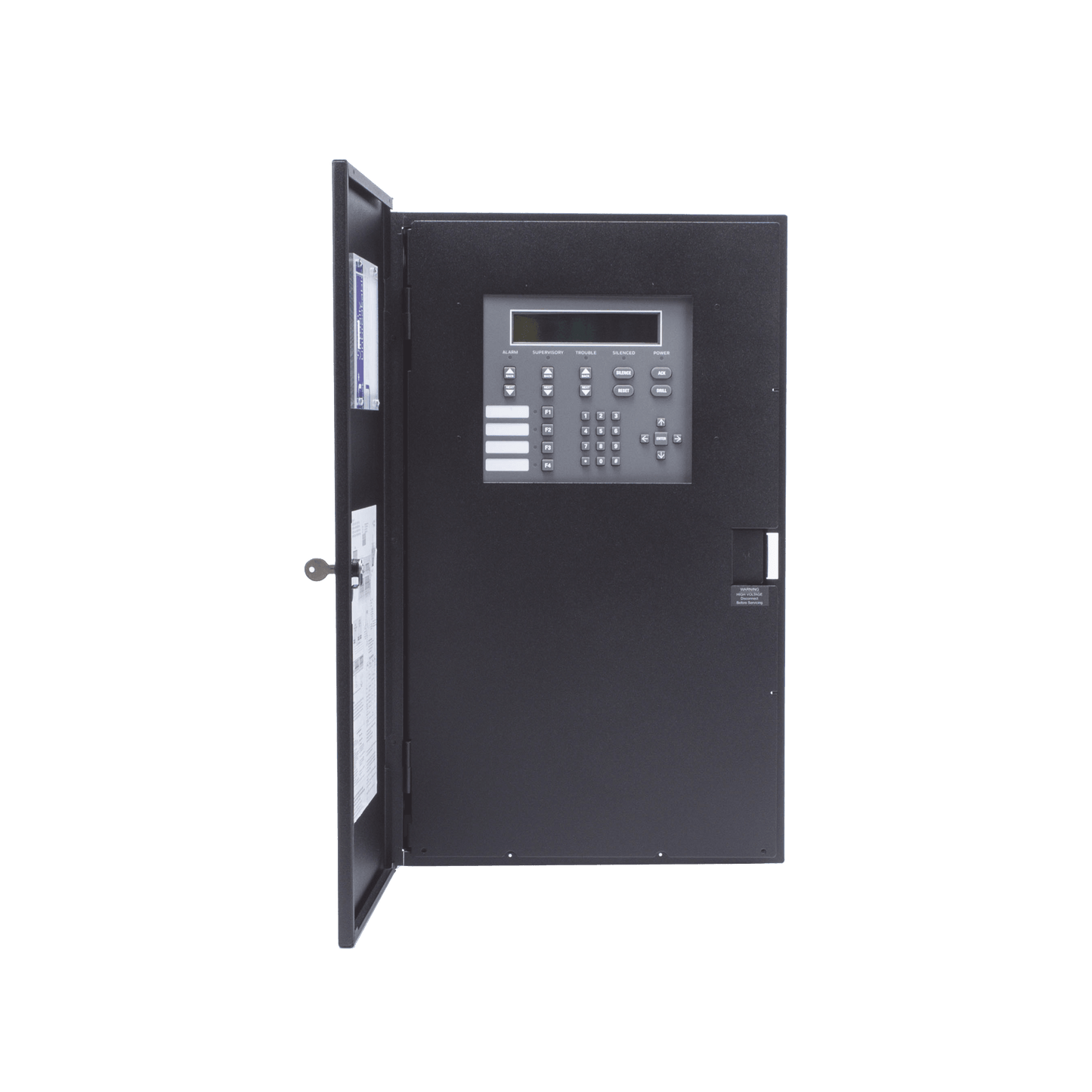

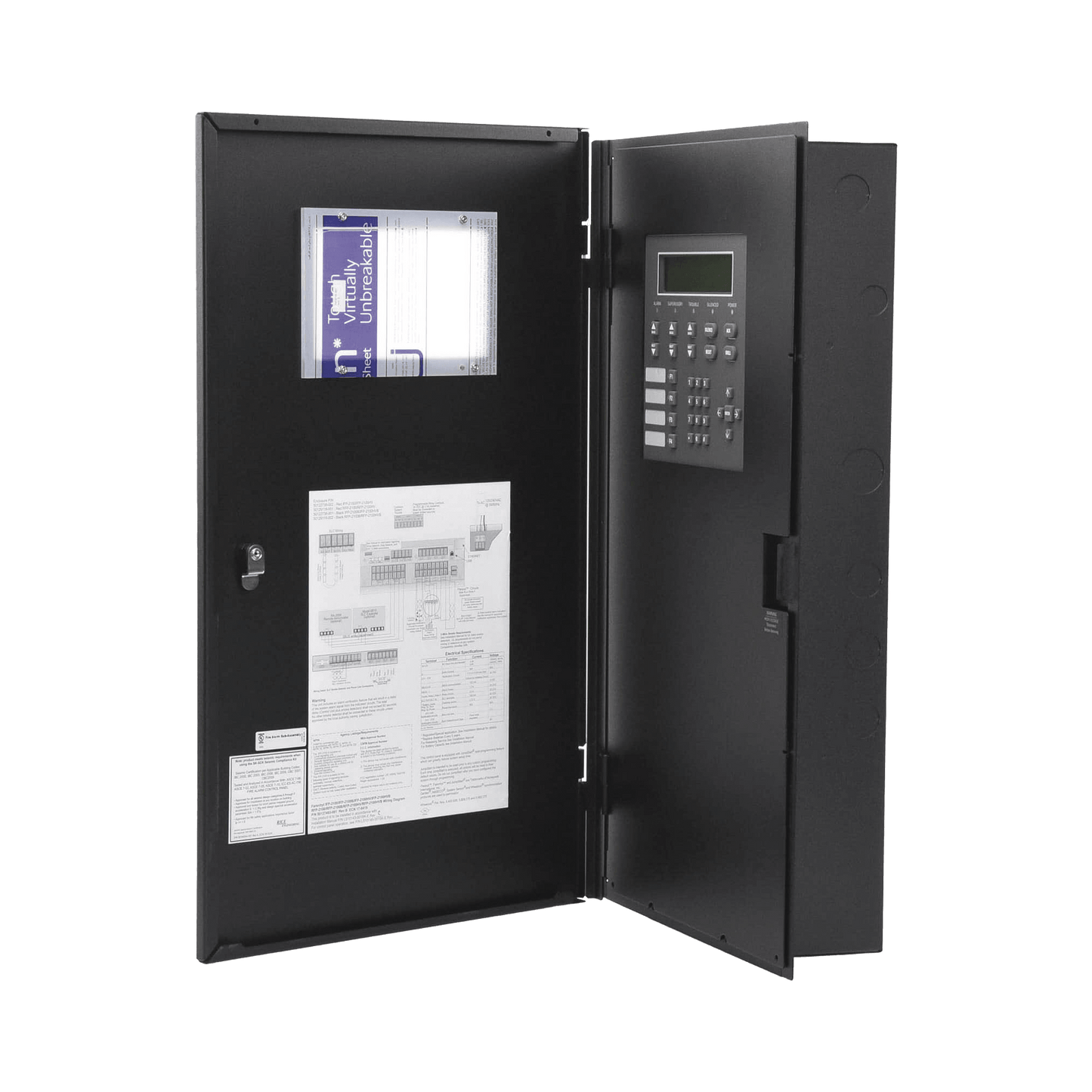

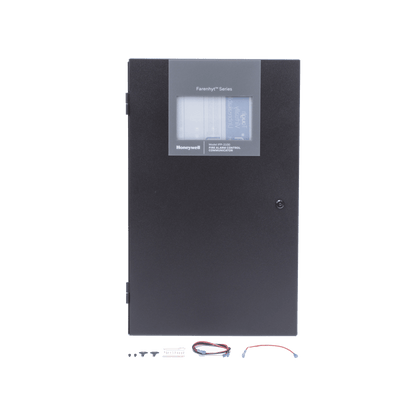

The IFP-2100 (red) and IFP-2100B (black) are fire alarm/addressable analog control panels (FACP). The basic IFP-2100 panel contains a built-in signaling line circuit (SLC). which supports 159 IDP/SK sensors and 159 IDP/SK modules or 127 devices using the SD protocol. Additional SLC loops can be added using the Model 6815 SLC Expander for System Sensor Devices (IDP/SK) to increase total point capacity to 2100 points per panel; or the model 5815XL for Hochiki devices (SD) to increase point capacity to a maximum of 2032 points per panel.

The IFP-2100 has networking capability for up to 32 panels. The network has two modes of operation: multiple panels covering a large building, or multiple independent buildings. The RFP-2100 (red) or RFP2100B (black) can be used in a networked system where at least one IFP2100 is on the system, It is the same as the IFP-2100 without the screen.

The IFP-2100 has eight Flexput™ ICs that can be configured for auxiliary power, notification outputs, input for NO dry contacts or for conventional smoke detector inputs (Class A or Class B). The FACP also has built-in communicators; Dual Telephone Line Digital Alarm Transmitter (DACT), IP communicator and a cellular communicator can be used optionally. Contains a form C trouble relay, and two programmable Form C relays.

The IFP-2100 has powerful functions such as detector sensitivity, day/night thresholds, drift compensation, pre-failure maintenance alert and calibration problem alert. The IFP-2100 supports a variety of devices, including RA2000 remote annunciators, RA-1000 or RA-100, 5824 parallel/serial printer interface module RPS-1000 power module: and IDP devices, SK or SD.
