VISTA48LA Alarm Panel with LTEMPA Dual Communicator, WiFi card, Battery and Transformer

Alarm panel for residential applications, businesses or offices.

System:
• Programming by alphanumeric keyboard, Downloading software.
• Maximum 8 keyboards, supports alphanumeric keyboards, icon-based and touch-sensitive; maximum 2 (auxiliary power source suggested).
• Entry time defined by the installer.
• 2 programmable entry and exit zones with different times.
• Automation functions.
• Auto arming and disarming function.
• Supports 4204 relay module, maximum 4.
• 250 events in memory. The memory can be read with COMPASS Downloading software.
• 3 partitions with the option to configure one as a lobby.
• Confirmation of arming and disarming.
• Configurable Auto Partial Arming.
• 2 A siren output.
• 2 programmable voltage outputs.
• Telephone line cut detection.
• Auxiliary current of 600 mA
• 16 Vac power input.

Zones:
• 8 programmable zones, Configurable with or without end-of-line resistor.
• Zones can be configured for fast or slow response.
• Zone duplication capacity.
• In zone one it supports up to 16 two-wire smoke detectors.
• Supports 4-wire smoke detectors.
• Supports 40 wireless zones.
• 24 types of configurable zones.
• 16 additional zones for portable controls.
• Supports expansion module for wired zones 4219 and 4229.
• 100% wireless system supervision.
• Range up to 60 m on the wireless 5800 series.

Users:
• 48 user codes.
• 6 levels of authority: installer, teacher, standard, guest, only arming and coercion.
• Quick assembly system.
• 5 levels of arming: total, partial, night, instant and maximum.
• Open door warning (CHIME).

Communication:
• Built-in communicator for communication with the Alarm Receiving Center.
• Supports 4+2 and CONTAC/ID communication formats.
• Supports dual and split reporting option.
• Compatible with Honeywell communication systems for AlarmNet.

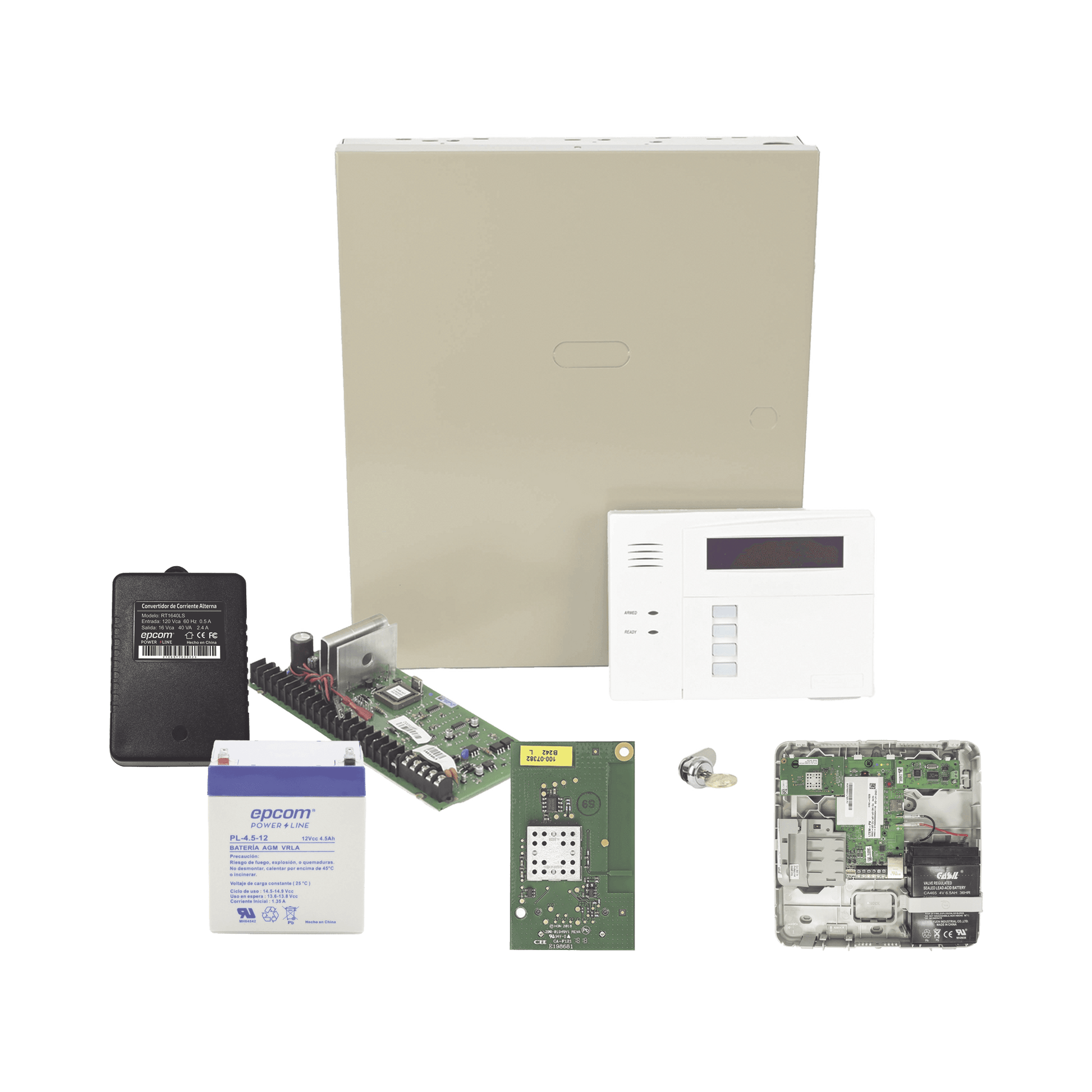

Includes:

1 VISTA48LA alarm panel with Alphanumeric Keyboard and VISTA48/6160RF wireless receiver

1 LTEMPA Dual Communicator

1 PROWIFIZW WiFi and ZWave Communicator

1 Backup battery PL4.512

1 RT1640LS Transformer

1 year warranty
