Equipment Ready for Honeywell Total Connect (Smart Home) and High Security Alarm Monitoring with ALARMNET (IP).

Extreme High Security

ALARMNET ensures that your signal ALWAYS ARRIVES. Your information is sent encrypted, servers in the USA with high redundancy and 4G backup (Multiple Carriers).

Smart Home with Total Connect

Manage your Panel and other devices (Thermostats, Doors, Sensors, Lighting) with Total Connect, the leading application in the USA for smart homes.

In this image we see the state of the main door, lighting in living room / dining room, garage door, sensor alerts and cloud camera recording.

High Security Cloud Video Recording

Access video cloud, extreme fluidity and high security on Honeywell USA servers from your mobile or via the Web.

Compatible cameras: IPCAMWIC1 , IPCAMWIC2 and IPCAMWOC1

High Security Remote Arming

Remotely control security partitions for your business.

Handle security, access control, and user management with Honeywell Total Connect VISTA® partitions.

Turn your House into a Smart Home

Honeywell Total Connect allows you to manage all devices with high security on any mobile device.

Compatible with Google Home and Alexa

"Alexa, ask Honeywell to turn on the lights"
"Alexa, ask Honeywell to close the door"
"Alexa, ask Honeywell to set up the house"

The Vista21IP panel joins Total Connect to give you TOTAL solutions in digital communication. The result is an incomparable added value , whether in your home or business making a big difference in security.
The user can receive the information by E-Mail, You can also arm or disarm the system, make a system status request, etc...

System
-Programming by alphanumeric keyboard or Downloading software, by phone or IP with AlarmNet compatibility.
-Maximum 8 keyboards. Supports alphanumeric keyboard and graphic keyboards.
-2 partitions.
-100 event memory can be read on alphanumeric keyboards with time and date or using COMPASS 2.0 software.
-2 A siren output.
-2 programmable voltage outputs.
-Telephone line cut detection.
-Auxiliary current of 600 mA.
-16 Vac power input.

Zones
-8 programmable zones, Configurable with or without end-of-line resistor.
-Zone 1 supports 2-wire smoke detectors.
-Ability to duplicate zones.
-Supports 40 wireless zones by adding a HONEYWELL 5800 series receiver.
-24 types of configurable zones.
-16 additional wireless zones for controls.
-100% supervision of the system.

Users
-48 user codes.
-6 levels of authority.
-Quick assembly system.
-5 levels of Total arming, Partial, Partial Night, Instant and Mixed.

Communication
-Double interbuilt communicator for communication with the monitoring center.
-Compatible with telephone monitoring centers.
-Compatible with AlarmNet IP central (ask your sales executive for IP monitoring).
-Supports 4+2 and Contact ID communication formats.

Compatible with:
HONEYWELL 7810IR-ENT IP alarm receiving center.

TCP/IP Total Connect Alarm Panel:
-Programming by alphanumeric keyboard or software Downloading by telephone or IP with AlarmNet compatibility.
-2 partitions.
-100 events in memory can be read on alphanumeric keyboards with time and date or using COMPASS 2.0 software.
-8 programmable zones, Configurable with or without end-of-line resistor.
-Supports 40 wireless zones by adding a HONEYWELL 5800 receiver.
-48 User Codes.
-Compatible with telephone monitoring centers.

The HONEYWELL 7810iRENT PBX is a perfect solution for IP monitoring applications.

By purchasing the AlarmNet360 annual ALRNTCPIP or monthly ALRNIP service, You automatically receive the Total Connect Basic application to assemble for free, disarm, receive notifications, check the status of the alarm and be able to cancel zones in each arming if necessary. The monitoring center will also have the advantage of being able to remotely configure the alarm panel through the Compass Software in a very safe way and minimizing operating costs, Compass Software also has the ability to cancel monitoring service remotely for delinquent customers.

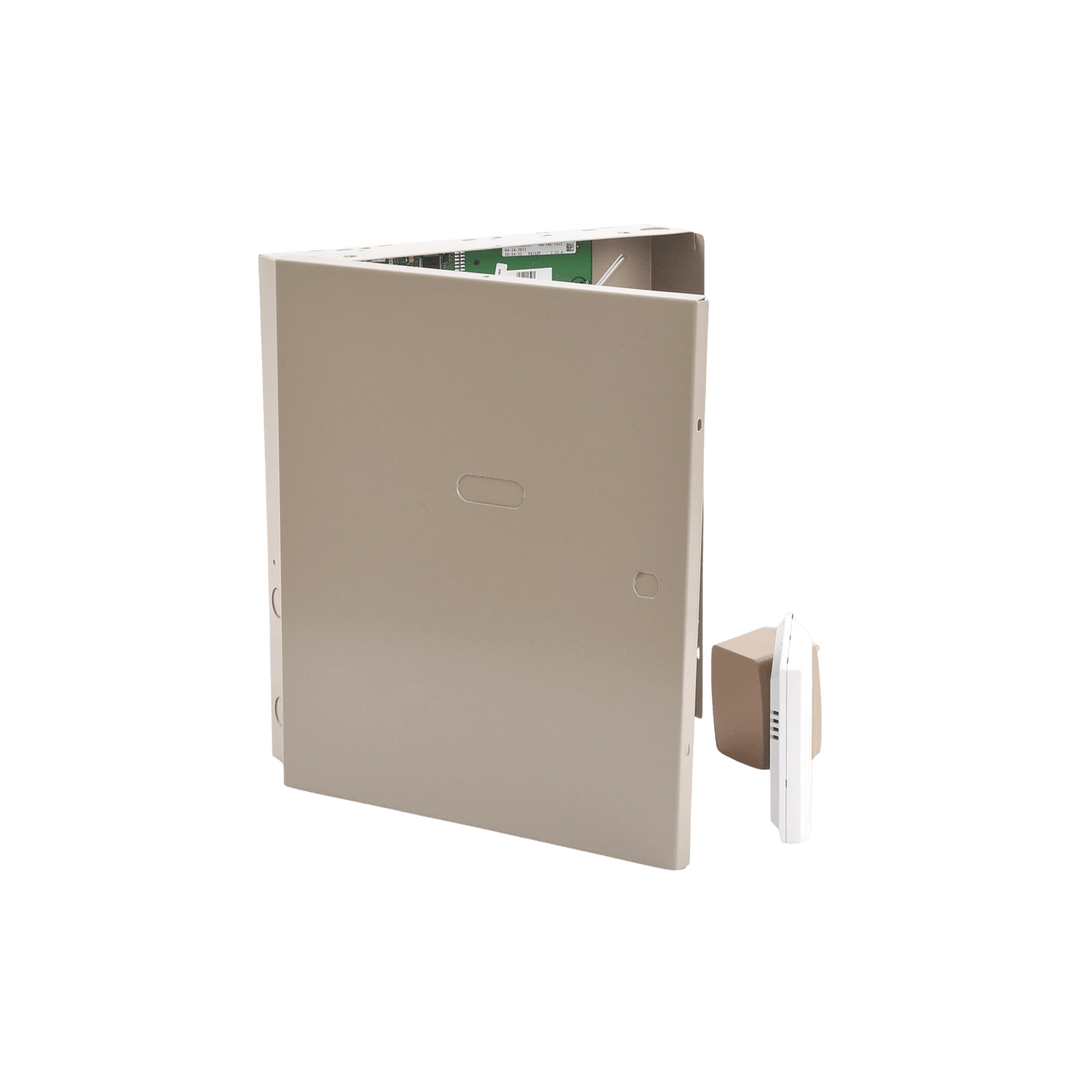

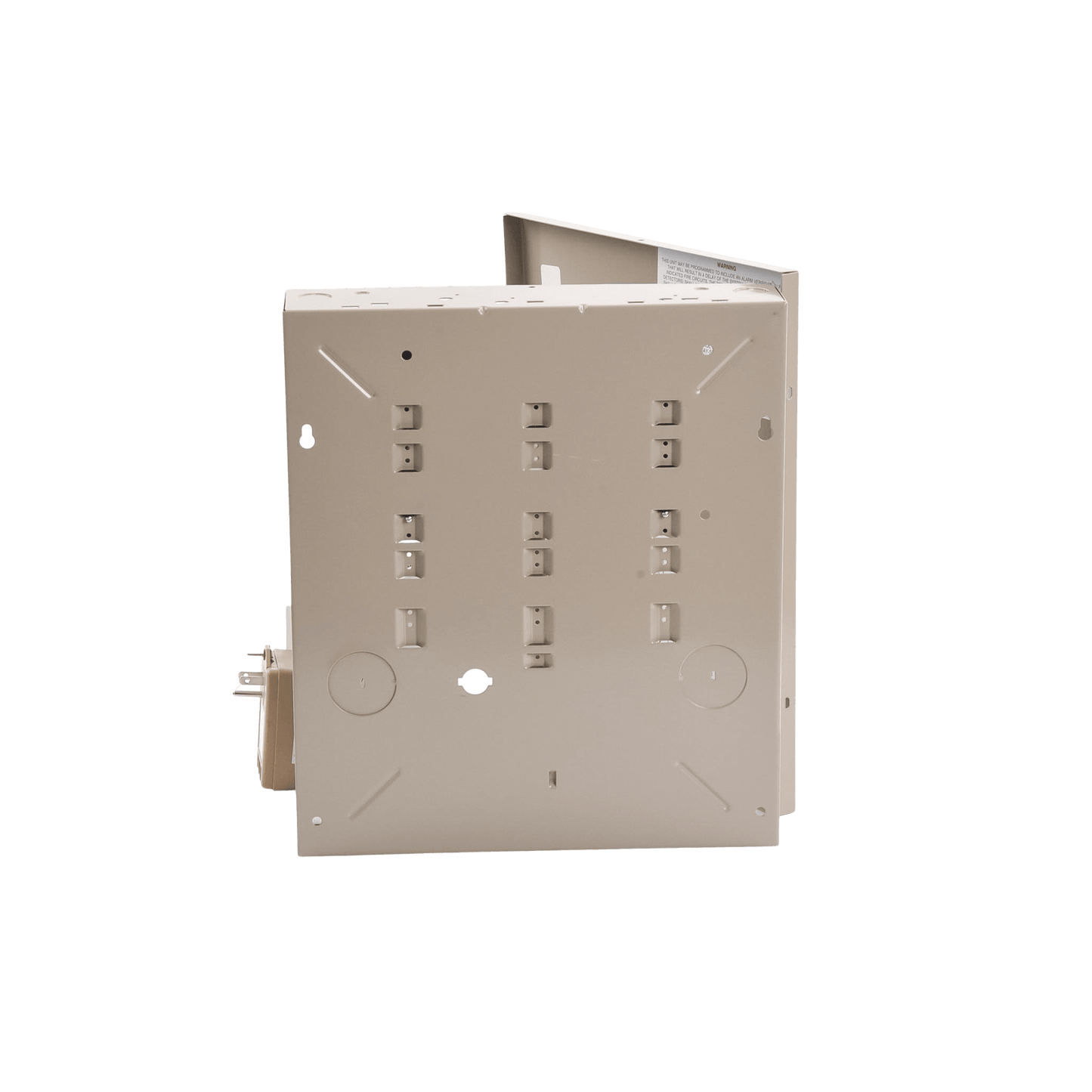

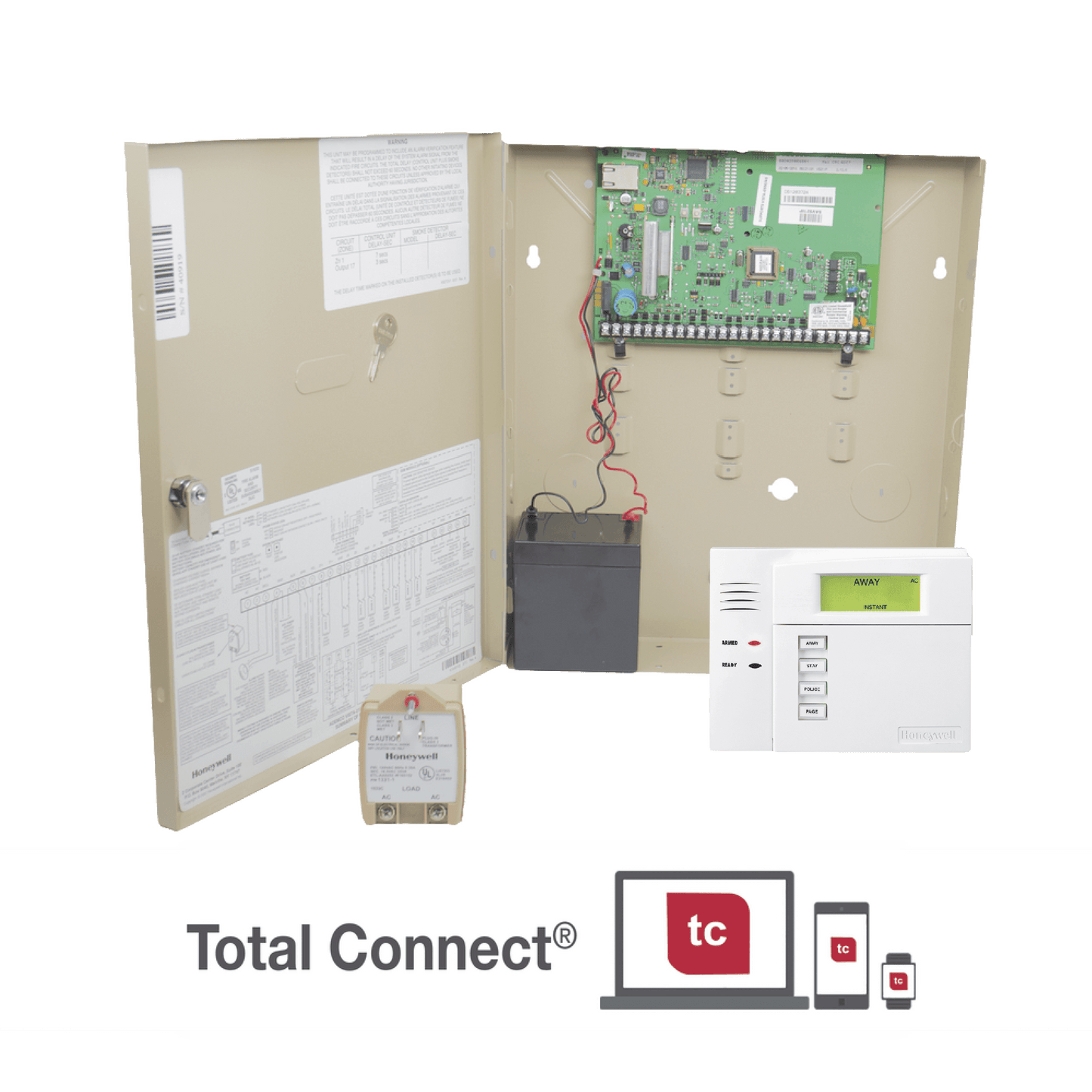

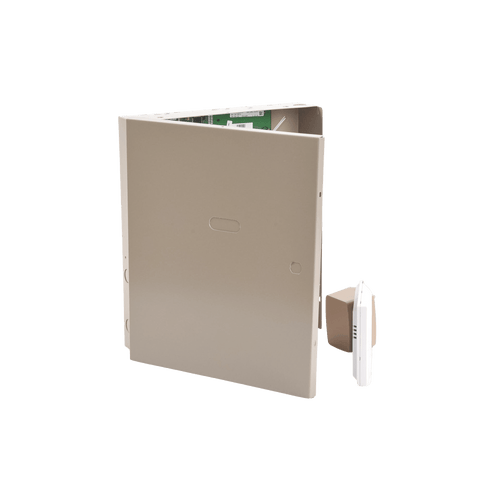

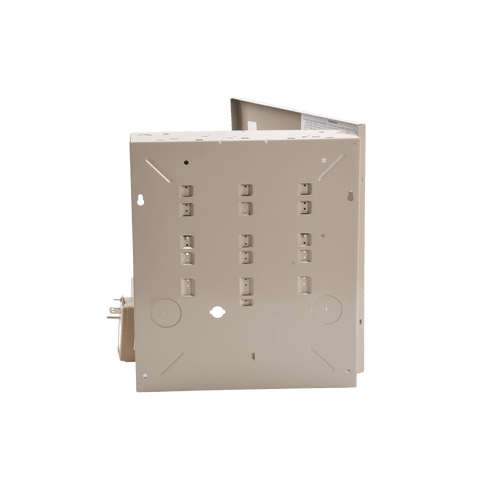

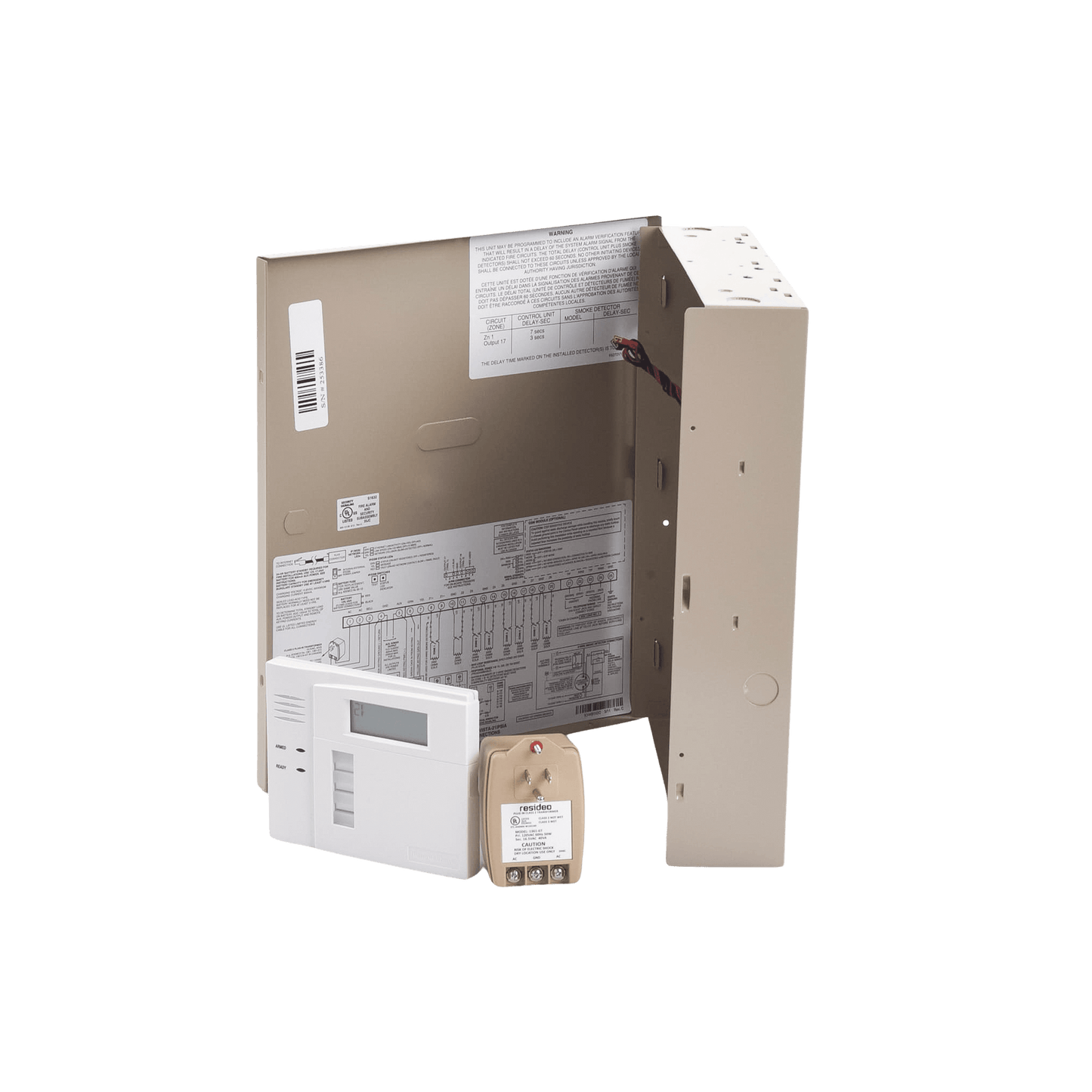

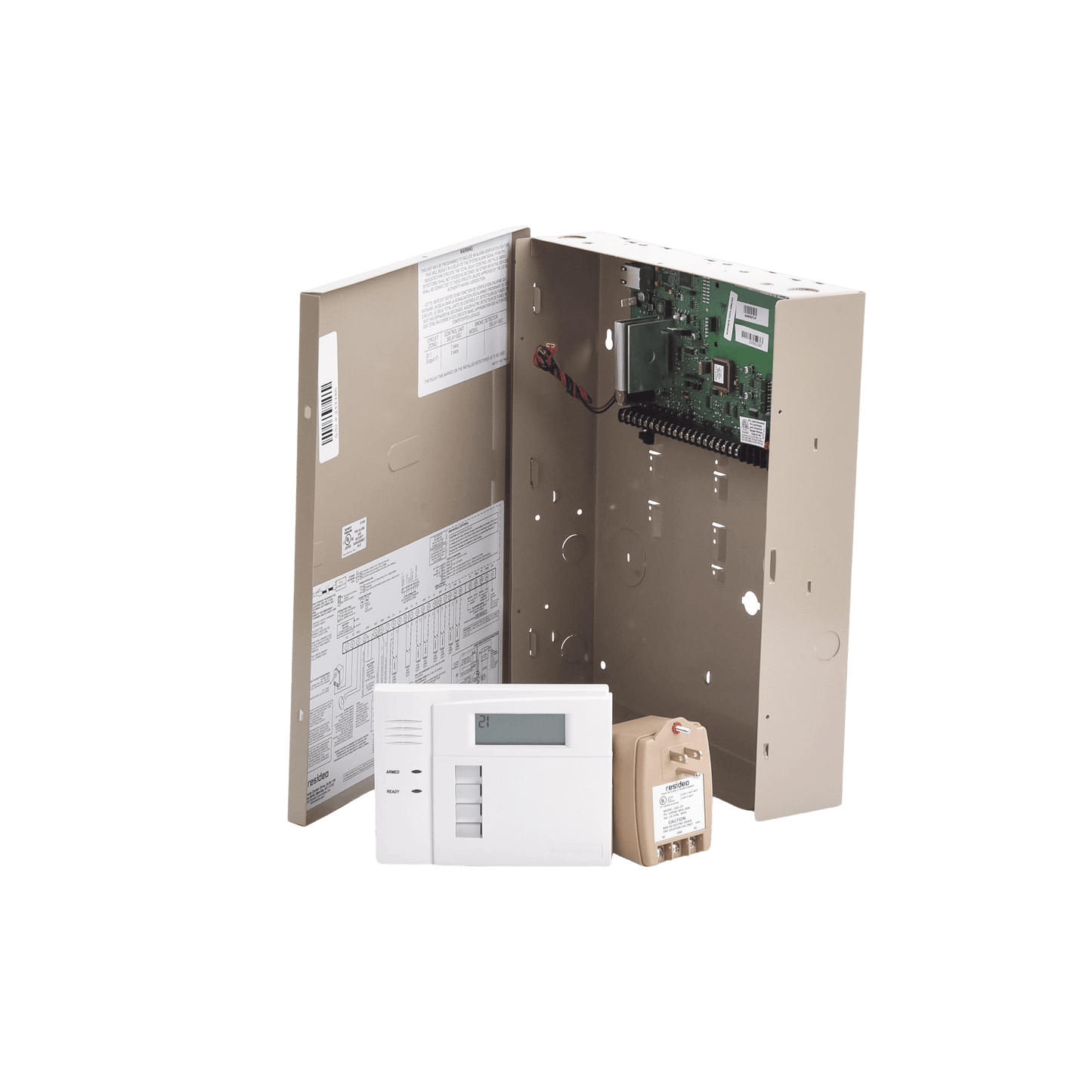

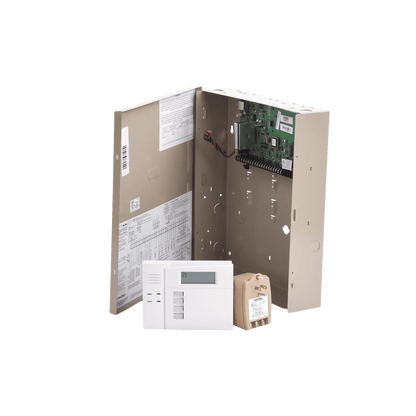

Kit includes :

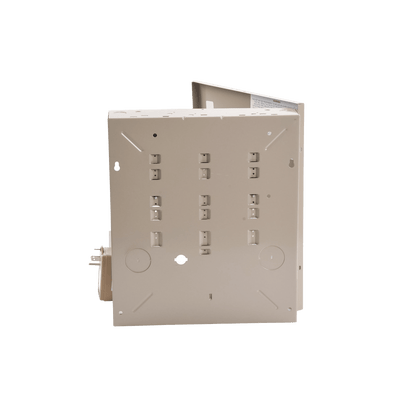

- VISTA21IP Alarm Panel

- 6150 fixed word keyboard

- 4Ah backup battery

- 16.5Vac transformer

Note: For programming, the 6164SP programming keyboard is recommended, 6162RF or by Compass programming software when purchasing the AlarmNet360 service.

*1 year warranty.
