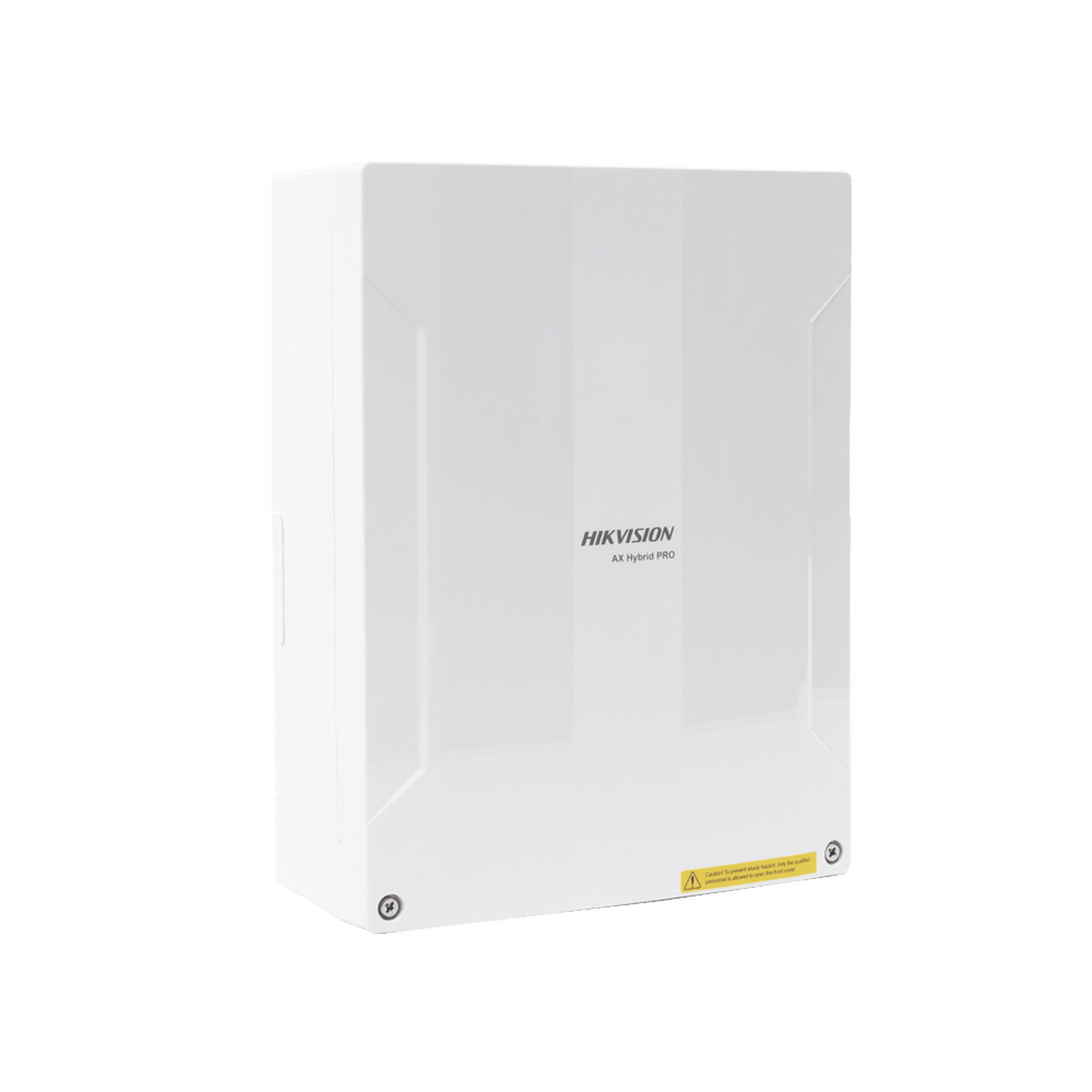

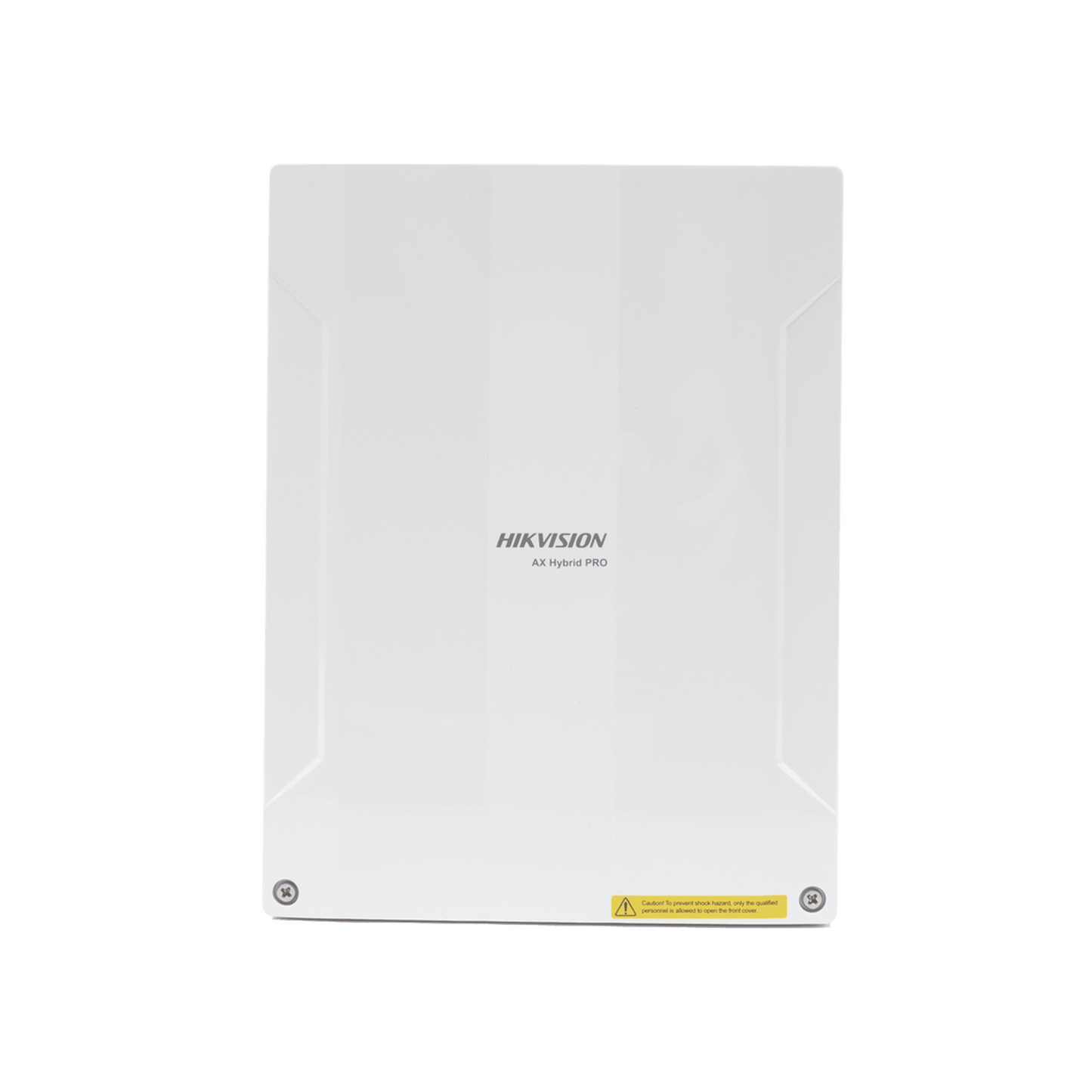

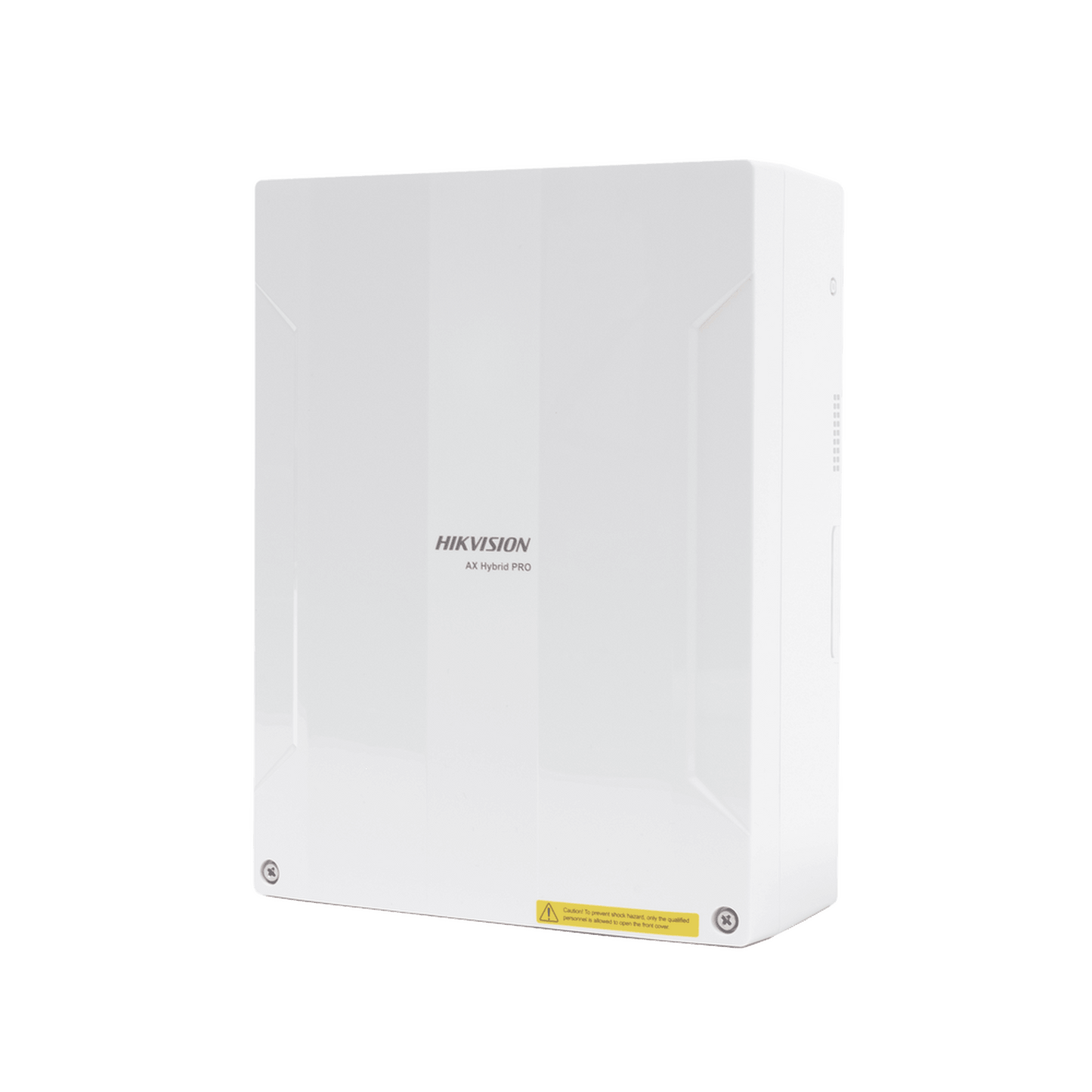

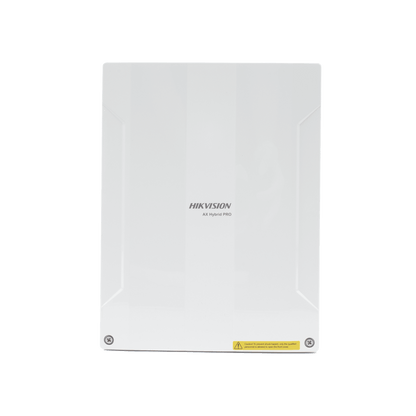

AX HYBRID PRO Alarm Panel / Wi-Fi / 8 Wired Zones Direct to the Panel / 56 Expandable Zones: Wireless or Wired Through Modules / Supports Backup Battery Integration / 32 Partitions (Areas)

  • 63b1513db2453f32f60119c1fc956b82
  • dee72c1068e4964e7b65a653efeef3cc
  • 406f1a31c144116bcc30e0394a453ac2
  • 81d28844175c6442237898173b0a8322
1 4
  • 8 zonas cableadas directo a la tablilla del panel
  • Expandible a 56 zonas inalámbricas o cableadas
  • Soporta 1 sirena cableada, 16 inalámbricas
  • Notificaciones mediante Hik-Connect y SMS
  • Soporta 4 cámaras con grabación de 7 segundos

500 in stock

Modelo: DS-PHA64-LP(B)

Proveedor: HIKVISION

Código SAT: 46171604

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Unboxing and Demo

Get to know the Hybrid AX PRO Panel

Configuration and commissioning

Installation and Wiring

Panel Reset

Main features:
  • 8 wired zones.
  • Expandable up to 56 wireless or wired zones by adding expanders.
  • Supports 32 wireless zone expanders model DS-PM1-RT-HWB . (NOTE: Check the list of compatible wireless devices).
  • Supports wireless PIR CAM (requires DS-PM1-RC-HWB module).
  • Supports 8-zone wired expanders ( DS-PM1-I8O2-H ).
  • Supports 1 siren wired directly to the panel (maximum supports 12vdc 700mAmp) , 16 wireless sirens by adding expanders ( DS-PM1-RT-HWB ).
  • Supports up to 64 remote controls to arm and disarm by adding the module ( DS-PM1-RT-HWB or the DS-PK1-LTR-HWB keypad ).
  • Notifications through the Hik-Connect application, SMS ( DS-PM2-S(AU) ) and local.
  • Up to 32 partitions.
  • Supports relay modules ( DS-PM1-O4H-H / ​​DS-PM1-O4L-H ).
  • IVAAS (Intruder Verification As A Service): Supports adding 4 cameras to the panel for a 7-second recording when activating a sensor (2 Megapixel maximum).
  • Supports up to 8 keyboards.
  • Does not include backup battery, Priced separately (suggested model: PL-7-12).
Physical and Electrical Characteristics
  • Connection: 10M/100M.
  • Power 110-240 VAC (Cable included).
  • Supports LAN connection, Wi-Fi (2.4 GHz), RS-485 bus, GPRS, 3G/4G (does not include 3G/4G communicator, recommended model DS-PM2-S(AU) )
  • Operating temperature: - 10°C to 40°C.
  • Dimensions: 261 x 199 x 86.4 mm.
  • Weight 997 grams.
  • Warranty: 2 years.

Featured Features:

  • Security control panel, supports Wi-Fi, LAN, GPRS and 3G / 4G, as well as ISAPI, and SIA-Contact Identification Protocol, is applicable to market scenarios, store, house, factory, warehouse, office, etc
  • NOTE: When loading any firmware it is important to clear your browser's cache memory, since not doing so may cause problems entering programming through the web interface.
