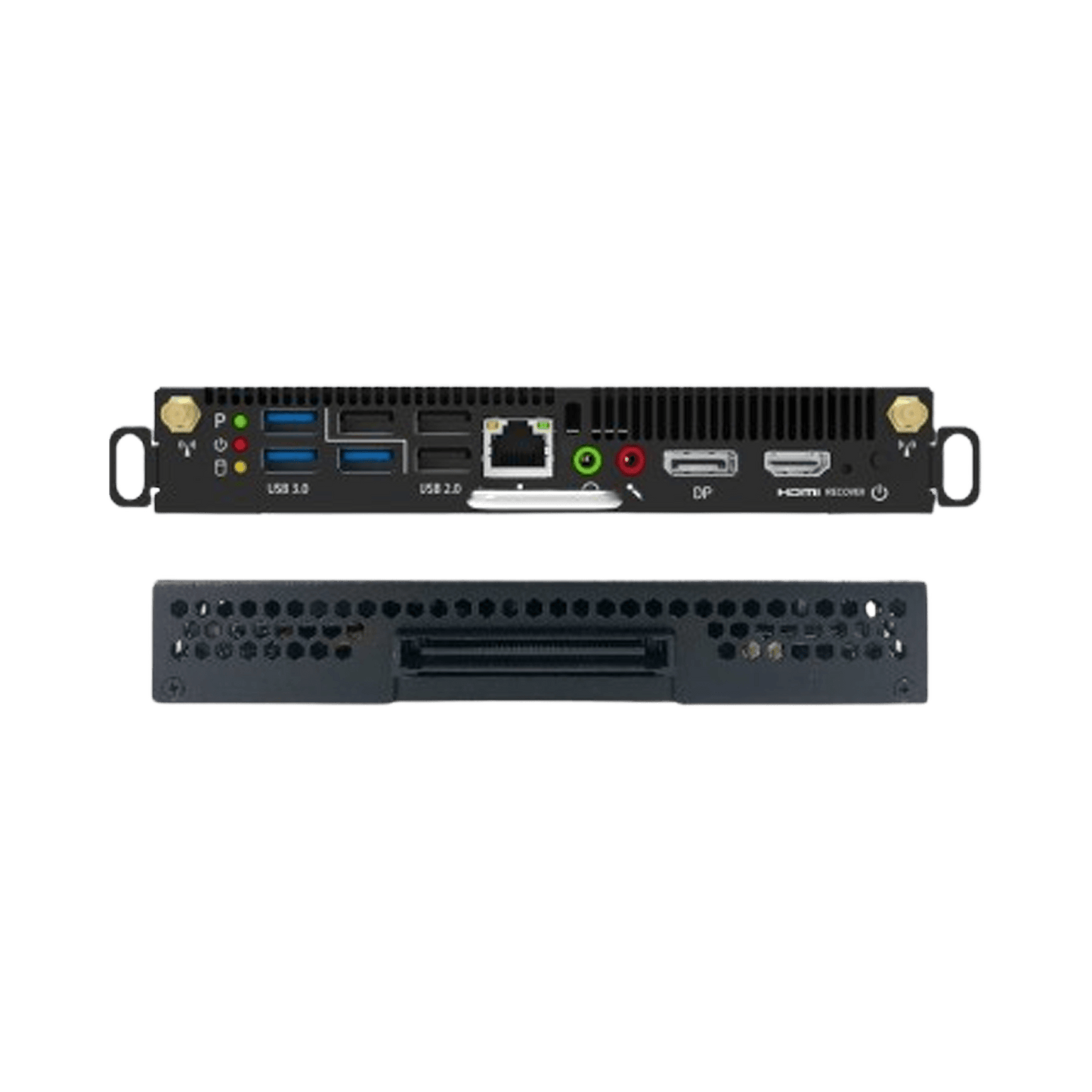

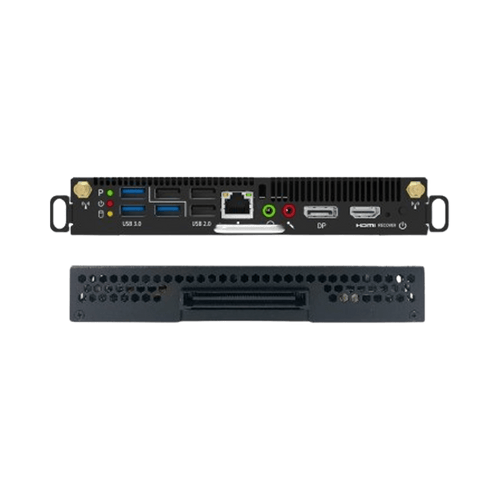

OPS I5-10500 for HUAWEI Ideahub (65/75/86 inch) DDR4 8GB, 128GB SSD, Windows 10 - IOT Entreprise SAC.

  • 3a153b8cead4ce1b6b95b874e9dba7e4
1 1
  • Intel® Core™ i5-10500 processor
  • Intel® UHD Graphics 630
  • Supports 2 independent 4K2K video outputs
  • The 80-pin JAE supports HDMI2.0
  • Supports M.2 SSD storage
  • Supports DDR4 dual channel memory

Out of stock

Modelo: ICDOPSI5D

Proveedor: HUAWEI

Código SAT: 43211500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Product Description

ICD OPS i5 D & comma; using Intel Processor®Core™I5-10500 & comma; meets Intel's industrial specifications®OPS-C. Supports M.2 SSD storage and dual-channel DDR4 memory. In addition & comma; the ICD OPS i5 D uses the latest generation of Intel®UHD Graphics 630 to provide excellent image processing capabilities and supports two separate 4K2K video outputs. It is suitable for scenarios such as digital signage & comma; education and lecture boards.

Specifications

CPU support

Intel Processor®Core™I5-10500

Chipset

Intel® H510 PCH

Graph

Intel Graphics®UHD 630

Memory

8 GB DDR4 (4 GB * 2)

Storage

1x M.2 2280

128 GB SSD Storage

Motherboard Interface

1 power button.

1 recovery button.

1 x RJ45

3x USB 3.0

3x USB 2.0

1 x HDMI1.4

1 x DP1.2

1 audio line output

1x Microphone input

Expansion

1x M.2 2230

2-in-1 Wi-Fi/Bluetooth module AC3168

Environment

Operating temperature: 0 °C to 40 °C

Storage temperature: -20 °C to 70 °C

Humidity: 5% to 95% (HR)

Physical properties

Dimensions wide x long x high: 195mm x 180mm x 30mm

Black

Net weight: approximately 1,5 kg.

Operating system

Windows 10 IoT (EE)

Power Source

CC 19 V/4,74 A

90W Power

Certifications

CCC/SRRC/VCCI/BQB/RoHS/REACH/WEEE/CE/CB, etc.

Note: Compatible only with screens

  • B2 series: IHB265PU & Comma; IHB275PU AND IHB286PU
  • S2 series: IHS265SA & comma; IHS275SA AND IHS286SA
