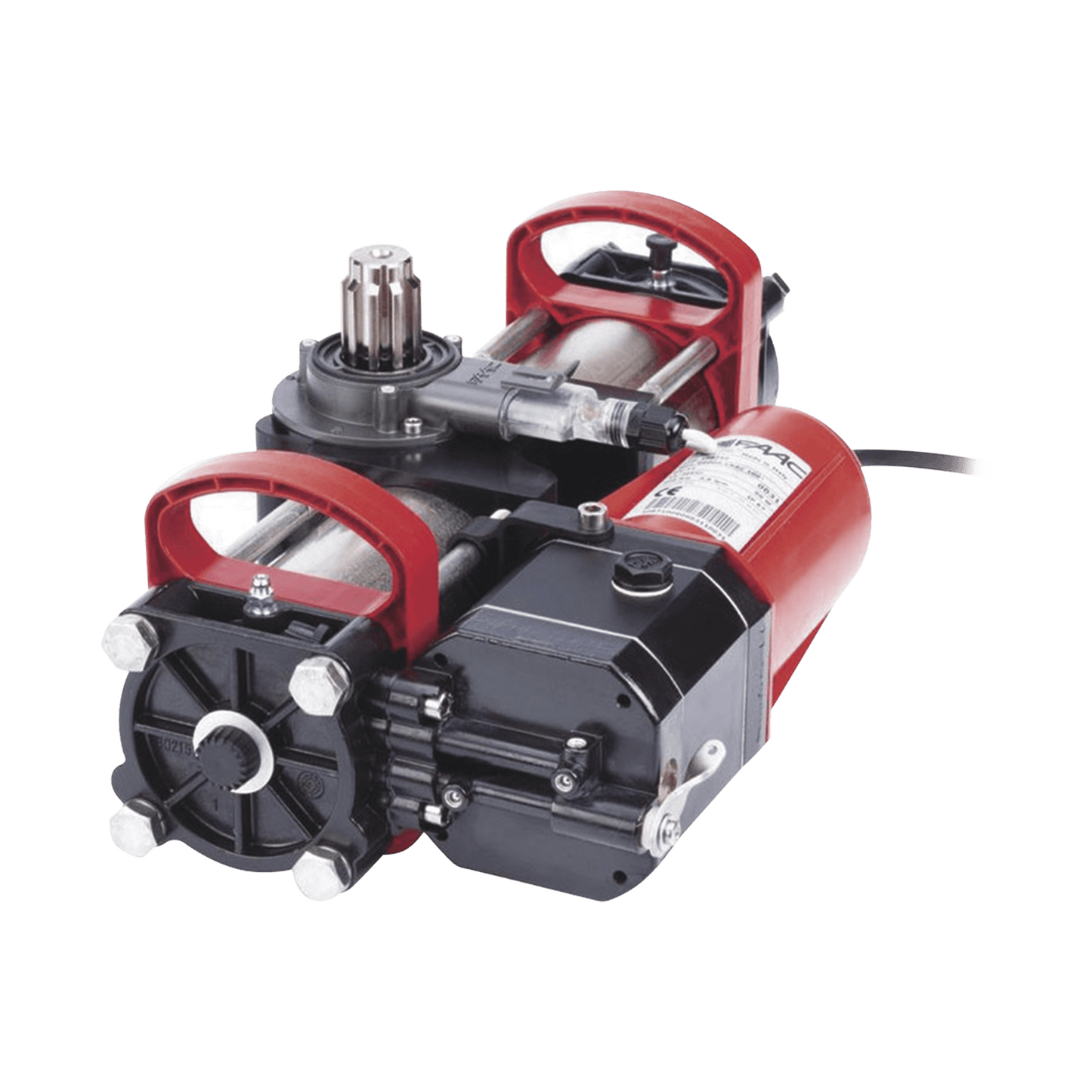

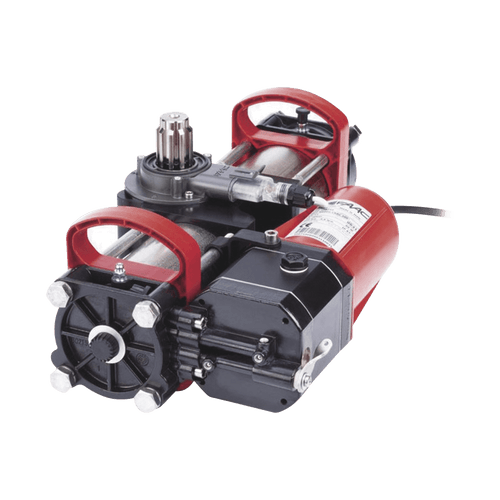

FAAC S800H Underground Operator With Lock For Swing Doors / For Doors up to 4 Meters in Length / Continuous Use Equipment

  • 822ecb314ab5c2dc515fcb592ad8ed4d
1 1

Out of stock

Modelo: 108720

Proveedor: FAAC

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Operator for doors up to 4 meters
  • For doors up to 800 kg
  • Continuous use equipment
Physical and Electrical Characteristics:
  • Control panel operating voltage 110V
  • Operator operating voltage 24V
  • Maximum power 60W
Featured Features:
  • Protection grade IP67
  • Operating temperature -20 to 55°C
  • Angular speed 5.5°/S

FAAC S800H Underground Operator For Swing Doors / For Doors up to 4 Meters in Length / Continuous Use

Additional characteristics:

  • Operator weight 14 kg
  • Operator dimensions 380 x 220 x 160 mm
  • Electronics purchased separately.
  • Equipment with one year warranty against manufacturing defects.
  • Hydraulic operating principle.
  • Integrated absolute magnetic encoder
  • Compatibility with BUS 2 easy technology
  • Integrated positive stops.
  • brushed motor

What equipment do I need for my one-leaf installation?

1 x 108720 S800H 24V underground operator with lock

1 x 790284 E124 control card for S800H 24V operator

1 x 490112 Foundation box for S800H operator

1 x 390972 Grooved joint for S800H operator

1 x 712650 FAAC electrolock

1 x 712651001 Internal cylinder for electric lock

1 x 712652001 External cylinder for electric lock

Additional notes

One year against manufacturing defects.

Operator WITH lock.

Door installation requires physical stops.

It is important to take into account the resistance that the wind can generate in gates without ventilation slots when operating the motors when opening and closing folding doors. We recommend considering the installation of grilles that allow adequate ventilation to facilitate the correct operation of the devices .
