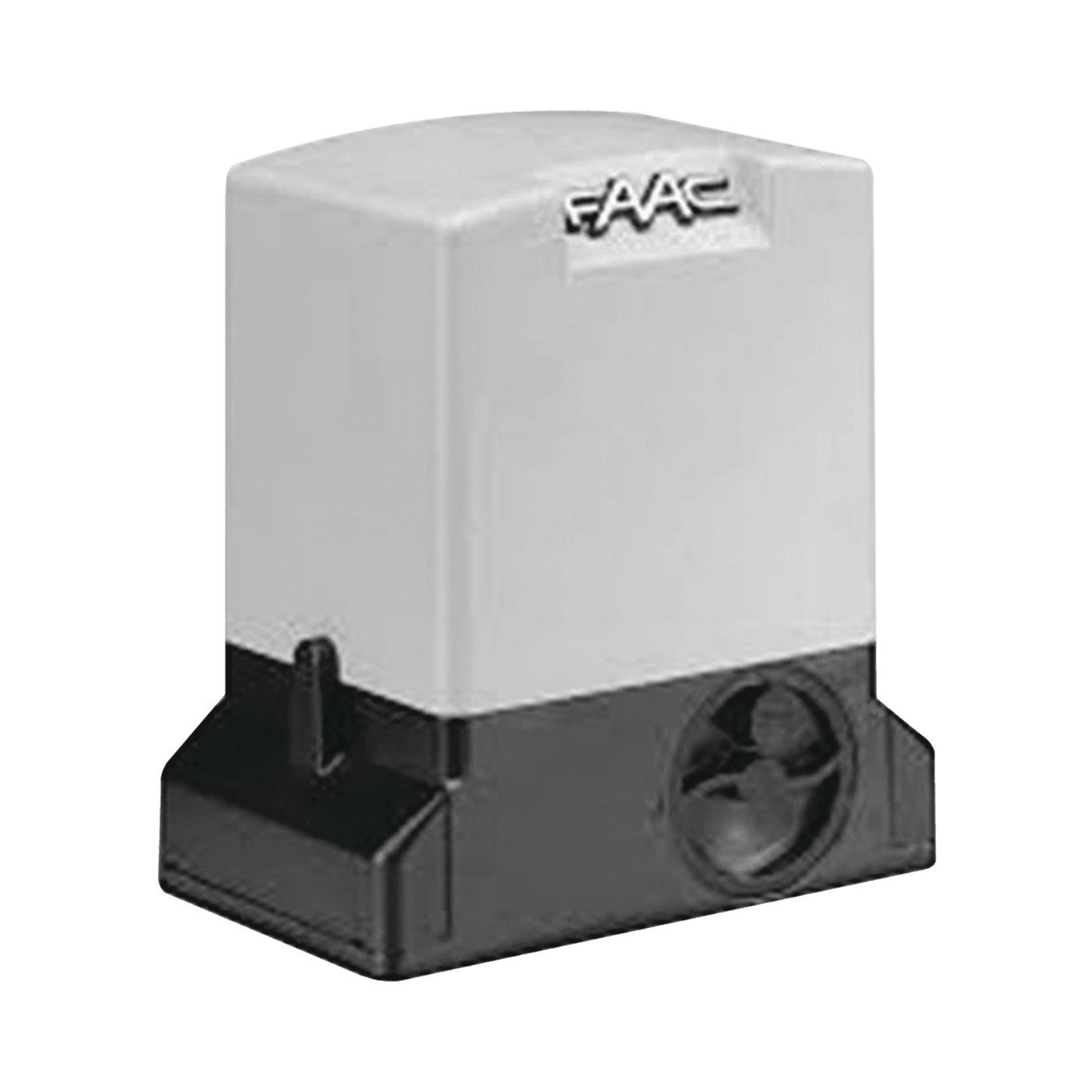

FAAC 740 Operator for Sliding Doors up to 500 kg / Maximum Leaf Length of 15 Meters

  • d89f788e4087637b979a97f9135c7c4a
1 1
  • Equipo para uso residencial
  • Garantía de 1 año

59 in stock

Modelo: 10563037

Proveedor: FAAC

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • For doors up to 500 kg
  • Maximum supported length 15 m
  • Travel speed of 12 m/min
Physical and Electrical Characteristics:
  • Power supply 110V
  • Maximum consumption 350W
  • IP44 protection grade
Featured Features:
  • Frequency of use of 30%.
  • Operating temperature -20° to 55°C
  • Thermal protection at 140°C

Sliding door operator 500 kg FAAC 740

What the model contains:

  • 1 x FAAC 740 Sliding Door Operator
  • 1 x 787856 FAAC Frequency Receiver
  • 2 x 787456 FAAC XT4 frequency transmitter.

Additional notes:

  • 1140-0510-001 Zipper Module 4, Sold in sections of 2 meters
  • Zipper quantity depends on door size.
  • Equipment with 1 year warranty against manufacturing defects.

Additional accessories not included:

  • 787456 Additional XT4 remote control
  • 785102 XP20 FAAC photocells
  • 1140-0510-001 Module 4 rack (Sold in sections of 2 meters)
  • 10LZRH100 Safety laser sensor.
  • XBSSW01 Heavy-duty triple keypad
  • 410029 FAAC lamp for sliding and folding engines.

Additional characteristics:

  • Easy programming thanks to the display built into the control card.
  • Magnetic limit switches
  • Integrated encoder for reverse function when detecting an obstacle
  • Maximum operator torque 18 Nm
  • For residential use
  • Pinion Z16 module 4
