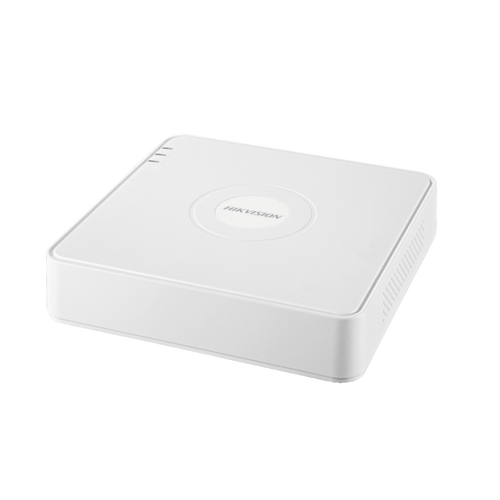

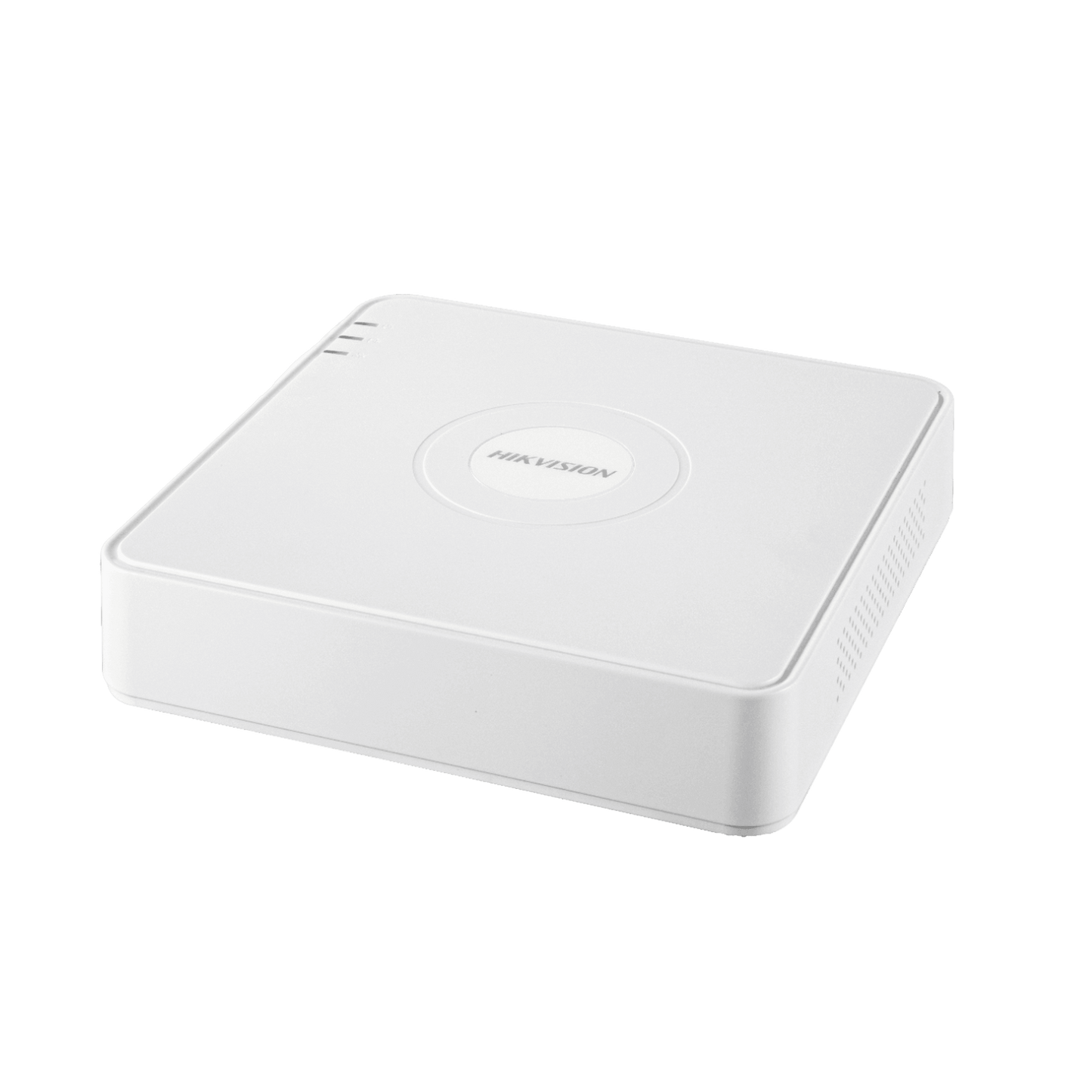

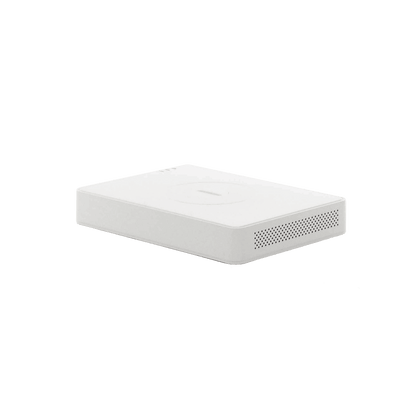

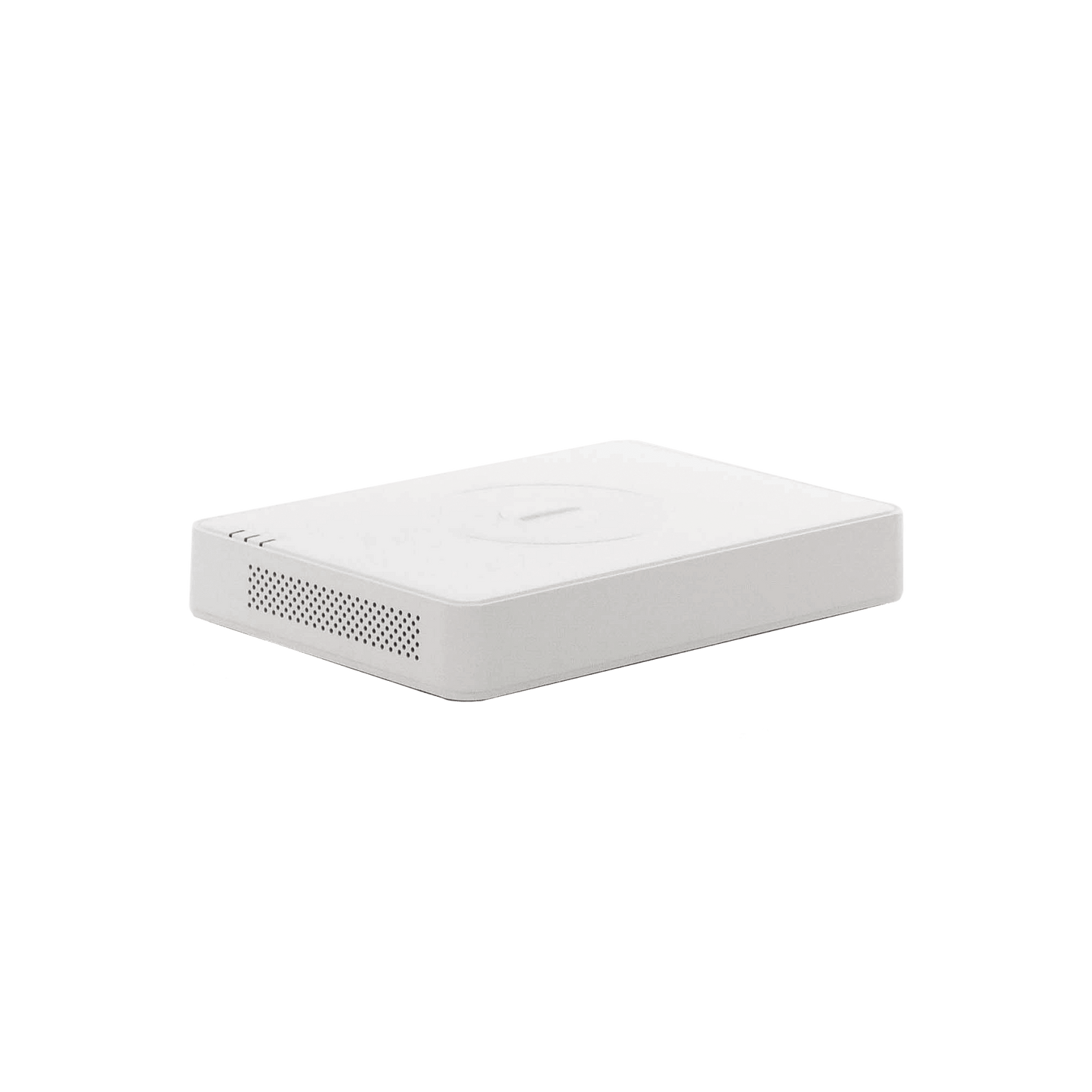

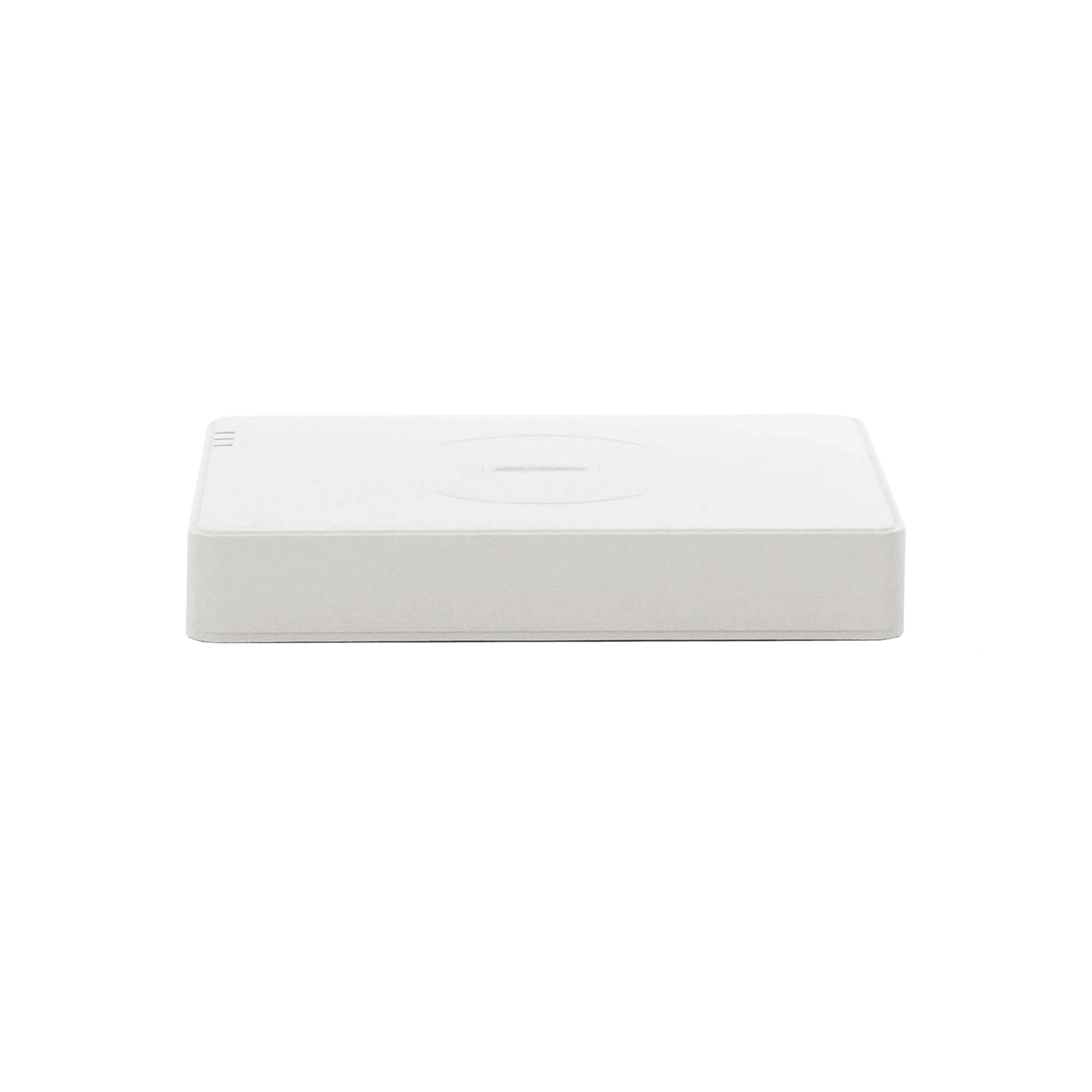

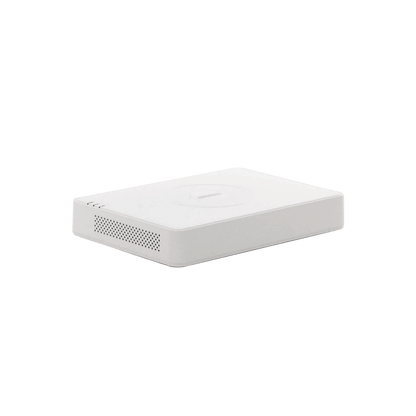

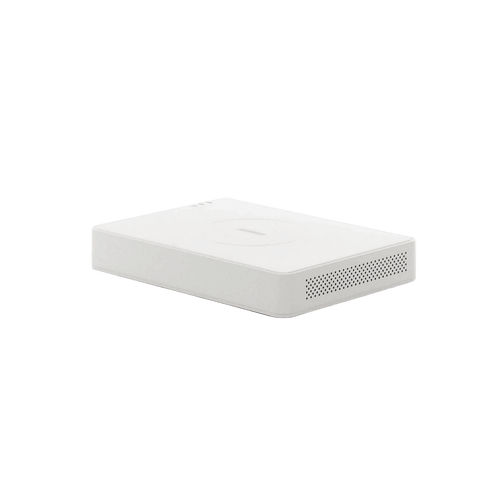

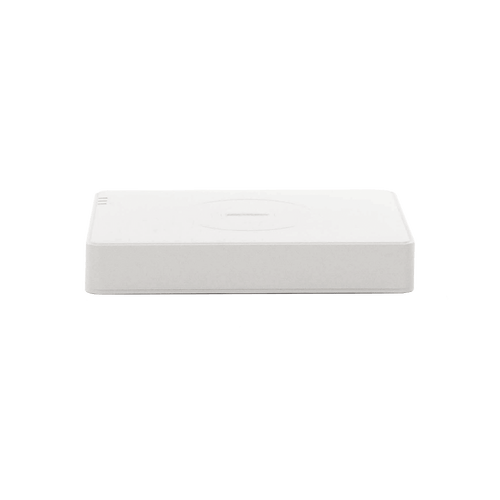

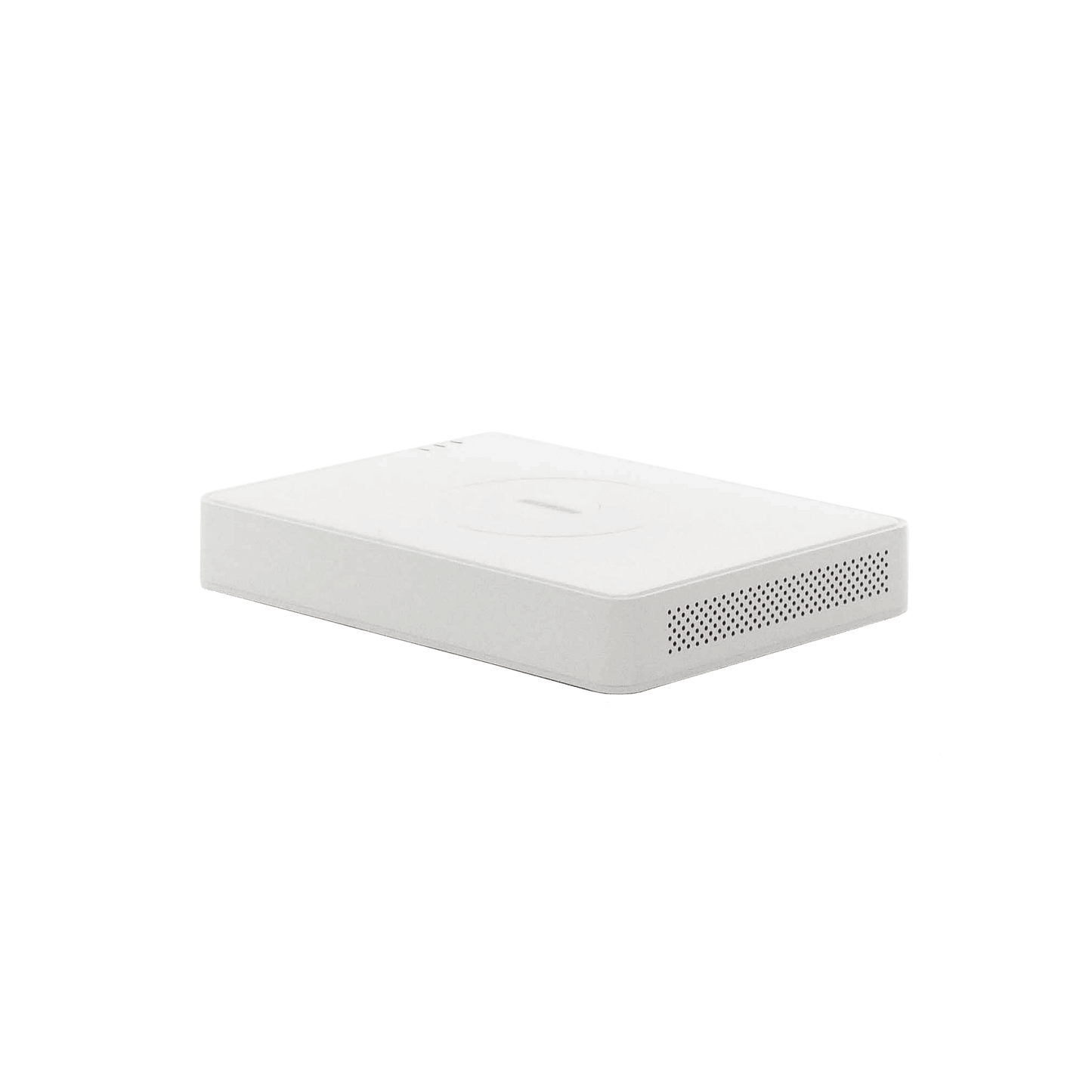

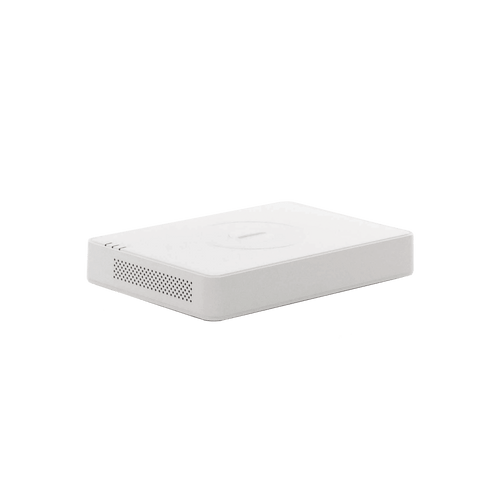

4 Megapixel NVR (Compatible with ACUSENSE Cameras) / 8 IP channels / 8 PoE Ports / 1 Hard Drive Bay / Full HD Video Output

  • 7546b1cd4781a6b191514640db26f4c5
  • 21ec8193992a8f1c2da383c2bbe6c63f
  • 5538cdc1f0abfbb45a240f46d8ab1f1f
  • e5f964453008c4c0fca89b7794a3662a
  • 2234f234ee7b0100cb38af01a99247f4
1 5

Out of stock

Modelo: DS-7108NI-Q1/8P(C)

Proveedor: HIKVISION

Código SAT: 46171621

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Main features:

  • Video compression: H.265+ / H.265 / H.264+ / H.264
  • 8 PoE Ports (supports af/at standard).
  • 75 watts total on its PoE+ ports.
  • Supports USB mouse to operate (included).
  • Supports 1 hard drive up to 6TB (not included).
  • Supports DDNS (Hik-Connect, DynDNS, No-IP, etc).
  • Supports Hik-Connect (P2P) ( https://appstore.hikvision.com/ ).
  • Remote access via phone: Android, iPhone, iPad (Hik-Connect).
  • EDGE browser support (ietab), Chrome.
  • Compatible with iVMS-4200 software (free).
  • Supports multiple brands using the ONVIF protocol.

Physical and Electrical Characteristics:

  • Dimensions 285 × 210 × 48 mm
  • Power / consumption: 48 Vdc / 1.8 A / 10 W.
  • Operating temperature: -10°C to 55°C.
  • Weight: 1 kg.
  • Warranty: 2 years.

Recording resolution per channel (recommended with H.265):

  • 1 MP (720P): 8 Channels - 30 IPS.
  • 2 MP (1080P): 8 Channels - 30 IPS.
  • 4 MP: 8 Channels - 30 IPS.
  • Synchronous playback on channels: 4 channels.

Processing capacity and network functions:

  • Input processing (Throughput input): 60 Mbps.
  • Output processing (Throughput output): 60 Mbps.
  • 1 100 Mbps LAN network port.

Recording and Viewing Functions:

  • Multi-zone motion detection.
  • Digital zoom in viewing and recording.
  • Dual stream (main stream and sub stream).
  • Supports fast forward, slow, frame by frame, etc
  • Supports SMART hard drive technology
  • Supports multiple types of recording, including real time, manual recording, videosensor, video sensor and alarm, video sensor or alarm.
  • Supports cyclic (overwrite) and non-cyclic recording.

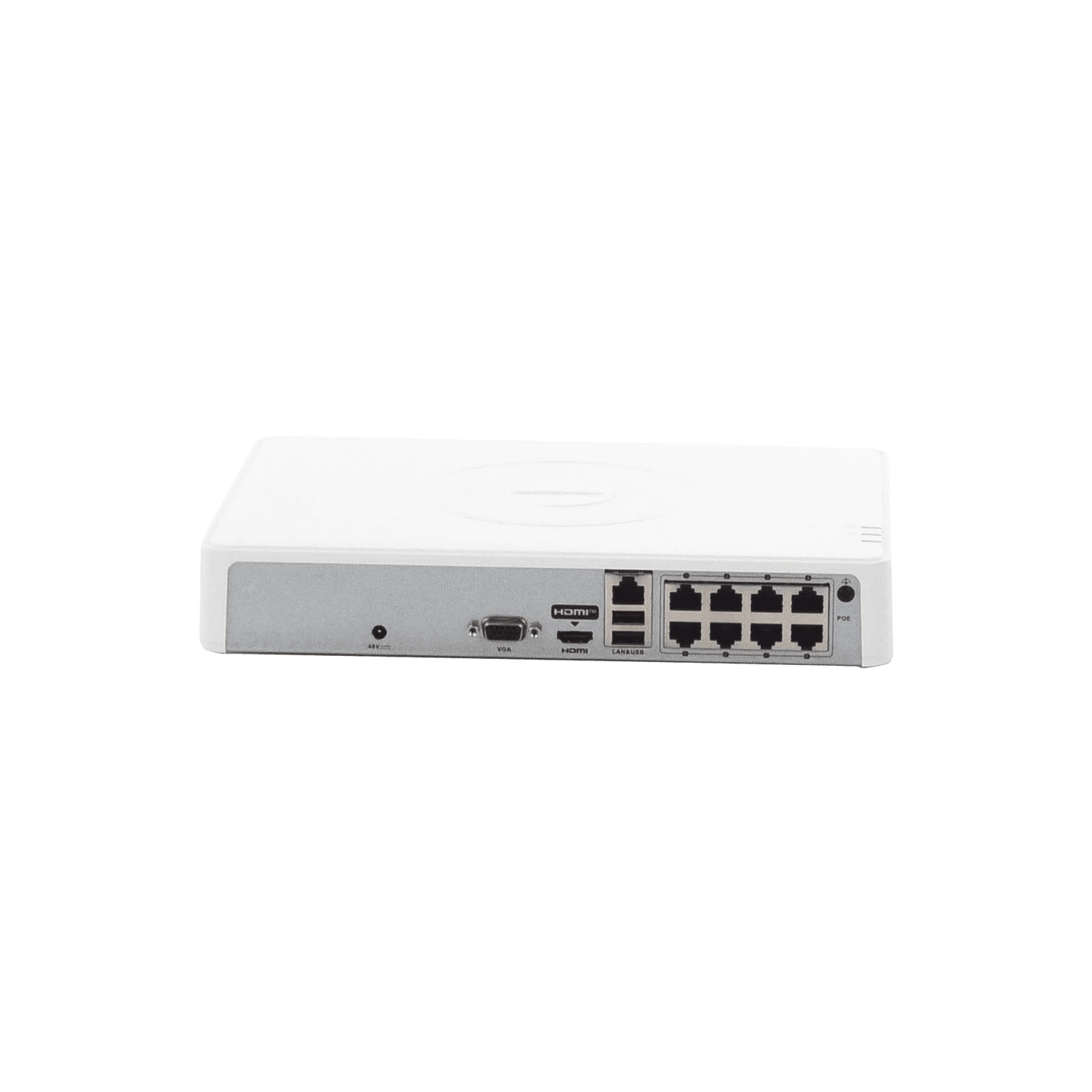

Input/Output Interfaces:

  • Simultaneous HDMI and VGA output.
  • HDMI resolution: 1080p / 720p.
  • VGA resolution: 1080p/720p.
  • Audio Input: Not applicable.
  • Audio Output: Not applicable.
  • Alarm Input: Not applicable.
  • Alarm Output: Not applicable.

Featured Features:

ACKNOWLEDGMENT (False Alarm Filter):

  • With ACUSENSE technology we can avoid false alarms such as tree movement, animals, etc
  • By activating the ACUSENSE technology, it only detects the human body and vehicles to really detect important events and thus eliminate false alarms.
  • Supports up to 8 channels with ACUSENSE technology using cameras:DS-2CD3XX / DS-2CD2XX3G2 / DS-2CD2XX7G2 (which supports ACUSENSE).
  • Supports up to 8 channels with ACUSENSE Lite technology (human and vehicle but with motion detection, not analytical) using DS-2CD1XX3G2 and DS-2CD1XX3G7G2 cameras (which support ACUSENSE Lite).
