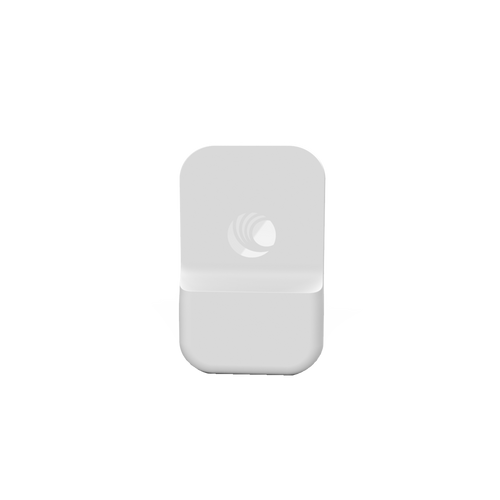

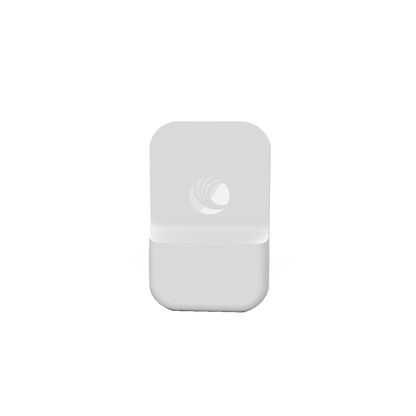

cnWave V1000 client node, 60 GHz (free frequency), 80º sector antenna, 22.5 dBi, up to 500 meters, 2 Gbps

  • a216a29ac4cbfcc9ed25bf2f023fc670
  • a216a29ac4cbfcc9ed25bf2f023fc670
1 2
  • IP67 protection
  • Includes mast mount and PoE power supply
  • 80º Beamforming antenna for easy alignment
  • 3 Years Warranty

Out of stock

Modelo: C600500C001A

Proveedor: CAMBIUM NETWORKS

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

60GHz cnWave V1000

V1000 comes with wide range 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Recommended distance for multipoint client ( V5000 node): 300 meters

Maximum distance for Point to Point (with another V1000): 500 meters



Designed for high-speed, high-density deployments

Cambium Networks' 60 GHz cnWave solution provides easy wireless gigabit connectivity, fast and cost-effective for edge access and/or high-capacity backhaul for edge access solutions with a significantly lower TCO than fiber infrastructure. Service providers and businesses now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi or LTE/5G small cell access. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient in handling high-density deployments in cities and suburban areas.

V1000 comes with wide range 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Cloud and on-premise management

CnWave 60 GHz is powered by Cambium Networks' cnMaestro management system. cnMaestro™ is an on-premise or cloud-based software platform for secure end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full set of wireless network management functions in real time. Optimize system availability, Maximize performance and meet the emerging needs of commercial and residential customers.

Frequency range
57 to 66 GHz in a single SKU
Channel width
2,16 GHz, 4:32 GHz *Available in future update
Operation mode
PMP or PTP Subscriber
Ports
1 x 100/1000 BaseT PoE input 802.3af
Maximum consumption
10W
Modulation
MCS-0 (BPSK) to MCS-12 (16-QAM)
Latency
<1ms
Maximum EIRP
38 dBm
Encryption
128-bit AES

*Includes mounting and PoE power supply.
