NanoStation airMAX M5 CPE, up to 150 Mbps, 5 GHz (5170-5875 MHz) frequency with integrated 16 dBi antenna

  • cc1ffd9e41a458b3c922679241c29df8
  • b6e8b3ec6a0f45d53f6317ff2eb80d83
  • f58ec1ed523cc8eda2c2436b497bb17b
  • 0994e12cf48d9fdc98e27808f4ede2b0
  • 1e0f6fbf2c4bb06fa627cbfdda531048
1 5
  • Frecuencia operativa mundial 5170-5875 MHz, 5 GHz
  • Procesador Atheros MIPS 74KC a 560 MHz
  • Polarización dual con beamwidth 43° H-Pol, 41° V-Pol
  • Ancho de canal ajustable de 5 a 40 MHz
  • Compatibilidad AirMax (TDMA) para señalización propietaria

200 in stock

Modelo: NSM5

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

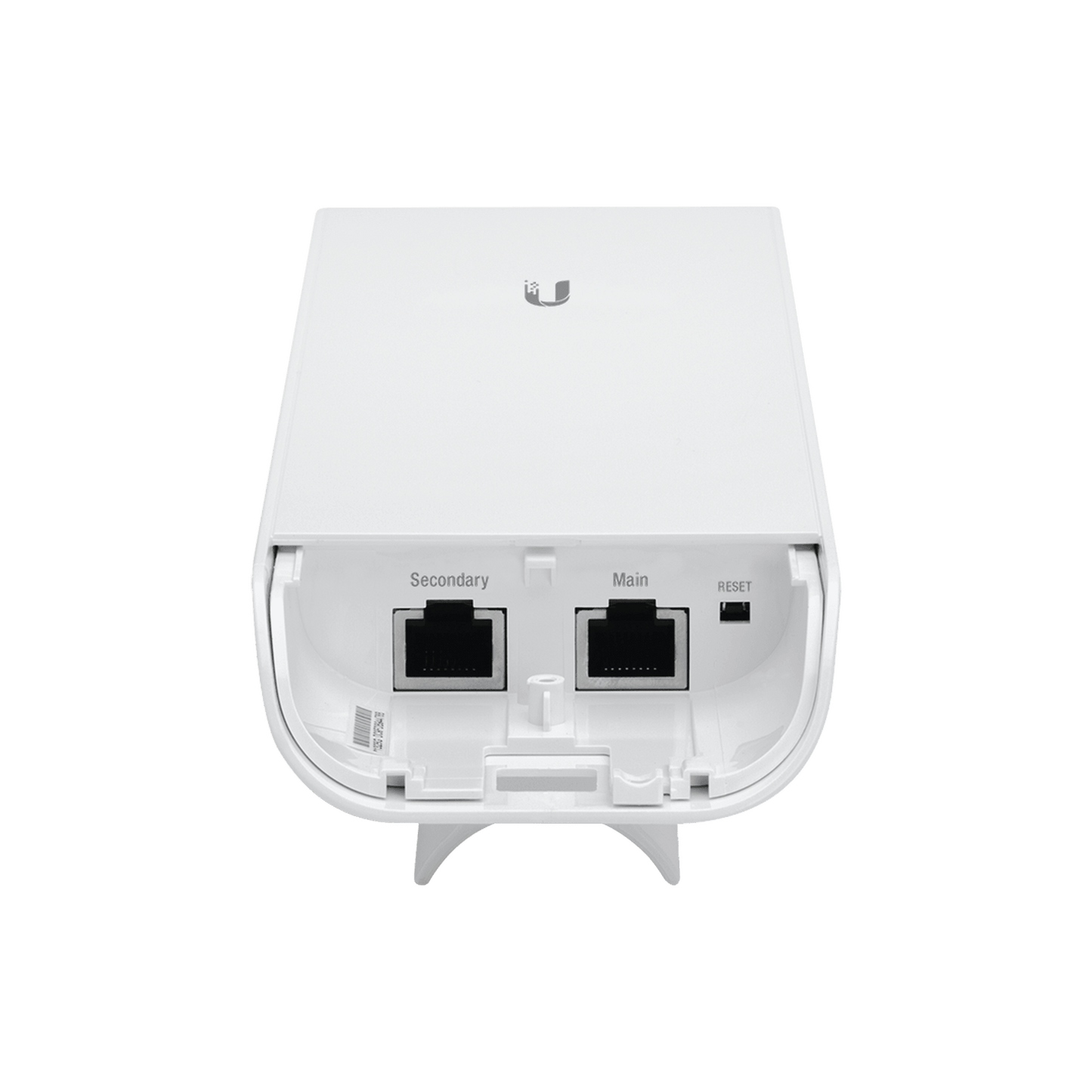

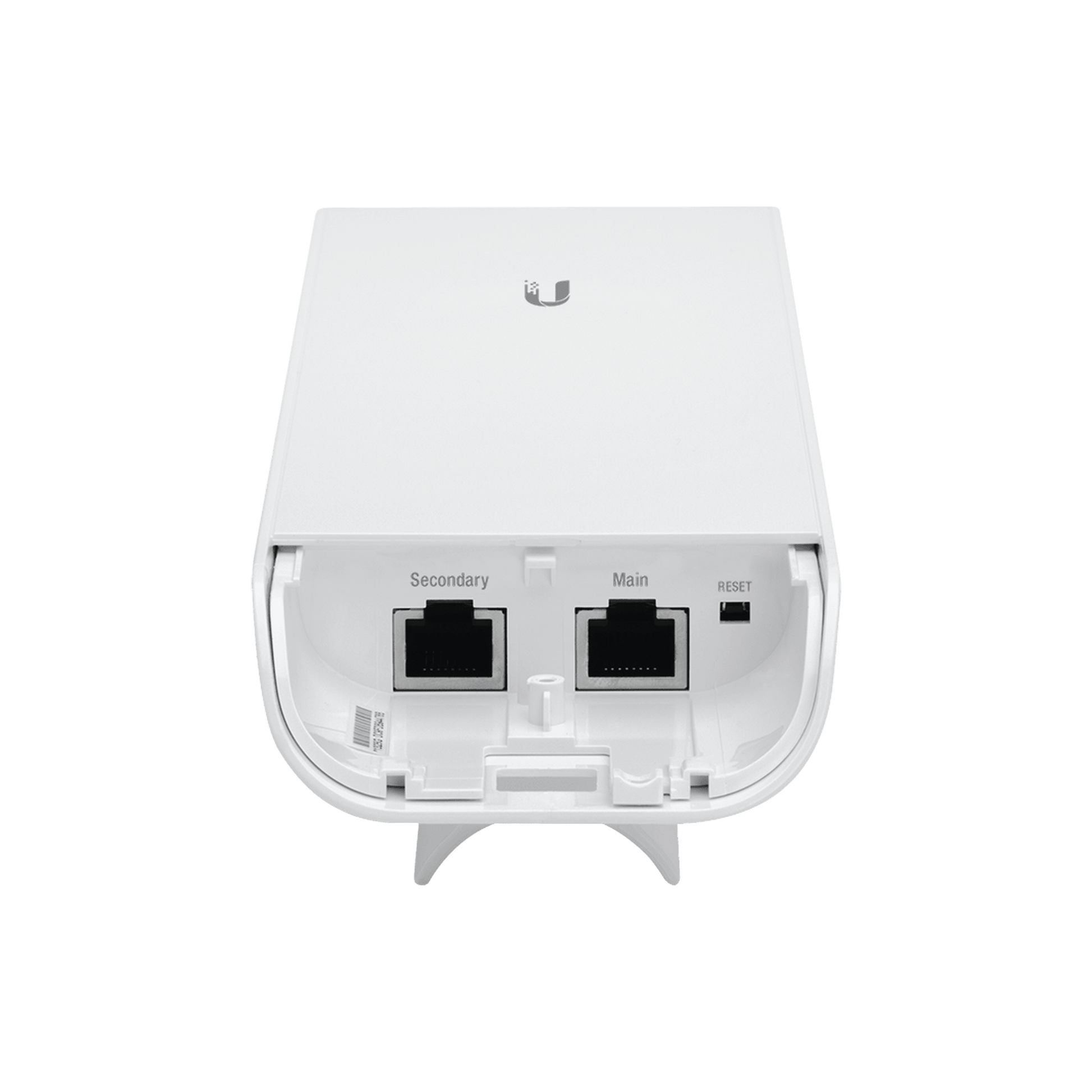

Ports:
2 10/100 Mbps ports.

OS:
airOS® 6

Modes of Operation:
Access Point.
Season.

Characteristics:
Adjustable channel widths from 5 to 40 MHz.
Simultaneous Double Polarity (Vertical and Horizontal, 2x2).
Security: WEP, WPA, WPA2 and MAC ACL.
Proprietary signaling: airMAX (TDMA).
Easy to install.
Versatile and compact design.

Physical and Electrical Characteristics:
Power (PoE): 24 Vdc 0.5A .
Dimensions: 294 x 31 x 80 mm.
Weight: 400g.
Operating Temperature: -30°C to 75°C.

Includes:
NanoStation M5.
PoE Adapter 24 Vdc 0.5A
Power cord.
Quick installation guide.
Warranty:
1 year.

Operating Frequency
Worldwide


5170-5875MHz

Revenue

14.6-16.1 dBi

Network Interfaces

(2) x 10/100 Ethernet Ports

Processor

Atheros MIPS 74Kc, 560MHz

Memory

64 MB DDR2, 8MB Flash

Frequency

5GHz

Cross-pol

22dB Minimum

Max. VSWR

1.6:1

Beamwidth

43° (H-pol) / 41° (V-pol) / 15° (Elevation)

Polarization

Dual

Material

UV stabilized plastic

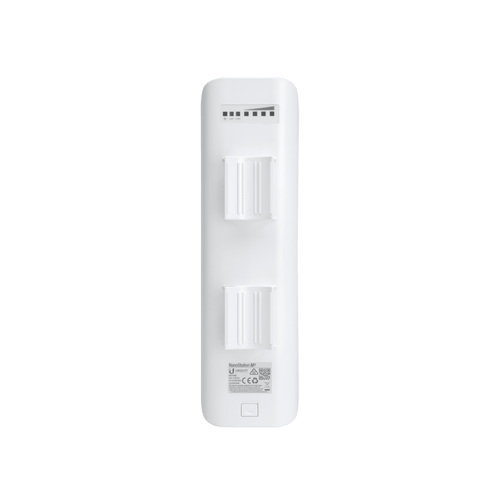

Mounting

Pole-Mount (Kit Included)

Operating temperature

-30 to 75° C (-22 to 167° F)

Humidity

5 to 95%

Wireless Certifications

FCC Part 15.247, RS210 IC EC



Made in China.

Versatile.

Dual Ethernet connectivity.



Powerful airOS features.


Compact and elegant design.


advanced airMAX technology.



Plug and Play installation.
