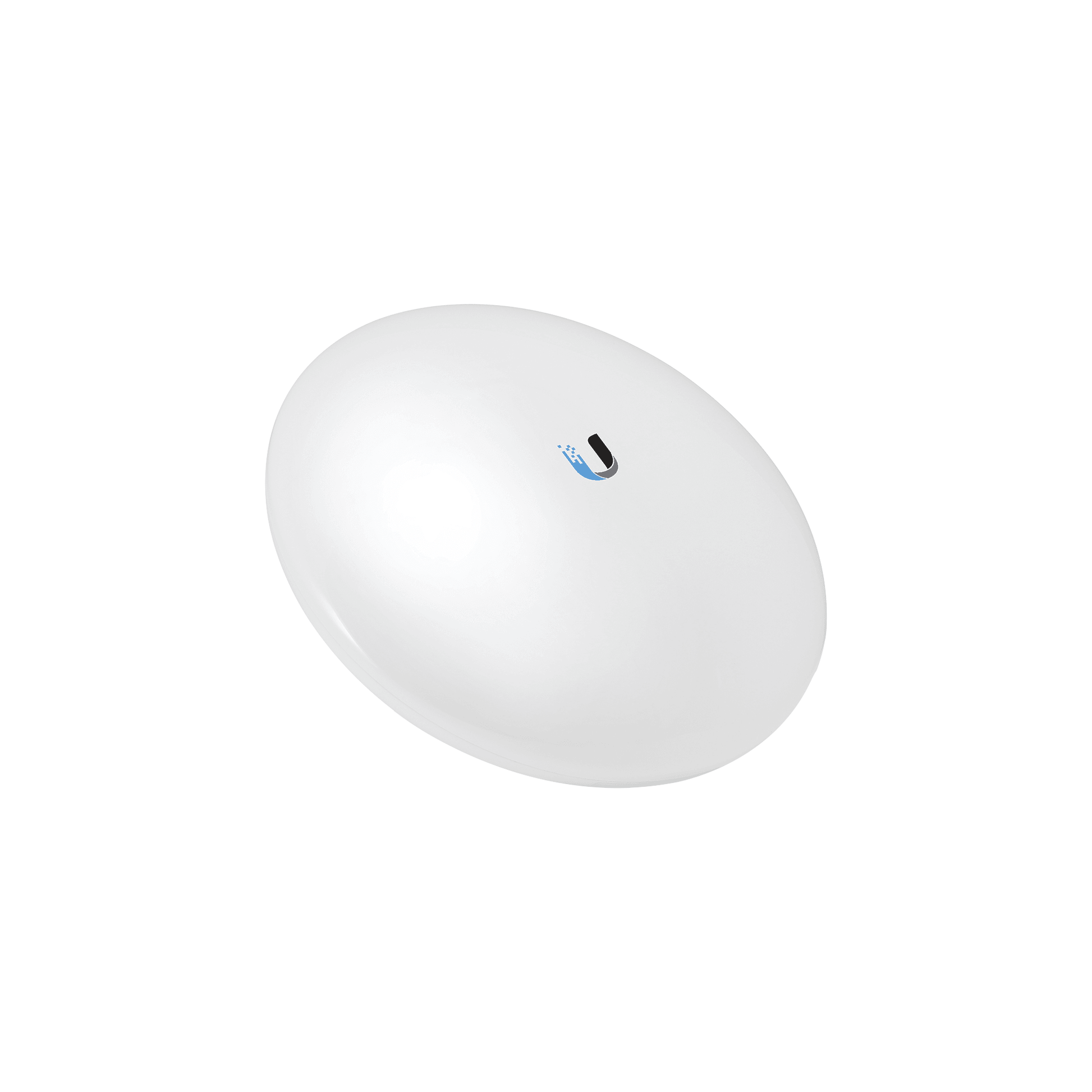

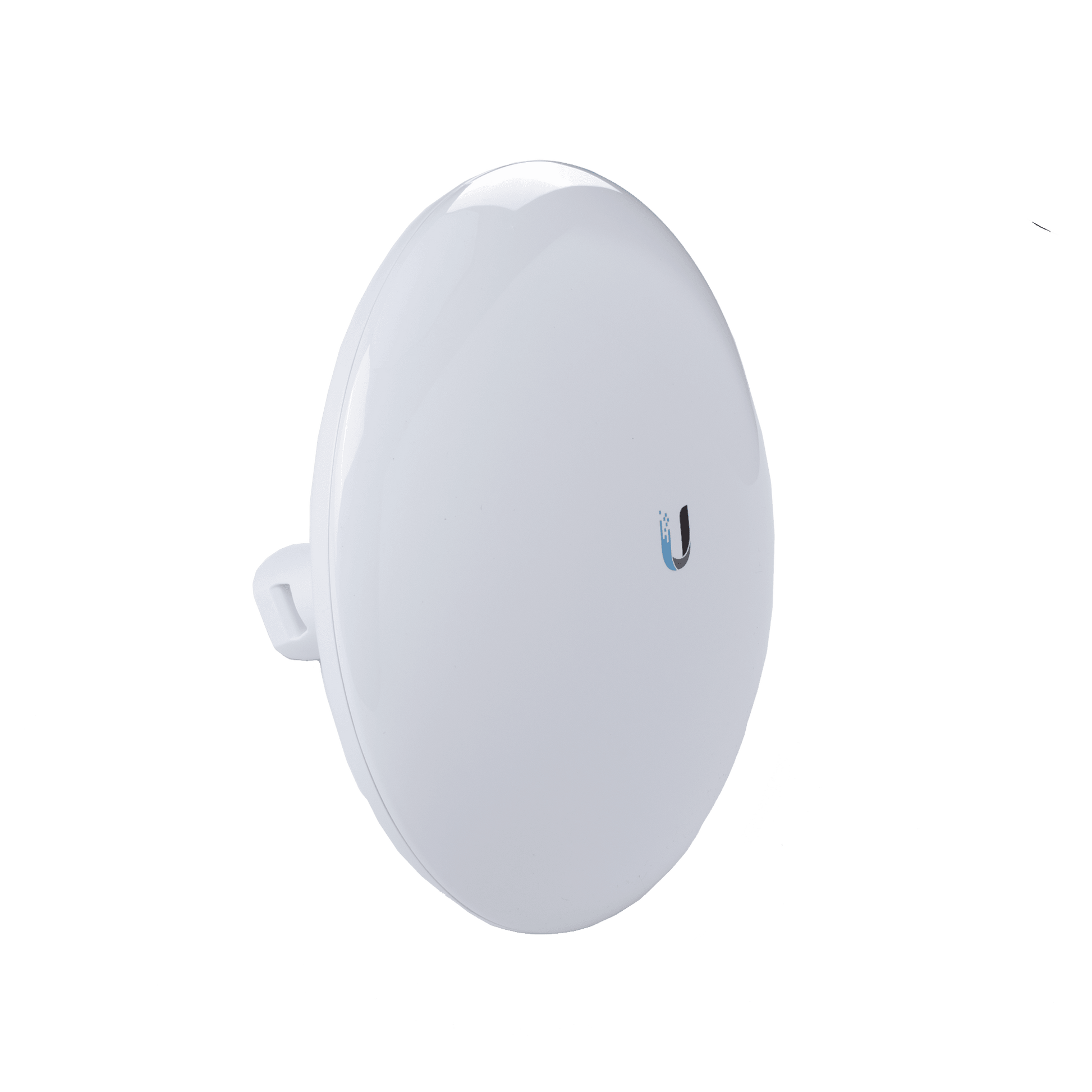

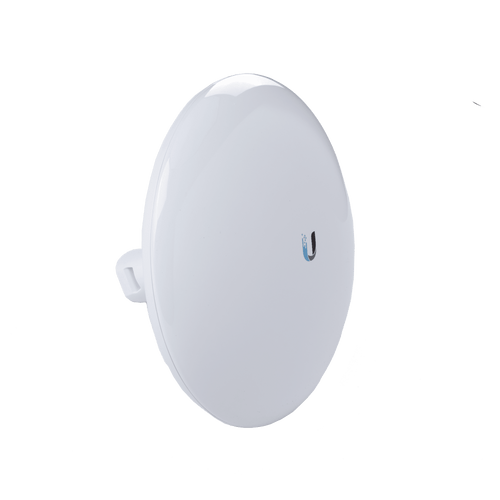

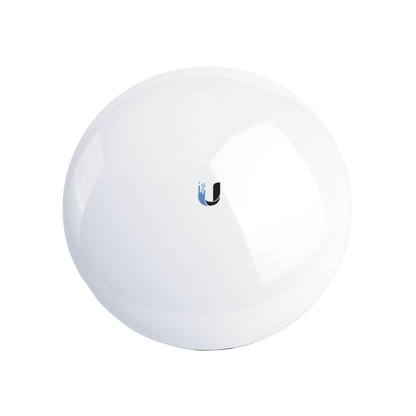

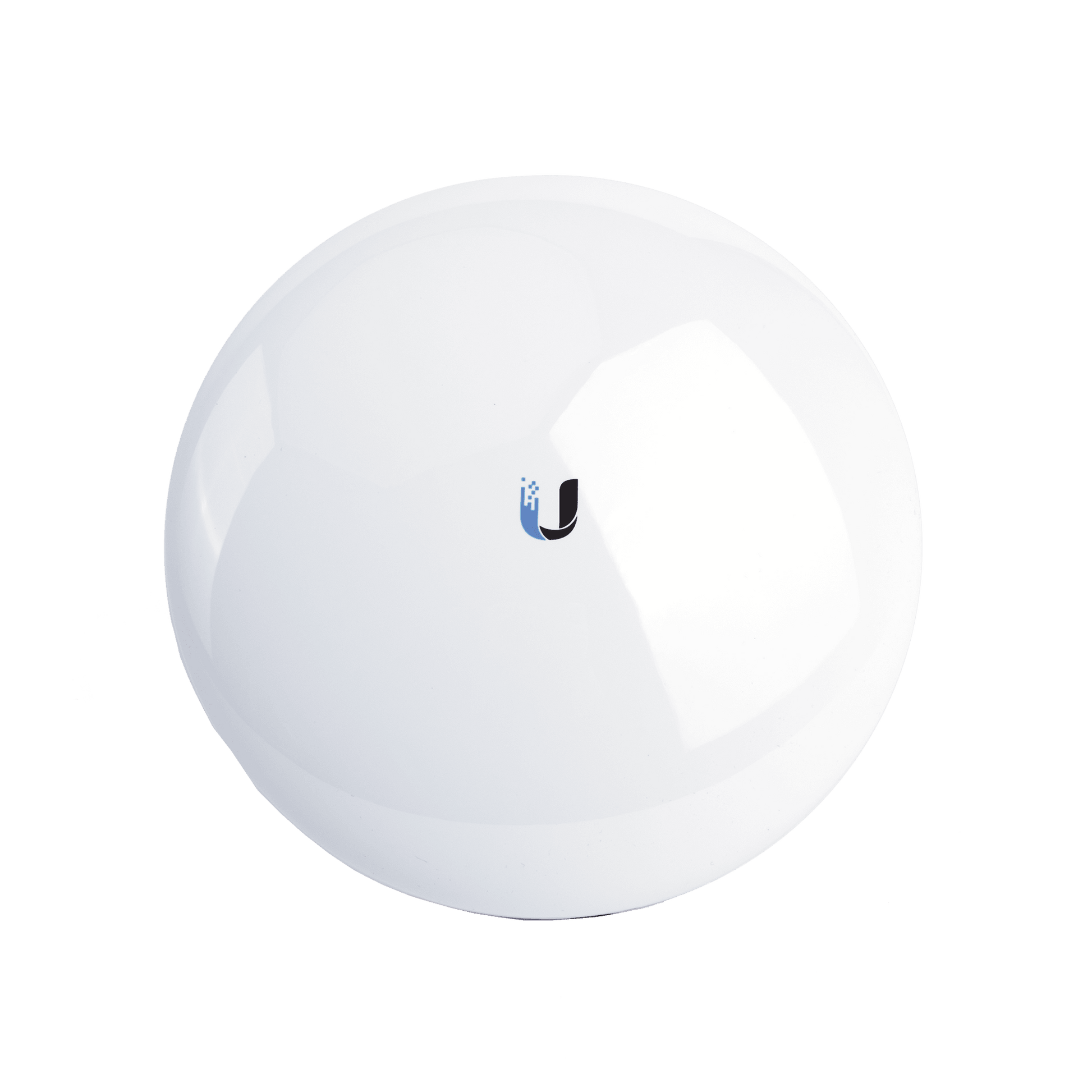

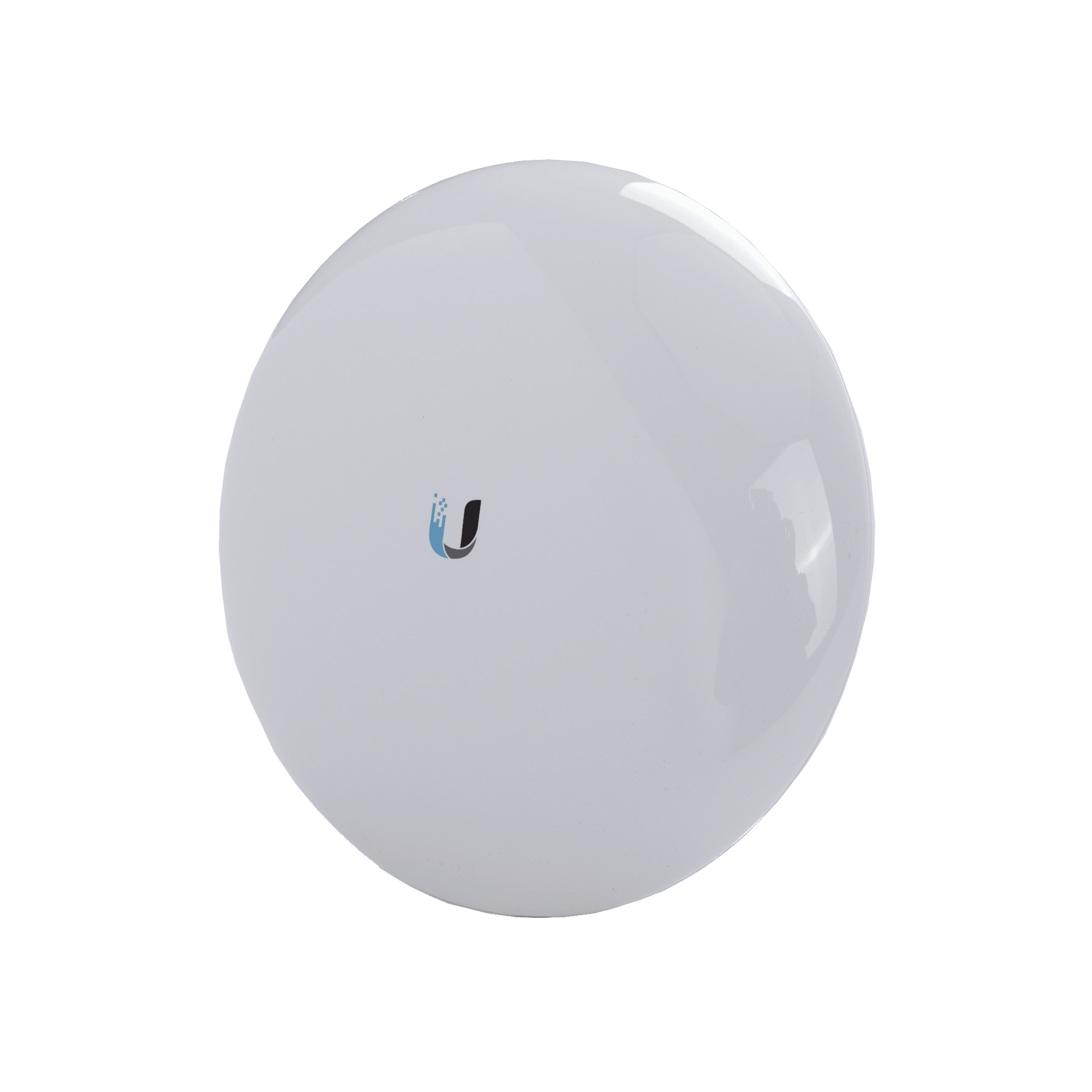

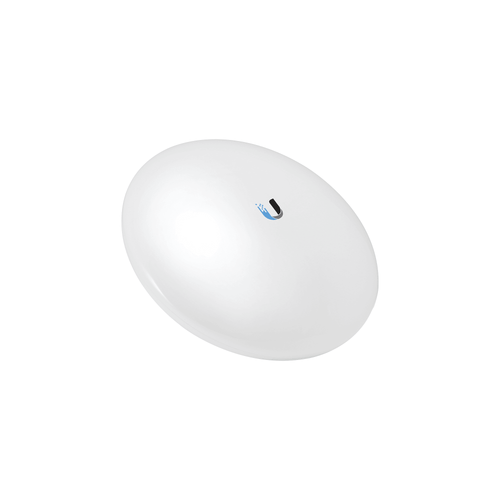

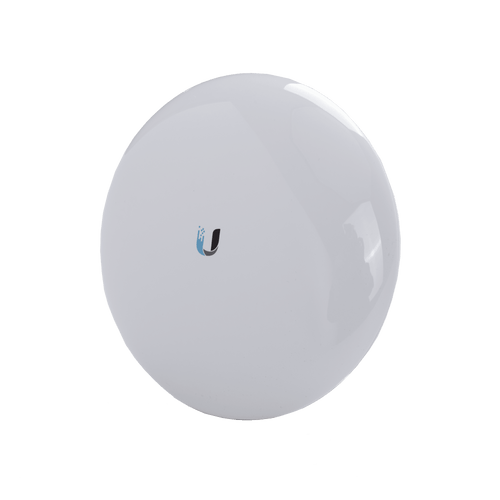

NanoBeam airMAX AC GEN2 CPE up to 450 Mbps, 5 GHz (5150 - 5875 MHz) with integrated 19 dBi antenna

  • ddc7e7165fadd6ead5fe3e34da25392f
  • 06e3f90950da6ed32ea05bfcbf9b4a1a
  • f38e94f8302446e5427d2a875390e6c0
  • f05d34036afc7f0af0b835e9693f16cf
  • 52219c8d5063c029733c5ea324593d6d
  • e3caecd6bbc5760c497dabe899e50622
1 6
  • Radio Wi-Fi separada para fácil configuración móvil
  • Protección mejorada contra eventos ESD
  • Ganancia de antena de 19 dBi para alto rendimiento
  • Carga de viento 45.4 N a 200 km/h
  • Consumo máximo de 8W con PoE pasivo

Out of stock

Modelo: NBE-5AC-GEN2

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Wi-Fi radio for administration

The NanoBeam ® AC integrates a separate Wi-Fi radio for quick and easy setup using a mobile device.

Improved download protection

The NanoBeam ® AC features enhanced protection against ESD events.

High performance antenna

AC has the highest gain for its size. Excellent directivity and provides better performance in high noise environments.

Product Specification
Dimensions (Mounting Included) 189 x 189 x 125mm
(7.44 x 7.44 x 4.92")
Weight (Mounting Included) 530g
(1.17lb)
Revenue 19 dBi
Networking Interface (2) 10/100/1000 Ethernet Ports: Wi-Fi for Administration
Enclosure Outdoor UV Stabilized Plastic
Max Consumption 8W
Power supply 24V Gigabit PoE Adapter 0.5A (Included)
Feeding Method Passive PoE (Pairs 4, 5+, 7, 8 Return)
Wind Loading 45.4 N @ 200 km/h
(10.2 lbf @ 125 mph)
Wind Survivability 200km/h
(125 mph)
Certifications CE, FCC, I.C.
Mounting Pole Mount (Included)
Wall Mounting (Not included)
ESD/EMP Protection ±24kV Contact/Air
Operating Temperature -40 to 80° C (-40 to 176 F)
Humidity 5 to 95% No condensation
Operating Frequency MHz
Worldwide 5150-5875
USES
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250
5250-5350
5240-5725
5725-5850
